seat memory Lexus IS350C 2012 Owner's Manual / LEXUS 2012 IS250C,IS350C OWNERS MANUAL (OM53A62U)

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ...................................................... 28
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 32
Wireless remote control .............. 44
Doors.................................................... 47
Trunk...................................................... 51
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats .......................................... 55
Driving position memory .............. 61
Seat position memory ................... 65
Head restraints................................. 67
Seat belts ............................................ 70
Steering wheel.................................. 76 Anti-glare inside rear
view mirror...................................... 78
Outside rear view mirrors ........... 79
1-4. Opening and closing the windows and
retractable hardtop
Power windows................................ 82
Retractable hardtop....................... 86
1-5. Refueling Opening the fuel tank cap........... 95
1-6. Theft deterrent system Engine immobilizer system ......... 98
Alarm.................................................. 100
Theft prevention labels (U.S.A.) ........................................... 103
1-7. Safety information Correct driving posture ............. 104
SRS airbags ..................................... 106
Front passenger occupant classification system ................... 118
Child restraint sy stems ............... 123
Installing child restraints .............. 127
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control
• Rear view monitor system • Audio/video system
• Rear window and outside rear view
mirror defogging
• Intuitive parking assist

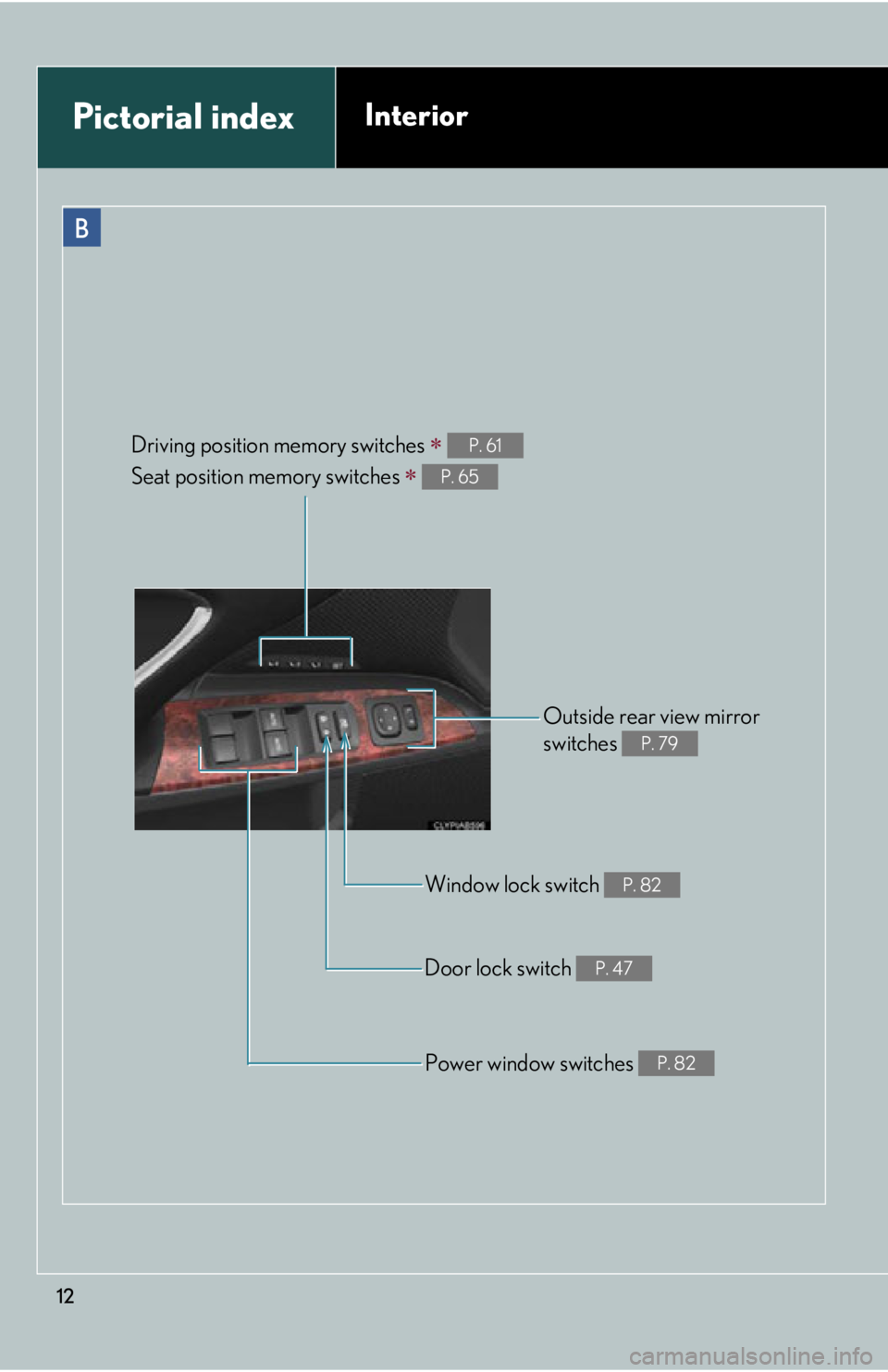

12
B
Driving position memory switches 
Seat position memory switches

P. 61
P. 65
Door lock switch P. 47
Outside rear view mirror
switches
P. 79
Window lock switch P. 82
Power window switches P. 82
Pictorial indexInterior

Before driving1
27
1-1. Key informationKeys .............................................. 28
1-2. Opening, closing and locking the doors and
trunk
Smart access system with push-button start ................... 32
Wireless remote control ......... 44
Doors ............................................ 47
Trunk .............................................. 51
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ................................... 55
Driving position memory ......... 61
Seat position memory.............. 65
Head restraints .......................... 67
Seat belts ..................................... 70
Steering wheel ........................... 76
Anti-glare inside rear view mirror ............................... 78
Outside rear view mirrors ...... 79 1-4. Opening and closing
the windows and
retractable hardtop
Power windows .......................... 82
Retractable hardtop ................ 86
1-5. Refueling Opening the fuel tank cap ..... 95
1-6. Theft deterrent system Engine immobilizer system........................................ 98
Alarm.......................................... 100
Theft prevention labels (U.S.A.).................................... 103
1-7. Safety information Correct driving posture ....... 104
SRS airbags .............................. 106
Front passenger occupant classification system............. 118
Child restraint systems ......... 123
Installing child restraints........ 127

59
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Switch-operated “Front, Fold & Return” Seat
●When the auto return function is on, a buzzer will sound intermittently while the
switch-operated “Front, Fold & Return” seat is in motion.
●If any seat adjustment switch or driving position memory switch is operated
after the seat is moved to the forward and fold position using the “Front, Fold &
Return” seat switch, the seat cannot be returned using the “Front, Fold & Return”
seat switch. Use a switch other than the “Front, Fold & Return” seat switch to
return the seat.
●The switch-operated “Front, Fold & Return” seat cannot operate when:
• A person or item of luggage is on th e seat or the seat belt is fastened.
• The vehicle is moving.
●Operation of the Switch-operated “Front, Fold & Return” Seat will stop if:
• The “Front, Fold & Return” seat switch is pressed again.
• Any seat adjustment swit ch or driving position memory switch is pressed.
• A person enters the seat or an item of luggage is put on the seat (during for- ward movement only).
• The vehicle starts off.
• The seat belt is fastened (during forward movement only).
■When the seatback is fully reclined
Do not use the seatback fold lever to rais e the front seat as this may prevent the
seatback from locking in place.
If the seatback will not lock, press and ho ld the seatback angle switch forward for a
few seconds to change the memorized seat position. Raise the seatback by hand
and check that it locks in position as normal.

61
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Driving position memory (driver’s seat)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Switch to IGNITION ON mode.
Adjust the driver’s seat, steeri ng wheel, and outside rear view
mirrors to the desired positions.
Push the “SET” button, then
within 3 seconds push button
“1”, “2” or “3” until you hear a
beep.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Vehicles with an automatic transmis sion: Check that the shift lever is
set in P.
Vehicles with a manual transmissi on: Check that the parking brake is
set.
Switch to IGNITION ON mode.
STEP1
STEP2
STEP3
STEP1

: If equipped

62
1-3. Adjustable components (seats, mirrors, steering wheel)
Linking driving position memory with door unlock operation
Record your driving position to butto n “1”, “2” or “3” before performing
the following.
Using the wireless remote control Close the driver's door and turn the “ENGINE START STOP”
switch OFF.
While the desired button (“1”, “2”
or “3”) press on the wireless
remote control until the signal
beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
To prevent unintended triggering of the alarm, open and close a door
once after a driving posit ion has been recorded. (If a door is not opened
within 60 seconds after is pressed, th e doors will be locked again and
the alarm will automatically be set.)
In case that the alarm is triggered , immediately stop the alarm. (P. 100)
To recall the memorized posi-
tion, push button “1”, “2” or “3”
until you hear a beep. STEP2
STEP1
STEP2

64
1-3. Adjustable components (seats, mirrors, steering wheel)
■Canceling the linked door unlock operation
Close the driver's door and turn the “ENGINE START STOP” switch
OFF.
Using the wireless remote control: While pushing the “SET” button, press
on the wireless remote control until the signal beeps.
Using the door lock switch: While pressing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memory after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel positions) can be activated up
to 180 seconds after the driver's door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
child restraint system, or squeeze your body against the steering wheel.
STEP1
STEP2

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Seat position memory (front passenger’s seat)
Your preferred front passenger seat position can be memorized and
recalled with the touch of a button.
Three different seat positions can be entered into memory.
■Entering a position to memory
Switch to IGNITION ON mode.
Adjust the front passenger seat to the desired position.
Push the “SET” button, then
within 3 seconds push button
“1”, “2” or “3” until you hear a
beep.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Vehicles with an automatic transmis sion: Check that the shift lever is
set in P.
Vehicles with a manual transmissi on: Check that the parking brake is
set.
To recall the memorized posi-
tion, push button “1”, “2” or “3”
until you hear a beep.
STEP1
STEP2
STEP3

: If equipped

66
1-3. Adjustable components (seats, mirrors, steering wheel)
■Operating the seat position memory after turning the “ENGINE START STOP”
switch OFF
Memorized position can be activated up to 180 seconds after the front passenger
door is opened, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat position using the switches.
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
child restraint system.

77
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. ( P. 6 1 )
■Customization that can be configured at Lexus dealer
It is possible to deactivate the auto tilt-away function.
(Customizable features P. 5 9 5 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
