navigation lexus LC500 2018 Navigation Manual

188
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
7-1.Phone ope ration (Hands -free system for cellular pho nes)
The phone top screen can be reached
by the following method:
1 Press the “MENU” button on the
Remote Touch, then select “Phone”.
Select to display the “History”
screen. ( P.192)
Select to display the “Favourites”
screen. ( P.193)
Select to display the “Contacts”
screen. ( P.193)
Select to display the “Keypad”
screen. ( P.194)
Select to select device if there are
more than 2 phones registered.
Select to display the “Message”
screen. ( P.199)
The following functions can be used on
phone operation:
 Registering/connecting Bluetooth®
device ( P.39)
 Calling on the Bluetooth® phone
( P.192)
 Receiving on the Bluetooth® phone
( P.195)
 Talking on the Bluetooth® phone
( P.196)
The following function can be used on
message function:
 Using the Bluetooth® phone mes-
sage function ( P.199)
The following settings can be made in
navigation system:
 Phone settings (P.204)
 Bluetooth® settings (P.43)
Quick reference
Phone top screen operation
Phone operation
A
B
C
D
E
F
Message function
Setting up a phone

196
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
displayed correctly depending on the type of cellular phone you have.
●The ringtone that has been set in the “Sounds” screen sounds when there is an incoming call. Depending on the type of
Bluetooth® phone, both the system and
Bluetooth® phone may sound simultane- ously when there is an incoming call. ( P.204)
●The incoming call display mode can be set. ( P.205)
Main display
Select to display the keypad to send
tones. ( P.197)
Select to send tones. This button
only appears when a number that
contains a (w) is dialed in hands-
free mode. ( P.197)
Select to adjust your voice volume
that the other party hears from their
speaker. ( P.198)
Select to mute your voice to the
other party.
Select to mute navigation’s route
guidance during talking on the
phone.
Select to change handset modes
Talking on the Bluetooth®
phone
While talking on the phone, this
screen is displayed. The operations
outlined below can be performed
on this screen.
This screen can also be displayed
on the side display.
Call screen operation
A
B
C
D
E
F

202
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
played.
8 Check that a confirmation screen is
displayed when the operation is
complete.
 If an error message is displayed, fol-
low the guidance on the screen to
try again.
■Editing quick reply messages
This operation cannot be performed
while driving.
1 Select “Quick message”.
2 Select corresponding to the
desired message to edit.
3 Select “OK” when editing is com-
pleted.
●To reset the edited quick reply messages, select “Default”.
●Quick message #1 (“I am driving and will arrive in approximately [##] minutes.”):
This message cannot be edited and will automatically fill in [##] with the naviga-tion calculated estimated time of arrival
on the confirm message screen. If there are waypoints set, [##] to the next waypoint will be shown.
If there is no route currently set in the navigation system, Quick message #1 cannot be selected.
●Depending on the cellular phone used for receiving messages, reply function
may not be used.
Calls can be made to an e-
mail/SMS/MMS message sender’s
phone number.
This operation can be performed while
driving.
■Calling from e-mail/SMS/MMS
message display
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select “Message” on the sub menu.
4 Select the desired message.
5 Select , or press the switch
on the steering wheel.
 If there are 2 or more phone num-
bers, select the desired number.
6 Check that the call screen is dis-
played.
■Calling from a number within a
message
Calls can be made to a number identi-
fied in a message’s text area in blue
font.
This operation cannot be performed
while driving.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select “Message” on the sub menu.
4 Select the desired message.
5 Select the text area.
Calling the message sender

221
8
-$@-$I@/BWJ@0.&@ &&

8-1. Connected services
Connected services
Before using connected services,
access Lexus portal site
(www.my.lexus.eu) via a personal com-
puter etc. and create an account.
After that, perform the following pro-
cedure on the navigation system.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Lexus Web account”.
6 Select “Existing account”.
7 Input required information follow-
ing the message.
1 Setup Wi-Fi® or Bluetooth® con-
nection for internet.
2 Press the “MENU” button on the
Remote Touch.
3 Select “Setup”.
4 Select “Online” on the sub menu.
5 Select “Lexus Online”.
6 Select “Lexus Web account”.
7 Select “New account”.
8 Enter all data and press next.
The system must be connected to the
internet to use this service.
 Via a Bluetooth® device (P.39)
 Via Wi-Fi® (P.51)
Settings required for using
the service
Obtaining Lexus portal site
account
Obtaining an account via Lexus
Portal site
Obtaining an account via the sys-
tem
Connecting to internet

224

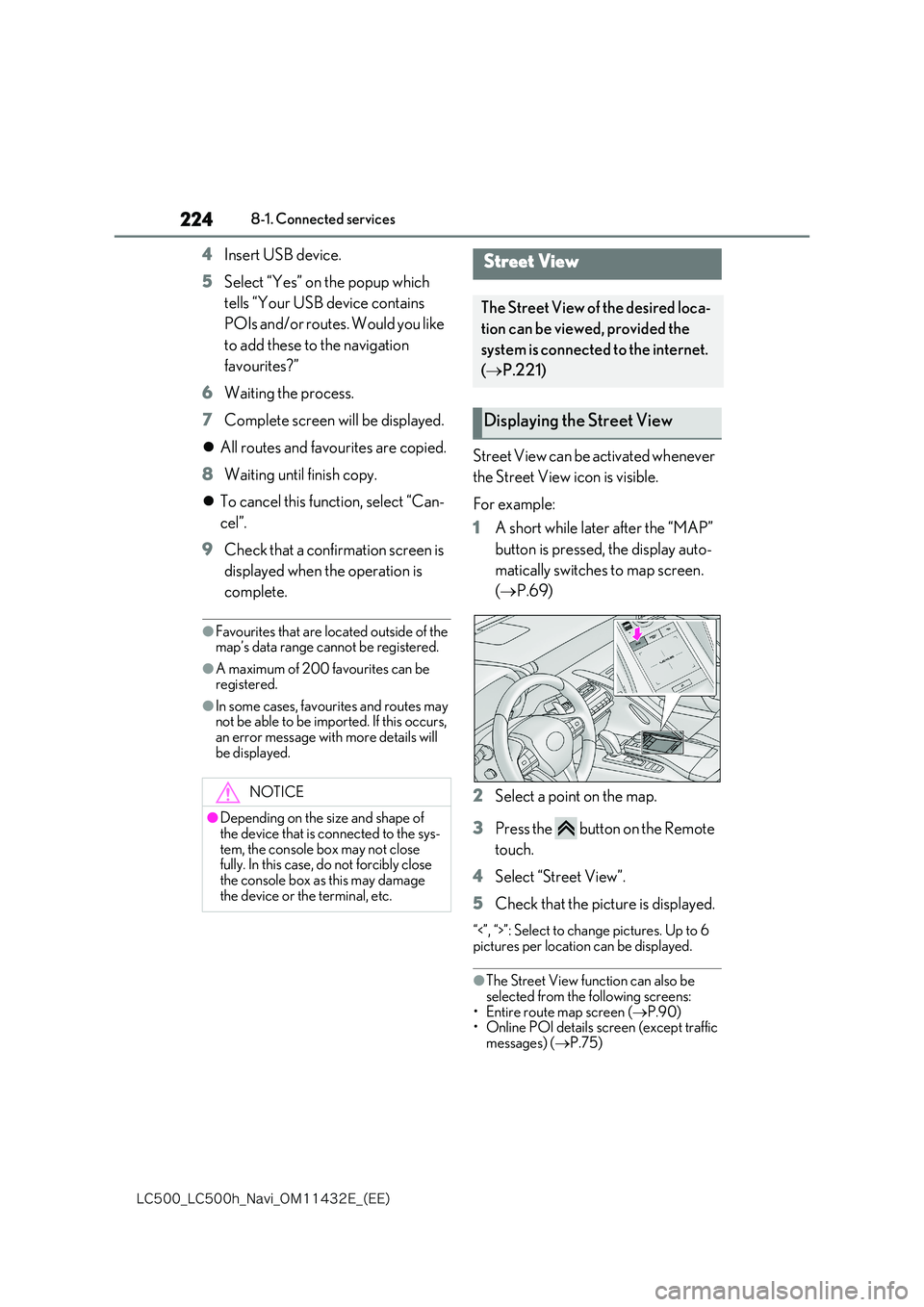

-$@-$I@/BWJ@0.&@ &&

8-1. Connected services
4Insert USB device.
5 Select “Yes” on the popup which
tells “Your USB device contains
POIs and/or routes. Would you like
to add these to the navigation
favourites?”
6 Waiting the process.
7 Complete screen will be displayed.
 All routes and favourites are copied.
8 Waiting until finish copy.
 To cancel this function, select “Can-
cel”.
9 Check that a confirmation screen is
displayed when the operation is
complete.
●Favourites that are located outside of the map’s data range cannot be registered.
●A maximum of 200 favourites can be registered.
●In some cases, favourites and routes may not be able to be imported. If this occurs,
an error message with more details will be displayed.
Street View can be activated whenever
the Street View icon is visible.
For example:
1 A short while later after the “MAP”
button is pressed, the display auto-
matically switches to map screen.
( P.69)
2 Select a point on the map.
3 Press the button on the Remote
touch.
4 Select “Street View”.
5 Check that the picture is displayed.
“<”, “>”: Select to change pictures. Up to 6 pictures per location can be displayed.
●The Street View function can also be
selected from the following screens: • Entire route map screen ( P.90) • Online POI details screen (except traffic
messages) ( P.75)
NOTICE
●Depending on the size and shape of
the device that is connected to the sys- tem, the console box may not close fully. In this case, do not forcibly close
the console box as this may damage the device or the terminal, etc.
Street View
The Street View of the desired loca-
tion can be viewed, provided the
system is connected to the internet.
( P.221)
Displaying the Street View

230
-$@-$I@/BWJ@0.&@ &&

8-2. Setup
5Select “Lexus web account”.
When there is no account available
“New account”: Select to set the new
account.
“Existing account”: Select to enter the cre-
dentials of an existing account.
When there is an existing account
available
“Select account”: Select to change the
account or add the new account.
“Retrieve settings”: Select to download set-
tings from the Lexus server to the naviga-
tion system.
“Send settings”: Select to upload settings
from the navigation system to the Lexus
server.
“Load POIs and routes from server”:
Select to add POIs and routes by down-
loading from the Lexus portal site. They will
be stored in the favourites list. ( P.222)
“Auto download”: Select to switch to auto-
matically download POIs and routes from
the server.
The desired search engine can be set.
Before using a new search engine, the
terms of use must be read and agreed
to on Lexus portal site. Depending on
the conditions, certain search engines
cannot be selected.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Search provider”.
6 Select the desired search engine.
 The selected search engine indica-
tor will illuminate.
It is possible to change the preferred
fuel grade used for price information.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Fuel grade”.
6 Select desire fuel grade.
It is possible to change the application
main menu order.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Reorder applications in
main menu”.
6 The order can be changed by
selecting the arrow up or down.
It is possible to switch the automatic
Selecting a search engine
Selecting the fuel grade
Reordering the application main
menu
Selecting the automatic start
applications

235
-$@-$I@/BWJ@0.&@ &&

Alphabetical index
E
“ECO” button (Information screen) ........ 21
Editing route......................................................95
Blocking road segments...........................98
Deleting stopovers and destination .... 97
Detour setting................................................. 99
Displaying destination information ...... 96
Displaying the edit route screen ........... 95
Displaying the turn list ................................98
Dynamic rerouting by the traffic mes-
sages.............................................................. 100
Reordering stopovers ................................ 97
Editing the entry information....................103
Editing the entry information................. 103
Eject button ..................................................... 122
Entering letters and numbers/list screen
operation .........................................................35
Entering letters and numbers ................. 35
List screen ........................................................ 36
Estimated course line display mode...... 178
Parking ..............................................................179
Screen description ......................................178
F
Favourite destinations .................................. 101
Fuel price ......................................................... 227
Displaying the fuel price list screen ...227
G
“General” button (“Setup” screen) . 20, 56
General settings ..............................................56
Displaying the general settings screen
............................................................................ 56
General settings screen ............................ 56
GPS (Global Positioning System) .......... 115
Limitations of the navigation system ... 115
Guiding the route ...........................................23
Deleting destinations .................................. 24
Setting the destination ................................ 23
H
How to use the Remote Touch..................28
Touchpad gestures ...................................... 29
Touchpad operation ...................................28
I
Importing favourites and stored routes
.......................................................................... 222
Procedure for downloading favourites
and routes from a USB memory .... 223
Registering an external point as a favour-
ite and routes from the internet ....... 222
“Info” button (Menu screen) ................. 16, 21
Information screen .......................................... 21
Information screen .........................................21
Initial screen ......................................................28
Caution screen...............................................28
Restarting the system ..................................28
iPod ..................................................................... 137
Overview .........................................................137
Sub menu ........................................................ 139
L
Lexus parking assist monitor.................... 176
Driving precautions ................................... 176
Screen display ............................................... 177
Using the system .......................................... 177
Lexus parking assist monitor precautions
............................................................................ 181
Area displayed on screen ........................181
Differences between th e screen and the
actual road .................................................. 182
The camera ......................................................181
When approaching three-dimensional
objects ........................................................... 183
Linking multi-information display and navi-
gation system ................................................ 38

236
-$@-$I@/BWJ@0.&@ &&

Alphabetical index
M
“MAP” button (Remote Touch) .14, 65, 69
Map screen information................................ 71
Displaying POI information..................... 75
Displaying various information on the
map..................................................................... 71
POI icons .......................................................... 73
Switching the map mode...........................72
Map screen operation ..................................69
Current vehicle position display ........... 69
Displaying map screen .............................. 69
Map layout ......................................................... 71
Map scale ......................................................... 70
Screen scroll operation ............................. 69
Map settings .................................................... 106
Displaying map setting screen............. 106
“MEDIA” button (Audio control switch)121
“Media” button (Menu screen) ........ 16, 120
Media operation ............................................130
“MENU” button (Remote Touch) ...... 14, 16
Menu screen ...................................................... 16
Menu screen operation............................... 16
Miracast™........................................................ 142
Connecting a Miracast™ device ........143
Miracast™ screen display .......................144
Overview ......................................................... 142
Mobile Assistant ............................................ 173
Connectable devices and available func-
tions ................................................................. 173
Mobile Assistant operation.....................173
Mobile Assistant operation....................... 173
N
“Navigation” button (“Setup” screen)
.................................................................. 20, 106
Navigation database updates ....................117
Updating navigation database................117
Navigation operation .................................... 22
Network settings .............................................39
O
“Online” button (“Setup” screen) ... 20, 221
Online search ................................................ 222
Operating information................................ 154
DVD player and disc ................................ 155
Error messages............................................ 165
File information............................................. 160
High-resolution sound source ............. 160
iPod .................................................................... 159
Radio ................................................................. 154
Terms ................................................................ 164
Operating the map screen ......................... 22
Displaying the current position of the
vehicle on the map screen.................... 22
Moving the map screen ............................ 22
Zooming in /out the map ......................... 22
Operating the screen..................................... 31
Names and operations of each part .....31
Other settings...................................................56
P
Parking .............................................................226
Displaying the Parking list screen...... 226
Parking assist guide line display mode.180
Parking .............................................................180
Screen description .....................................180
“Phone” button (Menu screen) ........16, 188
“Phone” button (“Setup” screen) .. 20, 204
Phone operation (Hands-free system for
cellular phones) ..........................................188
Phone settings .............................................. 204
“Contacts/Call history” screen.......... 206
“Lexus Euro assistance 24 settings”
screen .............................................................212
“Messaging” screen..................................... 211
“Notifications” screen ............................. 205
“Sounds” screen .........................................204
Displaying the phone settings screen
..........................................................................204
Phone settings screen .............................204

237
-$@-$I@/BWJ@0.&@ &&

Alphabetical index
“PWR·VOL” knob (Audio control switch)
.............................................................................121
Q
Quick reference ......................... 64, 120, 188
Destination menu screen .......................... 64
Functional overview .................................. 120
Map screen...................................................... 65
Phone top screen operation ................. 188
R
“RADIO” button (Audio control switch)121
“Radio” button (Menu screen) ......... 16, 120
Radio operation ............................................. 126
Receiving on the Bluetooth® phone .... 195
Incoming calls............................................... 195
Registering/Connecting Bluetooth®
device................................................................39
Profiles................................................................ 42
Registering a Bluetooth® audio player
for the first time ............................................. 41
Registering a Bluetooth® phone for the
first time .......................................................... 39
Registering an entry...................................... 101
Creating a new entry .................................. 101
Displaying favourites list ............................ 101
Downloading POIs and routes via the
internet .......................................................... 103
Registering a quick access destinations
............................................................................ 101
Transferring POIs and routes via a USB
memory ........................................................ 102
Registering home............................................ 24
Registering home ......................................... 24
Setting home as the destination ............ 25
Remote Touch ................................................... 14
Names and operations of each part..... 14
Route guidance....................................... 90, 93
Pausing route guidance ............................ 95
Route guidance screen..............................93
Voice guidance .............................................94
Route preferences settings.........................113
Displaying Manage stored destinations
screen .............................................................. 114
Displaying route preferences screen . 113
S
Search operation............................................. 79
Displaying the navigation menu screen
............................................................................. 79
Searching from favourites list..................83
Searching from last destinations ...........83
Searching from other method................84
Searching from quick access destina-
tions ................................................................... 81
Searching from the search box ............. 79
Viewing detail screen ................................ 80
“SEEK/TRACK” switch (Audio control
switch)
AM/FM/DAB radio.................................. 126
Bluetooth® audio ....................................... 140
CD........................................................................ 131
DVD .................................................................. 133
iPod .................................................................... 138
USB memory ................................................ 136
Setting Bluetooth® details ..........................43
“Detailed Settings” screen ........................49
Bluetooth® setup screen.......................... 43
Connecting a Bluetooth® device ........45
Deleting a Bluetooth® device................ 44
Displaying the Bluetooth® setup screen
............................................................................. 43
Editing the Bluetooth® device informa-
tion..................................................................... 47
Registering a Bluetooth® device ......... 44
Settings required for using the service 221
Connecting to internet ..............................221
Obtaining Lexus portal site account..221

238
-$@-$I@/BWJ@0.&@ &&

Alphabetical index
Setup .................................106, 148, 204, 229
“Setup” button (Menu screen)............16, 20
“Setup” screen ..................................................20
“Setup” screen ................................................ 20
Some basics............................................ 121, 189
About the contacts in the contact list . 191
Audio screen adjustment ........................ 124
Disc slot ............................................................ 122
Registering/Connecting a Bluetooth®
phone ............................................................ 189
Reordering the audio source ................ 122
Selecting an audio source.........................121
Sound settings ...............................................123
Speech command system............125, 190
Turning the system on and off.................121
USB/AUX port............................................ 122
Using the phone switch/microphone190
When selling or disposing of the vehicle
............................................................................ 191
Speech command system ......................... 168
Speech command system operation 169
Using the speech command system 168
Speech command system operation .... 168
Starting route guidance............................... 90
Starting route guidance .............................90
Status icon ........................................................... 18
Status icon explanation ................................18
Steering switch
“<>” switch (Steering switch) ..................146
“MODE” switch (Steering switch) ......146
Talk switch (Steering switch) ..... 168, 190
TEL switch (Steering switch) ................ 190
Volume control switch (Steering switch)
................................................................146, 190
Steering switches .......................................... 146
Steering switch operation .......................146
Street View .....................................................224
Displaying the Street View ................... 224
Sub function button (Remote Touch) 14, 15
T
Talking on the Bluetooth® phone .......... 196
Call screen operation ............................... 196
Incoming call waiting................................. 198
Sending tones ............................................... 197
Switching calls while a call is in progress
........................................................................... 198
Transmit volume setting........................... 198
Things you should know .............................185
If you notice any symptoms ................... 185
Tips for operating the audio/visual system
........................................................................... 154
Tips for the navigation system................... 115
Touchpad (Remote Touch) .................14, 28
Traffic messages .............................................. 76
Traffic message icon on the map.......... 77
Traffic message list ....................................... 77
Traffic messages screen ............................ 76
Traffic message settings .............................. 110
Displaying traffic settings screen...........110
Troubleshooting ............................................ 213
Troubleshooting ...........................................213
“TUNE” switch (Audio control switch)
AM/FM/DAB radio.................................. 126
Bluetooth® audio ....................................... 140
CD........................................................................ 131
DVD .................................................................. 133
iPod .................................................................... 138
USB memory ................................................ 136
U
USB memory .................................................. 135
Overview ........................................................ 135
Sub menu ........................................................ 136
Using side display ...........................................33
Switching the side display......................... 33
