2916-3. Do-it-yourself maintenance
6
Maintenance and care

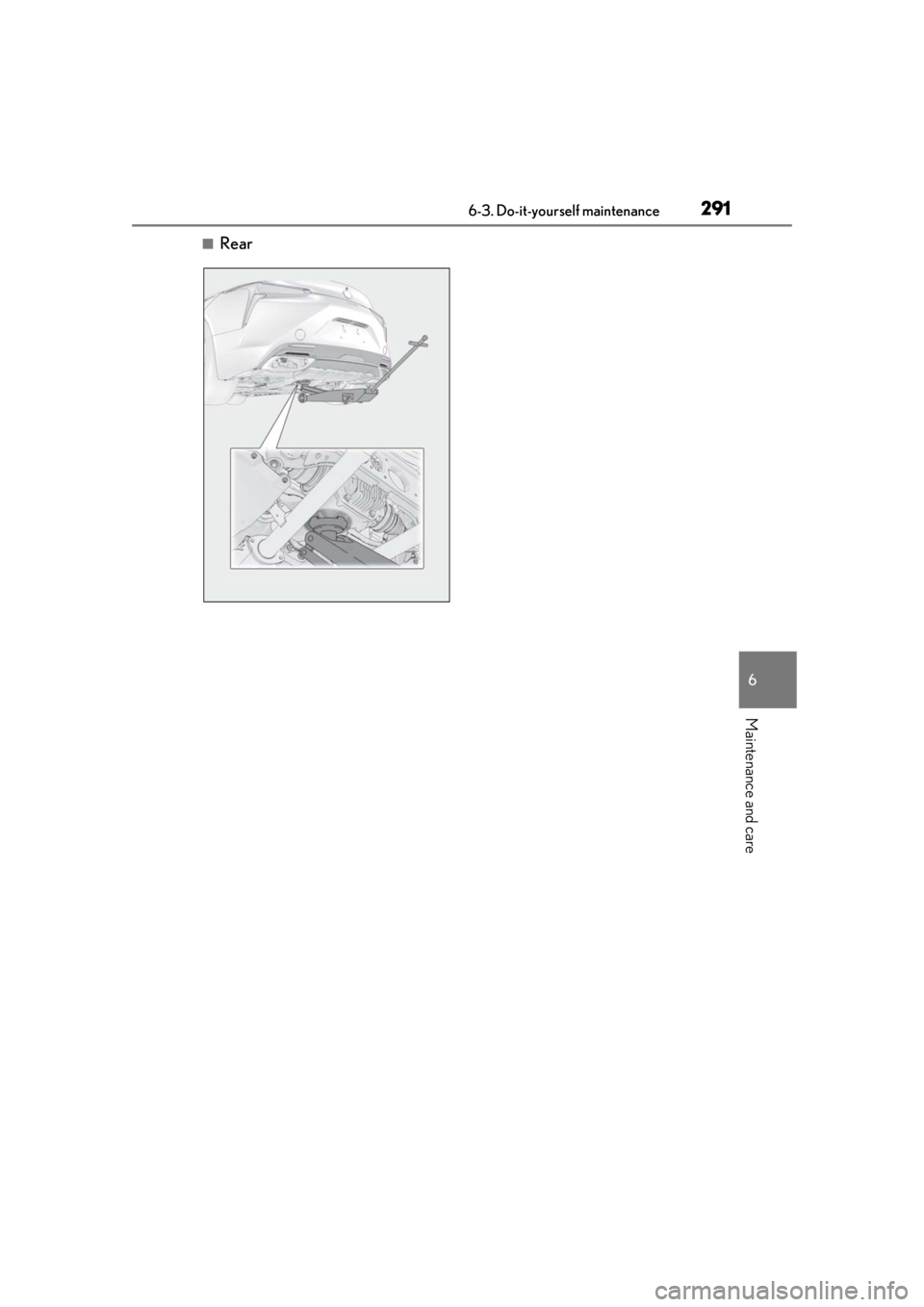

■Rear

2926-3. Do-it-yourself maintenance
LC500Fuse box ( P.319)
Engine oil level dipstick ( P.293)
Engine coolant reservoir ( P.296)
Engine oil filler cap ( P.294)
Brake fluid reservoir ( P.297)
Washer fluid tank ( P.298)
Electric cooling fan
Condenser ( P.297)
Radiator ( P.297)

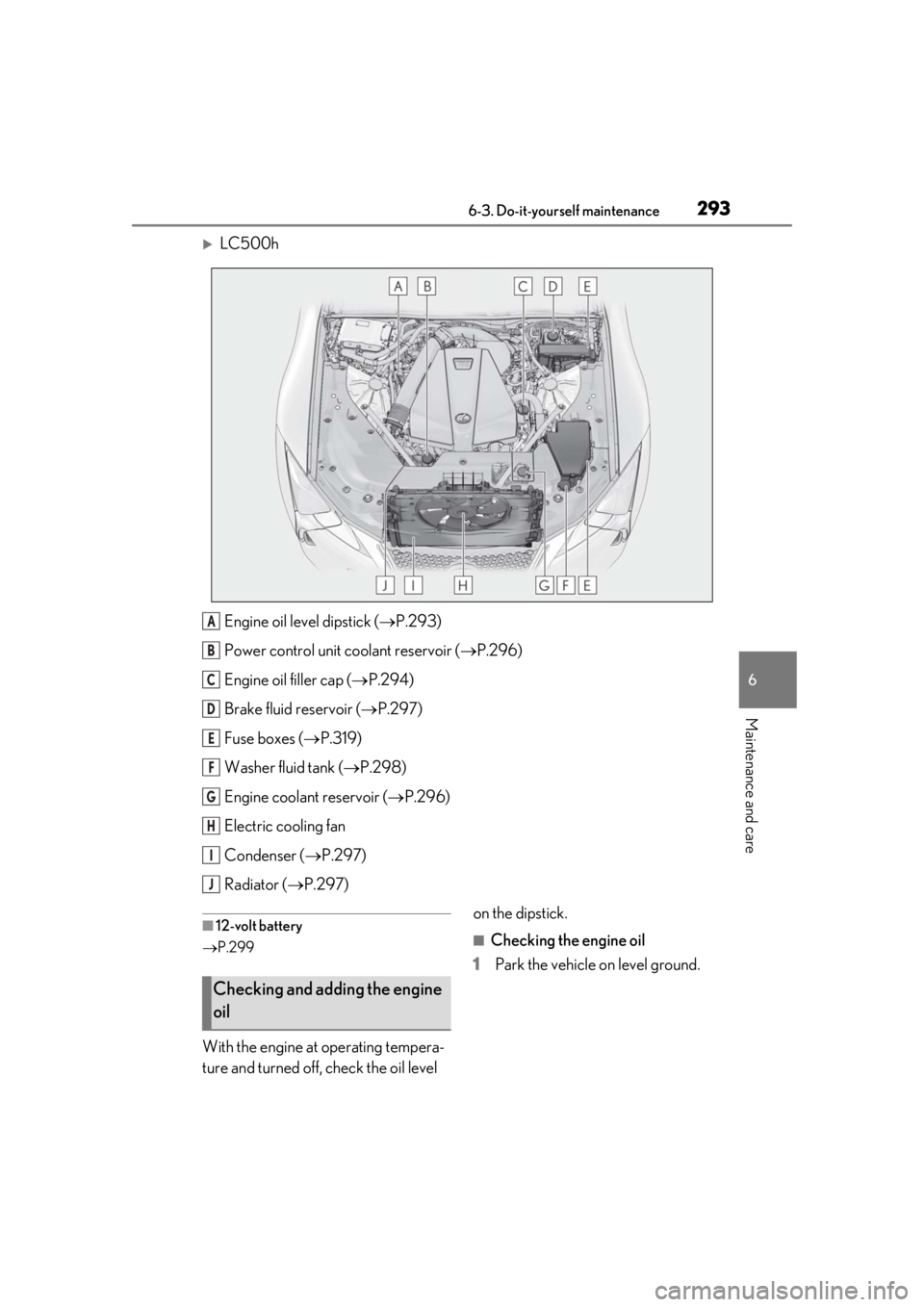

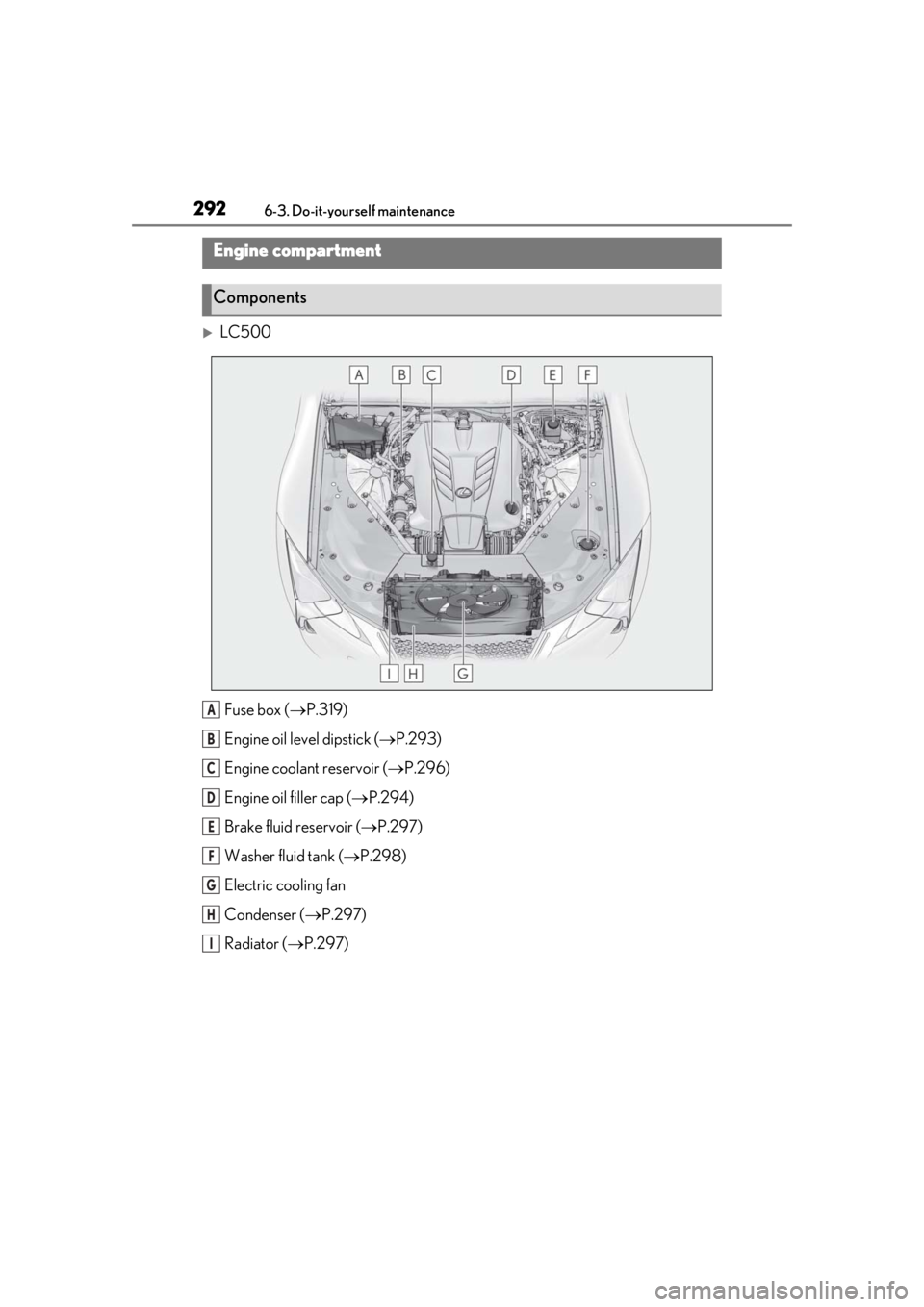

Engine compartment
Components
A
B
C
D
E
F
G
H
I

2936-3. Do-it-yourself maintenance
6
Maintenance and care
LC500hEngine oil level dipstick ( P.293)
Power control unit coolant reservoir ( P.296)
Engine oil filler cap ( P.294)
Brake fluid reservoir ( P.297)
Fuse boxes ( P.319)
Washer fluid tank ( P.298)
Engine coolant reservoir ( P.296)
Electric cooling fan
Condenser ( P.297)
Radiator ( P.297)
■12-volt battery
 P.299
With the engine at operating tempera-
ture and turned off, check the oil level on the dipstick.
■Checking the engine oil
1 Park the vehicle on level ground.
A
B
C
D
E
F
G
H
I
J
Checking and adding the engine
oil

2946-3. Do-it-yourself maintenance
LC500
After warming up the engine and turning it
off, wait more than 5 minutes for the oil to
drain back into the bottom of the engine.
LC500h
After warming up the engine and turning
off the hybrid system, wait more than 5
minutes for the oil to drain back into the
bottom of the engine.

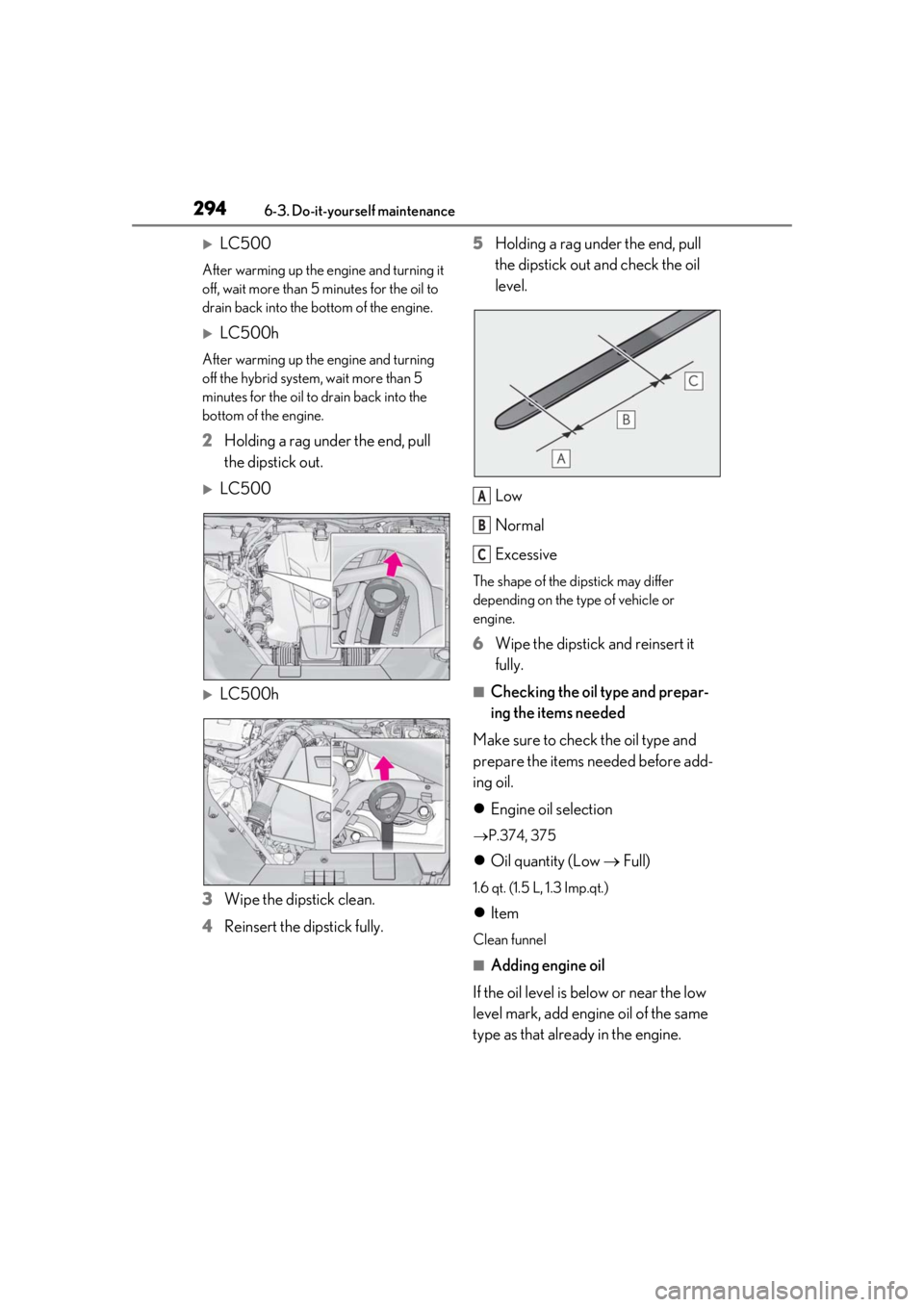

2 Holding a rag under the end, pull
the dipstick out.
LC500
LC500h
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully. 5
Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may differ
depending on the type of vehicle or
engine.
6Wipe the dipstick and reinsert it
fully.
■Checking the oil type and prepar-
ing the items needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection
P.374, 375
 Oil quantity (Low  Full)
1.6 qt. (1.5 L, 1.3 Imp.qt.)
Item
Clean funnel
■Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.
A
B
C

2956-3. Do-it-yourself maintenance
6
Maintenance and care
LC500
LC500h
1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise.
■Engine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and
engine oil may need to be refilled in
between oil maintenance intervals.
●When the engine is new, for example
directly after purchasing the vehicle or
after replacing the engine
●If low quality oil or oil of an inappropriate
viscosity is used
●When driving at high engine speeds or
with a heavy load, or when driving while
accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
■After changing the engine oil (LC500h)
The engine oil maintenance data should be
reset. Perform the following procedures:
1 While the vehicle is stopped, press
of the meter control switches.
2 Press or of the meter control
switches, and select .
3 Press or of the meter control
switches, select “Veh icle Settings”, and
then press “OK”.
4 Press or of the meter control
switches, select “Oil Maintenance”, and
then press “OK”.
5 Select “Yes” and then press “OK”.
A message will be displayed on the multi-
information display.
WARNING
■Used engine oil
●Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as inflamma-
tion and skin cancer, so care should be
taken to avoid prolonged and
repeated contact. To remove used
engine oil from your skin, wash thor-
oughly with soap and water.
●Dispose of used oil and filters only in a
safe and acceptable manner. Do not
dispose of used oil and filters in house-
hold trash, in sewers or onto the
ground.
Call your Lexus dealer, service station
or auto parts store for information
concerning recycling or disposal.

2966-3. Do-it-yourself maintenance

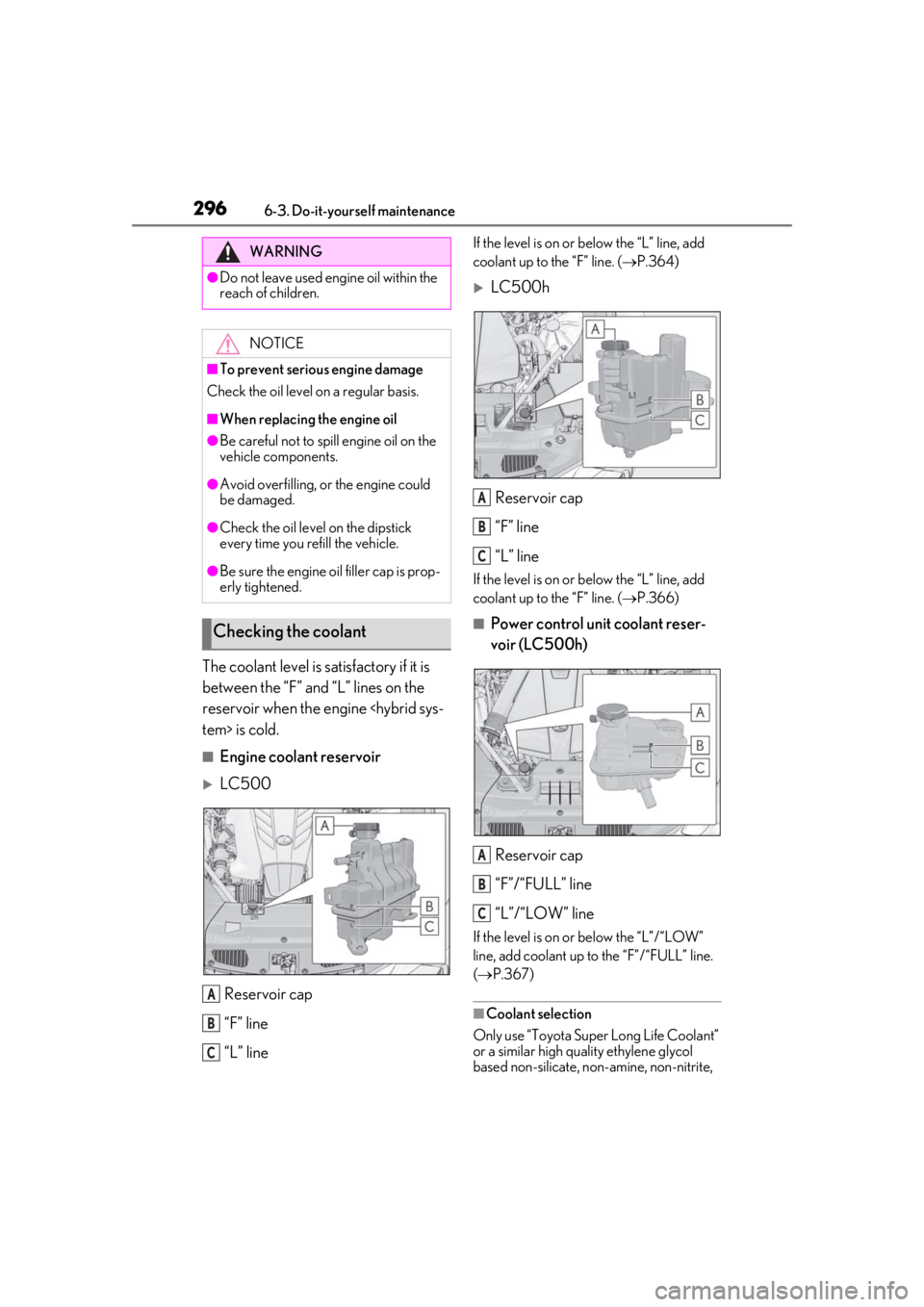

The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine tem> is cold.
■Engine coolant reservoir
LC500Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line, add
coolant up to the “F” line. ( P.364)
LC500h
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line, add
coolant up to the “F” line. ( P.366)
■Power control unit coolant reser-
voir (LC500h)
Reservoir cap
“F”/“FULL” line
“L”/“LOW” line
If the level is on or below the “L”/“LOW”
line, add coolant up to the “F”/“FULL” line.
(  P.367)
■Coolant selection
Only use “Toyota Super Long Life Coolant”
or a similar high qua lity ethylene glycol
based non-silicate, non-amine, non-nitrite,
WARNING
●Do not leave used engine oil within the
reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the
vehicle components.
●Avoid overfilling, or the engine could
be damaged.
●Check the oil level on the dipstick
every time you refill the vehicle.
●Be sure the engine oi l filler cap is prop-
erly tightened.
Checking the coolant
A
B
C
A
B
C
A
B
C

2976-3. Do-it-yourself maintenance
6
Maintenance and care
and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mix-
ture of 50% coolant and 50% deionized
water. (Minimum temperature: -31°F [-
35°C])
Canada:
“Toyota Super Long Life Coolant” is a mix-
ture of 55% coolant and 45% deionized
water. (Minimum temperature: -44°F [-
42°C])
For more details about engine coolant, con-
tact your Lexus dealer.
■If the coolant level drops within a short
time of replenishing
Visually check the radiator, hoses,
engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have your Lexus
dealer test the cap and check for leaks in
the cooling system.
Check the radiator and condenser and
clear away any foreign objects.
If either of the above parts is extremely
dirty or you are not sure of their condi-
tion, have your vehicle inspected by
your Lexus dealer.
■Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
WARNING
■When the engine is
hot
LC500: Do not remove the engine cool-
ant reservoir cap or th e coolant inlet cap.
(  P.366)
The cooling system may be under pres-
sure and may spray hot coolant if the cap
is removed, causing serious injuries, such
as burns.
LC500h: Do not remove the
engine/power control unit coolant reser-
voir caps or the coolant inlet cap.
(  P.369)
The cooling system may be under pres-
sure and may spray hot coolant if the cap
is removed, causing serious injuries, such
as burns.
NOTICE
■When adding coolant
Coolant is neithe r plain water nor
straight antifreeze. The correct mixture
of water and antifreeze must be used to
provide proper lubrication, corrosion
protection and cooling. Be sure to read
the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to pre-
vent it from damaging parts or paint.
Checking the radiator and con-
denser
WARNING
■When the engine is
hot
Do not touch the radiator or condenser
as they may be hot and cause serious
injuries, such as burns.
Checking and adding the brake
fluid

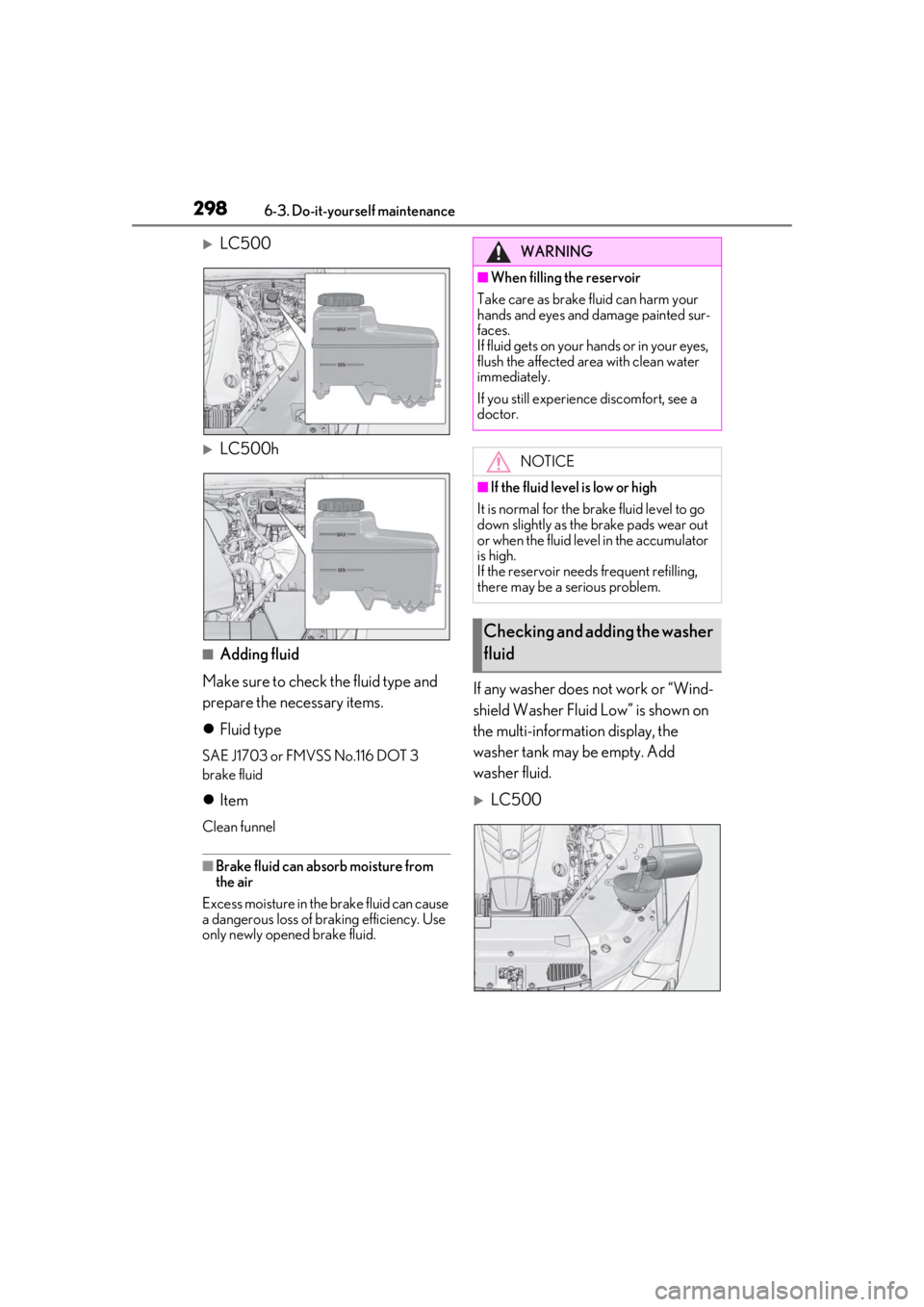

2986-3. Do-it-yourself maintenance
LC500
LC500h
■Adding fluid
Make sure to check the fluid type and
prepare the necessary items.
 Fluid type
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Item
Clean funnel
■Brake fluid can absorb moisture from
the air
Excess moisture in the brake fluid can cause
a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
If any washer does not work or “Wind-
shield Washer Fluid Low” is shown on
the multi-information display, the
washer tank may be empty. Add
washer fluid.
LC500
WARNING
■When filling the reservoir
Take care as brake fluid can harm your
hands and eyes and damage painted sur-
faces.
If fluid gets on your hands or in your eyes,
flush the affected area with clean water
immediately.
If you still experience discomfort, see a
doctor.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go
down slightly as the brake pads wear out
or when the fluid leve l in the accumulator
is high.
If the reservoir needs frequent refilling,
there may be a serious problem.
Checking and adding the washer
fluid

2996-3. Do-it-yourself maintenance
6
Maintenance and care

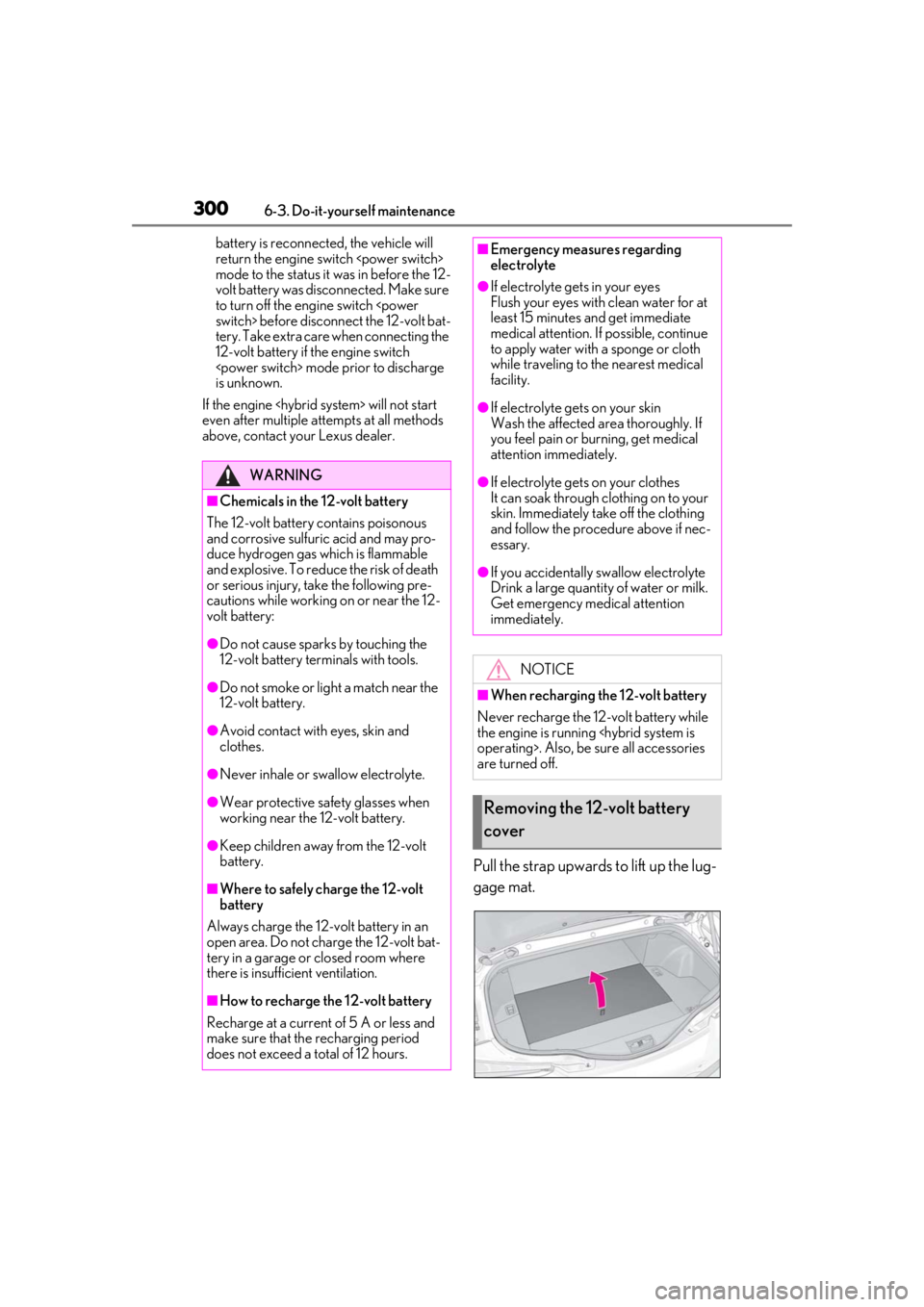

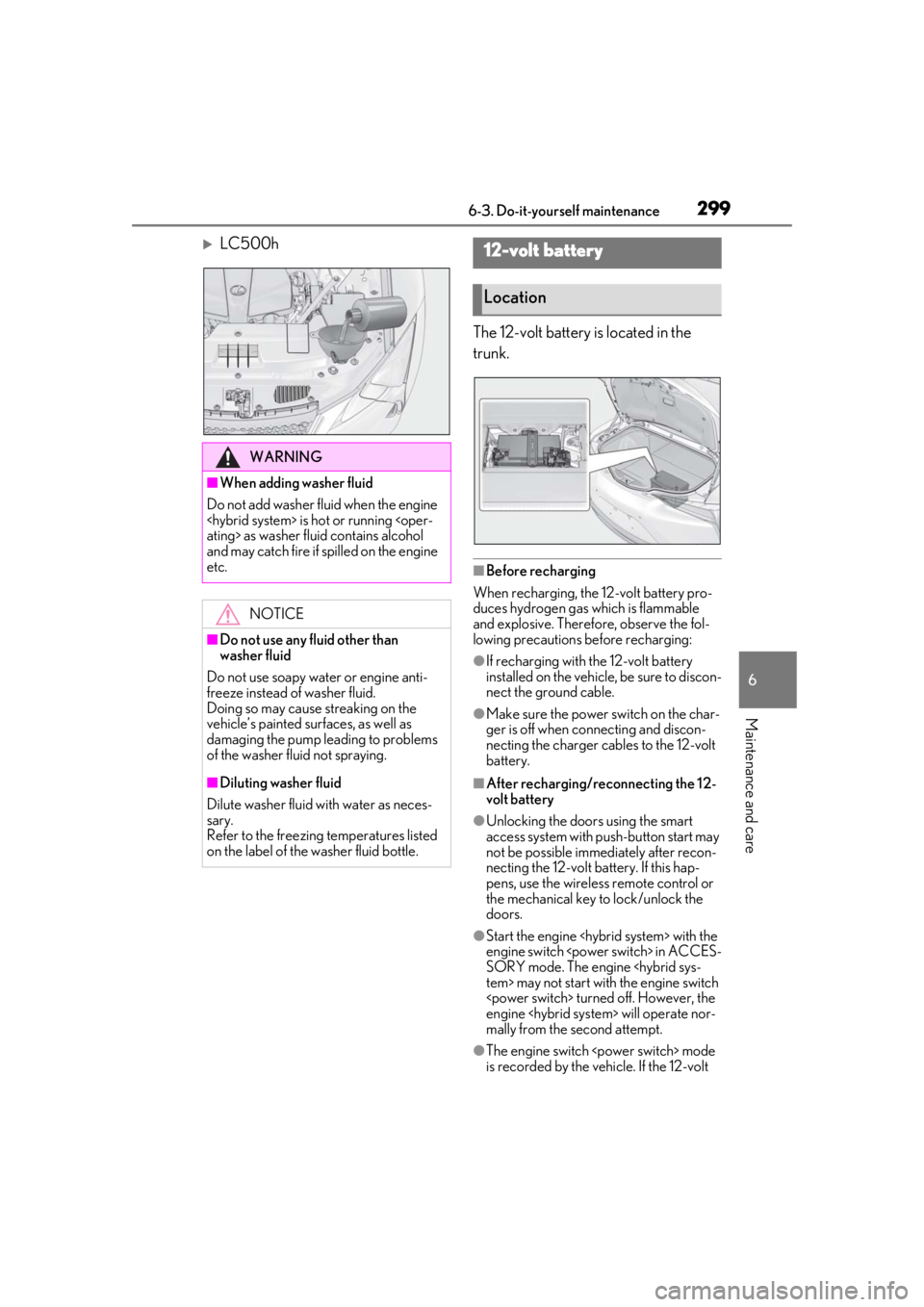

LC500hThe 12-volt battery is located in the
trunk.
■Before recharging
When recharging, the 12-volt battery pro-
duces hydrogen gas which is flammable
and explosive. Therefore, observe the fol-
lowing precautions before recharging:
●If recharging with the 12-volt battery
installed on the vehicle, be sure to discon-
nect the ground cable.
●Make sure the power switch on the char-
ger is off when connecting and discon-
necting the charger cables to the 12-volt
battery.
■After recharging/reconnecting the 12-
volt battery
●Unlocking the doors using the smart
access system with pu sh-button start may
not be possible immediately after recon-
necting the 12-volt battery. If this hap-
pens, use the wireless remote control or
the mechanical key to lock/unlock the
doors.
●Start the engine with the
engine switch in ACCES-
SORY mode. The engine tem> may not start with the engine switch
turned off. However, the
engine will operate nor-
mally from the second attempt.
●The engine switch mode
is recorded by the vehicle. If the 12-volt
WARNING
■When adding washer fluid
Do not add washer fluid when the engine
is hot or running ating> as washer fluid contains alcohol
and may catch fire if spilled on the engine
etc.
NOTICE
■Do not use any fluid other than
washer fluid
Do not use soapy water or engine anti-
freeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted surfaces, as well as
damaging the pump leading to problems
of the washer fluid not spraying.
■Diluting washer fluid
Dilute washer fluid with water as neces-
sary.
Refer to the freezing temperatures listed
on the label of the washer fluid bottle.
12-volt battery
Location

3006-3. Do-it-yourself maintenance
battery is reconnected, the vehicle will
return the engine switch
mode to the status it was in before the 12-
volt battery was disc onnected. Make sure
to turn off the engine switch switch> before disconnect the 12-volt bat-
tery. Take extra care when connecting the
12-volt battery if the engine switch
mode prior to discharge
is unknown.
If the engine will not start
even after multiple at tempts at all methods
above, contact your Lexus dealer.
Pull the strap upwards to lift up the lug-
gage mat.
WARNING
■Chemicals in the 12-volt battery
The 12-volt battery contains poisonous
and corrosive sulfuric acid and may pro-
duce hydrogen gas which is flammable
and explosive. To reduce the risk of death
or serious injury, take the following pre-
cautions while working on or near the 12-
volt battery:
●Do not cause sparks by touching the
12-volt battery terminals with tools.
●Do not smoke or light a match near the
12-volt battery.
●Avoid contact with eyes, skin and
clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when
working near the 12-volt battery.
●Keep children away from the 12-volt
battery.
■Where to safely charge the 12-volt
battery
Always charge the 12-volt battery in an
open area. Do not charge the 12-volt bat-
tery in a garage or closed room where
there is insufficient ventilation.
■How to recharge the 12-volt battery
Recharge at a current of 5 A or less and
make sure that the recharging period
does not exceed a total of 12 hours.
■Emergency measures regarding
electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at
least 15 minutes and get immediate
medical attention. If possible, continue
to apply water with a sponge or cloth
while traveling to the nearest medical
facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If
you feel pain or burning, get medical
attention immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your
skin. Immediately take off the clothing
and follow the procedure above if nec-
essary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk.
Get emergency medical attention
immediately.
NOTICE
■When recharging the 12-volt battery
Never recharge the 12-volt battery while
the engine is running operating>. Also, be sure all accessories
are turned off.
Removing the 12-volt battery
cover
