1-1. For safe useBefore driving ................................. 22
For safe driving.............................. 23
Seat belts .......................................... 24
SRS airbags .................................... 28
Pop Up Hood ................................ 36
Front passenger occupant classifi- cation system .............................. 38
Exhaust gas precautions ............ 42
1-2. Child safety Riding with children..................... 43
Child restraint systems .............. 43
1-3. Lexus Enform Lexus Enform Safety Connect 54
Lexus Enform Remote ............... 59
Lexus Enform Service Connect ........................................................... 60
1-4. Hybrid system Hybrid system features
(LC500h) ..................................... 61
Hybrid system precautions (LC500h) .................................... 64
1-5. Theft deterrent system Engine immobilizer system .............. 69
Alarm................................................... 71
Theft prevention labels (U.S.A.) ............................................................ 72

691-5. Theft deterrent system
1
For safety and security
1-5.Theft deterrent system
The indicator light flashes after the
engine switch has been
turned off to indicate that the system is
operating.
The indicator light stops flashing after the engine switch has
been turned to ACCESSORY or
IGNITION ON mode to
indicate that the system has been can-
celed.
■System maintenance
The vehicle has a maintenance-free type
engine immobilizer system system>.
■Conditions that may cause the system to
malfunction
●If the grip portion of the key is in contact
with a metallic object
●If the key is in close proximity to or touch-
ing a key registered to the security sys-
tem (key with a built-in transponder chip)
of another vehicle
■Certifications for the engine immo bilizer system
For vehicles sold in the U.S.A., Hawaii and Puerto Rico
Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from start-
ing if a key has not been previously
registered in the vehicle’s on-board
computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.
Operating the system

1153-2. Opening, closing and locking the doors and trunk
3
Before driving
■Battery-saving function
The battery-saving fu nction will be acti-
vated in order to prevent the electronic key
battery and the 12-volt battery from being
discharged while the vehicle is not in opera-
tion for a long time.
●In the following situations, the smart
access system with pu sh-button start may
take some time to unlock the doors.
• The electronic key has been left within
approximately 6 ft. (2 m) of the outside of
the vehicle for 10 minutes or longer.
• The smart access system with push-but-
ton start has not been used for 5 days or
longer.
●If the smart access system with push-but-
ton start has not been used for 14 days or
longer, the doors cannot be unlocked at
the passenger door. In this case, push the
depression on the front edge the driver’s
door handle, or use the wireless remote
control or mechanical key, to unlock the
doors.
■Turning an electronic key to battery-
saving mode
When battery-saving mode is set, battery
depletion is minimized by stopping the elec-
tronic key from re ceiving radio waves.
Press twice while pressing and
holding . Confirm that the elec-
tronic key indicator flashes 4 times.
While the battery-saving mode is set, the
smart access system with push-button start
cannot be used. To cancel the function,
press any of the electronic key buttons.
■Conditions affe cting operation
The smart access system with push-button
start uses weak radio waves. In the following
situations, the communication between the
electronic key and the vehicle may be affected, preventing
the smart access sys-
tem with push-button start, wireless remote
control and engine immobilizer system
from operating prop-
erly.
(Ways of coping: P.355)
●When the electronic key battery is
depleted
●Near a TV tower, electric power plant,
gas station, radio stat ion, large display,
airport or other fac ility that generates
strong radio waves or electrical noise
●When carrying a portable radio, cellular
phone, cordless phone or other wireless
communication device
●When the electronic key is in contact
with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio
waves) are being used nearby
●When carrying the electronic key
together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital
assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or
metallic objects are attached to the rear
window
●When the electronic key is placed near a
battery charger or electronic devices
■Note for the entry function
●Even when the electronic key is within the
effective range (detection areas), the sys-
tem may not operate properly in the fol-
lowing cases:
• The electronic key is too close to the win-
dow or outside door handle, near the
ground, or in a high place when the doors
are locked or unlocked.

1464-2. Driving procedures
4-2.Driving procedures
1Press the parking brake switch to
check that the parking brake is set.
(P.168)
Parking brake indicator will come on.
2 Firmly depress the brake pedal.
and a message will be displayed on
the multi-information display.
If it is not displayed, the engine cannot be
started.
3 Press the engine switch shortly and
firmly.
When operating the engine switch, one
short, firm press is enough. It is not neces-
sary to press and hold the switch.
The engine will crank until it starts or for up
to 30 seconds, whichever is less.
Continue depressing the brake pedal until
the engine is completely started.
The engine can be started from any engine switch mode.
■Engine switch illumination
According to the situation, the engine
switch illumination operates as follows.
●When a door is opened, or the engine
switch mode is changed from ACCES-
SORY or IGNITION ON mode to off,
the engine switch illumination slowly
blinks.
●When depressing the brake pedal with
carrying the electronic key on your per-
son, the engine switch illumination rapidly
blinks.
●When the engine sw itch is in ACCES-
SORY or IGNITION ON mode, the
engine switch illumination illuminates.
■If the engine does not start
●The engine immobilizer system may not
have been deactivated. ( P.69)
Contact your Lexus dealer.
●If a message related to start-up is shown
on the multi-information display, read the
message and follow the instructions.
■If the 12-volt batte ry is discharged
The engine cannot be started using the
smart access system with push-button start.
Refer to P.358 to restart the engine.
■Electronic key battery depletion
 P.102
Engine (ignition) switch
(LC500)
Performing the following opera-
tions when carryin g the electronic
key on your person starts the
engine or changes engine switch
modes.
Starting the engine

1504-2. Driving procedures
power switch mode.
4Check that the “READY” indicator
is illuminated.
If the “READY” indicator changes from a
flashing light to a solid light and the buzzer
sounds, the hybrid system is starting nor-
mally.
The vehicle will not move when the
“READY” indicator is off.
The vehicle can move when the “READY”
indicator is on even if the engine is
stopped.(The gasoline engine starts or
stops automatically in accordance with the
state of the vehicle.)
■Power switch illumination
According to the situation, the power
switch illumination operates as follows.
●When a door is opened, or the power
switch mode is changed from ACCES-
SORY or ON mode to off, the power
switch illumination slowly blinks.
●When depressing the brake pedal with
carrying the electron ic key on your per-
son, the power switch illumination rapidly
blinks.
●When the power swit ch is in ACCES-
SORY or ON mode, the power switch
illumination illuminates.
■If the hybrid system does not start
●The immobilizer system may not have
been deactivated. ( P.69)
Contact your Lexus dealer.
●If a message related to start-up is shown
on the multi-information display, read the
message and follow the instructions.
■When the ambient temperature is low,
such as during winter driving conditions
●When starting the hybrid system, the
flashing time of the “READY” indicator
may be long. Leave the ve hicle as it is until
the “READY” indicator is steady on, as
steady means the vehicle is able to move.
●When the hybrid battery (traction bat-
tery) is extremely cold (below approxi-
mately -22°F [-30°C]) under the
influence of the outside temperature, it
may not be possible to start the hybrid
system. In this case, try to start the hybrid
system again after the temperature of the
hybrid battery increases due to the out-
side temperature increase etc.
■Sounds and vibrations specific to a
hybrid vehicle
 P.63
■If the 12-volt batte ry is discharged
The hybrid system cannot be started using
the smart access syst em with push-button
start. Refer to P.358 to restart the hybrid
system.
■Electronic key battery depletion
 P.102
■Conditions affecting operation
 P.115
■Notes for the entry function
 P.115
■Steering lock function
●After turning the power switch off and
opening and closing the doors, the steer-
ing wheel will be lock ed due to the steer-
ing lock function. Operating the power
switch again automatically cancels the
steering lock.
●When the steering lock cannot be
released, “Push power switch while turn-
ing the steering wheel in either direction”
will be displayed on the multi-information
display.
Press the power switch shortly and firmly
while turning the steering wheel left and
right.

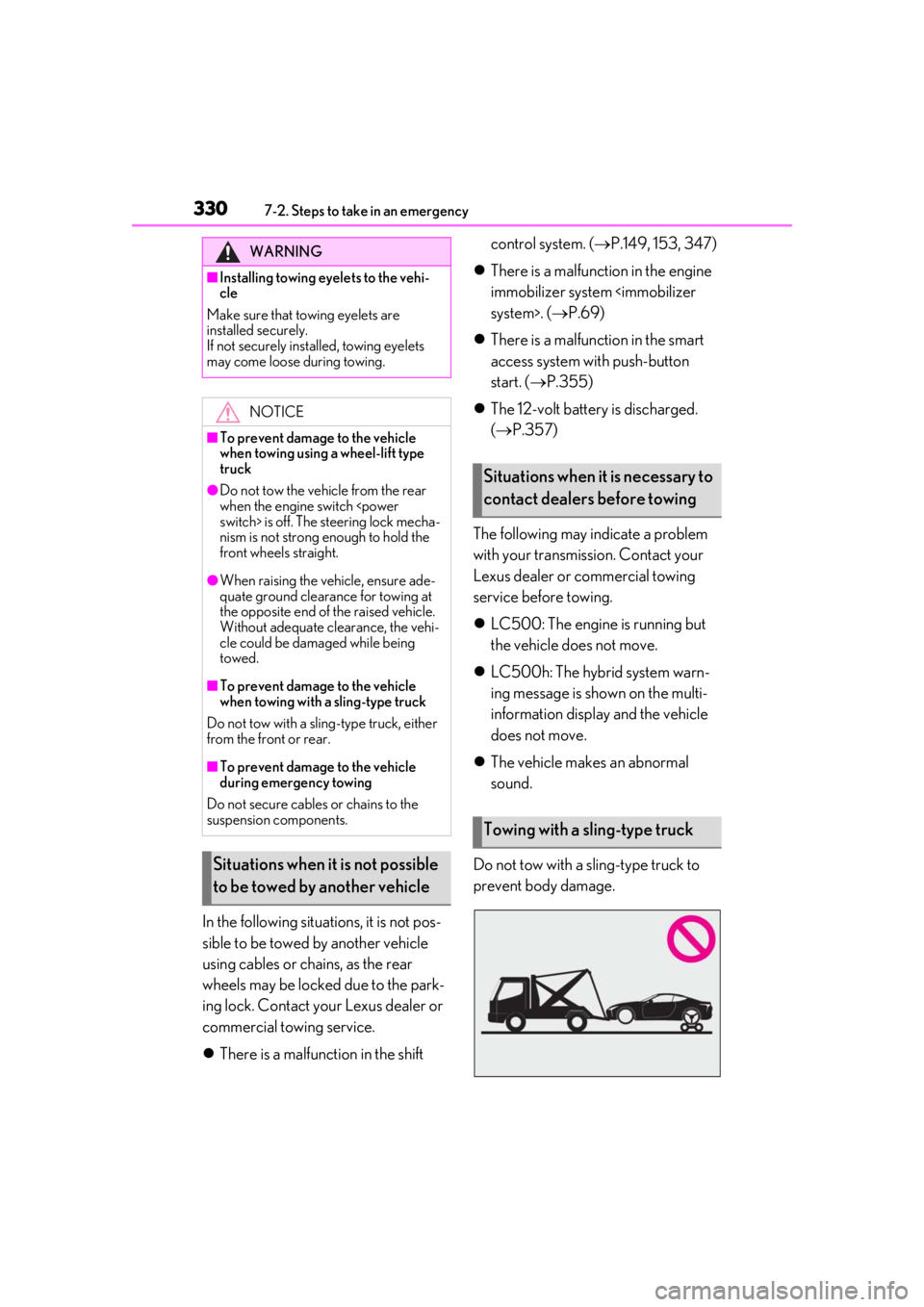

3307-2. Steps to take in an emergency
In the following situations, it is not pos-
sible to be towed by another vehicle
using cables or chains, as the rear
wheels may be locked due to the park-
ing lock. Contact your Lexus dealer or
commercial towing service.
There is a malfunction in the shift control system. (
P.149, 153, 347)
 There is a malfunction in the engine
immobilizer system system>. ( P.69)
 There is a malfunction in the smart
access system with push-button
start. ( P.355)
 The 12-volt battery is discharged.
( P.357)
The following may indicate a problem
with your transmission. Contact your
Lexus dealer or commercial towing
service before towing.
 LC500: The engine is running but
the vehicle does not move.
 LC500h: The hybrid system warn-
ing message is shown on the multi-
information display and the vehicle
does not move.
 The vehicle makes an abnormal
sound.
Do not tow with a sling-type truck to
prevent body damage.
WARNING
■Installing towing eyelets to the vehi-
cle
Make sure that towing eyelets are
installed securely.
If not securely installed, towing eyelets
may come loose during towing.
NOTICE
■To prevent damage to the vehicle
when towing using a wheel-lift type
truck
●Do not tow the vehicle from the rear
when the engine switch switch> is off. The steering lock mecha-
nism is not strong enough to hold the
front wheels straight.
●When raising the vehicle, ensure ade-
quate ground clearance for towing at
the opposite end of the raised vehicle.
Without adequate clearance, the vehi-
cle could be damaged while being
towed.
■To prevent damage to the vehicle
when towing with a sling-type truck
Do not tow with a sling-type truck, either
from the front or rear.
■To prevent damage to the vehicle
during emergency towing
Do not secure cables or chains to the
suspension components.
Situations when it is not possible
to be towed by another vehicle
Situations when it is necessary to
contact dealers before towing
Towing with a sling-type truck

3517-2. Steps to take in an emergency
7
When trouble arises
One of the following may be the cause
of the problem:
The electronic key may not be func-
tioning properly. ( P.356)
 There may not be sufficient fuel in
the vehicle’s tank.
Refuel the vehicle. ( P.182)
 The engine may be flooded.
Try to restart the engine again fol-
lowing correct starting procedures.
( P.146)
 There may be a malfunction in the
engine immobilizer system.
( P.69)
 There may be a malfunction in the
shift control system.
* ( P.149)
 There may be a malfunction in the
steering lock system.
*: It may not be possible to shift the shift
position other than P.
One of the following may be the cause
of the problem:
 The 12-volt battery may be dis-
charged. ( P.357)
 The 12-volt battery terminal con-
nections may be lo ose or corroded.
( P.301)
The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key battery
depletion or a blown fuse. However, an
interim measure is available to start the
engine.
One of the following may be the cause
of the problem:
 One or both of the 12-volt battery
terminals may be disconnected.
( P.301)
 The 12-volt battery may be dis-
charged. ( P.357)
 There may be a malfunction in the
steering lock system.
If the engine will not start
(LC500)
If the engine will not start even
though correct starting procedures
are being followed ( P.146), con-
sider each of the following points:
The engine will not start even
though the starter motor oper-
ates normally.
The starter motor turns over
slowly, the interior lights and
headlights are dim, or the horn
does not sound or sounds at a low
volume.
The starter motor does not turn
over
The starter motor does not turn
over, the interior lights and head-
lights do not turn on, or the horn
does not sound.

3527-2. Steps to take in an emergency
Contact your Lexus dealer if the problem
cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the
following steps can be used as an
interim measure to start the engine if
the engine switch is functioning nor-
mally:
1Press the parking brake switch to
check that the parking brake is set.
(P.168)
Parking brake indicator will come on.
2 Turn the engine switch to ACCES-
SORY mode.
3 Press and hold the engine switch
for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be started using
the above steps, the system may be
malfunctioning. Have the vehicle
inspected by your Lexus dealer. One of the following may be the cause
of the problem:

The electronic key may not be func-
tioning properly. ( P.356)
 There may not be sufficient fuel in
the vehicle’s tank.
Refuel the vehicle. ( P.182)
 There may be a malfunction in the
immobilizer system. ( P.69)
 There may be a malfunction in the
shift control system.
* ( P.153)
 There may be a malfunction in the
steering lock system.
 The hybrid system may be malfunc-
tioning due to an electrical problem
such as electronic key battery
depletion or a blown fuse. However,
depending on the type of malfunc-
tion, an interim measure is available
to start the hybrid system.
*: It may not be possible to shift the shift
position other than P.
Starting the engine in an emer-
gency
If the hybrid system will not
start (LC500h)
Reasons for the hybrid system not
starting vary depending on the situ-
ation. Check the following and per-
form the appropriate procedure:
The hybrid system will not start
even though the correct starting
procedure is being followed.
( P.149)

Alphabetical index423
If the engine will not start .........................351
If the hybrid system will not start ........ 352
If your vehicle has to be stopped in an
emergency ................................................ 326
Ignition switch (engine switch) .............146
Ignition switch (power switch) ..............149
Overheating.....................................364, 366
Power switch .................................................149
Engine coolant.............................................. 296 Capacity ......................................................... 376
Checking ....................................................... 296
Preparing and checking before winter
......................................................................... 238
Engine coolant temperature gauge ....... 80
Engine immobilizer system ........................ 69
Engine oil ........................................................ 293 Capacity ......................................................... 374
Checking ....................................................... 293
Preparing and checking before winter
......................................................................... 238
Warning light ...............................................335
Warning message..................................... 347
Engine oil maintenance data .................. 295
Engine oil temperature gauge .................. 80
Engine switch (power switch) ........146, 149 Auto power off function ................ 149, 152
Changing the engine switch (power
switch) modes................................. 148, 152
If your vehicle has to be stopped in an
emergency ................................................ 326
Starting the engine (hybrid system) 146,
149
EPS (Electric Power Steering) .............. 232 Function .......................................................... 232
Warning light ............................................... 336
EV drive mode................................................153
Event data recorder (EDR) ........................... 8
EV indicator ...................................................... 62
F
First-aid kit storage belt ............................ 262
Flat tire ............................................................. 350 Tire pressure warning system .............303 Floor mats ...........................................................22
Fluid
Automatic transmission .......................... 377
Brake ................................................................378
Hybrid transmission.................................. 377
Washer .......................................................... 298
Footwell light ................................................. 258
Front passenger occupant classification system .............................................................. 38
Front seats ........................................................120 Adjustment ..................................................... 120
Cleaning ......................................................... 277
Correct driving posture ............................ 23
Driving position memory ......................... 122
Head restraints............................................. 125
Jam protection function ............................. 121
Memory recall function.............................123
Seat heaters ..................................................255
Seat position memory ............................... 122
Seat ventilators ............................................255
Front side marker light ................................ 173 Light switch .....................................................173
Replacing light bulbs ................................ 324
Front turn signal lights ................................. 167 Replacing light bulbs ................................ 324
Turn signal lever ...........................................167
Fuel ......................................................................182 Capacity ......................................................... 373
Fuel gauge ....................................................... 80
Fuel pump shut off system.....................334
Information ..................................................... 381
Refueling.......................................................... 182
Type .................................................................. 373
Warning light ...............................................339
Fuel consumption Average fuel consumpt ion after refueling
.............................................................................85
Average fuel economy ..............................85
Current fuel consumption ........................85
Fuel filler door .................................................182 If the fuel filler do or cannot be opened
..........................................................................354

424Alphabetical index
Refueling ..........................................................182
Fuel gauge ......................................................... 80
Fuel pump shut off system........................ 334
Fuses ...................................................................319
G
Garage door opener ................................. 266
Gauges ............................................................... 80
Glove box ....................................................... 260
Glove box light ............................................. 260
Grocery bag hooks .................................... 262
H
Headlights ........................................................ 173 Automatic High Beam system.............. 176
Light switch ..................................................... 173
Replacing light bulbs................................ 324
Headlights aim .............................................. 323
Head restraints ...............................................125
Head-up display.............................................. 90
Heated steering wheel .. ............................ 255
Heaters Air conditioning system.......................... 248
Heated steering wheel............................ 255
Outside rear view mirrors .................... 249
Seat heaters .................................................. 255
High-voltage components ......................... 64
Hill-start assist control ............................... 232
Hood ................................................................. 290 Open ...............................................................290
Pop Up Hood ................................................ 36
Hooks Cargo hooks................................................ 262
Coat hooks ................................................... 265
Grocery bag hooks ................................. 262
Retaining hooks (floor mat)......................22
Horn .................................................................... 127
Hybrid battery (traction battery) Location............................................................. 64
Specification ................................................. 374
Warning message........................................ 67 Hybrid battery (traction battery) air vents
..............................................................................67
Hybrid system .................................................... 61 Emergency shut off system...................... 67
Energy monitor/consumption screen95
EV drive mode............................................. 153
High voltage components ....................... 64
Hybrid System Indicator ........................... 94
Hybrid system precautions...................... 64
Hybrid vehicle driving tips ....................236
If the hybrid system will not start ........352
Overheating ................................................. 367
Power (ignition) switch ............................ 149
Regenerative braking ................................. 62
Starting the hybrid system ...................... 149
Vehicle proximity noti fication system. 63
Hybrid System Indicator.............................. 94
Hybrid transmission....................................... 161 M mode ........................................................... 166
Paddle shift switches .......................165, 166
Snow mode.................................................... 165
I
I/M test ............................................................ 287
IdentificationEngine.............................................................. 372
Vehicle ............................................................ 372
Ignition switch (engine switch).................146 Auto power off function........................... 149
Changing the engine switch modes . 148
If your vehicle has to be stopped in an emergency .................................................326
Starting the engine ..................................... 146
Ignition switch (power switch) .................149
Auto power off function........................... 152
Changing the power switch modes . 152
If your vehicle has to be stopped in an emergency .................................................326
Starting the hybrid system ...................... 149
Illuminated entry system ........................... 258
Immobilizer system........................................ 69
Indicators ............................................................76
