Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understanding of your vehicle’s capabilities
and limitations.

3
LC500_LC500h_QG_OM11618U_(U)
■Instrument panel
Engine switch .............................................................................. P.22
Starting the engine /changing the mode .......................... P.22, 23
Emergency stop of the engine ......................................................P.24
When the engine will not start.....................................................P.106
Warning messages
*
Shift lever .................................................................................................................... P.26
Changing the shift position...............................................................................................P.26
Precautions against towing
*
Meters*
Reading the meters/adjusting the instrument panel lights*
Warning lights/indicator lights ...................................................................................... P.101
When the warning lights come on
*
Multi-information display ...................................................................................... P.34
Display.......................................................................................................................................P.34
When the warning messages are displayed
*
Pictorial Index
A
B
C
D

5
LC500_LC500h_QG_OM11618U_(U)
■Switches
Driving mode select switch .................................................................................... P.51
VSC OFF
*1/snow mode switch ........................................................................... P.28
Odometer/trip meter/tr ip meter reset button
*1
Instrument panel light control switches*1
Fuel filler door opener switch*1
HUD (Head-up display) switch*2....................................................................... P.36
Trunk opener switch .............................................................................................. P.105
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
A
B
C
D
E
F
G

13
LC500_LC500h_QG_OM11618U_(U)
If the shift position is in N, the hybrid battery (traction battery) will not be charged. To help
prevent the battery from discharging, avoid leaving the N position selected for an extended
period of time.
In the following situations, kine tic energy is converted to electric energy and deceleration
force can be obtained in conjunction with the recharging of the hybrid battery (traction bat-
tery).
● The accelerator pedal is released while driving with the shift position in D or M.
● The brake pedal is depressed while driving with the shift position in D or M.
Motor power display
Motor power area
Shows that the power of the motor assists the
engine.
Charge area
Shows regeneration
* status. Regenerated energy
will be used to charge the hybrid battery (traction
battery).
*: When used in this manual, “regeneration” refers to the conversion of energy created by the movement
of the vehicle into electrical energy.
Hybrid battery (traction battery) charge
Regenerative braking
A
B

14
LC500_LC500h_QG_OM11618U_(U)
Because there is no engine sound or vibration, it is easy to mistake the hybrid vehicle for
being off when it is actually st ill running, as indicated by the “READY” indicator being illumi-
nated. For safety, make sure to always shift th e shift position to P and apply the parking brake
when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid system starts or stops.
● Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear seats, when the hybrid system is started or
stopped.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or
as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear seats.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make th e low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 3.3 gal. [12.6 L, 2.8 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Sounds and vibrations specific to a hybrid vehicle
Running out of fuel
Hybrid warning message

20
LC500_LC500h_QG_OM11618U_(U)
1Turn the engine switch to IGNITION ON mode .
2Check that the shift position is in P.
3Adjust the driver’s seat, steering wheel, ou tside rear view mirrors and head-up display
to the desired positions.
4While pressing the “SET” button, or
within 3 seconds after the “SET” button
is pressed, press button “1”, “2” or “3”
until the buzzer sounds.
If the selected button has already been
preset, the previously recorded posi-
tion will be overwritten.
1Turn the engine switch to IGNITION ON mode .
2Check that the shift position is in P.
3Press one of the buttons for the driving
position you want to recall until the
buzzer sounds.
Driving Position Memory
This feature automatically adjusts the positions of the driver’s seat, steering wheel, outside
rear view mirrors and head-up display (if equipped) to suit your preferences.
Recording a driving position into memory
Recalling a driving position

22
LC500_LC500h_QG_OM11618U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.31)
The parking brake indicator will come
on.
2Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play. If it is not displayed, the engine
cannot be started.
LC500h: When the shift position is N,
the hybrid system cannot start.
Shift the shift position to P when start-
ing the hybrid system.
3Press the engine switch shortly and firmly.
When operating the engine switch , one short, firm press is enough.
It is not necessary to press and hold the switch.
LC500: The engine will crank until it starts or for up to 30 seconds, whichever is less.
Continue depressing the brake pedal until the engine is completely started.
LC500h: If the “READY” indicator turns on, the hybrid system will operate normally.
Continue depressing the brake pedal until the “READY” indicator is illuminated.
The engine can be started from any engine switch
mode.
4LC500h: Check that the “READY” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
Engine (Ignition) Switch (LC500)/Power (Ignition)
Switch (LC500h)
Performing the following operations when carrying the electronic key on your person
starts the engine or changes engine switch modes.
The illustrations are for LC500, and some design may differ for LC500h.
Starting the engine

23
LC500_LC500h_QG_OM11618U_(U)

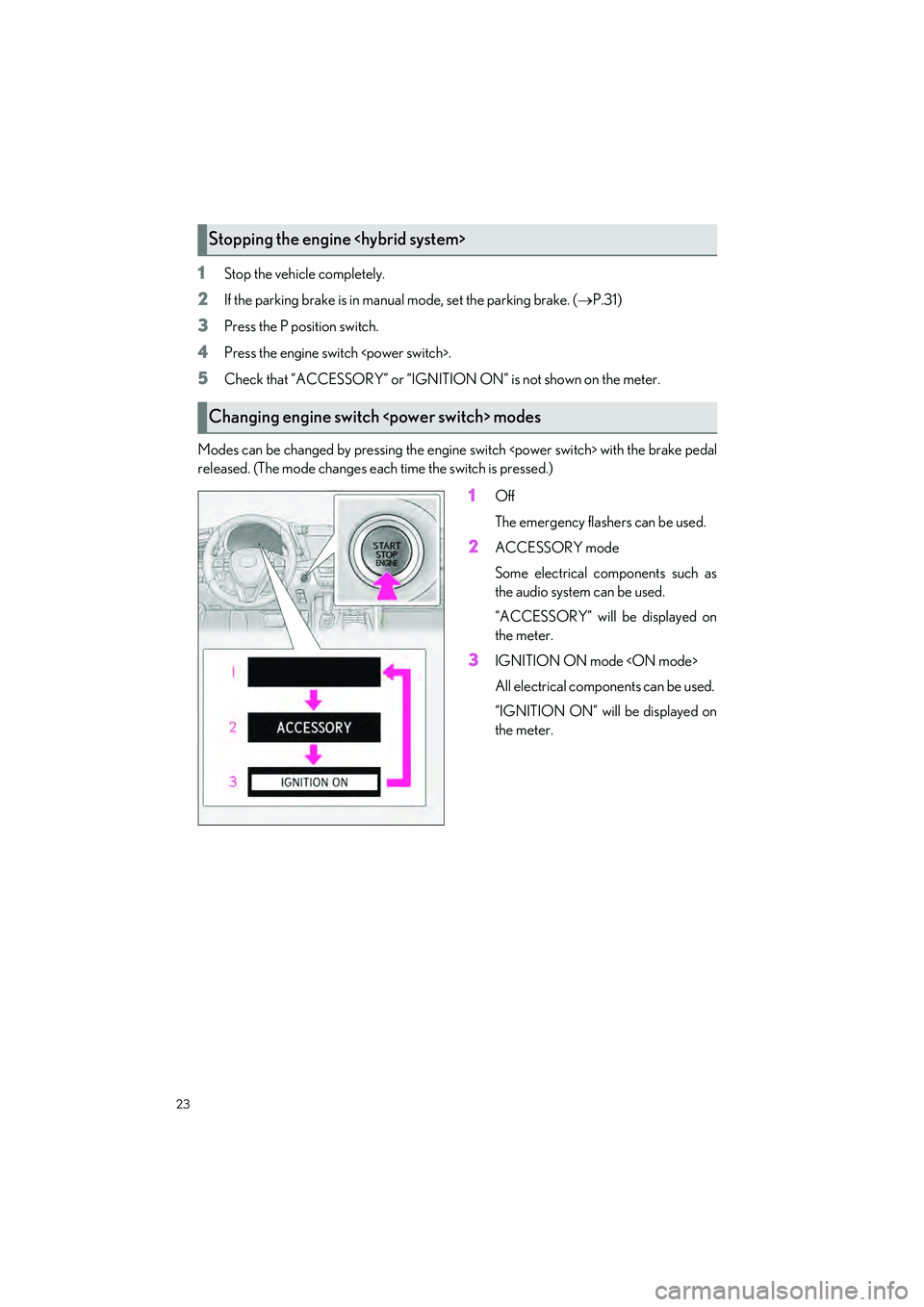

1Stop the vehicle completely.
2If the parking brake is in manual mode, set the parking brake. (P.31)
3Press the P position switch.
4Press the engine swit ch .
5Check that “ACCESSORY” or “IGNITION ON” is not shown on the meter.
Modes can be changed by pressing the engine switch with the brake pedal
released. (The mode changes each time the switch is pressed.)
1Off
The emergency flashers can be used.
2ACCESSORY mode
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on
the meter.
3IGNITION ON mode
All electrical components can be used.
“IGNITION ON” will be displayed on
the meter.
Stopping the engine
Changing engine switch modes

26
LC500_LC500h_QG_OM11618U_(U)

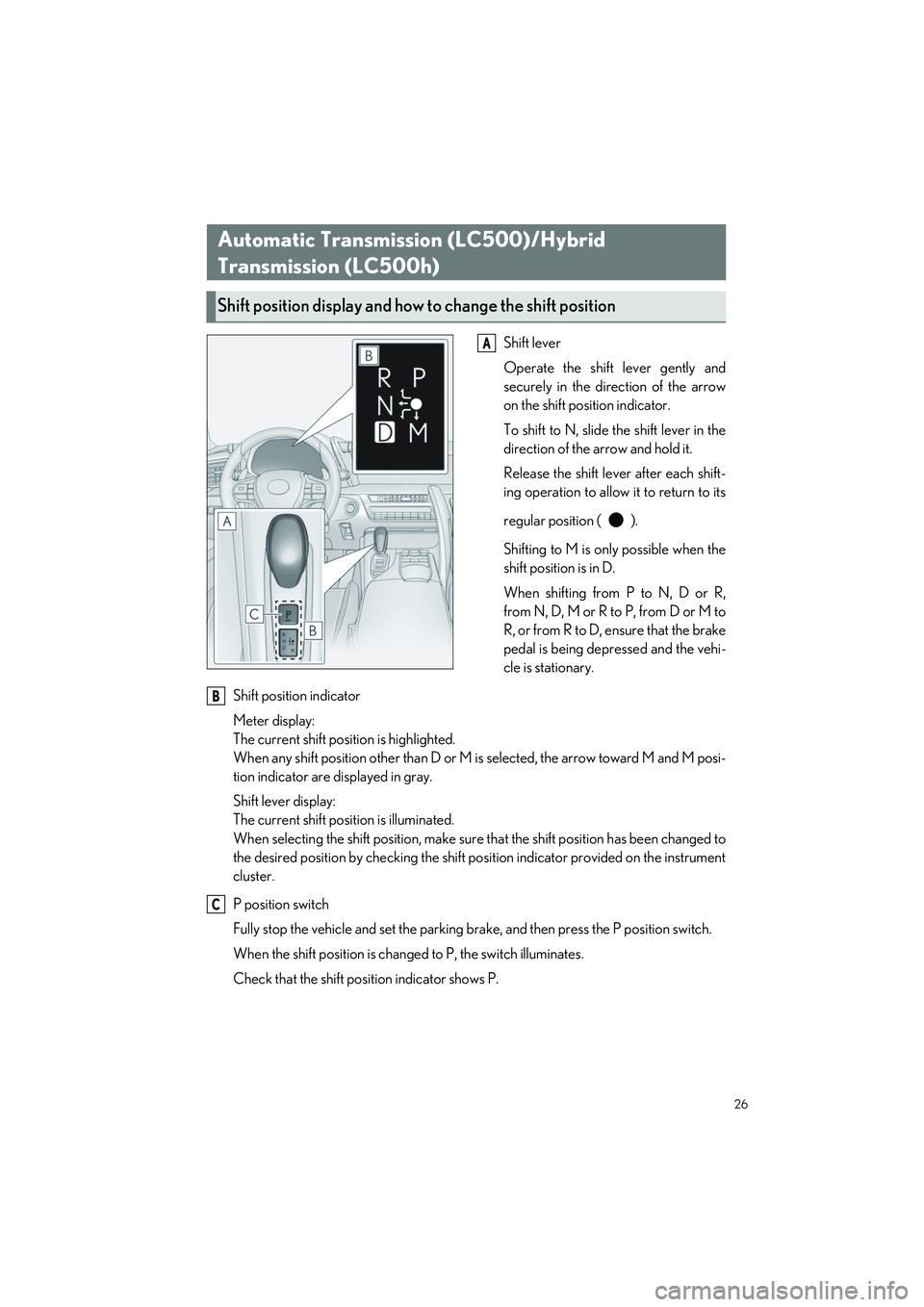

Shift lever
Operate the shift lever gently and
securely in the direction of the arrow
on the shift position indicator.
To shift to N, slide the shift lever in the
direction of the arrow and hold it.
Release the shift lever after each shift-
ing operation to allow it to return to its
regular position ( ).
Shifting to M is only possible when the
shift position is in D.
When shifting from P to N, D or R,
from N, D, M or R to P, from D or M to
R, or from R to D, ensure that the brake
pedal is being depressed and the vehi-
cle is stationary.
Shift position indicator
Meter display:
The current shift position is highlighted.
When any shift position other than D or M is selected, the arrow toward M and M posi-
tion indicator are displayed in gray.
Shift lever display:
The current shift position is illuminated.
When selecting the shift position, make sure that the shift position has been changed to
the desired position by checking the shift position indicator provided on the instrument
cluster.
P position switch
Fully stop the vehicle and set the parking brake, and then press the P position switch.
When the shift position is changed to P, the switch illuminates.
Check that the shift position indicator shows P.
Automatic Transmission (LC500)/Hybrid
Transmission (LC500h)
Shift position displa y and how to change the shift position
A
B
C

27
LC500_LC500h_QG_OM11618U_(U)

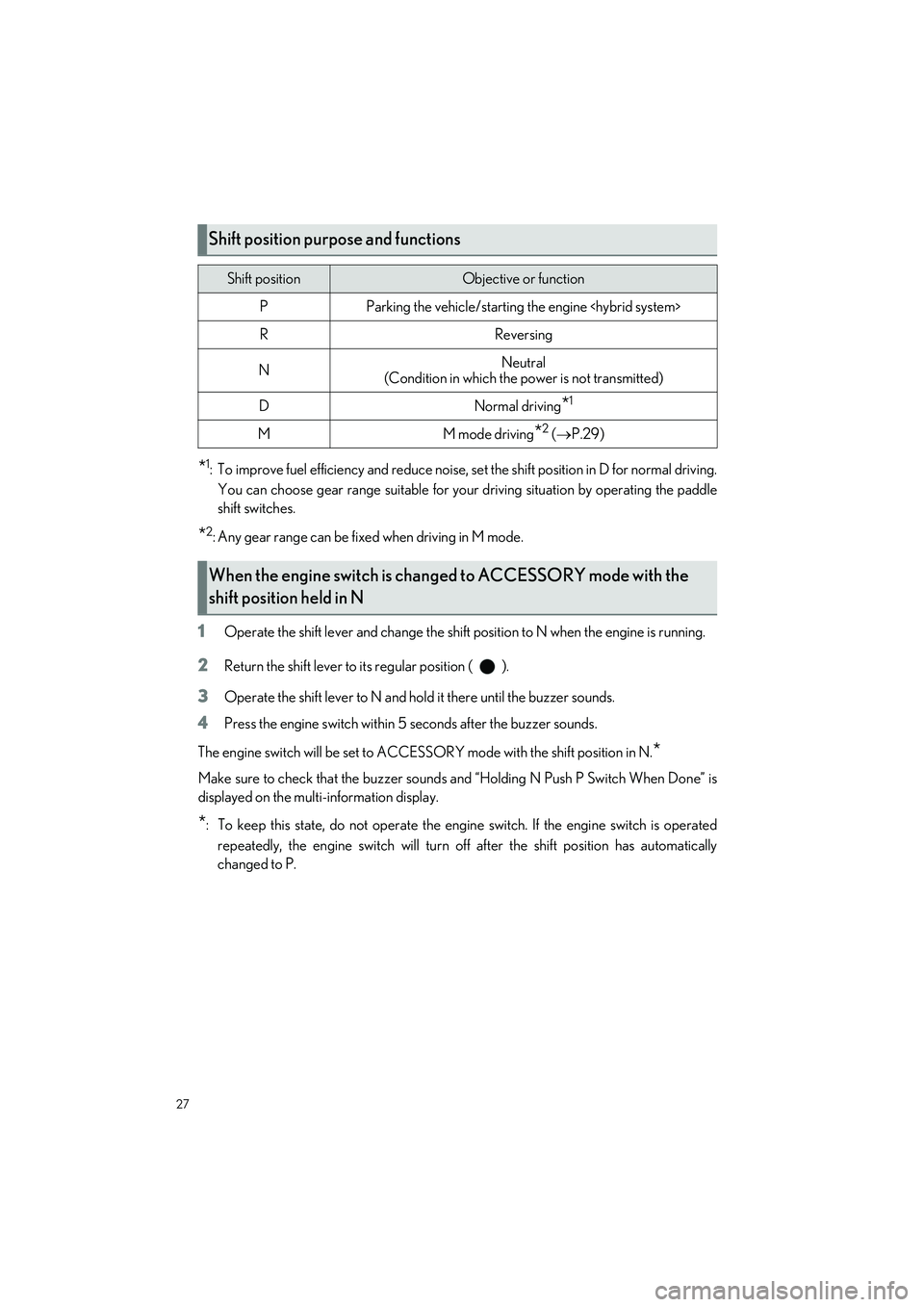

*1: To improve fuel efficiency and reduce noise, set the shift position in D for normal driving.You can choose gear range suitable for your driving situation by operating the paddle
shift switches.
*2: Any gear range can be fixed when driving in M mode.
1Operate the shift lever and change the shift position to N when the engine is running.
2Return the shift lever to its regular position ( ).
3Operate the shift lever to N and hold it there until the buzzer sounds.
4Press the engine switch within 5 seconds after the buzzer sounds.
The engine switch will be set to ACCESS ORY mode with the shift position in N.
*
Make sure to check that the buzzer sounds and “Holding N Push P Switch When Done” is
displayed on the multi-information display.
*: To keep this state, do not operate the engine switch. If the engine switch is operated
repeatedly, the engine switch will turn off after the shift position has automatically
changed to P.
Shift position purpose and functions
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving*1
MM mode driving*2 (  P.29)
When the engine switch is chan ged to ACCESSORY mode with the
shift position held in N
