1
LC500_LC500h_QG_OM11618U_(U)
Pictorial Index ............................................................................................................................. 3
For safe use Floor Mat Installation......................................................................................................... ..............11
Hybrid System (LC500h) Hybrid System.................................................................................................................. ................ 12
Entering and Exiting
Keys ...................................................................................................................................................... 15
Smart Access System with Push-butto n Start .................................................................... 17
When Driving
Front Seats .................................................................................................................... ..................... 19
Driving Position Memory ........................................................................................................ ...20
Engine (Ignition) Switch (LC500)/Power (Ignition) Switch (LC500h)............... 22
EV Drive Mode (LC500h).......................................................................................................25
Automatic Transmission (LC500)/Hybrid Transmission (LC500h).................... 26
Turn Signal Lever .............................................................................................................. ............ 30
Parking Brake.................................................................................................................. ................. 31
Brake Hold ..................................................................................................................... ..................33
Multi-information Display...................................................................................................... .....34
Head-up Display ................................................................................................................ ............36
Headlights.........................................................................................................................................39
AHB (Automatic High Beam)..................................................................................................40
Windshield Wipers and Washer............................................................................................. 42
Lexus Safety System + .......................................................................................................... .......43
LKA (Lane-Keeping Assist) ...................................................................................................... 44
Dynamic Radar Cruise Control with Full-Speed Range ..............................................45
Intuitive Parking Assist ....................................................................................................... ........ 50
Driving Mode Select Switch ..................................................................................................... .51
BSM (Blind Spot Monitor) ....................................................................................................... ..53
Tire Pressure Warning System ................................................................................................54
Active Rear Wing ............................................................................................................... ...........56
Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understanding of your vehicle’s capabilities
and limitations.

4
LC500_LC500h_QG_OM11618U_(U)
Parking brake switch ................................................................................................ P.31
Applying/releasing............................................................................................................... P.31
Precautions against winter season
*
Warning buzzer/message*
Turn signal lever ........................................................................................................ P.30
Headlight switch ....................................................................................................... P.39
Headlights/parking lights/tail lights/day time running lights .............................P.39
AHB (Automatic High Beam) ........................................................................................P.40
Windshield wiper and washer switch ................................................................. P.42
Usage .......................................................................................................................... .............. P.42
Adding washer fluid
*
Warning messages*
Emergency flasher switch*
Hood lock release lever*
Tilt and telescopic steering control switch*
Adjustment*
Driving position memory ..................................................................................................P.20
Air conditioning system .......................................................................................... P.78
Usage .......................................................................................................................... .............. P.79
Rear window defogger ......................................................................................................P.78
Audio system.............................................................................................................. P.70
Trunk opener main switch
*
*
: Refer to the “OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
M

30
LC500_LC500h_QG_OM11618U_(U)

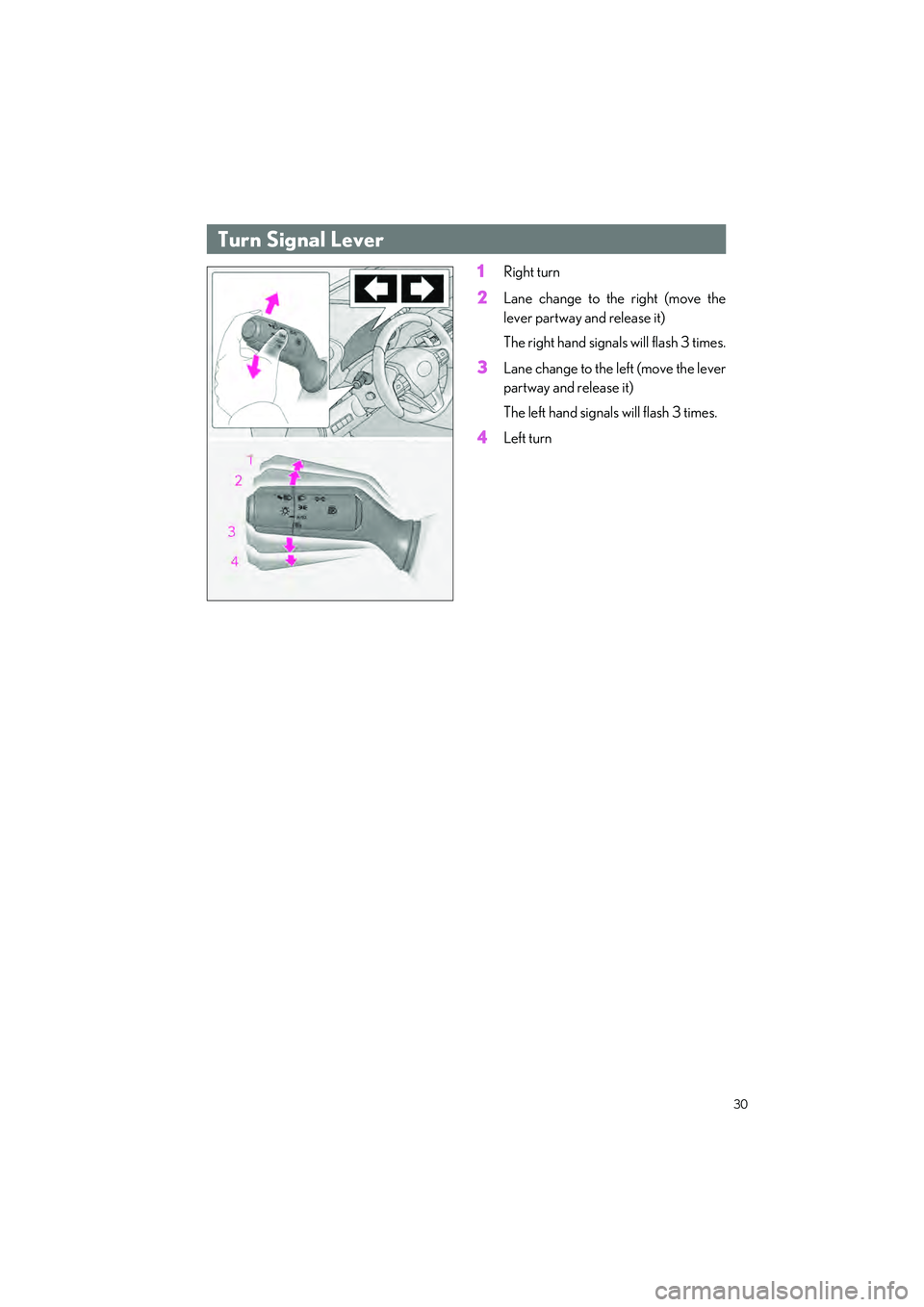

1Right turn
2Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
3Lane change to the left (move the lever
partway and release it)
The left hand signals will flash 3 times.
4Left turn
Turn Signal Lever

53
LC500_LC500h_QG_OM11618U_(U)
Multi-information display
Turning the BSM function/RCTA func-
tion on/off.
The RCTA function is available when
the BSM function is on.
Outside rear view mirror indicators
BSM function:
When a vehicle is detected in a blind
spot of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illu-
minate. If the turn signal lever is oper-
ated toward the detected side, the
outside rear view mirror indicator will
flash.
RCTA function:
When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, both outside rear view mirror
indicators will flash.
BSM indicator/RCTA indicator
When the BSM function/RCTA function is turned on, the indicator comes on.
Monitor screen display (RCTA function only)
If a vehicle approaching from the right or left at the rear of the vehicle is detected, the
RCTA icon for the detected side will be disp layed on the monitor screen. This illustra-
tion shows an example of a vehicle approaching from the left at the rear of the vehicle.
RCTA buzzer (RCTA function only)
If a vehicle approaching from the right or left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds for approximately 1 second immediately
after the BSM function is operated to turn the system on.

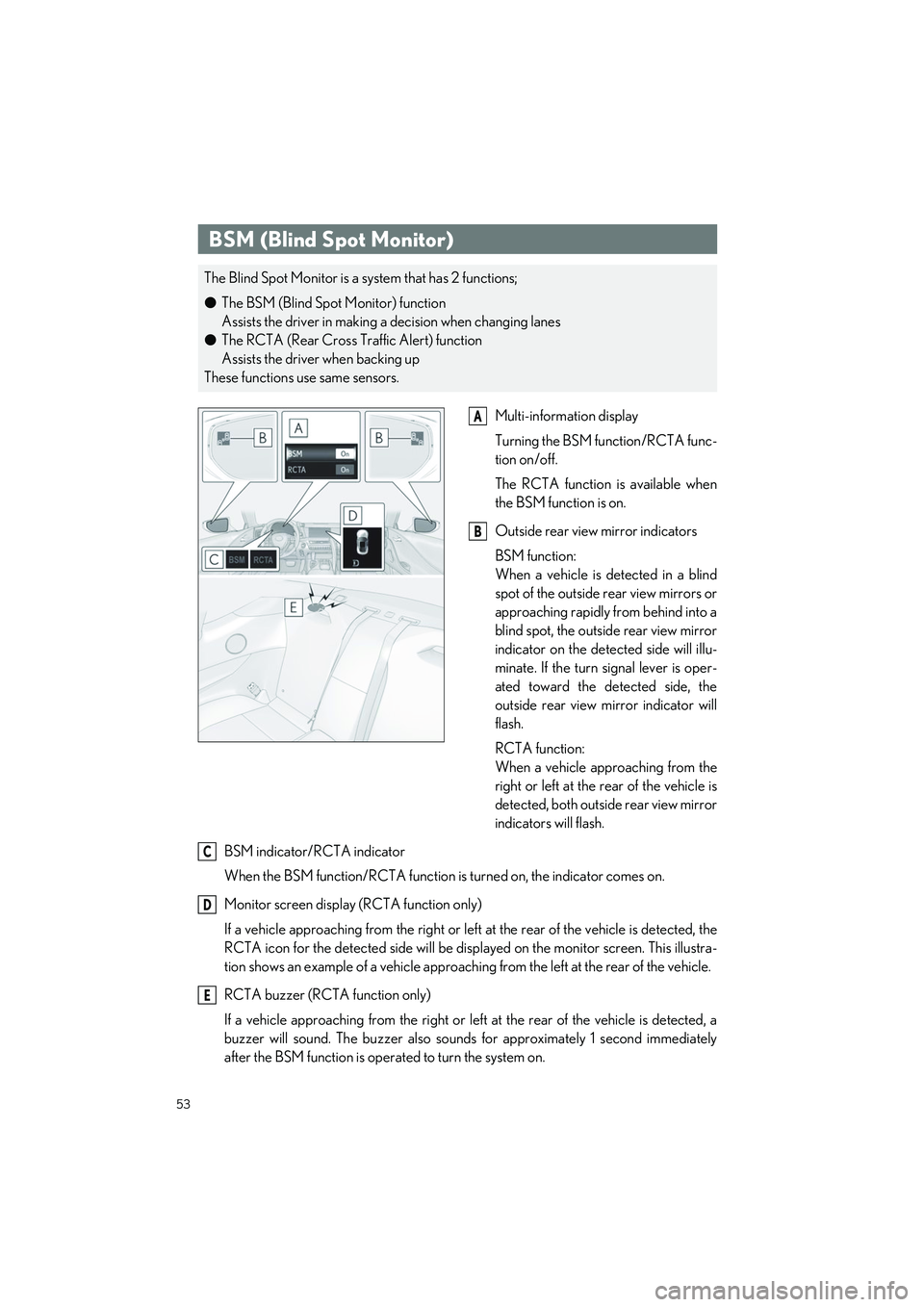

BSM (Blind Spot Monitor)
The Blind Spot Monitor is a system that has 2 functions;
● The BSM (Blind Spot Monitor) function
Assists the driver in making a decision when changing lanes
● The RCTA (Rear Cross Traffic Alert) function
Assists the driver when backing up
These functions use same sensors.
A
B
C
D
E

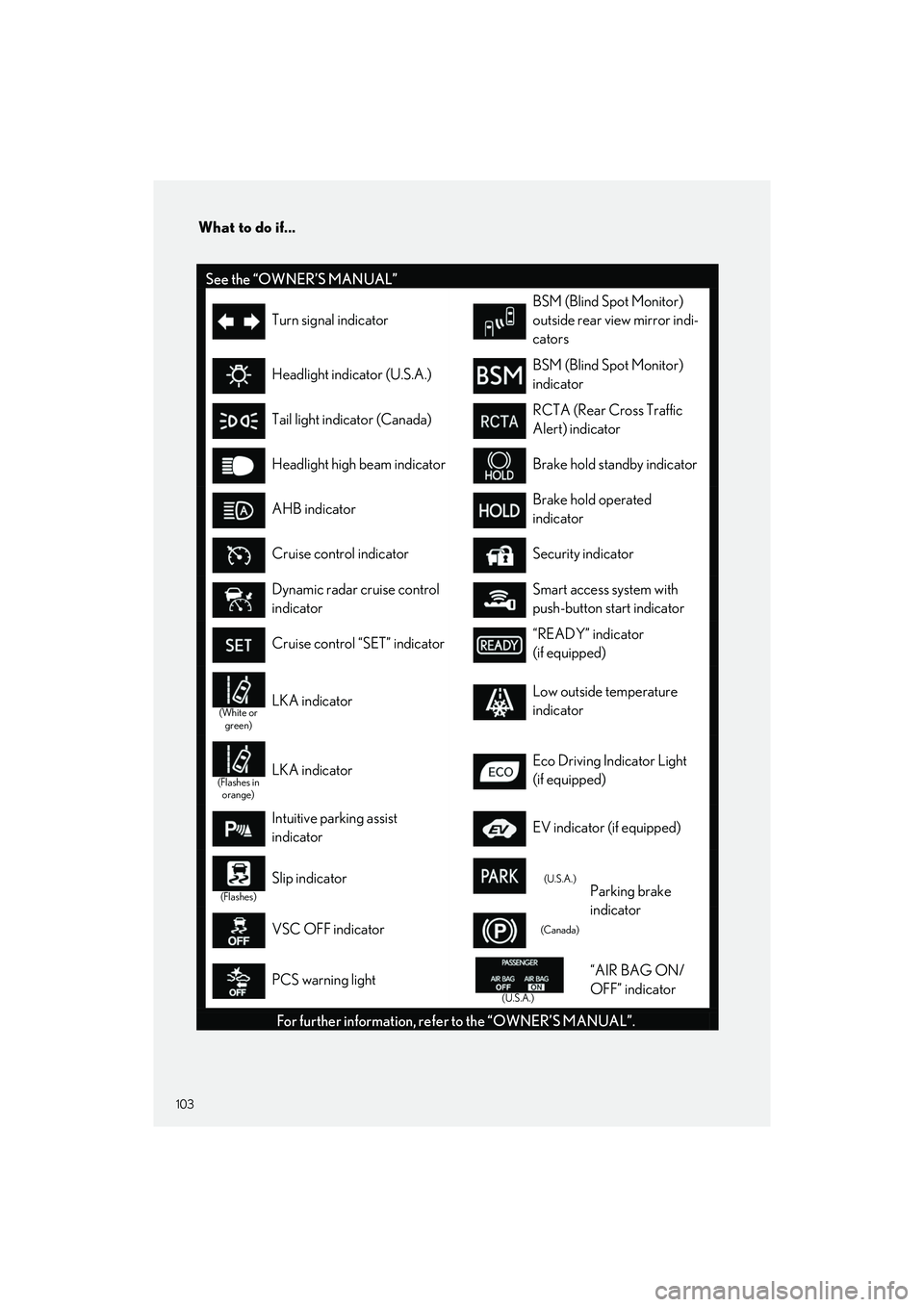

What to do if...
103
LC500_LC500h_QG_OM11618U_(U)
See the “OWNER’S MANUAL”
Turn signal indicator
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators
Headlight indicator (U.S.A.)BSM (Blind Spot Monitor)
indicator
Tail light indicator (Canada)RCTA (Rear Cross Traffic
Alert) indicator
Headlight high beam indicatorBrake hold standby indicator
AHB indicatorBrake hold operated
indicator
Cruise control indicatorSecurity indicator
Dynamic radar cruise control
indicatorSmart access system with
push-button start indicator
Cruise control “SET” indicator“READY” indicator
(if equipped)
(White or green)LKA indicatorLow outside temperature
indicator
(Flashes in orange)LKA indicatorEco Driving Indicator Light
(if equipped)
Intuitive parking assist
indicatorEV indicator (if equipped)
(Flashes)
Slip indicator(U.S.A.)Parking brake
indicator
VSC OFF indicator(Canada)
PCS warning light
(U.S.A.)
“AIR BAG ON/
OFF” indicator
For further information, refer to the “OWNER’S MANUAL”.
