headlights LEXUS LC500 2023 Owners Manual

4
LC500_LC500h_QG_OM11688U_(U)
Parking brake switch ................................................................................................ P.31
Applying/releasing............................................................................................................... P.31
Precautions against winter season
*
Warning buzzer/message*
Turn signal lever ........................................................................................................ P.30
Headlight switch ....................................................................................................... P.39
Headlights/parking lights/tail lights/day time running lights .............................P.39
AHB (Automatic High Beam) ........................................................................................P.40
Windshield wiper and washer switch ................................................................. P.42
Usage .......................................................................................................................... .............. P.42
Adding washer fluid
*
Warning messages*
Emergency flasher switch*
Hood lock release lever*
Tilt and telescopic steering control switch*
Adjustment*
Driving position memory ..................................................................................................P.20
Air conditioning system .......................................................................................... P.78
Usage .......................................................................................................................... .............. P.79
Rear window defogger ......................................................................................................P.78
Audio system.............................................................................................................. P.70
Trunk opener main switch
*
*
: Refer to “OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
M

39
LC500_LC500h_QG_OM11688U_(U)
U.S.A.
Canada
1 The side marker, parking, tail,
license plate, instrument panel lights,
and daytime running lights turn on.
2 The headlights and all the lights
listed above (except daytime running
lights) turn on.
3 The headlights, daytime running
lights and all the lights listed above turn
on and off automatically.
4 Off*
*
: U.S.A. only
1With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
2Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.

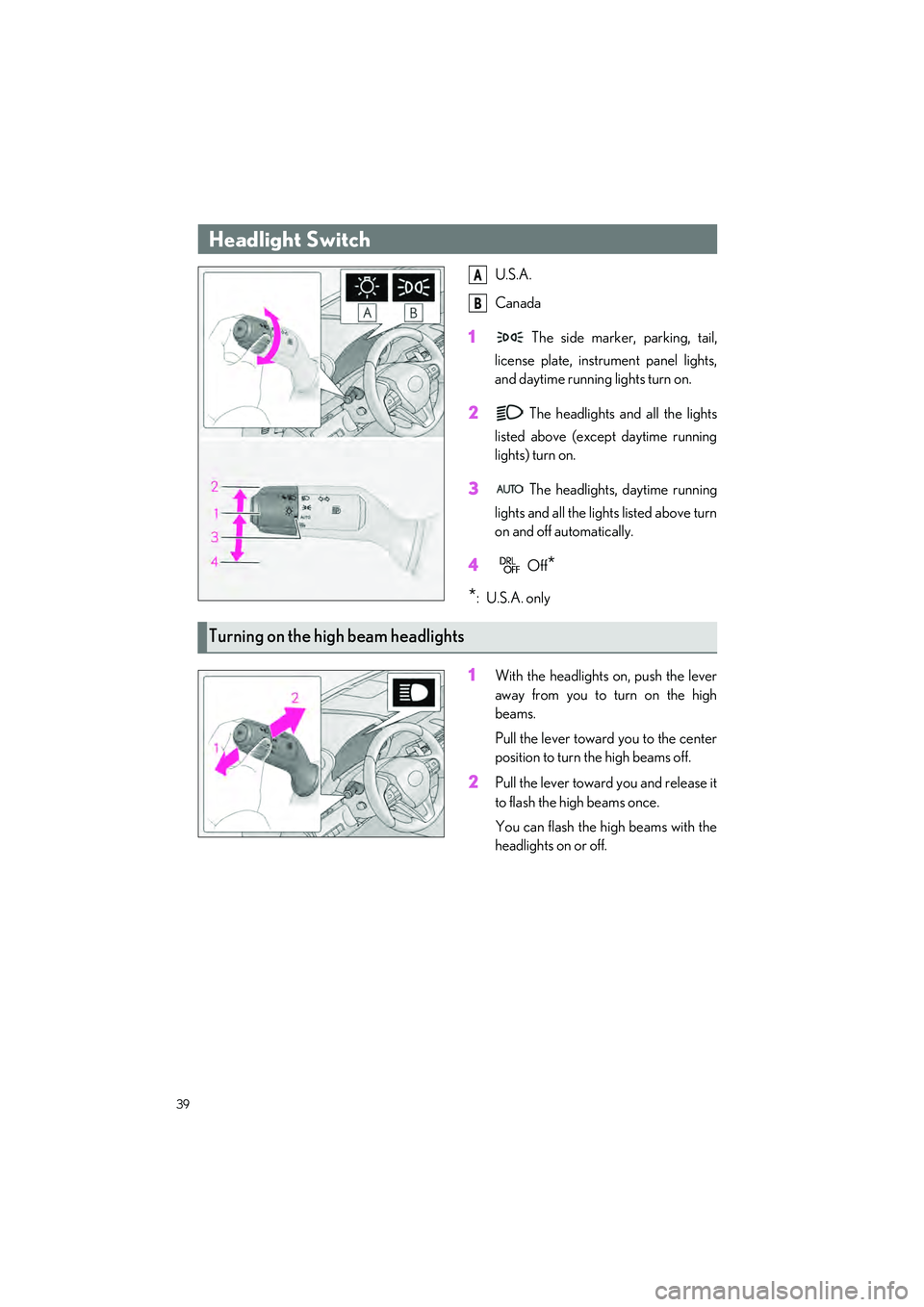

Headlight Switch
A
B
Turning on the high beam headlights
