Page 276 of 410
2746-3. Do-it-yourself maintenance
Fuse box (P.299)
Engine oil level dipstick ( P.274)
Engine coolant reservoir ( P.276)
Engine oil filler cap ( P.275)
Brake fluid reservoir ( P.277)
Washer fluid tank ( P.278)
Electric cooling fan
Condenser ( P.277)
Radiator ( P.277)
■Battery
P.279
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.

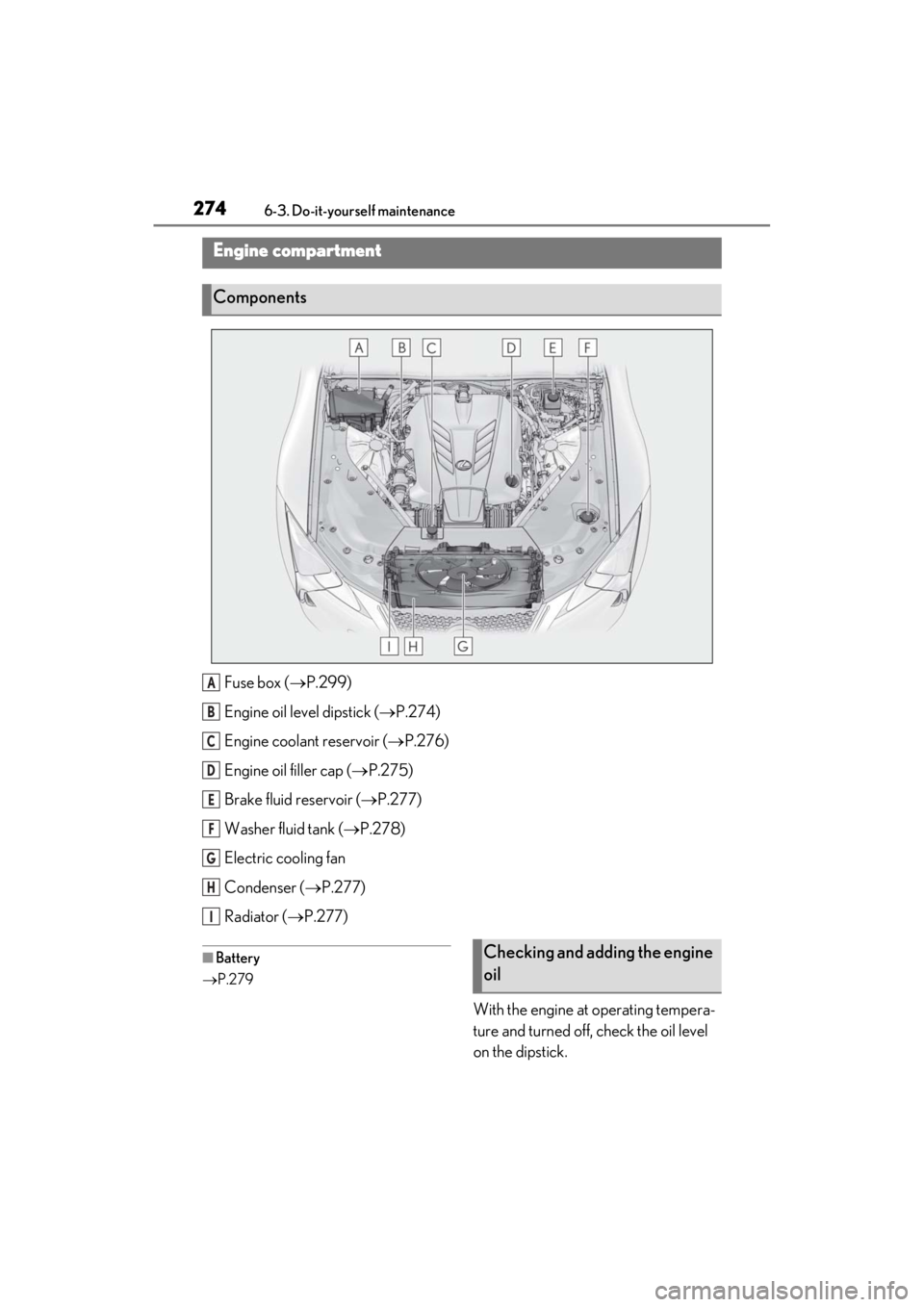

Engine compartment
Components
A
B
C
D
E
F
G
H
I
Checking and adding the engine
oil
Page 301 of 410
2996-3. Do-it-yourself maintenance
6
Maintenance and care
1Turn the engine switch off.
2
Open the Fuse box cover.
Engine compartment:
Push the tab in and lift the lid off.
Trunk
Remove the luggage mat.
Push the tab in and lift the lid off.
NOTICE
■For normal operation after replacing
the battery
Observe the following precautions to
prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to
rust.
●Do not touch or move any other com-
ponent inside the remote control.
●Do not bend either of the battery ter-
minals.
Checking and replacing
f
uses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses
Page 303 of 410
3016-3. Do-it-yourself maintenance
6
Maintenance and care
the pullout tool.

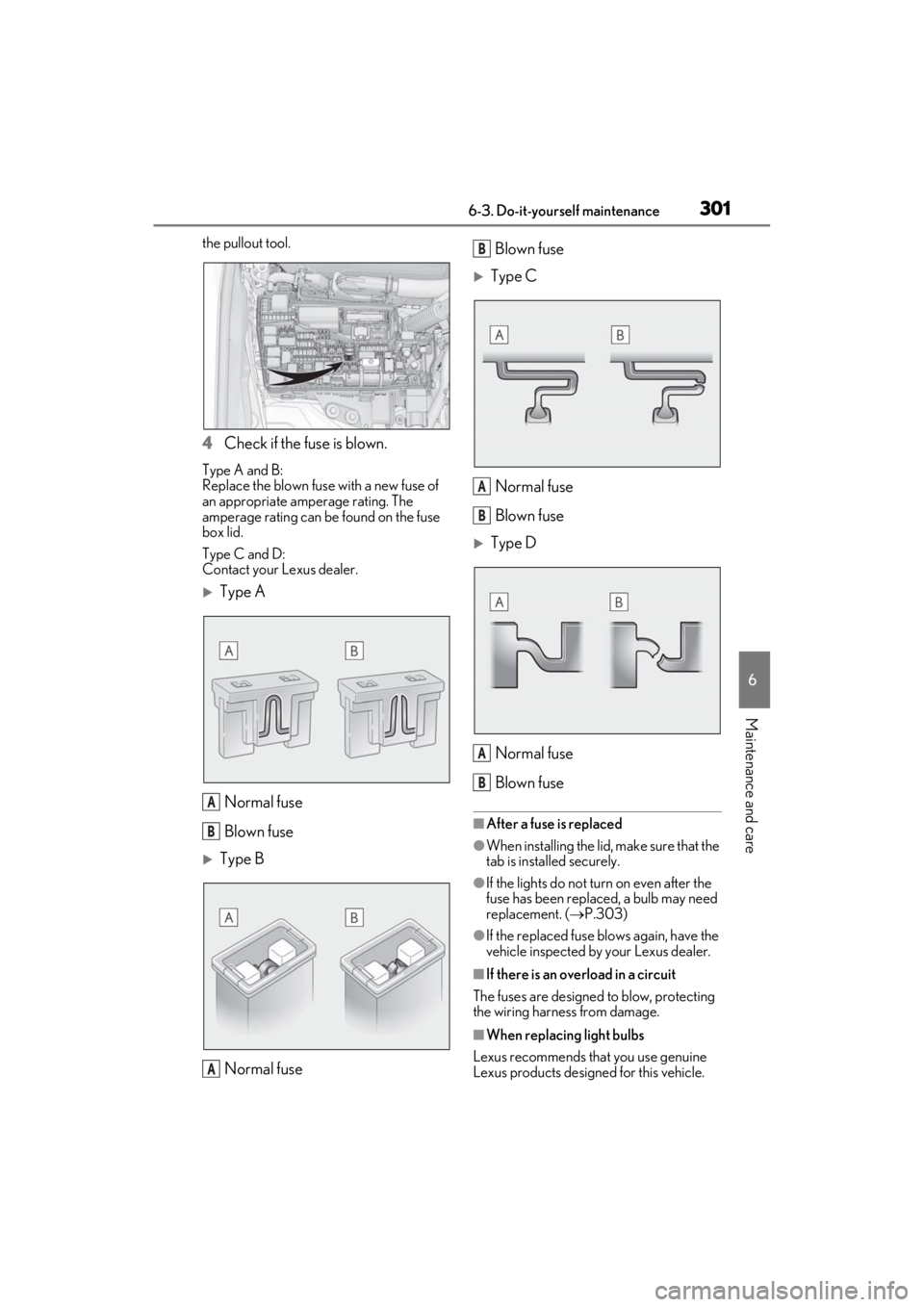

4Check if the fuse is blown.
Type A and B:
Replace the blown fuse with a new fuse of
an appropriate amperage rating. The
amperage rating can be found on the fuse
box lid.
Type C and D:
Contact your Lexus dealer.
Type A
Normal fuse
Blown fuse
Type BNormal fuse Blown fuse
Type C
Normal fuse
Blown fuse
Type DNormal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure that the
tab is installed securely.
●If the lights do not turn on even after the
fuse has been replaced, a bulb may need
replacement. ( P.303)
●If the replaced fuse blows again, have the
vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting
the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine
Lexus products designed for this vehicle.
A
B
A
B
A
B
A
B
Page 304 of 410
3026-3. Do-it-yourself maintenance
Because certain bulbs are connected to cir-
cuits designed to prevent overload, non-
genuine parts or parts not designed for this
vehicle may be unusable.
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Make sure the tire inflation pressure
is at the specified level.
Have someone sit in the driver’s
seat.
Bounce the vehicle several times.
WARNING
■To prevent system breakdowns and
vehicle fire
Observe the following precautions.
Failure to do so may cause damage to
the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage
rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or
equivalent.
Never replace a fuse with a wire, even
as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by your Lexus
dealer as soon as possible.
Headlight aim
Vertical movement adjusting
bolts
Before checking the headlight
aim
A
B
Page 336 of 410
3347-2. Steps to take in an emergency
tery, you can jump start your vehicle
using the following procedure.
1Confirm that the electronic key
(including the card key) is being
carried.
When connecting the jumper (or booster)
cables, depending on the situation, the
alarm may activate and doors locked.
( P.66)

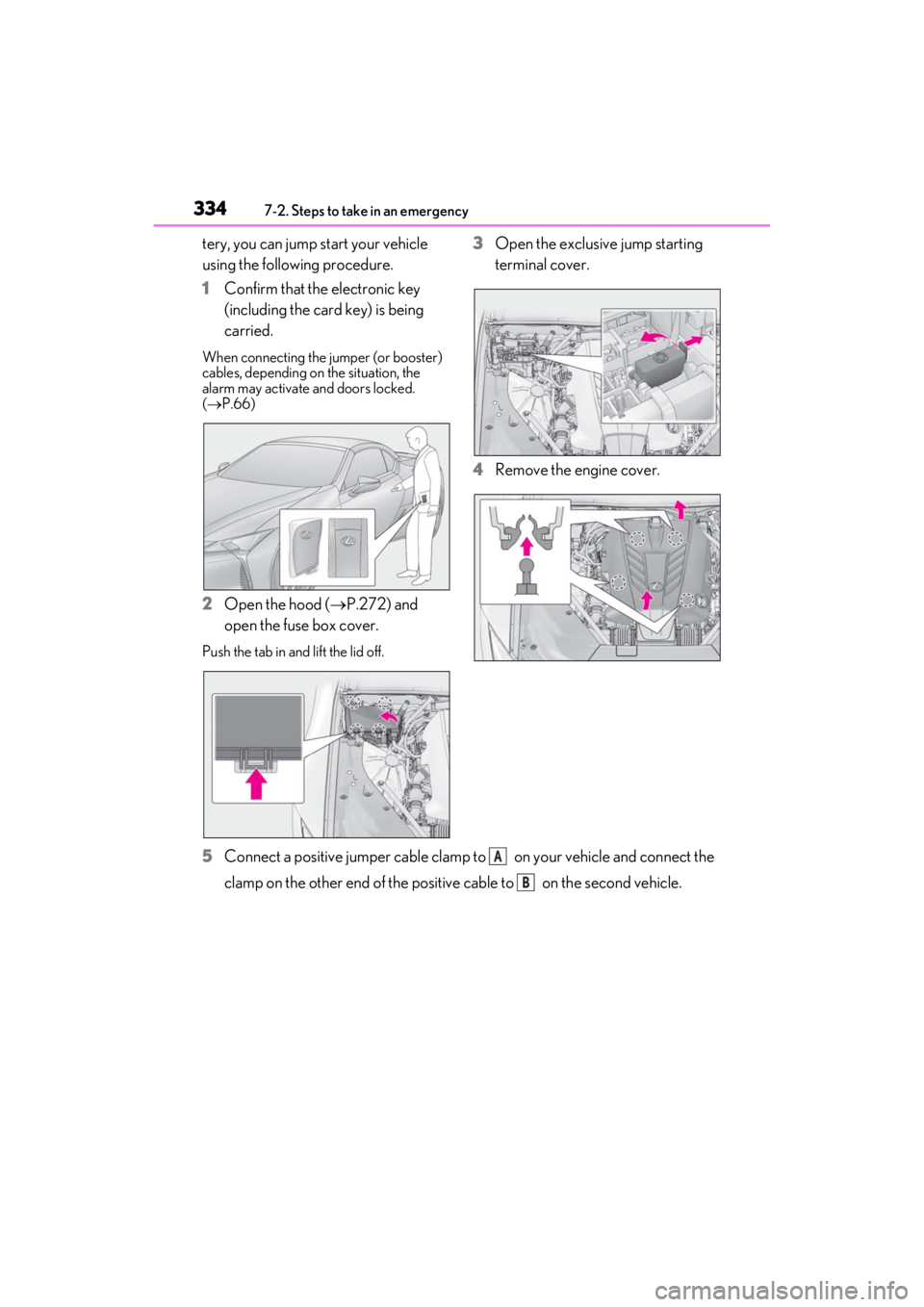

2 Open the hood ( P.272) and
open the fuse box cover.
Push the tab in and lift the lid off.
3 Open the exclusive jump starting
terminal cover.
4 Remove the engine cover.
5 Connect a positive jumper cable clamp to on your vehicle and connect the
clamp on the other end of the positive cable to on the second vehicle.
A
B
Page 337 of 410
3357-2. Steps to take in an emergency
7
When trouble arises

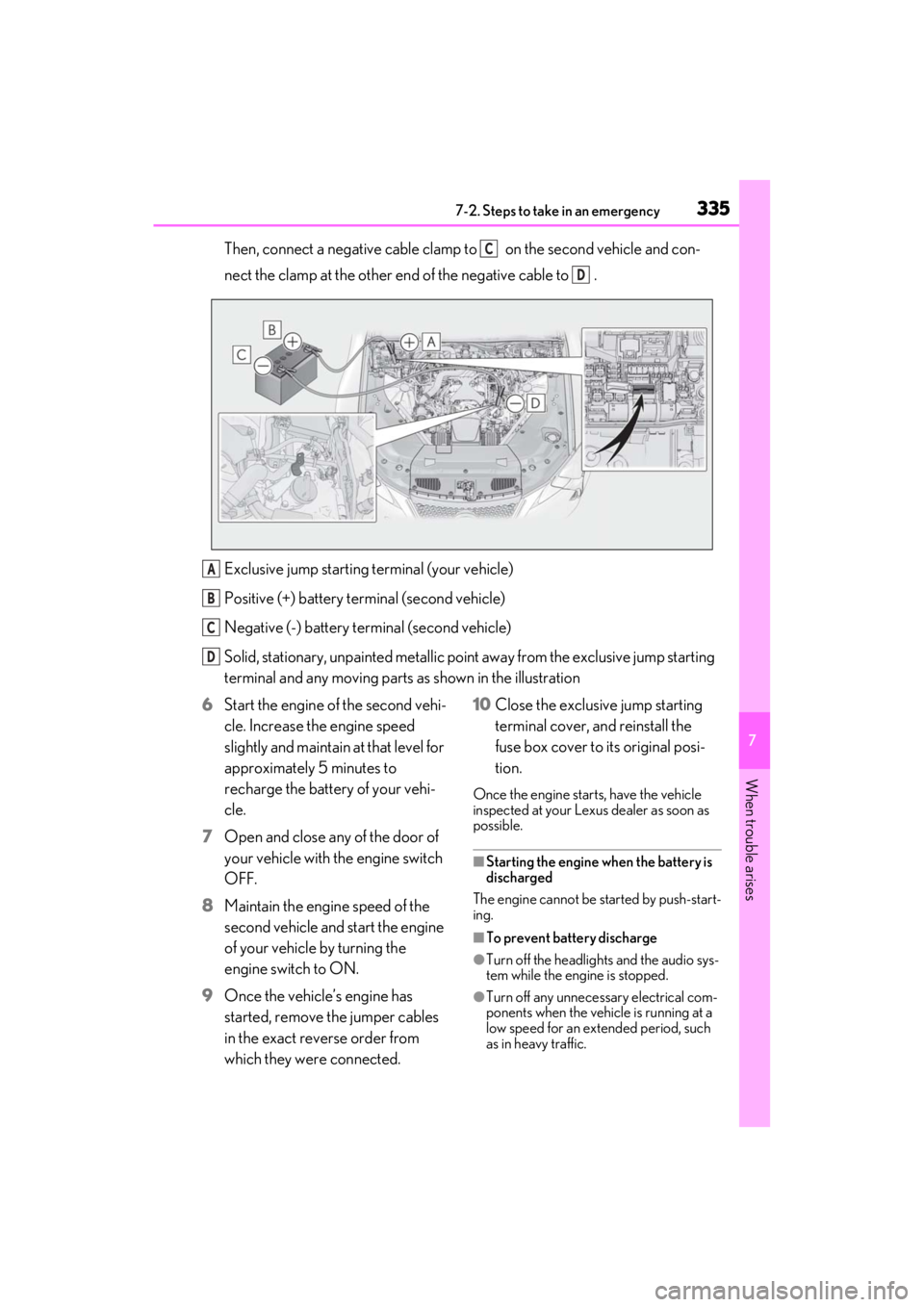

Then, connect a negative cable clamp to on the second vehicle and con-
nect the clamp at the other end of the negative cable to .
Exclusive jump starting terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any mo ving parts as shown in the illustration
6 Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.
7 Open and close any of the door of
your vehicle with the engine switch
OFF.
8 Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to ON.
9 Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected. 10
Close the exclusive jump starting
terminal cover, and reinstall the
fuse box cover to its original posi-
tion.
Once the engine starts, have the vehicle
inspected at your Lexus dealer as soon as
possible.
■Starting the engine when the battery is
discharged
The engine cannot be started by push-start-
ing.
■To prevent battery discharge
●Turn off the headlights and the audio sys-
tem while the engine is stopped.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
C
D
A
B
C
D
Page 399 of 410
Alphabetical index397
Capacity ...........................................................351
Checking ....................................................... 274
Preparing and checking before winter......................................................................... 223
Warning light .................................................314
Engine oil temperature gauge ...................75
Engine switch ..................................................146 Auto power off function ...........................149
Changing the engine switch modes..149
If your vehicle has to be stopped in an
emergency ................................................306
Starting the engine ......................................146
EPS (Electric Power Steering) ................219 Function ............................................................ 219
Warning light .................................................315
Event data recorder (EDR) ............................7
F
First-aid kit storage belt ............................ 248
Flat tire ............................................................. 327 Tire pressure warning system ............. 283
Floor mats ...........................................................22
Fluid Automatic transmission ..........................353
Brake................................................................ 354
Washer ........................................................... 278
Footwell light ................................................. 244
Front passenger occupant classification system ................................................................ 41
Front seats ......................................................... 110 Adjustment....................................................... 110
Cleaning......................................................... 262
Correct driving posture .............................23
Driving position memory...........................112
Head restraints .............................................. 116
Jam protection function............................... 111
Memory recall function ..............................114
Neck heaters ............................................... 240
Power easy access system .......................112
Seat heaters .................................................. 240
Seat position memory .................................112
Seat ventilators............................................ 240 Front side marker light ................................. 161
Light switch ...................................................... 161
Replacing light bulbs ............................... 303
Front turn signal lights .................................156 Replacing light bulbs ............................... 303
Turn signal lever .......................................... 156
Fuel ....................................................................... 171 Capacity .......................................................... 351
Fuel gauge ........................................................ 75
Fuel pump shut off system...................... 313
Information ....................................................357
Refueling............................................................ 171
Type ................................................................... 351
Warning light ................................................ 318
Fuel consumption Average fuel consumpt ion after refueling
............................................................................ 80
Average fuel economy ............................. 80
Current fuel consumption ....................... 80
Fuel filler door .................................................. 171 If the fuel filler do or cannot be opened
......................................................................... 330
Refueling............................................................ 171
Fuel gauge ......................................................... 75
Fuel pump shut off system..........................313
Fuses ................................................................. 299
G
Garage door opener ................................. 250
Gauges ............................................................... 75
Gear positions ...................................................81
G-force.................................................................81
Glove box ....................................................... 246
Glove box light ............................................. 246
H
Headlights ......................................................... 161 Automatic High Beam system ............. 164
Light switch ...................................................... 161
Replacing light bulbs ............................... 303
Headlights aim .............................................. 302
