3317-2. Steps to take in an emergency
7
When trouble arises
From the front
Use a towing dolly under the rear
wheels.
From the rear
Use a towing dolly under the front
wheels.
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration. If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and
brakes must be in good condition.
To have your vehicle towed by another
Towing with a wheel-lift type
truck
Using a flatbed truck
Emergency towing
Emergency towing procedure

3327-2. Steps to take in an emergency
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.
1Take out the screwdriver and the
towing eyelet. ( P.310)
2 Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehicle
body as shown in the illustration.
3Insert the towing eyelet into the
hole and tighten partially by hand. 4
Tighten down the towing eyelet
securely using the screwdriver or
hard metal bar.
5 Securely attach cables or chains to
the towing eyelet.
Take care not to damage the vehicle body.
6Enter the vehicle being towed and
start the engine .
If the engine does not
start, turn the engine switch switch> to IGNITION ON mode mode>.
7Shift the shift position to N and
release the parking brake.
■While towing
If the engine is not running off>, the power assist for the brakes and
steering will not function, making steering
and braking more difficult.

3337-2. Steps to take in an emergency
7
When trouble arises
Fluid leaks under the vehicle. (Water
dripping from the air conditioning
after use is normal.)
 Flat-looking tires or uneven tire
wear
 Engine coolant temperature gauge
continually points higher than nor-
mal.
 Changes in exhaust sound
 Excessive tire squeal when corner-
ing
 Strange noises related to the sus-
pension system
 Pinging or other noises related to
the engine
 Engine missing, stumbling or run-
ning roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when braking 
Vehicle pulls heavily to one side
when driving on a level road
 Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor
If you think something is
wrong
If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

3347-2. Steps to take in an emergency
Follow the procedure below to restart
the engine after the system is activated.
1Turn the engine switch to ACCES-
SORY mode or turn it off.
2 Restart the engine.
Fuel pump shut off system
(LC500)
To minimize the risk of fuel leakage
when the engine stalls or when an
airbag inflates upon collision, the
fuel pump shut off system stops the
supply of fuel to the engine.
Restarting the engine
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the
ground, the fuel system has been dam-
aged and is in need of repair. Do not
restart the engine.

3357-2. Steps to take in an emergency
7
When trouble arises

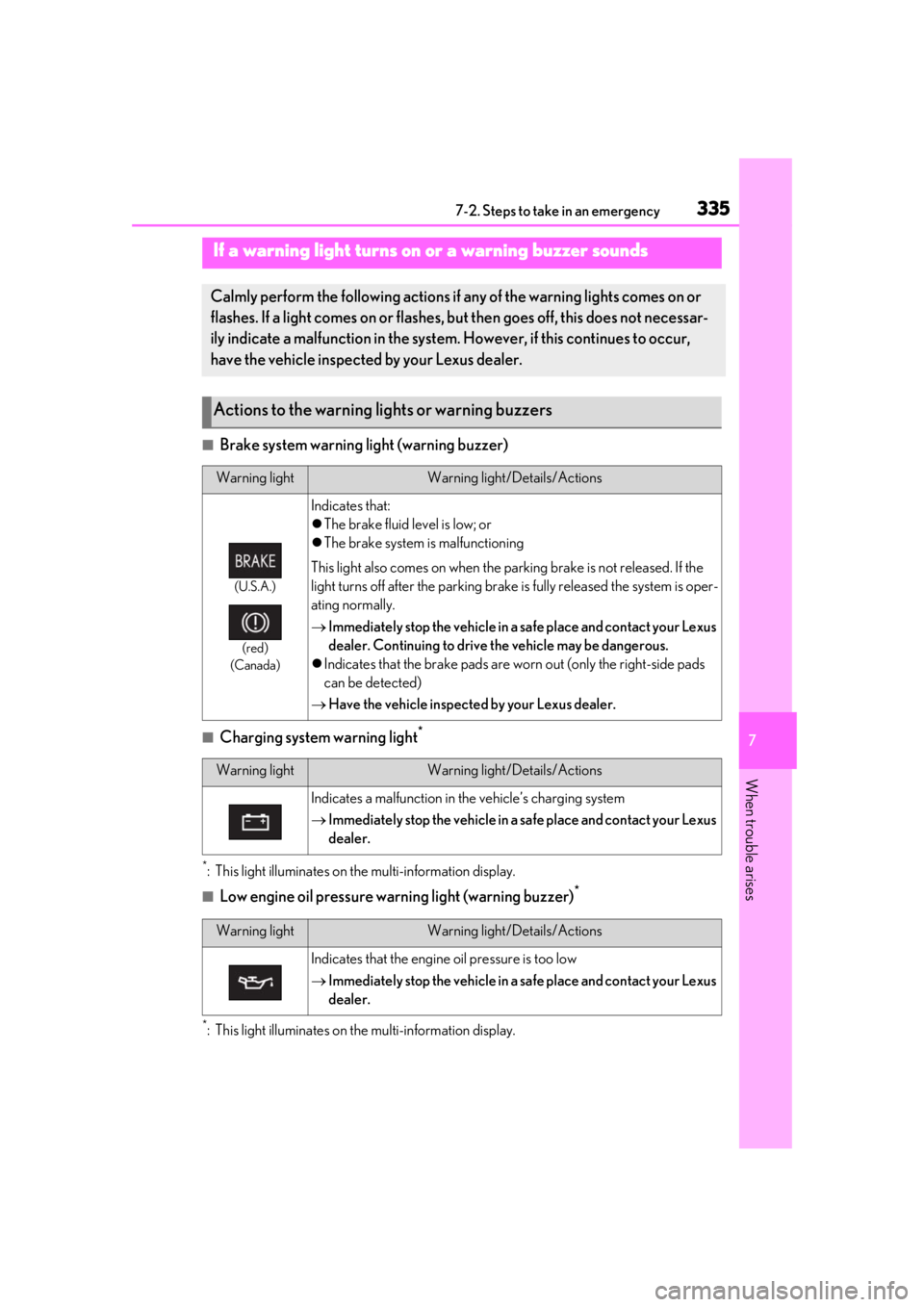

■Brake system warning light (warning buzzer)
■Charging system warning light*
*: This light illuminates on the multi-information display.
■Low engine oil pressure warning light (warning buzzer)*
*: This light illuminates on the multi-information display.
If a warning light turns on or a warning buzzer sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, bu t then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Actions to the warning lights or warning buzzers
Warning lightWarning light/Details/Actions
(U.S.A.)
(red)
(Canada)
Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
This light also comes on when the pa rking brake is not released. If the
light turns off after the parking brake is fully released the system is oper-
ating normally.
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer. Continuing to drive the vehicle may be dangerous.
 Indicates that the brake pads are worn out (only the right-side pads
can be detected)
 Have the vehicle inspected by your Lexus dealer.
Warning lightWarning light/Details/Actions
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning lightWarning light/Details/Actions
Indicates that the engine oil pressure is too low
 Immediately stop the vehicle in a safe place and contact your Lexus
dealer.

3367-2. Steps to take in an emergency
■Malfunction indicator lamp (warning buzzer)
■SRS warning light
■ABS warning light (warning buzzer)
■Electric power steering system warning light (warning buzzer)
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Indicates a malfunction in:
 The electronic engine control system;
 The hybrid system (LC500h);
 The electronic throttle control system;
 The electronic automatic transmission control system (LC500); or
 The electronic hybrid transmission control system (LC500h)
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details/Actions
Indicates a malfunction in:
The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pretensioner system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Indicates a malfunction in:
 The ABS; or
 The brake assist system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details/Actions
(red)
or
(yellow)Indicates a malfunction in the EPS (Electric Power Steering) system
 Have the vehicle inspected by your Lexus dealer immediately.

3377-2. Steps to take in an emergency
7
When trouble arises

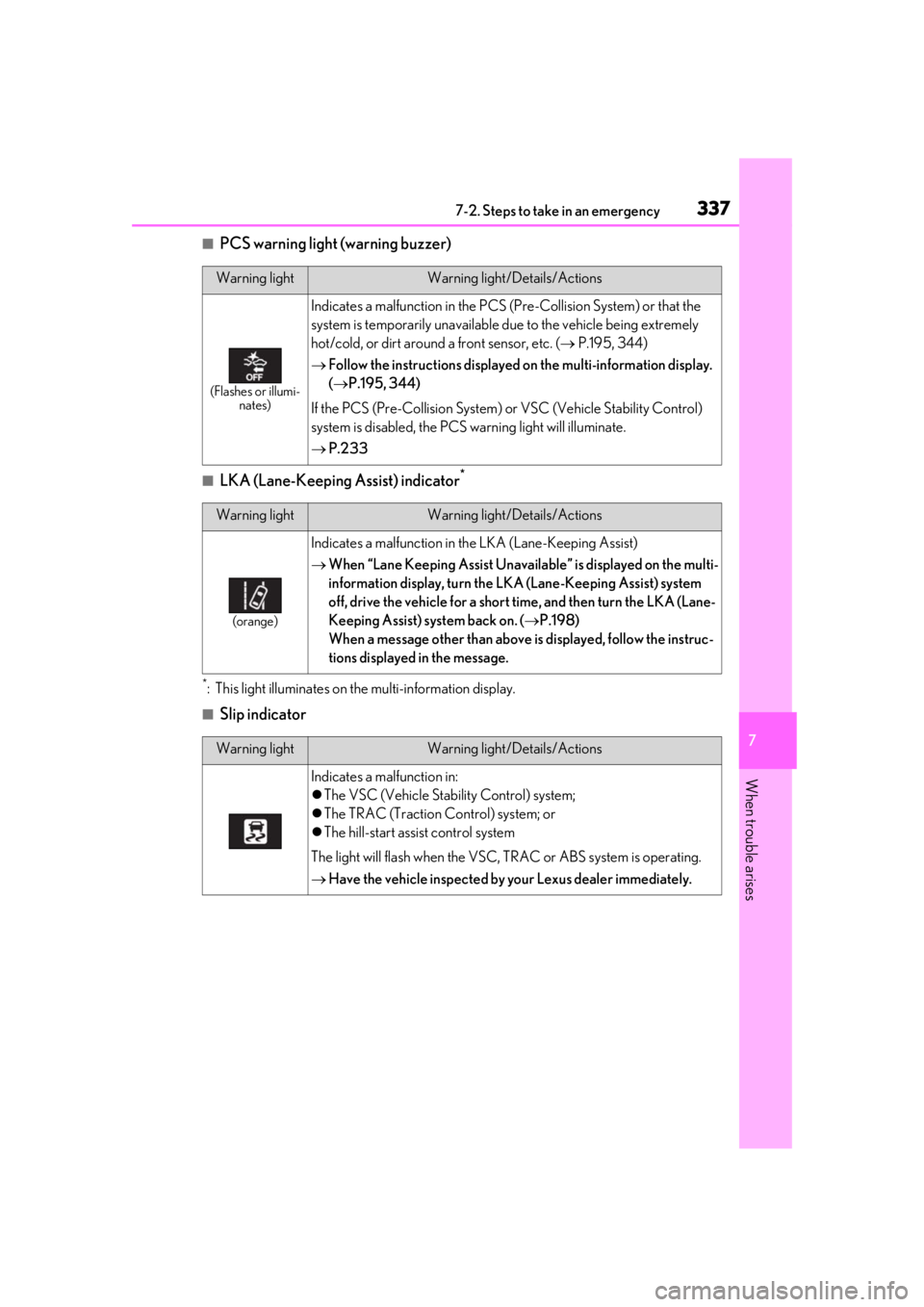

■PCS warning light (warning buzzer)
■LKA (Lane-Keeping Assist) indicator*
*: This light illuminates on the multi-information display.
■Slip indicator
Warning lightWarning light/Details/Actions
(Flashes or illumi-nates)
Indicates a malfunction in the PCS (P re-Collision System) or that the
system is temporarily unavailable due to the vehicle being extremely
hot/cold, or dirt around a front sensor, etc. (  P.195, 344)
 Follow the instructions displayed on the multi-information display.
(  P.195, 344)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability Control)
system is disabled, the PCS warning light will illuminate.
 P.233
Warning lightWarning light/Details/Actions
(orange)
Indicates a malfunction in th e LKA (Lane-Keeping Assist)
 When “Lane Keeping Assist Unavailable” is displayed on the multi-
information display, turn the LK A (Lane-Keeping Assist) system
off, drive the vehicle for a short time, and then turn the LKA (Lane-
Keeping Assist) system back on. ( P.198)
When a message other than above is displayed, follow the instruc-
tions displayed in the message.
Warning lightWarning light/Details/Actions
Indicates a malfunction in:
 The VSC (Vehicle Stability Control) system;
 The TRAC (Traction Control) system; or
 The hill-start assist control system
The light will flash when the VSC, TRAC or ABS system is operating.
 Have the vehicle inspected by your Lexus dealer immediately.

3387-2. Steps to take in an emergency

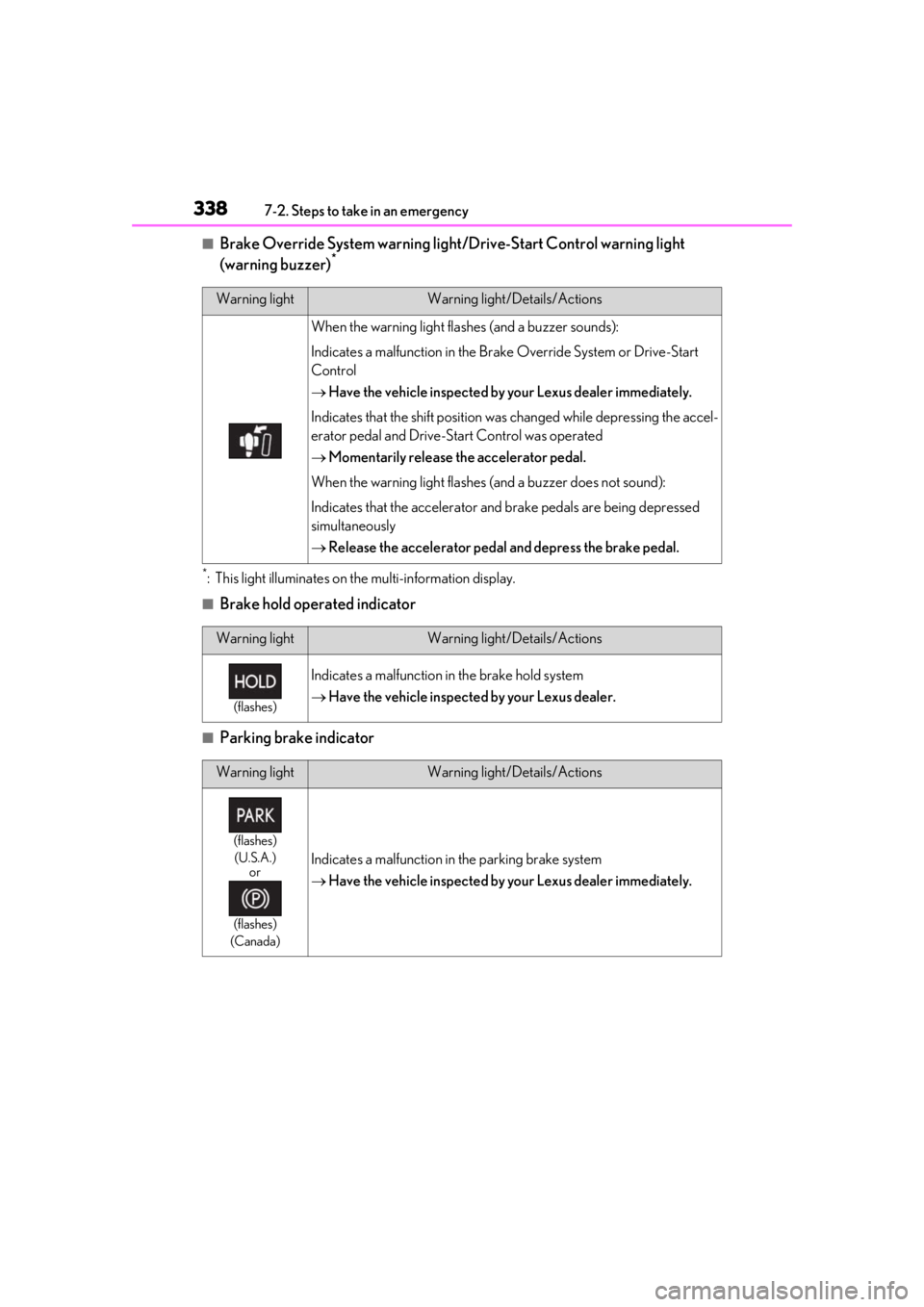

■Brake Override System warning light/Drive-Start Control warning light
(warning buzzer)*
*: This light illuminates on the multi-information display.
■Brake hold operated indicator
■Parking brake indicator
Warning lightWarning light/Details/Actions
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the Brake Override System or Drive-Start
Control
Have the vehicle inspected by your Lexus dealer immediately.
Indicates that the shift position wa s changed while depressing the accel-
erator pedal and Drive-Start Control was operated
 Momentarily release th e accelerator pedal.
When the warning light flashes (and a buzzer does not sound):
Indicates that the accelerator and brake pedals are being depressed
simultaneously
 Release the accelerator pedal and depress the brake pedal.
Warning lightWarning light/Details/Actions
(flashes)
Indicates a malfunction in the brake hold system
Have the vehicle inspected by your Lexus dealer.
Warning lightWarning light/Details/Actions
(flashes)
(U.S.A.) or
(flashes)
(Canada)
Indicates a malfunction in the parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.

3397-2. Steps to take in an emergency
7
When trouble arises

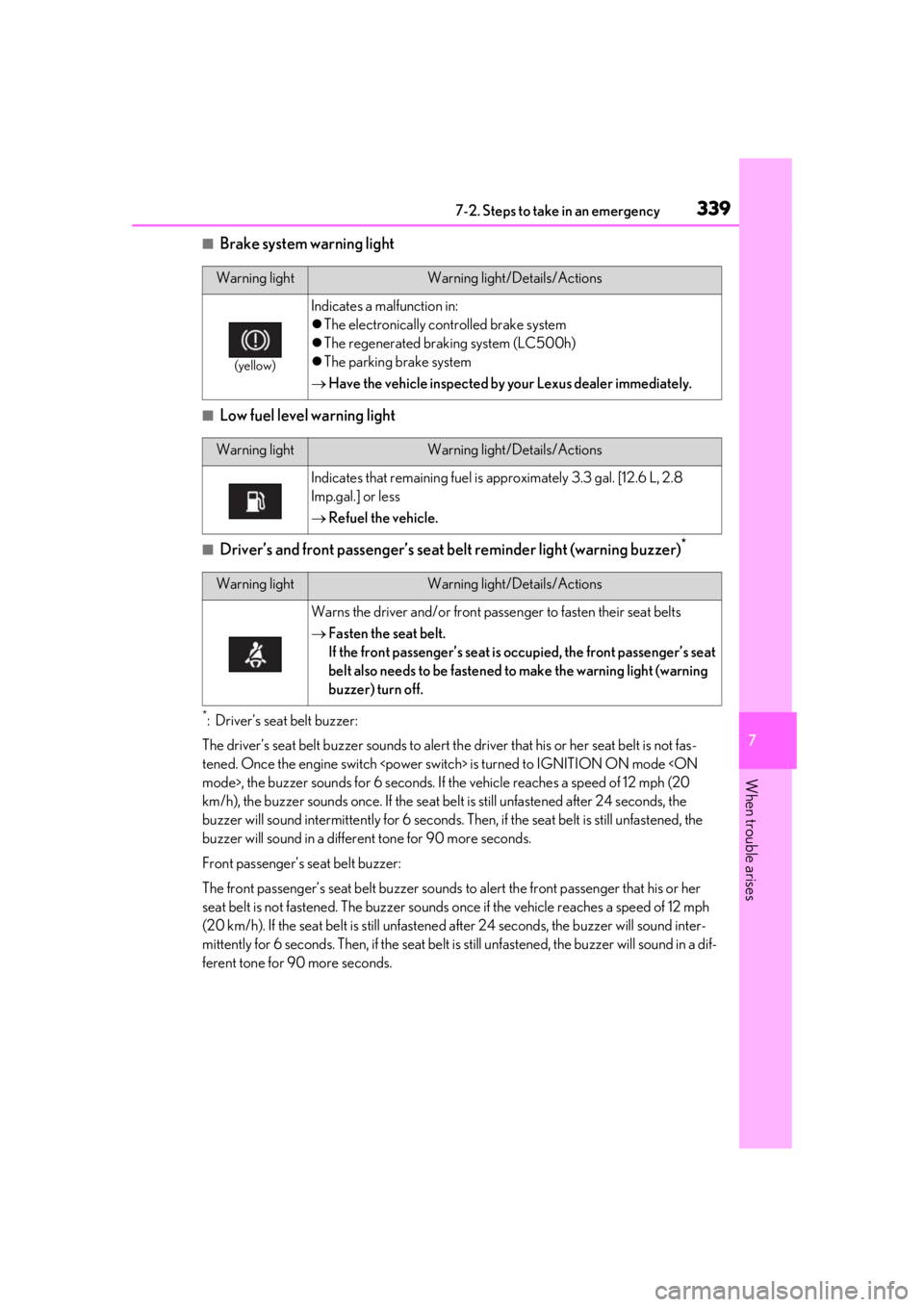

■Brake system warning light
■Low fuel level warning light
■Driver’s and front passenger’s seat belt reminder light (warning buzzer)*
*: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert th e driver that his or her seat belt is not fas-
tened. Once the engine switch is turned to IGNITION ON mode mode>, the buzzer sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20
km/h), the buzzer sounds once. If the seat belt is still unfastened afte r 24 seconds, the
buzzer will sound interm ittently for 6 seconds. Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 90 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or her
seat belt is not fasten ed. The buzzer sounds once if the vehicle reaches a speed of 12 mph
(20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will sound inter-
mittently for 6 seconds. Then, if the seat belt is still unfastened, the buzzer will sound in a dif-
ferent tone for 90 more seconds.
Warning lightWarning light/Details/Actions
(yellow)
Indicates a malfunction in:
 The electronically controlled brake system
 The regenerated braking system (LC500h)
 The parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details/Actions
Indicates that remaining fuel is approximately 3.3 gal. [12.6 L, 2.8
Imp.gal.] or less
 Refuel the vehicle.
Warning lightWarning light/Details/Actions
Warns the driver and/or front passe nger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.

3407-2. Steps to take in an emergency
■Rear passengers’ seat belt reminder lights (warning buzzer*1)*2
*1: Rear passenger’s seat belt buzzer:
The rear passenger’s seat belt buzzer sounds to alert the rear passenger that his or her seat
belt is not fastened. The buzzer sounds for 6 seconds if the vehicle reaches a speed of 12
mph (20 km/h). Then, if the seat belt is still un fastened, the buzzer will sound in a different
tone for 24 more seconds.
*2: This light illuminates on the center panel.
■Master warning light (warning buzzer)
■Tire pressure warning light
■High coolant temperature warning light (warning buzzer)*
Warning lightWarning light/Details/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Warning lightWarning light/Details/Actions
A buzzer sounds and the warning ligh t comes on and flashes to indicate
that the master warning system has detected a malfunction.
 P.344
Warning lightWarning light/Details/Actions
When the light comes on:
Low tire inflation pressure such as
Natural causes ( P.342)
 Flat tire ( P.350)
 Adjust the tire inflation pressure to the specified level.
The light will turn off after a few mi nutes. In case the light does not
turn off even if the tire inflation pressure is adjusted, have the sys-
tem checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
Warning lightWarning light/Details/Actions
Changes from a flashing to a solid light when the engine coolant tem-
perature increases
Immediately stop the vehicle in a safe place.
Handling method. ( P.364, 366)
