Active Rear Wing ................................................................................................................... 58
Air Conditioning System
*
Control panel ..................................................................................................................................82
Main control screen............................................................................................................ ......... 83
Option control screen .......................................................................................................... .......84
Side display................................................................................................................... ................... 85
Using automatic mode ........................................................................................................... .... 85
Audio System
*
Audio control screen ........................................................................................................... ........ 74
Selecting an audio source ...................................................................................................... .... 74
Steering switch operation ...................................................................................................... .... 75
Radio ................................................................................................................................................... 77
CD........................................................................................................................................................78
DVD .................................................................................................................................................... 79
iPod ..................................................................................................................................................... 80
Automatic High Beam............................................................................................................ 42

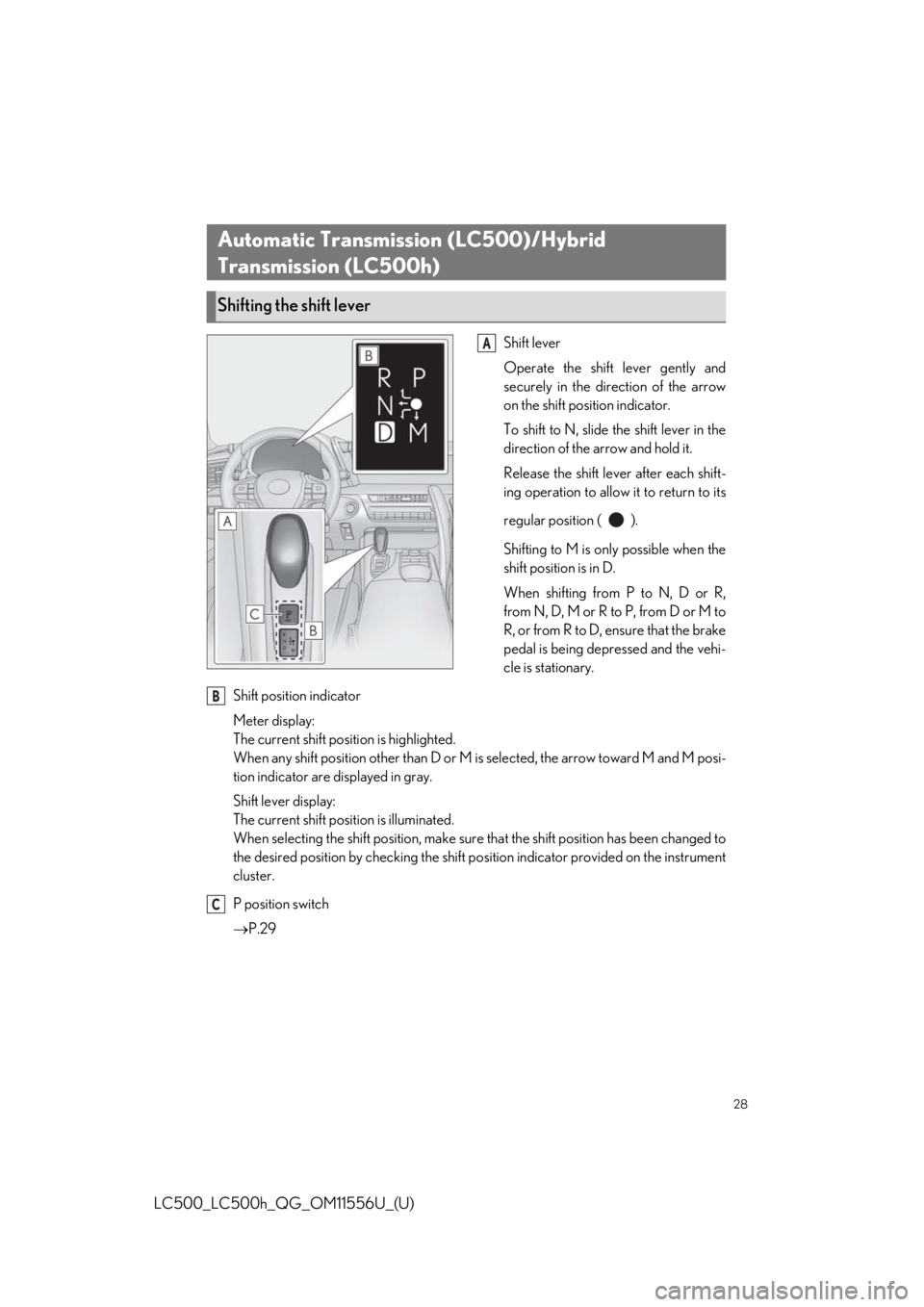

Automatic Transmission (LC500)/Hybrid Transmission (LC500h) .................... 28
Brake Hold ..................................................................................................................... ........... 35
BSM (Blind Spot Monitor) ....................................................................................................55
Door Locks ..................................................................................................................... .........103
Driving Mode Select Switch ............................................................................................... 53
Driving Position Memory ......................................................................................................22
Dynamic Radar Cruise Control with Full-Speed Range ............................................. 47
Energy Monitor/Consumption Screen ............................................................................63
Engine (Ignition) Switch (LC500)/Power (Ignition) Switch (LC500h) ................24
EV Drive Mode (LC500h) ................................................................................................... 27
Floor Mat Installation ......................................................................................................... .....13
Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understanding of your vehicle’s capabilities
and limitations.

2
LC500_LC500h_QG_OM11556U_(U)
Front Seats.................................................................................................................................. 21
Garage Door Opener ........................................................................................................... 94
Hands-free System For Cellular Phone
*
Registering/connecting Bluetooth® device ..................................................................... 70
Contacts transfer .............................................................................................................. .............. 71
Registering the contacts in the favorites list........................................................................72
Calling by favorites list ...................................................................................................... ...........72
Calling the message sender ..................................................................................................... .72
Receiving a call ............................................................................................................... ................73
Steering switches .............................................................................................................. .............73
Headlights..................................................................................................................... .............. 41
Head-up Display ..................................................................................................................... 38
Hybrid System (LC500h)...................................................................................................... 14
Intuitive Parking Assist ....................................................................................................... ...52
Keys ........................................................................................................................... ................... 17
Lexus Climate Concierge ..................................................................................................... 81
Lexus Enform Remote .........................................................................................................100
Lexus Enform Safety Connect ............................................................................................98
Lexus Enform Service Connect ......................................................................................... 101
Lexus Safety System +.......................................................................................................... .. 45
LKA (Lane-Keeping Assist).................................................................................................. 46
Multi-information Display..................................................................................................... 3 6
Navigation System
*
Registering home ............................................................................................................... ........... 66
Destination search - Search by address .............................................................................. 66
Destination search - Search points of intere st by name ............................................... 68
Destination search - Search points of intere st by category ........................................ 69
Destination search - Search points of interest by phone number ............................ 69
Voice Command System .......................................................................................................... 8 6
*: These features may be operated by Voice Command (See P.86)

5
LC500_LC500h_QG_OM11556U_(U)
■Instrument panel
Engine switch .............................................................................. P.24
Starting the engine /chan ging the mode .......................... P.24, 25
Emergency stop of the engine ......................................................P.26
When the engine will not start...................................................... P.110
Warning messages
*
Shift lever .................................................................................................................... P.28
Changing the shift position.............................................................................................. P.28
Precautions against towing
*
Meters*
Reading the meters/adjusting the instrument panel lights*
Warning lights/indicator lights .. ...................................................................................P.105
When the warning lights come on
*
Multi-information display ...................................................................................... P.36
Display........................................................................................................................ ...............P.36
When the warning messages are displayed
*
Pictorial Index
A
B
C
D

7
LC500_LC500h_QG_OM11556U_(U)

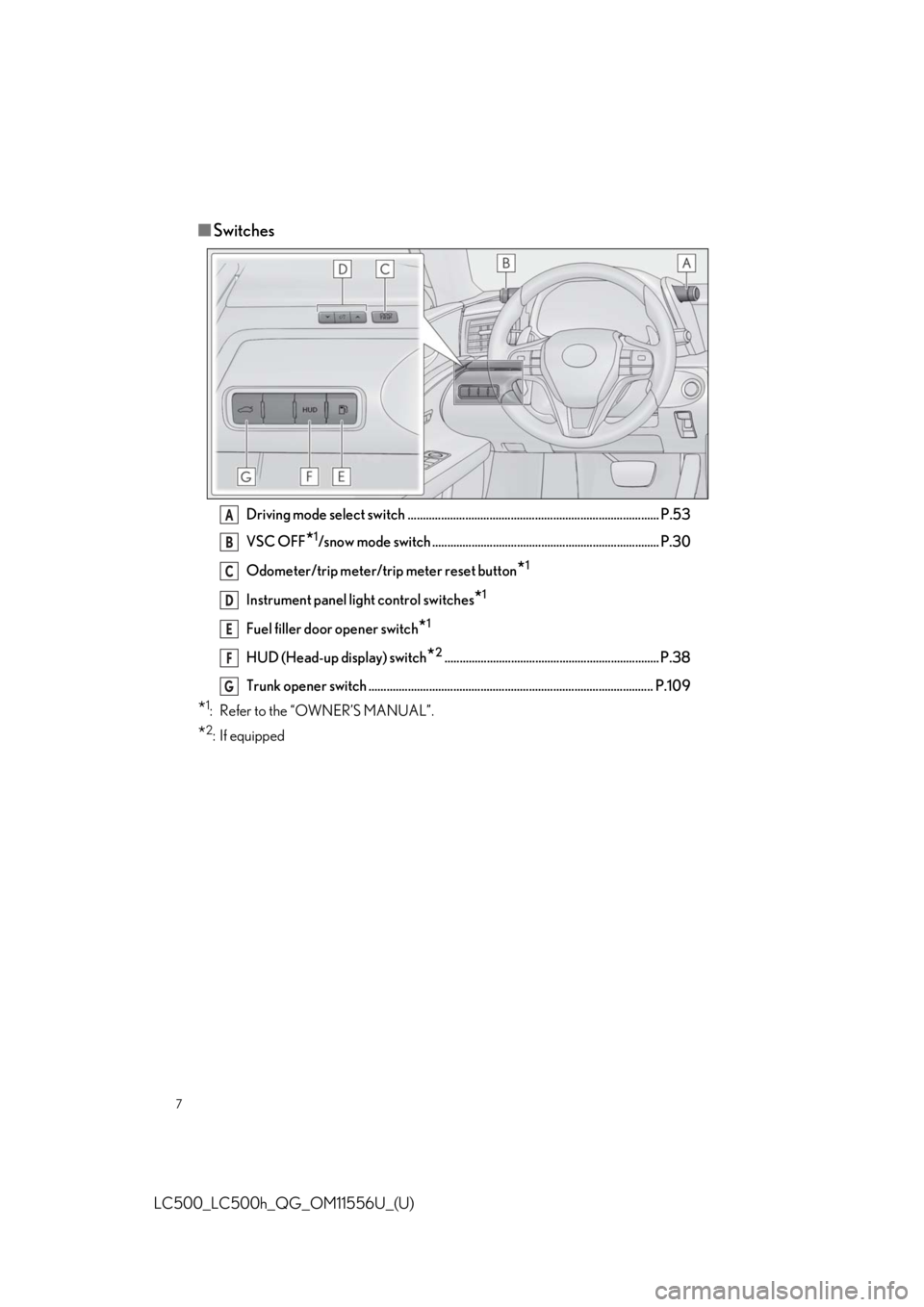

■Switches
Driving mode select switch ................................................................................... P.53
VSC OFF
*1/snow mode switch ........................................................................... P.30
Odometer/trip meter/trip meter reset button
*1
Instrument panel light control switches*1
Fuel filler door opener switch*1
HUD (Head-up display) switch*2....................................................................... P.38
Trunk opener switch .............................................................................................. P.109
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
A
B
C
D
E
F
G

15
LC500_LC500h_QG_OM11556U_(U)
If the shift position is in N, the hybrid battery (traction battery) will not be charged. To help
prevent the battery from discharging, avoid leaving the N position selected for an extended
period of time.
In the following situations, kinetic energy is converted to electric energy and deceleration
force can be obtained in conjunction with the recharging of the hybrid battery (traction bat-
tery).
● The accelerator pedal is released while dr iving with the shift position in D or M.
● The brake pedal is depressed while driving with the shift position in D or M.
Motor power display
Motor power area
Shows that the power of the motor assists the
engine.
Charge area
Shows regeneration
* status. Regenerated energy
will be used to charge th e hybrid battery (traction
battery).
*: When used in this manual, “regeneration” refers to
the conversion of energy created by the movement
of the vehicle into electrical energy.
Hybrid battery (traction battery) charge
Regenerative braking
A
B

16
LC500_LC500h_QG_OM11556U_(U)
There may be no engine sound or vibration even though the vehicle is able to move with the
“READY” indicator is illuminated. For safety, apply the parking brake and make sure to shift
the shift position to P when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid syst em starts or stops.
● Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear se ats, when the hybrid system is started or
stopped.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low sp eeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or
as the accelerator pedal is released.
● Vibration may be felt when the ga soline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear seats.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gaso line to make the low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 3.3 gal. [12.6 L, 2.8 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically disp layed when a malfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Sounds and vibrations specific to a hybrid vehicle
Running out of fuel
Hybrid warning message

22
LC500_LC500h_QG_OM11556U_(U)
1Turn the engine switch to IGNITION ON mode .
2Check that the shift position is in P.
3Adjust the driver’s seat, steering wheel, outside rear view mirrors and head-up display
to the desired positions.
4While pressing the “SET” button, or
within 3 seconds after the “SET” button
is pressed, press button “1”, “2” or “3”
until the buzzer sounds.
If the selected button has already been
preset, the previously recorded posi-
tion will be overwritten.
1Turn the engine switch to IGNITION ON mode .
2Check that the shift position is in P.
3Press one of the buttons for the driving
position you want to recall until the
buzzer sounds.
Driving Position Memory
This feature automatically adjusts the positions of the driver’s seat, steering wheel, outside
rear view mirrors and head-up display (i f equipped) to suit your preferences.
Recording a driving position into memory
Recalling a driving position

24
LC500_LC500h_QG_OM11556U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.33)
Parking brake indicator will come on.
2Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play. If it is not displayed, the engine
cannot be started.
LC500h: When the shift position is N,
the hybrid system cann ot start. Shift the
shift position to P when starting the
hybrid system.
3Press the engine swit ch shortly and firmly.
When operating the engine switch , one short, firm press is enough.
It is not necessary to pr ess and hold the switch.
LC500: The engine will crank un til it starts or for up to 30 seconds, whichever is less.
Continue depressing the brake pedal un til the engine is completely started.
LC500h: If the “READY” indicator turns on, the hybrid system will operate normally.
Continue depressing the brake pedal un til the “READY” indicator is illuminated.
The engine can be started from any engine switch
mode.
4LC500h: Check that the “READY ” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
Engine (Ignition) Switch (LC500)/Power (Ignition)
Switch (LC500h)
Performing the following operations when carrying the electronic key on your person
starts the engine or chan ges engine switch modes.
The illustrations are for LC500, and some design may differ for LC500h.
Starting the engine

25
LC500_LC500h_QG_OM11556U_(U)
1Stop the vehicle completely.
2If the parking brake is in manual mode, set the parking brake. (P.33)
3Shift the shift position to P.
4Press the engine switch .
5Check that “ACCESSORY” or “IGNITION ON” is not shown on the meter.
Modes can be changed by pressing the engine switch with the brake pedal
released. (The mode changes each time the switch is pressed.)
1Off
The emergency flashers can be used.
2ACCESSORY mode
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on
the meter.
3IGNITION ON mode
All electrical components can be used.
“IGNITION ON” will be displayed on
the meter.
Stopping the engine
Changing engine switch modes

28
LC500_LC500h_QG_OM11556U_(U)
Shift lever
Operate the shift lever gently and
securely in the direction of the arrow
on the shift position indicator.
To shift to N, slide the shift lever in the
direction of the arrow and hold it.
Release the shift lever after each shift-
ing operation to allow it to return to its
regular position ( ).
Shifting to M is only possible when the
shift position is in D.
When shifting from P to N, D or R,
from N, D, M or R to P, from D or M to
R, or from R to D, ensure that the brake
pedal is being depressed and the vehi-
cle is stationary.
Shift position indicator
Meter display:
The current shift position is highlighted.
When any shift position other than D or M is selected, the arrow toward M and M posi-
tion indicator are displayed in gray.
Shift lever display:
The current shift position is illuminated.
When selecting the shift position, make sure that the shift position has been changed to
the desired position by checking the shift po sition indicator provided on the instrument
cluster.
P position switch
 P.29
Automatic Transmission (LC500)/Hybrid
Transmission (LC500h)
Shifting the shift lever
A
B
C
