key lexus LC500h 2020 Owner's Manual / LEXUS 2020 LC500,LC500H OWNER'S MANUAL QUICK GUIDE (OM11556U)

2
LC500_LC500h_QG_OM11556U_(U)
Front Seats.................................................................................................................................. 21
Garage Door Opener ........................................................................................................... 94
Hands-free System For Cellular Phone
*
Registering/connecting Bluetooth® device ..................................................................... 70
Contacts transfer .............................................................................................................. .............. 71
Registering the contacts in the favorites list........................................................................72
Calling by favorites list ...................................................................................................... ...........72
Calling the message sender ..................................................................................................... .72
Receiving a call ............................................................................................................... ................73
Steering switches .............................................................................................................. .............73
Headlights..................................................................................................................... .............. 41
Head-up Display ..................................................................................................................... 38
Hybrid System (LC500h)...................................................................................................... 14
Intuitive Parking Assist ....................................................................................................... ...52
Keys ........................................................................................................................... ................... 17
Lexus Climate Concierge ..................................................................................................... 81
Lexus Enform Remote .........................................................................................................100
Lexus Enform Safety Connect ............................................................................................98
Lexus Enform Service Connect ......................................................................................... 101
Lexus Safety System +.......................................................................................................... .. 45
LKA (Lane-Keeping Assist).................................................................................................. 46
Multi-information Display..................................................................................................... 3 6
Navigation System
*
Registering home ............................................................................................................... ........... 66
Destination search - Search by address .............................................................................. 66
Destination search - Search points of intere st by name ............................................... 68
Destination search - Search points of intere st by category ........................................ 69
Destination search - Search points of interest by phone number ............................ 69
Voice Command System .......................................................................................................... 8 6
*: These features may be operated by Voice Command (See P.86)

17
LC500_LC500h_QG_OM11556U_(U)
●Smart access system with push-button
start ( P.19)
● Wireless remote control
To take out the mechanical key, push the
release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanic al key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
Keys
Electronic key
Mechanical key

19
LC500_LC500h_QG_OM11556U_(U)
1Push the depression on the front edge
of the driver’s door handle to unlock
the door. Push the depression on the
front edge of the passenger’s door
handle to unlock both side doors.
*
The outside door handles will be
extended.
The extended outside door handles are
automatically retracted in approxi-
mately 60 seconds.
The doors cannot be unlocked for
3 seconds after the doors are locked.
*: The door unlock settings can bechanged.
2Push the rear edge of the extended door handle to lock the doors.
If the outside door handles are extended, they will be retracted.
After locking the doors, check th at the door is securely locked with the door lock indi-
cator. ( P.103)
Smart Access System with Push-button Start
The following operations can be performed simply by carrying the electronic key (includ-
ing the card key) on your pe rson, for example in your pocket. The driver should always
carry the electronic key.
For details on starting the engine , see page 24.
Unlocking and locking the doors from the outside

20
LC500_LC500h_QG_OM11556U_(U)
Press the button.
When both side doors are unlocked using
one of the following methods, the trunk can
be opened without the electronic key:
•Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
Opening the trunk
For details on what to do when the electronic key does not operate properly, see page 109.

23
LC500_LC500h_QG_OM11556U_(U)
Each electronic key (including a card key) can be registered to recall your preferred driving
position.
■Registering procedure
1
Turn the engine switch to IGNITION ON mode .
2Check that the shift position is in P.
3Recall the driving position that you want to record.
4While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the buzzer
sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function (driver’s side only)

24
LC500_LC500h_QG_OM11556U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.33)
Parking brake indicator will come on.
2Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play. If it is not displayed, the engine
cannot be started.
LC500h: When the shift position is N,
the hybrid system cann ot start. Shift the
shift position to P when starting the
hybrid system.
3Press the engine swit ch shortly and firmly.
When operating the engine switch , one short, firm press is enough.
It is not necessary to pr ess and hold the switch.
LC500: The engine will crank un til it starts or for up to 30 seconds, whichever is less.
Continue depressing the brake pedal un til the engine is completely started.
LC500h: If the “READY” indicator turns on, the hybrid system will operate normally.
Continue depressing the brake pedal un til the “READY” indicator is illuminated.
The engine can be started from any engine switch
mode.
4LC500h: Check that the “READY ” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
Engine (Ignition) Switch (LC500)/Power (Ignition)
Switch (LC500h)
Performing the following operations when carrying the electronic key on your person
starts the engine or chan ges engine switch modes.
The illustrations are for LC500, and some design may differ for LC500h.
Starting the engine

79
LC500_LC500h_QG_OM11556U_(U)
■Audio control switch
Turn to select a chapter
Turn and hold to fast forward/rewind.
Turn to select a chapter
■Control screen
Select to display the menu control key
Select to display the menu screen
Select to change the chapter
Select and hold to rewind.
Select to stop the video screen
Select to play/pause
Select to change the chapter
During playback: Select and hold to
fast forward.
During a pause: Select and hold to
slow forward.
Select to display expanded screen
video
DVD
A
B
A
B
C
D
E
F
G

What to do if...
109
LC500_LC500h_QG_OM11556U_(U)

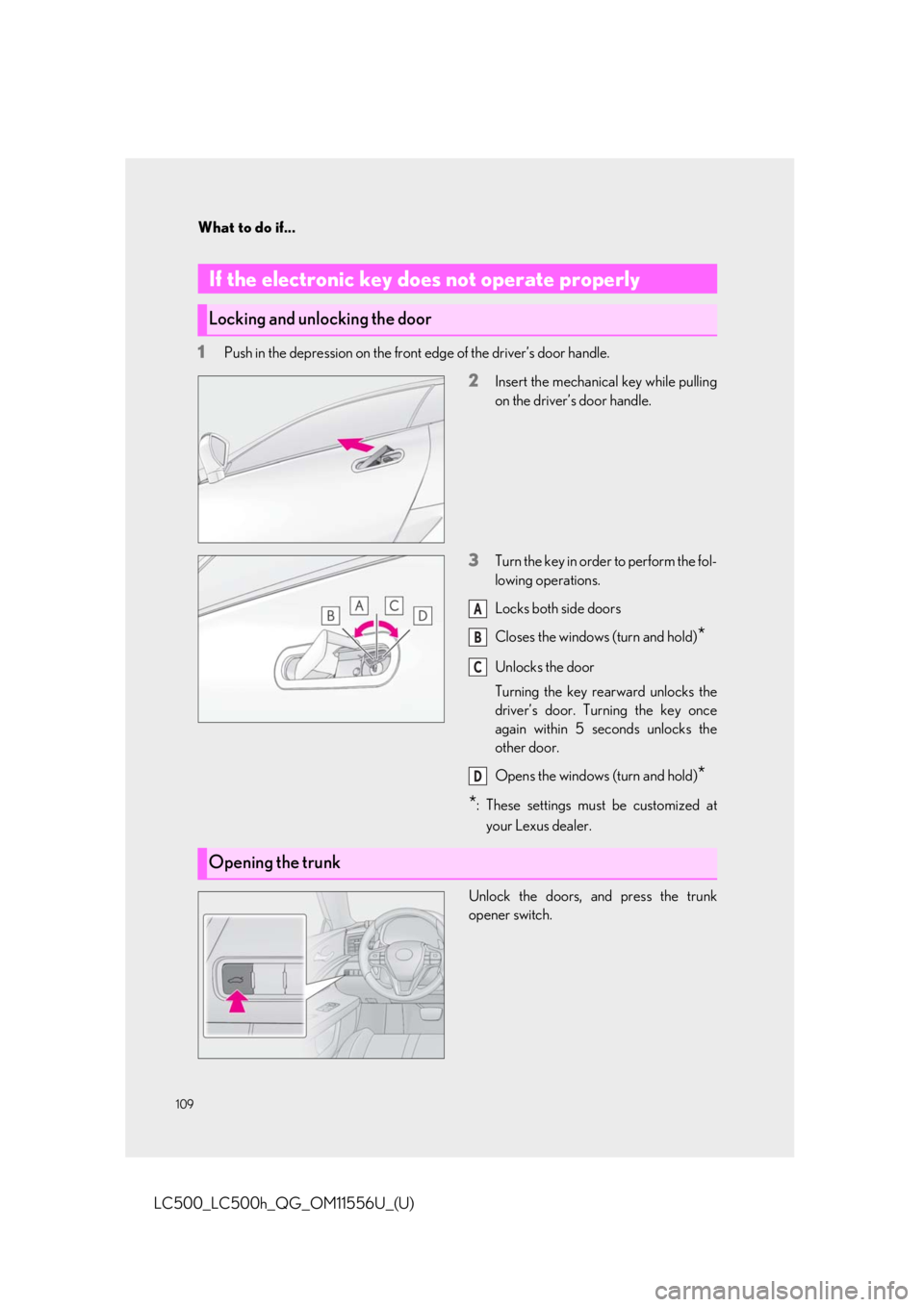

1Push in the depression on the front edge of the driver’s door handle.
2Insert the mechanical key while pulling
on the driver’s door handle.
3Turn the key in order to perform the fol-
lowing operations.
Locks both side doors
Closes the windows (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other door.
Opens the windows (turn and hold)
*
*
: These settings must be customized at your Lexus dealer.
Unlock the doors, and press the trunk
opener switch.
If the electronic key does not operate properly
Locking and unlocking the door
A
B
C
D
Opening the trunk

110
What to do if...
LC500_LC500h_QG_OM11556U_(U)

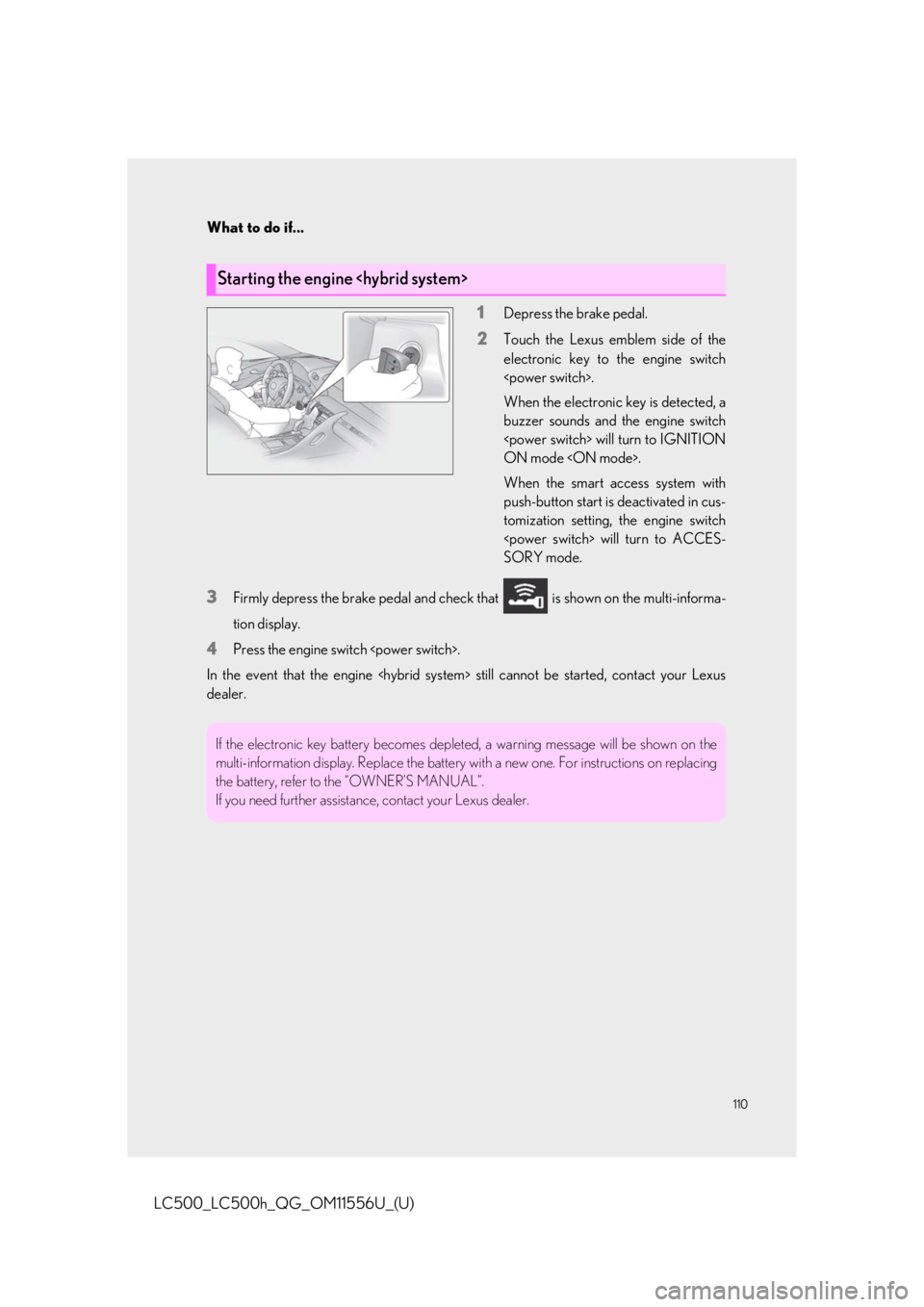

1Depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch
.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION
ON mode .
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch
will turn to ACCES-
SORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the engine swit ch .
In the event that the engine still cannot be started, contact your Lexus
dealer.
Starting the engine
If the electronic key battery becomes depleted, a warning message will be shown on the
multi-information display. Replace the battery wi th a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance , contact your Lexus dealer.
