812-1. Instrument cluster
2
Vehicle status information and indicators
Eco-friendly manner.
By keeping the indicator needle within Eco
area, more Eco-friendly driving can be
achieved.Power area
Shows that an Eco-frie ndly driving range is
being exceeded (durin g full power driving
etc.)
In the following situation, the Hybrid System
Indicator does not operate.
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
●The shift position is in other than D or M.
●The driving mode is other than Eco
mode.

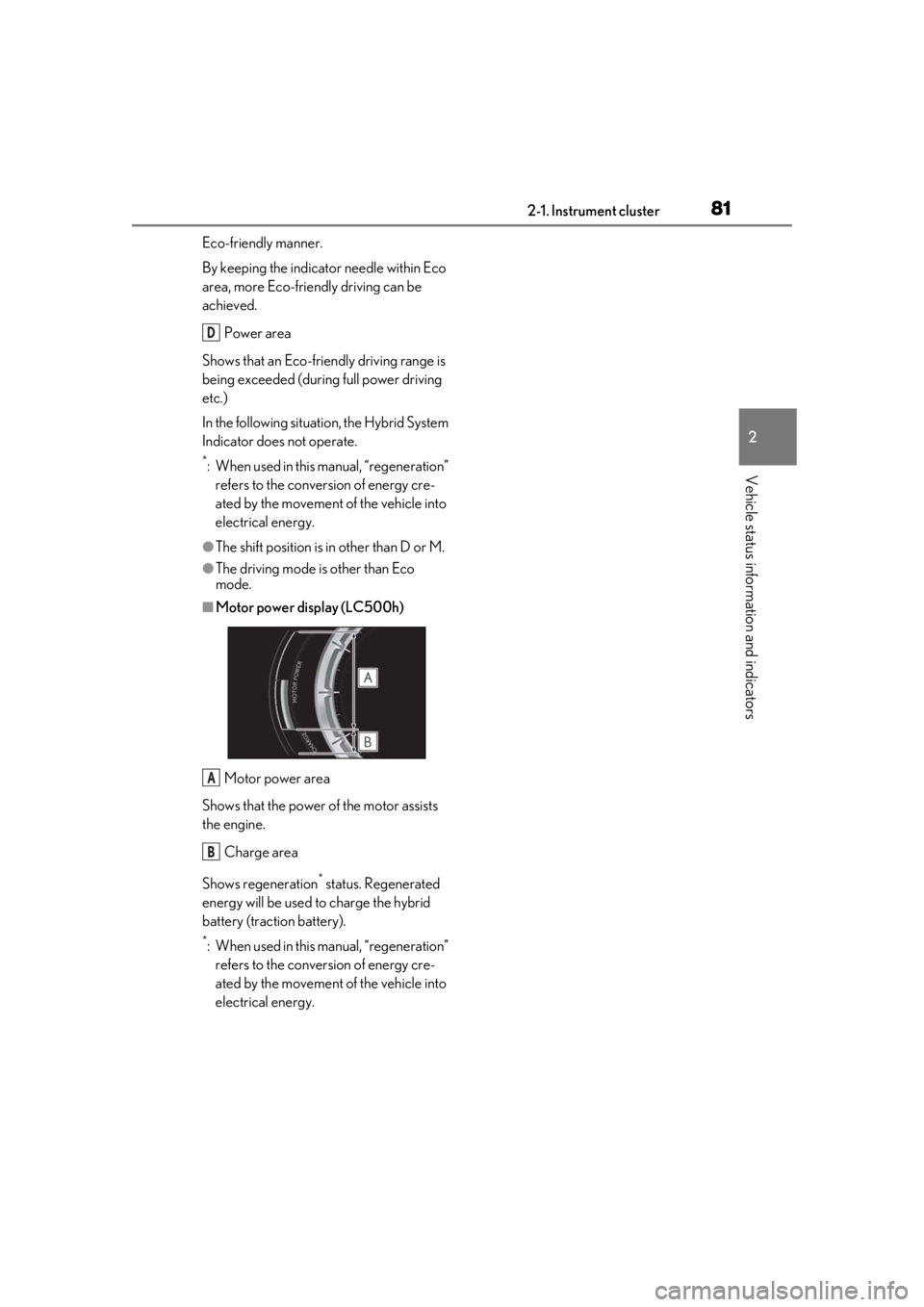

■Motor power display (LC500h)
Motor power area
Shows that the power of the motor assists
the engine.
Charge area
Shows regeneration
* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
D
A
B

822-1. Instrument cluster
LC500
LC500h
The units used on the meters may diff er depending on the target region.
Engine oil temperature gauge/Eco Driving Indicator (LC500)
Displays the engine oil temperat ure or Eco Driving Indicator (P.80)
Outside temperature

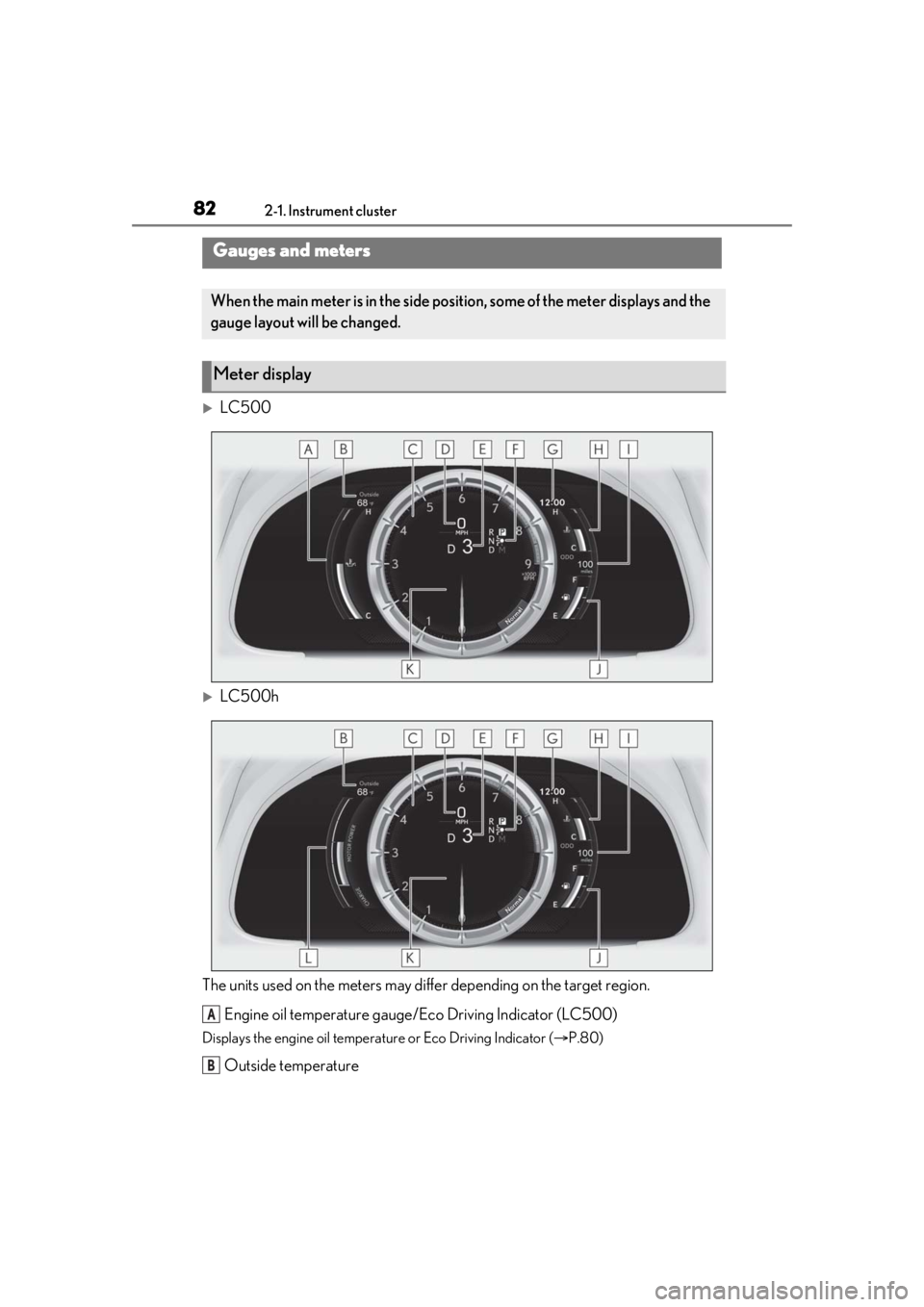

Gauges and meters
When the main meter is in the side posi tion, some of the meter displays and the
gauge layout will be changed.
Meter display
A
B

832-1. Instrument cluster
2
Vehicle status information and indicators
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Shift position/shift range/gear position ( P.162, 169)
Shift position indicator ( P.164, 171)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.277)
Engine coolant temperature gauge
Displays the engine coolant temperature
If the engine coolant temperature gauge indicator enters the red zone, a buzzer sounds
and the high coolant temperature warning light comes on
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset
Trip meters “A” and “B” can be used to record and display different distances independently
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data ( P.86)
Displays warning messages in case of a malfunction (P.356)
Motor power display/Hybrid System Indicator (LC500h)
Displays the motor power display ( P.81) or Hybrid System Indicator ( P.80)
■Rev indicator
When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator will be displayed on the
tachometer.
The indicators will be displayed in
amber ( ) when the engine speed
reaches a set speed, and in red ( ) when the engine speed reaches the
red zone. This setting can be enabled
on the multi-information display.
(
P.91)
C
D
E
F
G
H
I
J
K
L
A
B

842-1. Instrument cluster
■Rev peak
When the engine speed reaches or
exceeds the following, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
LC500: 3600 r/min
LC500h: 4000 r/min
■The meters and display illuminate when
The engine switch is in
IGNITION ON mode .
■Variable red zone (LC500)
To help protect the engine, the engine
speed is controlled by starting the red zone
of the tachometer at different engine
speeds ranging from 3700 rpm to 7300
rpm depending on the engine coolant tem-
perature.
Before driving under extremely high load
conditions, make sure to sufficiently warm
up the engine.
■Instrument panel brightness adjustment
The brightness of the instrument panel
lights is automatically adjusted based on the
light sensor detectin g how bright the sur-
roundings are.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change.
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “- -” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Speed unit setting for the speedometer
When the speed unit has been changed
from the default setting, the vehicle speed in
the default unit is also displayed in the
meter.
■Pop-up display
●In some situations, su ch as when a switch
operation is performed, a pop-up display
will be temporarily displayed on the
multi-information display.
●Some pop-up displays can be set on/off.
(  P.90)

852-1. Instrument cluster
2
Vehicle status information and indicators
■Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■Customization
The meter display can be customized on
the multi-information display. ( P.405)
The odometer and trip meter displays
can be switched. When the trip meter
is displayed, pressing and holding the
button will reset the trip meter. The brightness of the instrument panel
lights can be adjusted.
1
Darker
2 Brighter
■Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument pa nel brightness.
The display can be switched between
the center and side positions.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator of the tachom-
eter enter the red zone, as it rep-
resents the engine speed range which
exceeds the maximum safe engine
speed.
●In the following situations, the engine
may be overheating. In this case,
immediately stop the vehicle in a safe
place, and check the engine after it has
cooled completely. ( P.376, 379)
• The engine coolant temperature gauge is in the red zone (H).
• LC500: The engine oil temperature gauge is in the red zone (H).

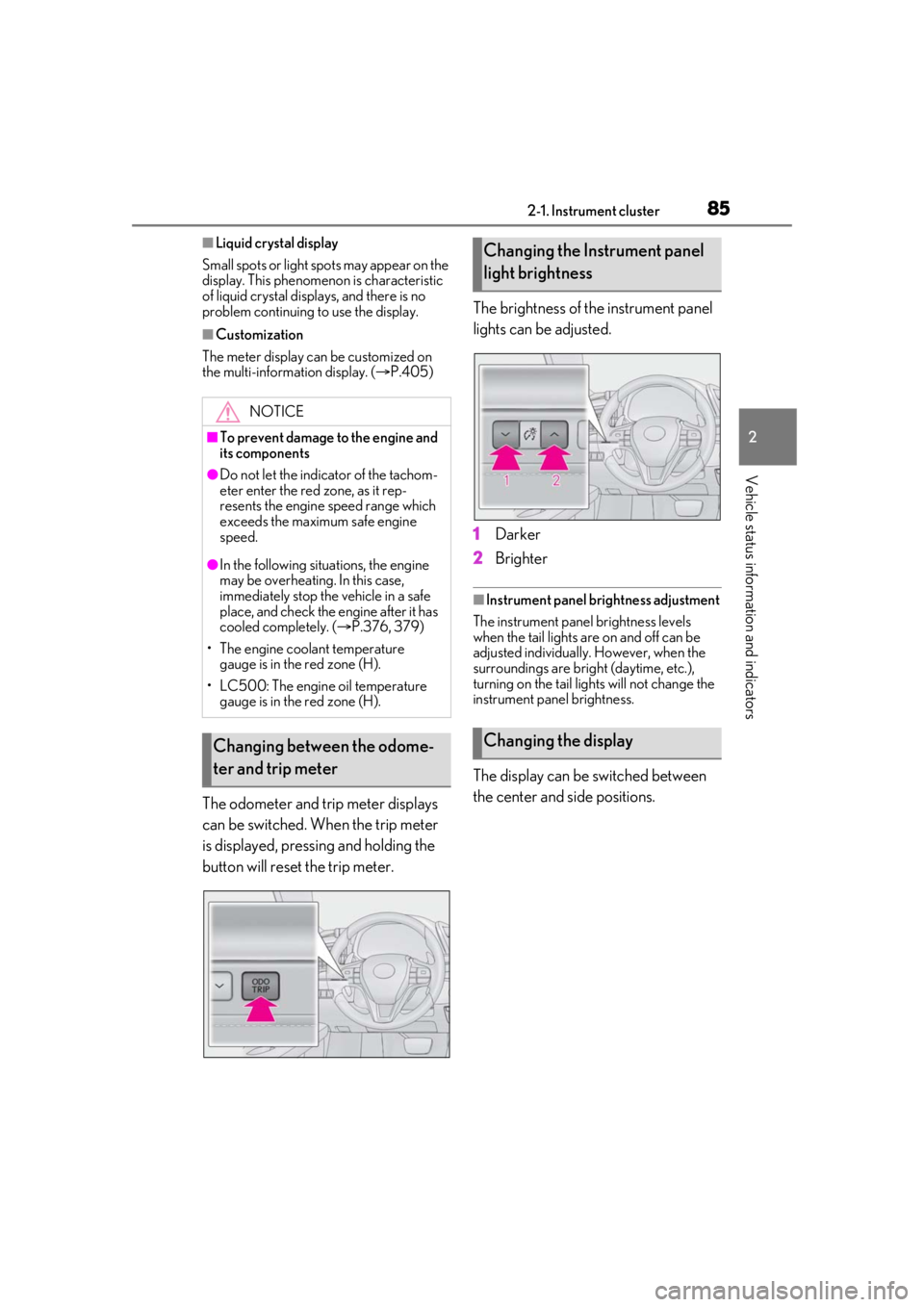

Changing between the odome-
ter and trip meter
Changing the Instrument panel
light brightness
Changing the display

862-1. Instrument cluster

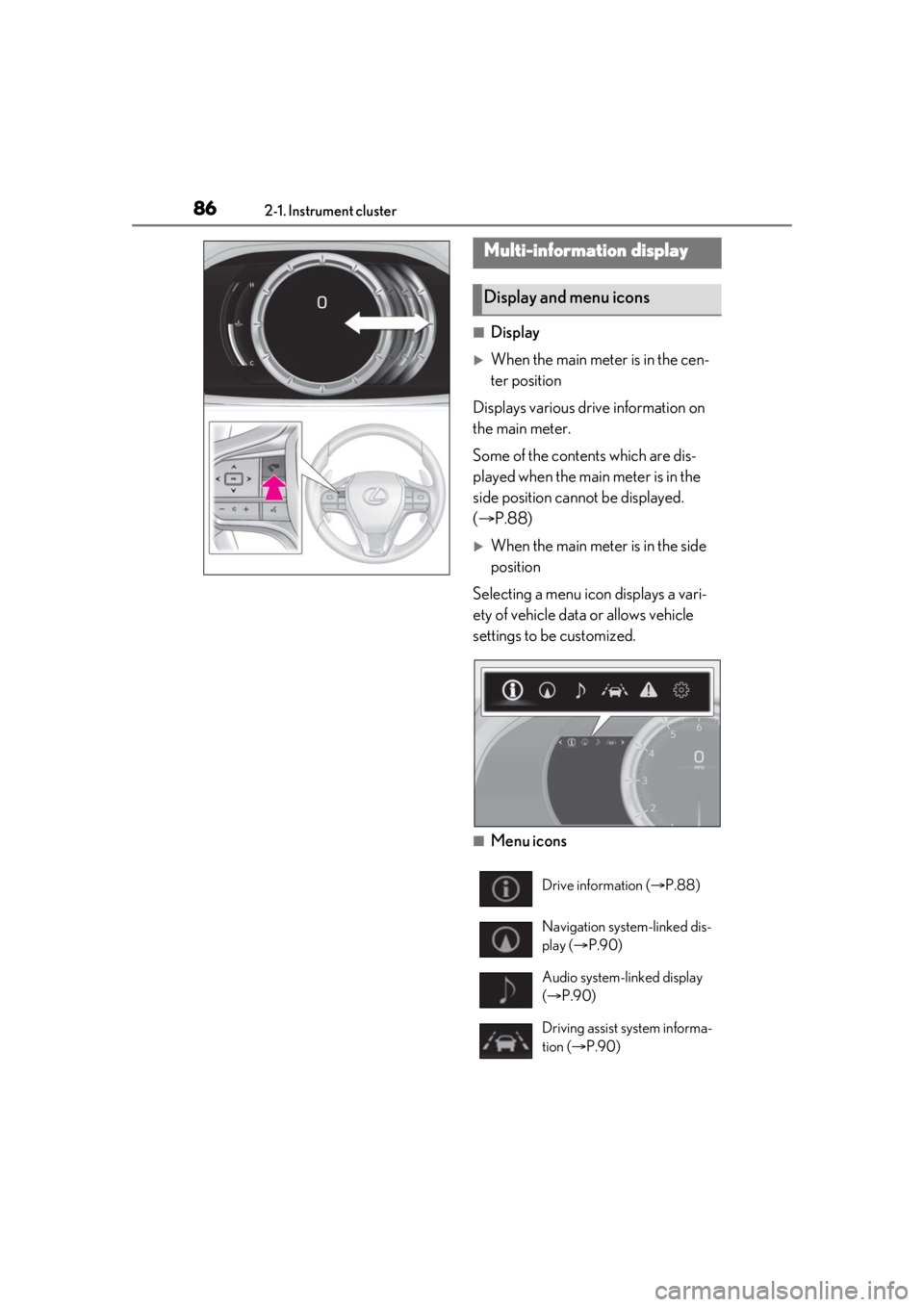

■Display
When the main meter is in the cen-
ter position
Displays various drive information on
the main meter.
Some of the contents which are dis-
played when the main meter is in the
side position cannot be displayed.
( P.88)
When the main meter is in the side
position
Selecting a menu icon displays a vari-
ety of vehicle data or allows vehicle
settings to be customized.
■Menu icons
Multi-information display
Display and menu icons
Drive information ( P.88)

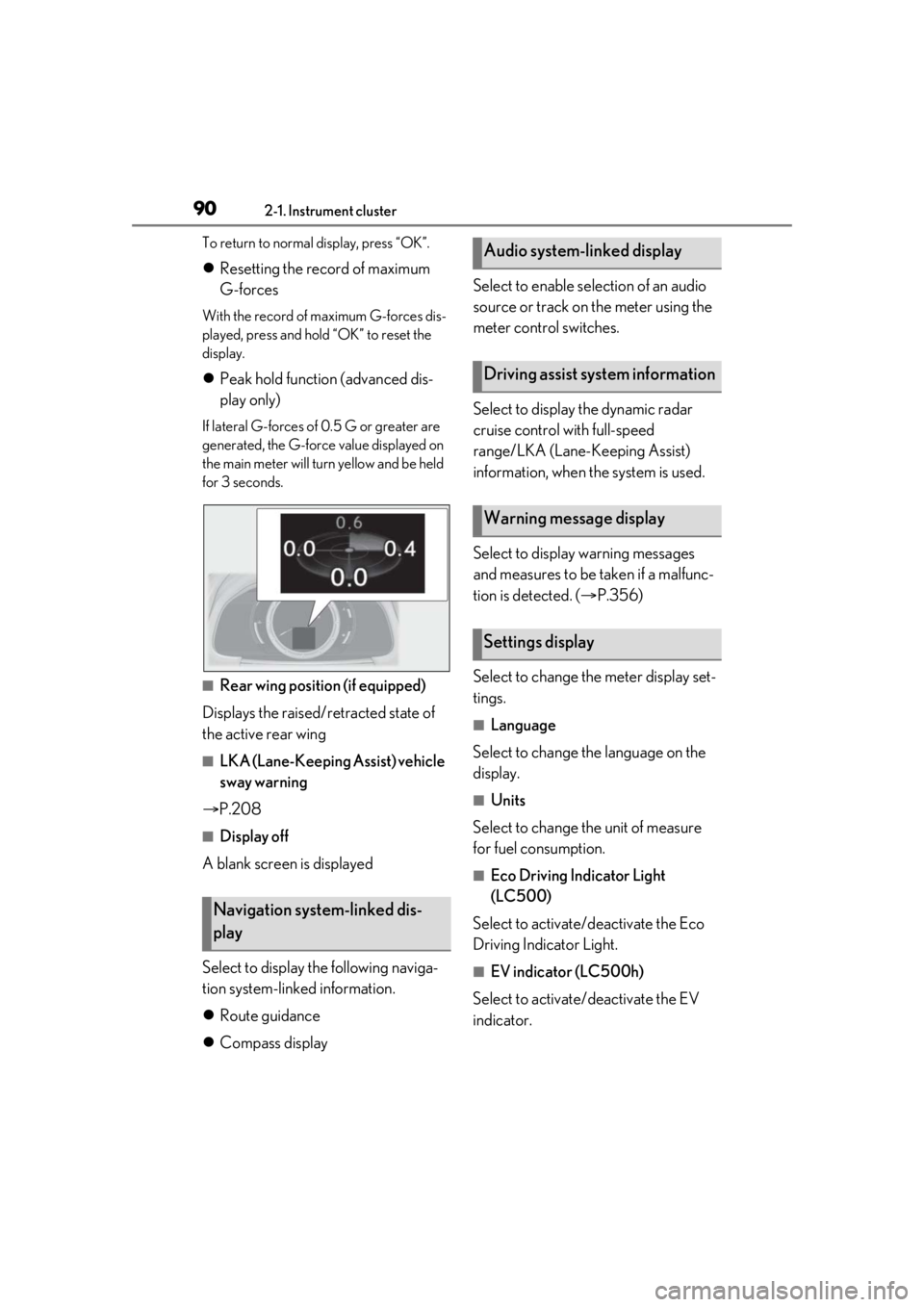

Navigation system-linked dis-
play ( P.90)
Audio system-linked display
( P.90)
Driving assist system informa-
tion ( P.90)

872-1. Instrument cluster
2
Vehicle status information and indicators
■Opening image display
When the engine switch is
in ACCESSORY mode or IGNITION ON
mode , the opening image is
displayed on the multi-information display.
While the opening image is being dis-
played, the meter display cannot be
changed even if the drive mode is changed.
When the start-up display is finished, the
meter display for the currently selected
mode will be displayed.
■When disconnecting and reconnecting
12-volt battery terminals

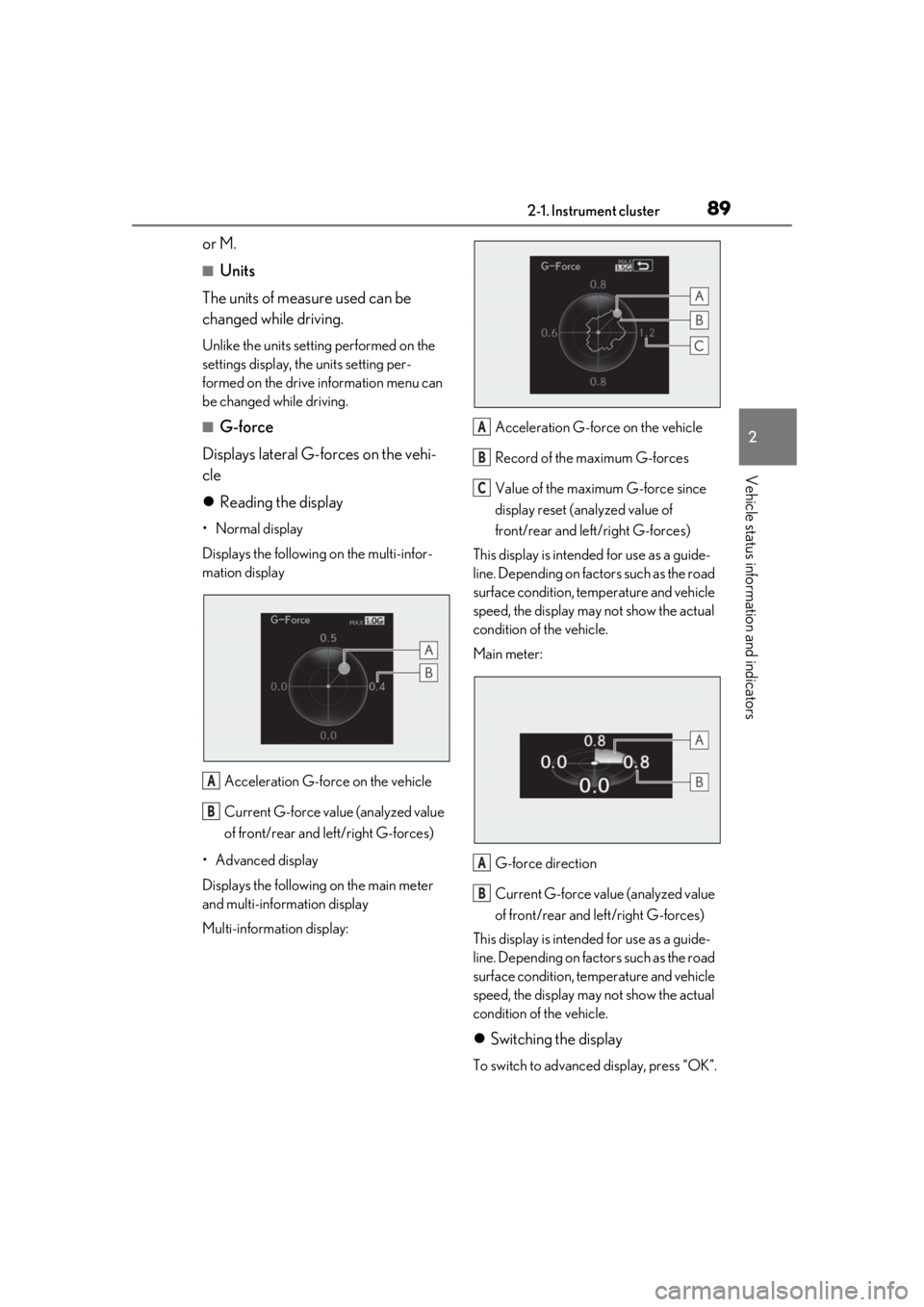

Record of the maximum G-forces will be
reset.
■Liquid crystal display
 P.85

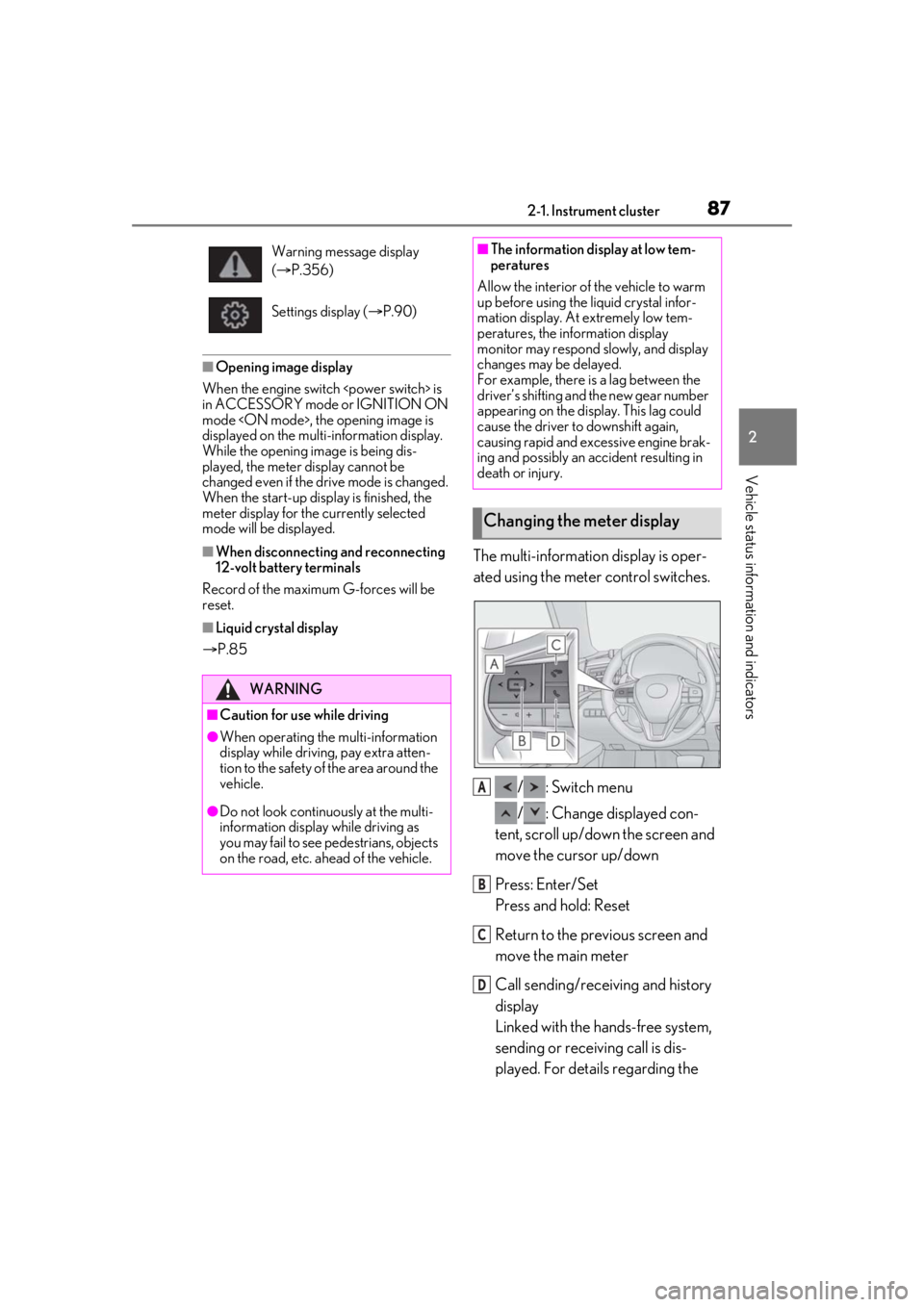

The multi-information display is oper-
ated using the meter control switches.
/ : Switch menu
/ : Change displayed con-
tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen and
move the main meter
Call sending/receiving and history
display
Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
Warning message display
(  P.356)
Settings display ( P.90)
WARNING
■Caution for use while driving
●When operating the multi-information
display while driving, pay extra atten-
tion to the safety of the area around the
vehicle.
●Do not look continuously at the multi-
information display while driving as
you may fail to see pedestrians, objects
on the road, etc. ahead of the vehicle.
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
Changing the meter display
A
B
C
D

882-1. Instrument cluster
hands-free system, refer to “NAVI-
GATION SYSTEM OWNER’S
MANUAL”.
■Content of drive information
Select to display various drive data.
Up to 2 of the following items can be
selected.
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing or .
 Current fuel consumption
*1
Displays the current rate of fuel consump-
tion
Average fuel economy (after
reset
*2/after start/after refuel)*1
Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehi-
cle was refueled, respectively
Use the displayed average fuel consump-
tion as a reference.
Average speed (after reset*2/after
start)
*1
Displays the average vehicle speed since
the function was reset and the engine
was started, respectively
 Elapsed time (after reset*2/after
start)
*1
Displays the elapsed time since the func-
tion was reset and th e engine tem> was started, respectively
 Distance (range/after start)*1
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distan ce driven after the
engine was started
respectively.
• This distance is computed based on your average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refu-
eled without turning the engine switch
off, the display may not
be updated.
*1: Displayed when the it em is set in “Drive
Info 1” and “Drive Info 2”.
*2: The function can be reset by pressing “OK” of the meter control switches for
longer than 1 second when the item to
reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.
■Eco Driving Indicator/engine oil
temperature gauge (LC500)
 P.80, 82
■Hybrid System Indicator/motor
power display (LC500h)
 P.80
■Energy monitor (LC500h)
 P.98
■Tire pressure
 P.315
■Gear positions
Displays the current shift range or gear
position when the shift position is in D
Drive information

892-1. Instrument cluster
2
Vehicle status information and indicators
or M.
■Units
The units of measure used can be
changed while driving.
Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information menu can
be changed while driving.
■G-force
Displays lateral G-forces on the vehi-
cle
 Reading the display
• Normal display
Displays the following on the multi-infor-
mation display
Acceleration G-forc e on the vehicle
Current G-force value (analyzed value
of front/rear and left/right G-forces)
• Advanced display
Displays the following on the main meter
and multi-information display
Multi-information display: Acceleration G-force on the vehicle
Record of the maximum G-forces
Value of the maximum G-force since
display reset (analyzed value of
front/rear and left/right G-forces)
This display is intended for use as a guide-
line. Depending on fact ors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
Main meter:
G-force direction
Current G-force value (analyzed value
of front/rear and left/right G-forces)
This display is intended for use as a guide-
line. Depending on fact ors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
 Switching the display
To switch to advanced display, press “OK”.
A
B
A
B
C
A
B

902-1. Instrument cluster
To return to normal display, press “OK”.
Resetting the record of maximum
G-forces
With the record of maximum G-forces dis-
played, press and hold “OK” to reset the
display.
Peak hold function (advanced dis-
play only)
If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the main meter will turn yellow and be held
for 3 seconds.
■Rear wing position (if equipped)
Displays the raised/retracted state of
the active rear wing
■LKA (Lane-Keeping Assist) vehicle
sway warning
 P.208
■Display off
A blank screen is displayed
Select to display the following naviga-
tion system-linked information.
 Route guidance
 Compass display Select to enable se
lection of an audio
source or track on the meter using the
meter control switches.
Select to display the dynamic radar
cruise control with full-speed
range/LKA (Lane-Keeping Assist)
information, when the system is used.
Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. ( P.356)
Select to change the meter display set-
tings.
■Language
Select to change the language on the
display.
■Units
Select to change the unit of measure
for fuel consumption.
■Eco Driving Indicator Light
(LC500)
Select to activate/deactivate the Eco
Driving Indicator Light.
■EV indicator (LC500h)
Select to activate/deactivate the EV
indicator.
Navigation system-linked dis-
play
Audio system-linked display
Driving assist system information
Warning message display
Settings display
