What to do if...
101
LC500_LC500h_QG_OM11618U_(U)
List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continu-
ing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Red)
(Canada)
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Charging system warning lightLow engine oil pressure warn-
ing light
Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)Malfunction
indicator lamp
Brake Override System
warning light/Drive-Start
Control warning light
(Canada)
(Flashes)
Brake hold operated indicator
SRS warning light(Flashes)(U.S.A.)Parking brake
indicator
(U.S.A.)
ABS warning light(Flashes)
(Canada)
(Canada)
(Yellow)
Brake system warning light
(Red or yellow)
Electric power steering
system warning light
(Blinking and then
continu-
ously on)
Tire pressure warning light
(Flashes or
illuminates)PCS warning light
Slip indicator
For further information, refer to the “OWNER’S MANUAL”.

102
What to do if...
LC500_LC500h_QG_OM11618U_(U)
Follow the correction procedures.
Low fuel level warning lightMaster warning light
Driver’s and front passenger’s
seat belt reminder light
(Orange)
LKA indicator
Rear passenger’s seat belt
reminder lights
(Illuminates without
blinking)Tire pressure warning light*
Stop and check.
High coolant temperature
warning lightHybrid system overheat warn-
ing light
(if equipped)
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
103
LC500_LC500h_QG_OM11618U_(U)
See the “OWNER’S MANUAL”
Turn signal indicator
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators
Headlight indicator (U.S.A.)BSM (Blind Spot Monitor)
indicator
Tail light indicator (Canada)RCTA (Rear Cross Traffic
Alert) indicator
Headlight high beam indicatorBrake hold standby indicator
AHB indicatorBrake hold operated
indicator
Cruise control indicatorSecurity indicator
Dynamic radar cruise control
indicatorSmart access system with
push-button start indicator
Cruise control “SET” indicator“READY” indicator
(if equipped)
(White or green)LKA indicatorLow outside temperature
indicator
(Flashes in orange)LKA indicatorEco Driving Indicator Light
(if equipped)
Intuitive parking assist
indicatorEV indicator (if equipped)
(Flashes)
Slip indicator(U.S.A.)Parking brake
indicator
VSC OFF indicator(Canada)
PCS warning light
(U.S.A.)
“AIR BAG ON/
OFF” indicator
For further information, refer to the “OWNER’S MANUAL”.

104
What to do if...
LC500_LC500h_QG_OM11618U_(U)
*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.
See the “OWNER’S MANUAL”
(Canada)
“AIR BAG ON/
OFF” indicator
●Drive mode indicators
Snow mode indicatorEV drive mode indicator
(if equipped)
“Eco” indicator“Sport S” indicator
“Sport S+” indicator“Comfort” indicator
“Normal” indicator“Custom” indicator
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
105
LC500_LC500h_QG_OM11618U_(U)

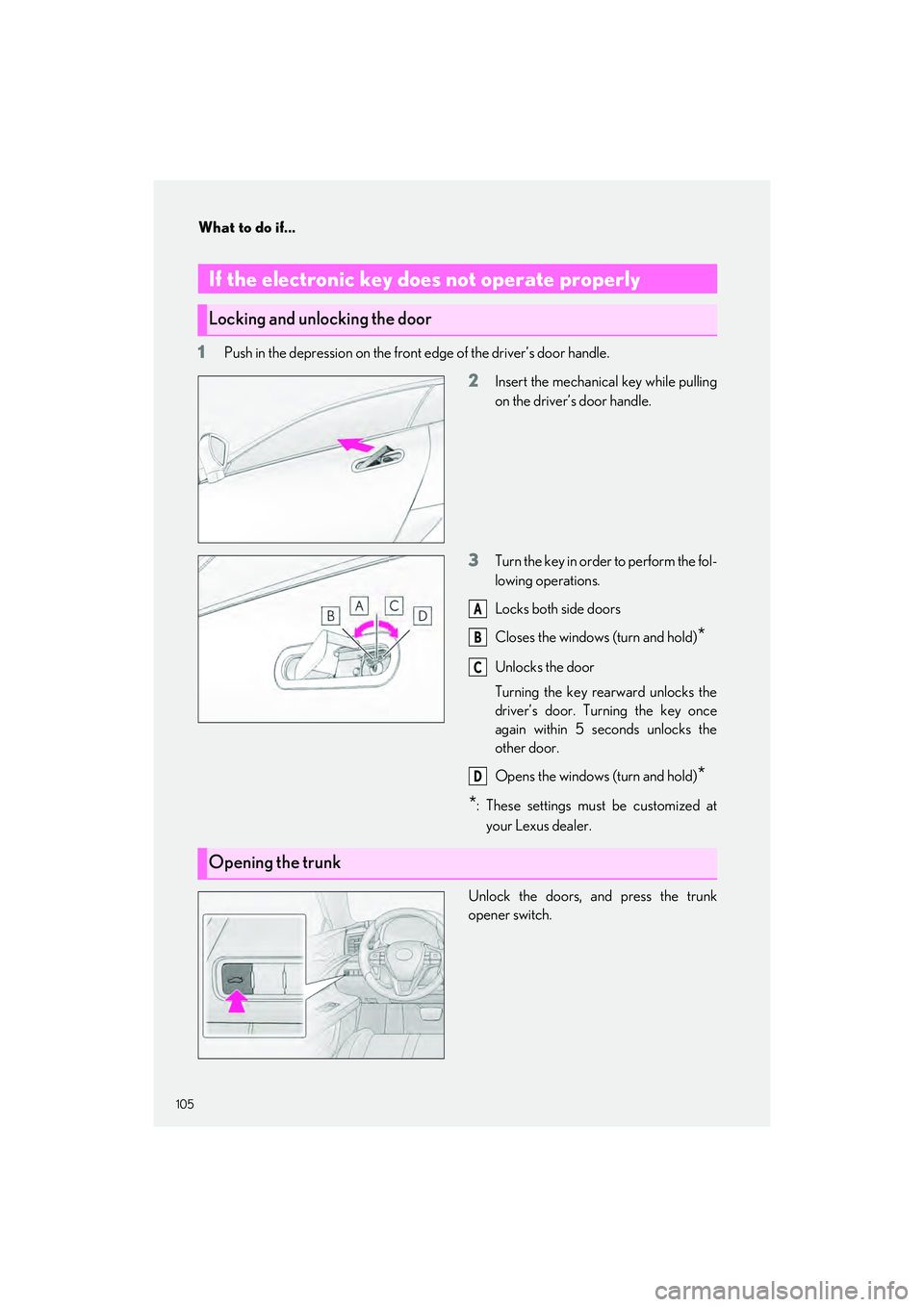

1Push in the depression on the front edge of the driver’s door handle.
2Insert the mechanical key while pulling
on the driver’s door handle.
3Turn the key in order to perform the fol-
lowing operations.
Locks both side doors
Closes the windows (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other door.
Opens the windows (turn and hold)
*
*
: These settings must be customized at your Lexus dealer.
Unlock the doors, and press the trunk
opener switch.
If the electronic key does not operate properly
Locking and unlocking the door
A
B
C
D
Opening the trunk

106
What to do if...
LC500_LC500h_QG_OM11618U_(U)
1Depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch
.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION
ON mode .
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch
will turn to ACCES-
SORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the engine switch .
In the event that the engine still cannot be started, contact your Lexus
dealer.
Starting the engine
If the electronic key battery becomes deplet ed, a warning message will be shown on the
multi-information display. Replace the battery with a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance, contact your Lexus dealer.

What to do if...
107
LC500_LC500h_QG_OM11618U_(U)
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
engine . ( P.22)
If the engine doesn’t start
Brake pedal
If the engine still does no t start, see the “OWNER’S MANUAL” for more
information or contact your Lexus dealer.
