LEXUS LC500H 2022 User Guide

10
LC500_LC500h_QG_OM11618U_(U)
■Ceiling
Garage door opener buttons................................................................................ P.90
Inside rear view mirror
*1
Sun visors*1
Vanity mirrors*1
Seat lights*1
Shift lever light *1
Personal lights*1
“SOS” button*2........................................................................................................ P.94
Door-linked personal light switch
*1
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
A
B
C
D
E
F
G
H

11
LC500_LC500h_QG_OM11618U_(U)

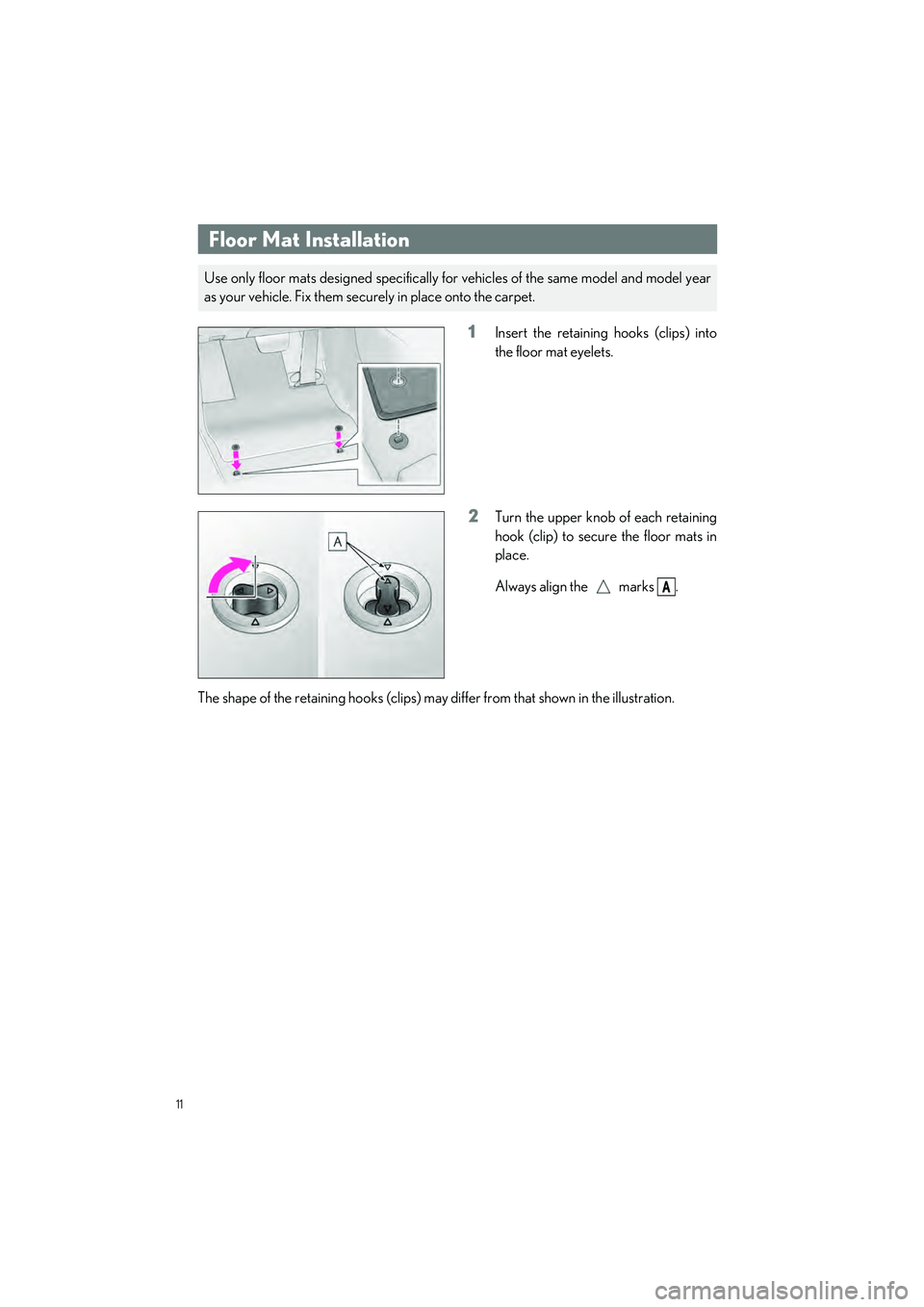

1Insert the retaining hooks (clips) into
the floor mat eyelets.
2Turn the upper knob of each retaining
hook (clip) to secure the floor mats in
place.
Always align the marks .
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
Floor Mat Installation
Use only floor mats designed specifically for vehicles of the same model and model year
as your vehicle. Fix them securely in place onto the carpet.
A

12
LC500_LC500h_QG_OM11618U_(U)
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
By keeping the indicator needle within Ec o area, more Eco-friendly driving can be
achieved.
Power area
Shows that an Eco-friendly driving range is being exceeded (during full power driving
etc.)
In the following situation, the Hybrid System Indicator does not operate.
● The shift position is in other than D or M.
● The driving mode is other than Eco mode.
Hybrid System (LC500h)
Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles.
Be sure you are closely familiar with the characteristics of your vehicle, and operate it with
care.
The hybrid system combines the use of a gasoline engine and an electric motor (traction
motor) according to driving conditions, improving fuel efficiency and reducing exhaust
emissions.
For details, refer to the “OWNER’S MANUAL”.
Hybrid System Indicator
Charge area
Shows regeneration
* status. Regenerated energy
will be used to charge the hybrid battery (traction
battery).
*: When used in this manual, “regeneration” refers to the conversion of energy created by the movement
of the vehicle into electrical energy.
Hybrid Eco area
Shows that gasoline engine power is not being
used very often.
The gasoline engine will automatically stop and
restart under various conditions.
A
B
C
D

13
LC500_LC500h_QG_OM11618U_(U)
If the shift position is in N, the hybrid battery (traction battery) will not be charged. To help
prevent the battery from discharging, avoid leaving the N position selected for an extended
period of time.
In the following situations, kine tic energy is converted to electric energy and deceleration
force can be obtained in conjunction with the recharging of the hybrid battery (traction bat-
tery).
● The accelerator pedal is released while driving with the shift position in D or M.
● The brake pedal is depressed while driving with the shift position in D or M.
Motor power display
Motor power area
Shows that the power of the motor assists the
engine.
Charge area
Shows regeneration
* status. Regenerated energy
will be used to charge the hybrid battery (traction
battery).
*: When used in this manual, “regeneration” refers to the conversion of energy created by the movement
of the vehicle into electrical energy.
Hybrid battery (traction battery) charge
Regenerative braking
A
B

14
LC500_LC500h_QG_OM11618U_(U)
Because there is no engine sound or vibration, it is easy to mistake the hybrid vehicle for
being off when it is actually st ill running, as indicated by the “READY” indicator being illumi-
nated. For safety, make sure to always shift th e shift position to P and apply the parking brake
when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid system starts or stops.
● Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear seats, when the hybrid system is started or
stopped.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or
as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear seats.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make th e low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 3.3 gal. [12.6 L, 2.8 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Sounds and vibrations specific to a hybrid vehicle
Running out of fuel
Hybrid warning message

15
LC500_LC500h_QG_OM11618U_(U)
●Smart access system with push-button
start ( P.17)
● Wireless remote control
To take out the mechanical key, push the
release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
Keys
Electronic key
Mechanical key

16
LC500_LC500h_QG_OM11618U_(U)
Locks the doors
Unlocks the doors
Opens the windows (press and hold)
*
Opens the trunk
Sounds the alarm
*: This setting must be customized at yourLexus dealer.
Wireless remote control
A
B
C
D
E

17
LC500_LC500h_QG_OM11618U_(U)
1Push the depression on the front edge
of the driver’s door handle to unlock
the door. Push the depression on the
front edge of the passenger’s door
handle to unlock both side doors.
*
The outside door handles will be
extended.
The extended outside door handles are
automatically retracted in approxi-
mately 60 seconds.
The doors cannot be unlocked for
3 seconds after the doors are locked.
*: The door unlock settings can bechanged.
2Push the rear edge of the extended door handle to lock the doors.
If the outside door handles are extended, they will be retracted.
After locking the doors, check that the door is securely locked with the door lock indi-
cator. ( P.99)
Smart Access System with Push-button Start
The following operations can be performed si mply by carrying the electronic key (includ-
ing the card key) on your person, for example in your pocket. The driver should always
carry the electronic key.
For details on starting the engine , see page 22.
Unlocking and locking the doors from the outside

18
LC500_LC500h_QG_OM11618U_(U)

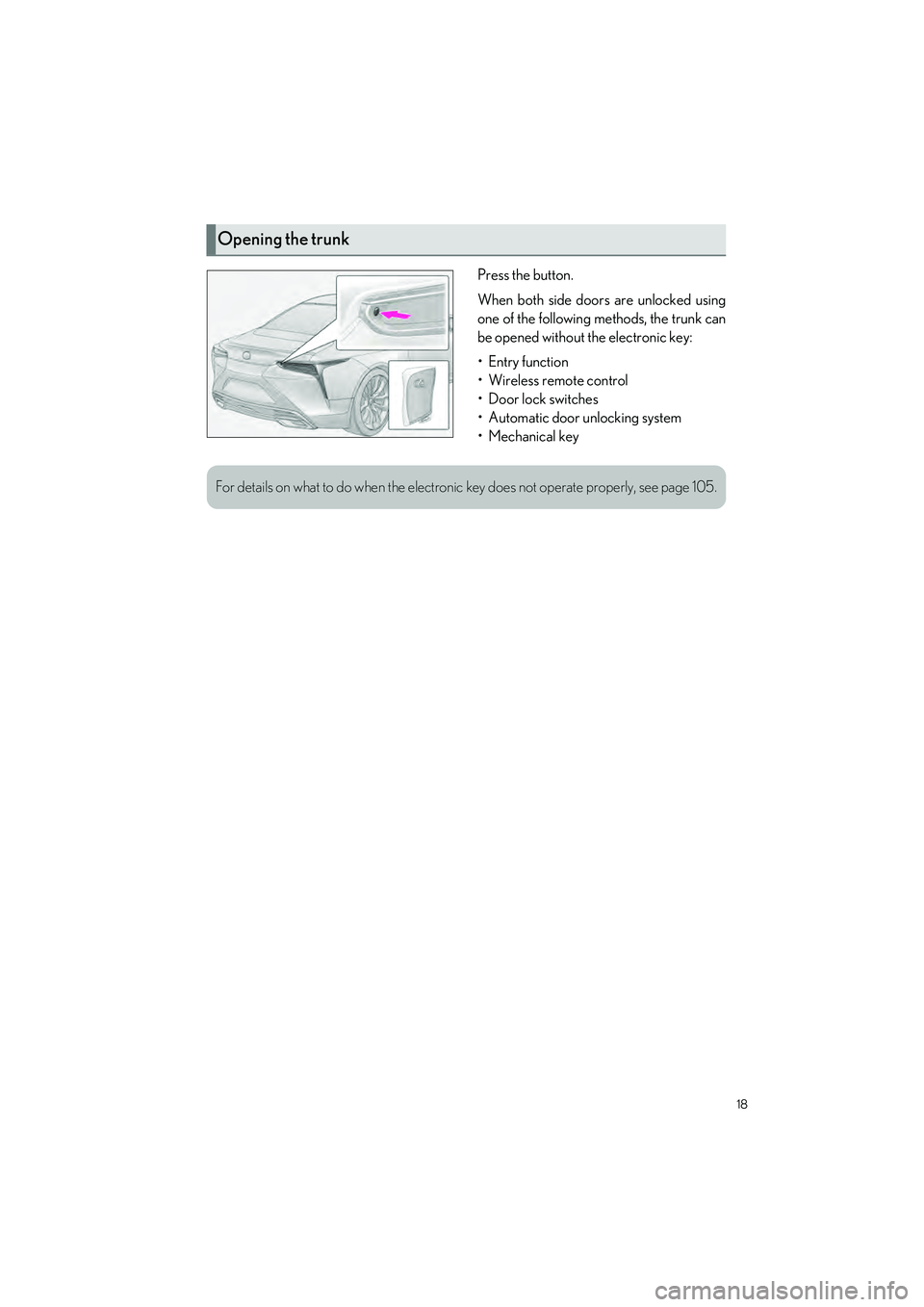

Press the button.
When both side doors are unlocked using
one of the following methods, the trunk can
be opened without the electronic key:
•Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
Opening the trunk
For details on what to do when the electronic key does not operate properly, see page 105.

19
LC500_LC500h_QG_OM11618U_(U)
Seat position adjustment
Seatback angle adjustment
Head restraint height adjustment (if
equipped)
Seat cushion (front) angle adjustment
Vertical height adjustment
Lumbar support adjustment
Front Seats
Adjustment procedure
A
B
C
D
E
F
