ESP LEXUS LC500H 2022 Owners Manual

38
LC500_LC500h_QG_OM11618U_(U)
■Hybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Power area
Displayed content is the same as that
displayed on the meter (Hybrid System
Indicator). For details, refer to P.12.
■Motor power display
Charge area
Power area
Displayed content is the same as that
displayed on the meter (Motor power
display). For details, refer to P.13.
■Tachometer
Displays the engine speed in revolutions per minute.

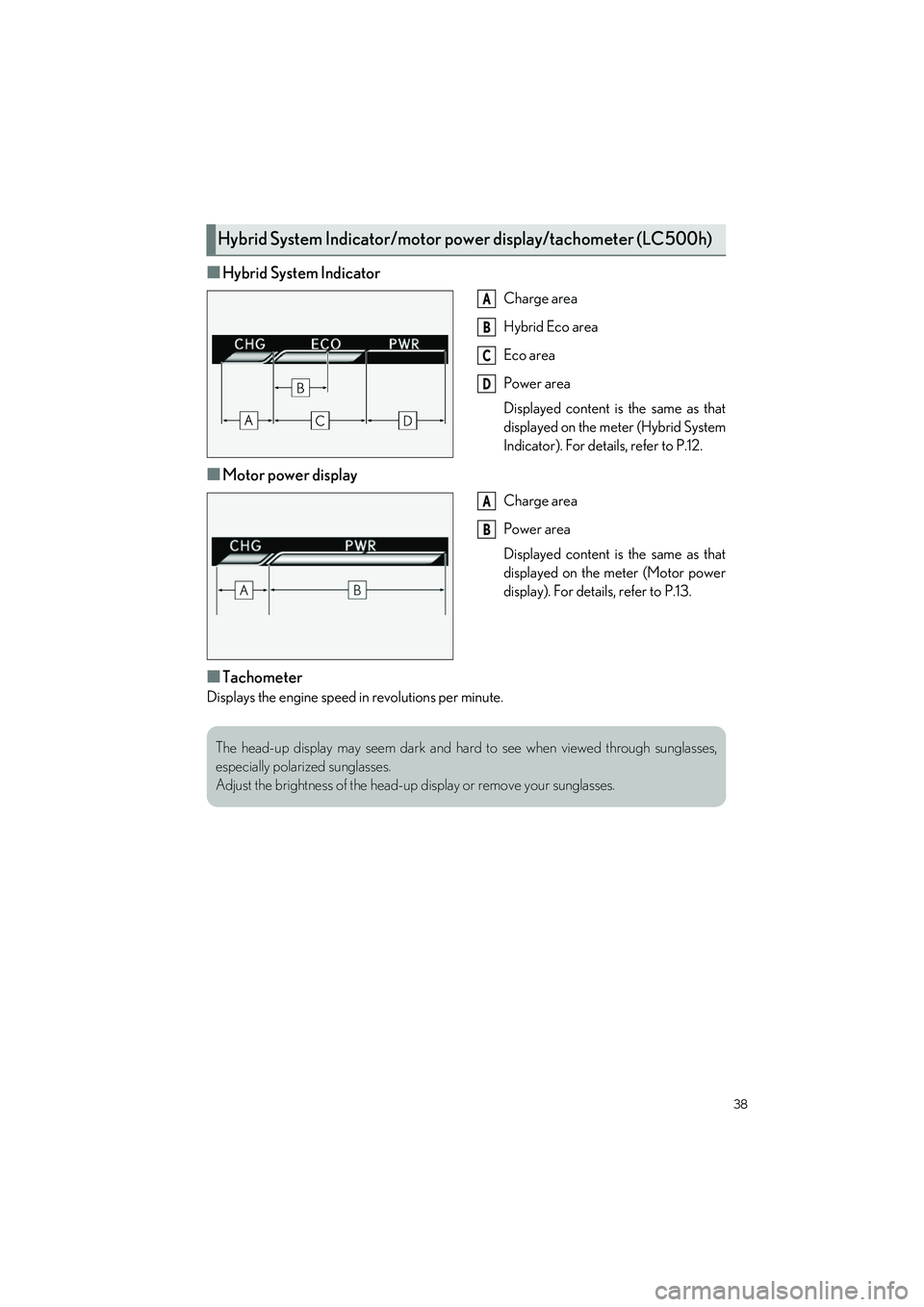

Hybrid System Indicator/motor power display/tachometer (LC500h)
A
B
C
D
A
B
The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

52
LC500_LC500h_QG_OM11618U_(U)
4Sport mode
•SPORT S modeControls the transmission and engine to provide quick, powerful acceleration. This
mode is suitable for when agile driving resp onse is desired, such as when driving on
roads with many curves.
When not in SPORT S mode, if the driving mode select switch is turned backward,
the “Sport S” indicator comes on.
•SPORT S+ mode Provides earlier downshift timing than SPORT S mode in order to maintain a high
engine speed and provides faster gear chan ges. This mode also changes the steering
feel, suspension control and VDIM
* control, making it suitable for powerful sporty
driving.
When in SPORT S mode, if th e driving mode select switch is turned backward, the
“Sport S+” indicator comes on.
*: For details, refer to the “OWNER’S MANUAL”.

56
LC500_LC500h_QG_OM11618U_(U)
Multi-information display (P.34)
Displays the status of the active rear
wing.
Active rear wing switch
Operates the active rear wing manu-
ally.
Indicator
Illuminates when the active rear wing is
raised and turns off when it is retracted.
Active Rear Wing (if equipped)
The vehicle is equipped with an active rear wing that operates automatically while the
vehicle is being driven. This active rear wi ng enhances aerodynamic performance, espe-
cially at high speeds, contributing to a more stable ride.
The active rear wing can be controlled manually using a switch.
A
B
C

84
LC500_LC500h_QG_OM11618U_(U)
■Navigation
*1: English and French only
*2: Best recognition results occur when saying the full address without the zipcode
*3: When the language is set to French, the supported area is only Quebec Province inCanada
*4: For example; “Gas stations”, “Restaurants”, etc.
*5: Major national brands are always supporte d. Local brands are also supported with a
subscription to the Lexus Enform. Contact your Lexus dealer for details.
*6: Used when multiple destin ations are set on a route
CommandAction
“Get directions to street, city, state>”
*1Enables setting a destination by saying the address*2, 3
“Find a name>”Displays a list of near
the current position
“Find a near my destina-
tion”Displays a list of near the destination
“Find a in a
city”*1Displays a list of in a specified city and state*3
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”Displays recent destinations. Selecting a number from
the list will start navigation to the selected recent desti-
nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of destination to delete*6
“Show icons”Displays the specified po int of interest category*4
icons on the map
“Destination Assist”Connects the system to the Lexus response center

94
LC500_LC500h_QG_OM11618U_(U)
“SOS” button
LED light indicators
Microphone
Subscribers have the following Sa fety Connect services available:
● Automatic Collision Notification
In case of either airbag deployment or seve re rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emer-
gency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services provider to describe the
situation, and requests that assistance be sent to the location.
Lexus Enform Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security fea-
tures to subscribers. Safety Connect is suppo rted by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.
Safety Connect service is available by subs cription on select, telematics hardware-
equipped vehicles.
System components
 Vehicles without sunshade Vehicles with sunshade
Services
A
B
C

95
LC500_LC500h_QG_OM11618U_(U)
●Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After f iling a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-265-39 87 in Canada, and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Con-
nect-equipped vehicle location data may, under certain circumstances, be shared with
third parties to locate your vehicle. Further information is available at Lexus.com.
● Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. Th e answering agent will determ ine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
● Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS data to the already included warranty-based
Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Roadside Assistance se rvices and their limitations, please see the
Safety Connect Terms and Conditions , which are available at Lexus.com.
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus dealer, call the
following or push the “SOS” button in your vehicle for further subscription details.
•The United States
1-800-25-LEXUS (1-800-255-3987)
• Canada
1-800-26-LEXUS (1-800-265-3987)
•Puerto Rico
1-877-539-8777
Subscription
