1
LC500_LC500h_QG_OM11688U_(U)
Pictorial Index ............................................................................................................................. 3
For safe use Floor Mat Installation......................................................................................................... ..............11
Hybrid System (LC500h) Hybrid System (LC500h) ......................................................................................................... .12
Entering and Exiting
Keys ...................................................................................................................................................... 15
Smart Access System with Push-butto n Start .................................................................... 17
When Driving
Front Seats .................................................................................................................... ..................... 19
Driving Position Memory ........................................................................................................ ...20
Engine (Ignition) Switch (LC500)/Power (Ignition) Switch (LC500h)............... 22
EV Drive Mode (LC500h).......................................................................................................25
Automatic Transmission (LC500)/Hybrid Transmission (LC500h).................... 26
Turn Signal Lever .............................................................................................................. ............ 30
Parking Brake.................................................................................................................. ................. 31
Brake Hold ..................................................................................................................... ..................33
Multi-information Display...................................................................................................... .....34
Head-up Display ................................................................................................................ ............36
Headlight Switch ............................................................................................................... .............39
AHB (Automatic High Beam)..................................................................................................40
Windshield Wipers and Washer............................................................................................. 42
Lexus Safety System + .......................................................................................................... .......43
LKA (Lane-Keeping Assist) ...................................................................................................... 44
Dynamic Radar Cruise Control with Full-Speed Range ..............................................45
Intuitive Parking Assist ....................................................................................................... ........ 50
Driving Mode Select Switch ..................................................................................................... .51
BSM (Blind Spot Monitor) ....................................................................................................... ..53
Tire Pressure Warning System ................................................................................................54
Active Rear Wing ............................................................................................................... ...........56
Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understanding of your vehicle’s capabilities
and limitations.

14
LC500_LC500h_QG_OM11688U_(U)

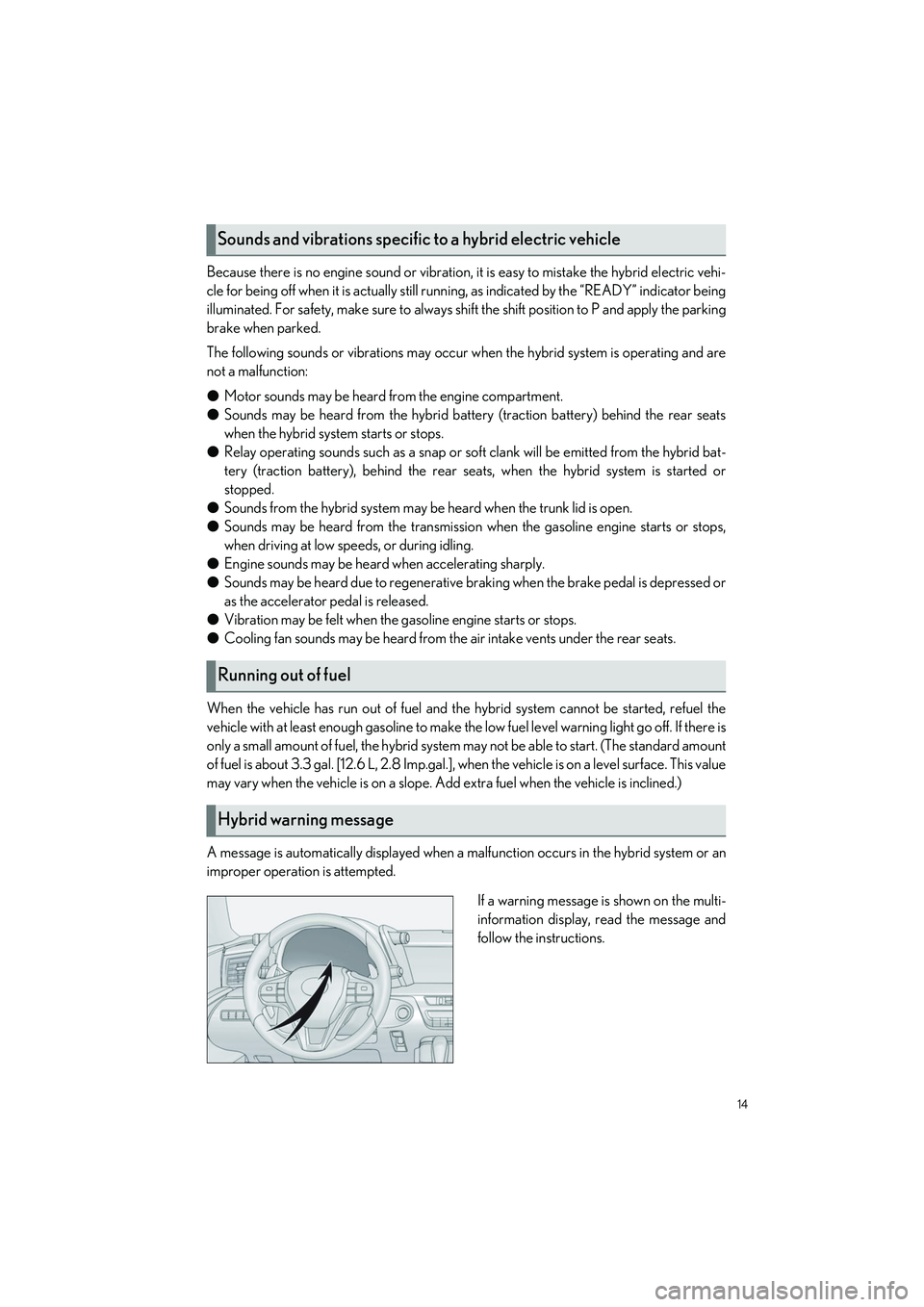

Because there is no engine sound or vibration, it is easy to mistake the hybrid electric vehi-
cle for being off when it is actually still runnin g, as indicated by the “READY” indicator being
illuminated. For safety, make sure to always shift the shift position to P and apply the parking
brake when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid system starts or stops.
● Relay operating sounds such as a snap or so ft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear seats, when the hybrid system is started or
stopped.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or
as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear seats.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make th e low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 3.3 gal. [12.6 L, 2.8 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Sounds and vibrations specific to a hybrid electric vehicle
Running out of fuel
Hybrid warning message

26
LC500_LC500h_QG_OM11688U_(U)

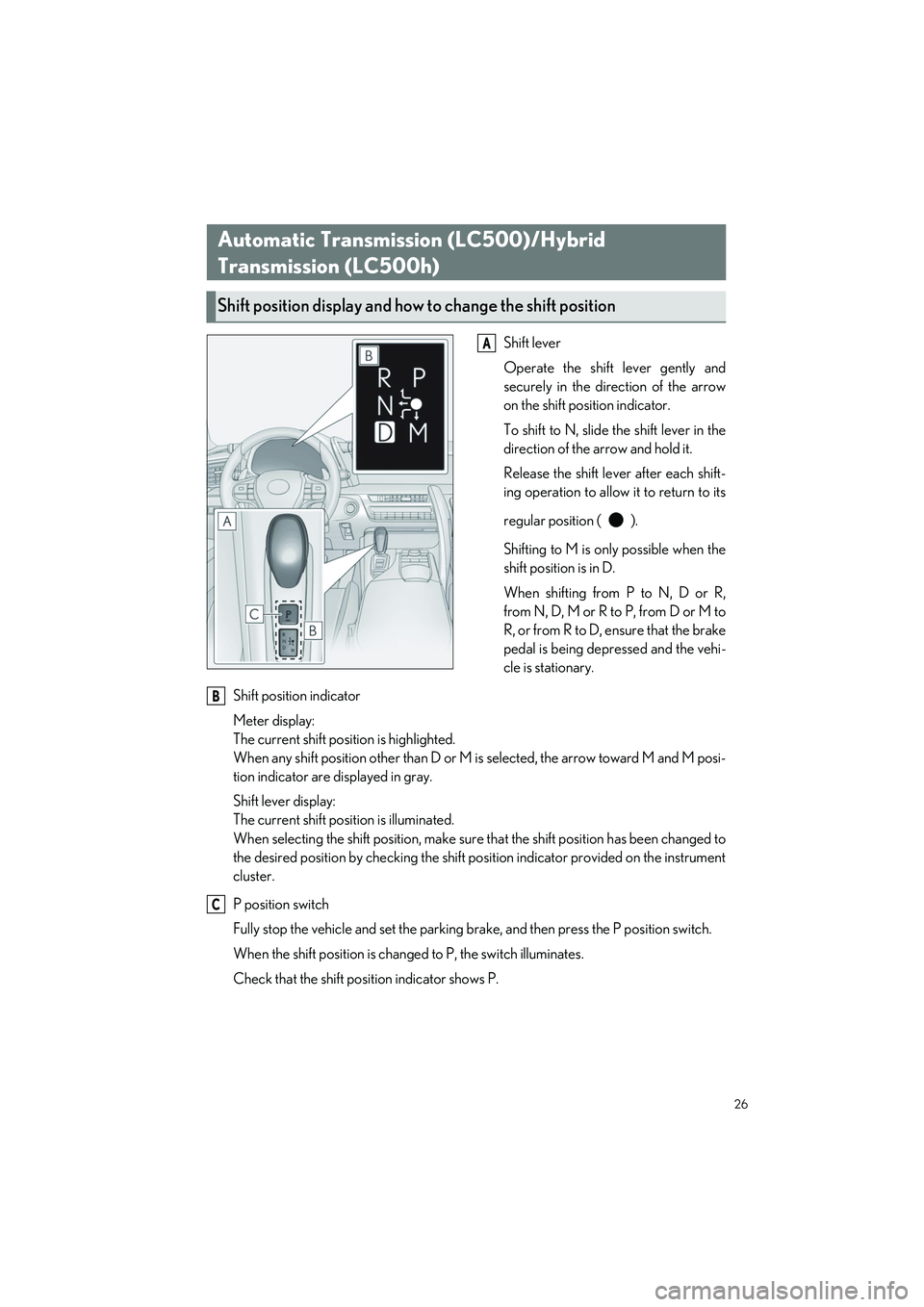

Shift lever
Operate the shift lever gently and
securely in the direction of the arrow
on the shift position indicator.
To shift to N, slide the shift lever in the
direction of the arrow and hold it.
Release the shift lever after each shift-
ing operation to allow it to return to its
regular position ( ).
Shifting to M is only possible when the
shift position is in D.
When shifting from P to N, D or R,
from N, D, M or R to P, from D or M to
R, or from R to D, ensure that the brake
pedal is being depressed and the vehi-
cle is stationary.
Shift position indicator
Meter display:
The current shift position is highlighted.
When any shift position other than D or M is selected, the arrow toward M and M posi-
tion indicator are displayed in gray.
Shift lever display:
The current shift position is illuminated.
When selecting the shift position, make sure that the shift position has been changed to
the desired position by checking the shift position indicator provided on the instrument
cluster.
P position switch
Fully stop the vehicle and set the parking brake, and then press the P position switch.
When the shift position is changed to P, the switch illuminates.
Check that the shift position indicator shows P.
Automatic Transmission (LC500)/Hybrid
Transmission (LC500h)
Shift position displa y and how to change the shift position
A
B
C

29
LC500_LC500h_QG_OM11688U_(U)

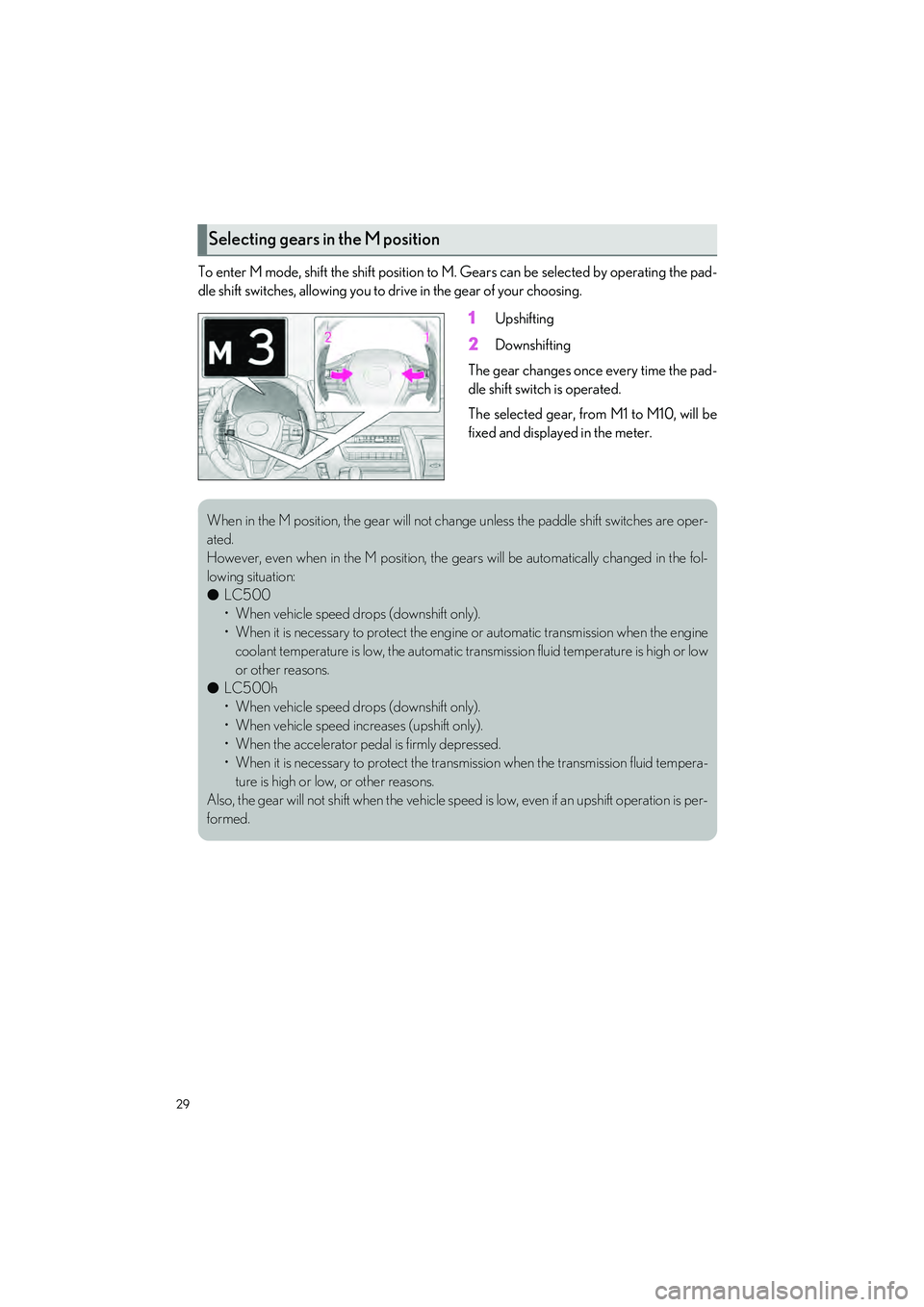

To enter M mode, shift the shift position to M. Gears can be selected by operating the pad-
dle shift switches, allowing you to drive in the gear of your choosing.
1Upshifting
2Downshifting
The gear changes once every time the pad-
dle shift switch is operated.
The selected gear, from M1 to M10, will be
fixed and displayed in the meter.
Selecting gears in the M position
When in the M position, the gear will not chan ge unless the paddle shift switches are oper-
ated.
However, even when in the M position, the gears will be automatically changed in the fol-
lowing situation:
● LC500
• When vehicle speed drops (downshift only).
• When it is necessary to protect the engine or automatic transmission when the engine
coolant temperature is low, the automatic transmission fluid temperature is high or low
or other reasons.
● LC500h
• When vehicle speed drops (downshift only).
• When vehicle speed increases (upshift only).
• When the accelerator pedal is firmly depressed.
• When it is necessary to protect the transmission when the transmission fluid tempera-
ture is high or low, or other reasons.
Also, the gear will not shift when the vehicle speed is low, even if an upshift operation is per-
formed.
