Page 2 of 112

1
LC500_LC500h_QG_OM11688U_(U)
Pictorial Index ............................................................................................................................. 3
For safe use Floor Mat Installation......................................................................................................... ..............11
Hybrid System (LC500h) Hybrid System (LC500h) ......................................................................................................... .12
Entering and Exiting
Keys ...................................................................................................................................................... 15
Smart Access System with Push-butto n Start .................................................................... 17
When Driving
Front Seats .................................................................................................................... ..................... 19
Driving Position Memory ........................................................................................................ ...20
Engine (Ignition) Switch (LC500)/Power (Ignition) Switch (LC500h)............... 22
EV Drive Mode (LC500h).......................................................................................................25
Automatic Transmission (LC500)/Hybrid Transmission (LC500h).................... 26
Turn Signal Lever .............................................................................................................. ............ 30
Parking Brake.................................................................................................................. ................. 31
Brake Hold ..................................................................................................................... ..................33
Multi-information Display...................................................................................................... .....34
Head-up Display ................................................................................................................ ............36
Headlight Switch ............................................................................................................... .............39
AHB (Automatic High Beam)..................................................................................................40
Windshield Wipers and Washer............................................................................................. 42
Lexus Safety System + .......................................................................................................... .......43
LKA (Lane-Keeping Assist) ...................................................................................................... 44
Dynamic Radar Cruise Control with Full-Speed Range ..............................................45
Intuitive Parking Assist ....................................................................................................... ........ 50
Driving Mode Select Switch ..................................................................................................... .51
BSM (Blind Spot Monitor) ....................................................................................................... ..53
Tire Pressure Warning System ................................................................................................54
Active Rear Wing ............................................................................................................... ...........56
Contents
The Quick Guide is not intended as a substitute for yourOWNER’S MANUAL. We strongly encourage you to review
the OWNER’S MANUAL and supplementary manuals so you
will have a better understanding of your vehicle’s capabilities
and limitations.
Page 3 of 112

2
LC500_LC500h_QG_OM11688U_(U)
Driving ComfortRemote Touch ................................................................................................................... ..............57
Energy Monitor/Consumption Screen ................................................................................. 61
Navigation System
*..................................................................................................................... 64
Hands-free System For Cellular Phone
*........................................................................... 66
Audio System
*............................................................................................................................... 70
Lexus Climate Concierge .......................................................................................................... 77
Automatic Air Conditioning System
*.................................................................................. 78
Interior features
Voice Command System
*........................................................................................................ 82
USB/AUX Ports .................................................................................................................. ......... 89
Garage Door Opener ............................................................................................................. ... 90
Lexus Enform Lexus Enform Safety Connect................................................................................................. 95
Lexus Enform Remote ............................................................................................................ .....97
Lexus Enform Service Connect.............................................................................................. 98
Audio SiriusXM Satellite Radio ....................................................................................................... ..... 99
Opening and Closing Door Locks ..................................................................................................................... ............... 100
What to do if...
List of Warning/Indicator Lights............................................................................................. 10 1
If the electronic key does not oper ate properly ............................................................. 105
If the engine
*: These features may be operated by Voice Command (See P.82)
Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of equipment.
Page 16 of 112

15
LC500_LC500h_QG_OM11688U_(U)
●Smart access system with push-button
start ( P.17)
● Wireless remote control
To take out the mechanical key, push the
release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
Keys
Electronic key
Mechanical key
Page 18 of 112

17
LC500_LC500h_QG_OM11688U_(U)
1Push the depression on the front edge
of the driver’s door handle to unlock
the door. Push the depression on the
front edge of the passenger’s door
handle to unlock both side doors.
*
The outside door handles will be
extended.
The extended outside door handles are
automatically retracted in approxi-
mately 60 seconds.
The doors cannot be unlocked for
3 seconds after the doors are locked.
*: The door unlock settings can bechanged.
2Push the rear edge of the extended door handle to lock the doors.
If the outside door handles are extended, they will be retracted.
After locking the doors, check that the door is securely locked with the door lock indi-
cator. ( P.100)
Smart Access System with Push-button Start
The following operations can be performed si mply by carrying the electronic key (includ-
ing the card key) on your person, for example in your pocket. The driver should always
carry the electronic key.
For details on starting the engine
Unlocking and locking the doors from the outside
Page 19 of 112

18
LC500_LC500h_QG_OM11688U_(U)
Press the button.
When both side doors are unlocked using
one of the following methods, the trunk can
be opened without the electronic key:
•Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
Opening the trunk
For details on what to do when the electronic key does not operate properly, see page 105.
Page 22 of 112

21
LC500_LC500h_QG_OM11688U_(U)
Each electronic key (including a card key) can be registered to recall your preferred driving
position.
■Registering procedure
1
Turn the engine switch
2Check that the shift position is in P.
3Recall the driving position that you want to record.
4While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the buzzer
sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function (driver’s side only)
Page 23 of 112

22
LC500_LC500h_QG_OM11688U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.31)
The parking brake indicator will come
on.
2Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play. If it is not displayed, the engine
LC500h: When the shift position is N,
the hybrid system cannot start.
Shift the shift position to P when start-
ing the hybrid system.
3Press the engine switch
When operating the engine switch
It is not necessary to press and hold the switch.
LC500: The engine will crank until it starts or for up to 30 seconds, whichever is less.
Continue depressing the brake pedal until the engine is completely started.
LC500h: If the “READY” indicator turns on, the hybrid system will operate normally.
Continue depressing the brake pedal until the “READY” indicator is illuminated.
The engine
mode.
4LC500h: Check that the “READY” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.

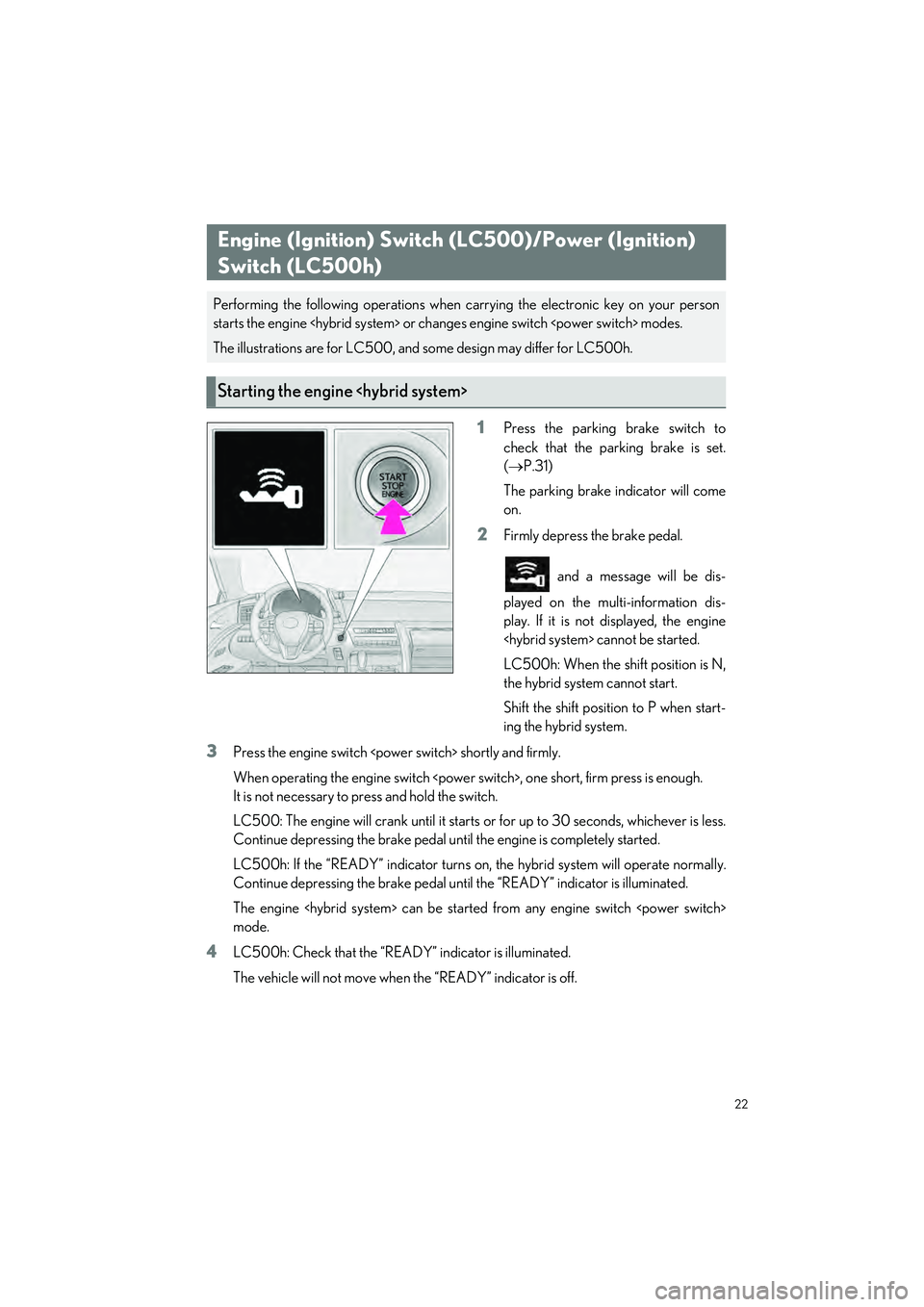

Engine (Ignition) Switch (LC500)/Power (Ignition)
Switch (LC500h)
Performing the following operations when carrying the electronic key on your person
starts the engine
The illustrations are for LC500, and some design may differ for LC500h.
Starting the engine
Page 76 of 112

75
LC500_LC500h_QG_OM11688U_(U)

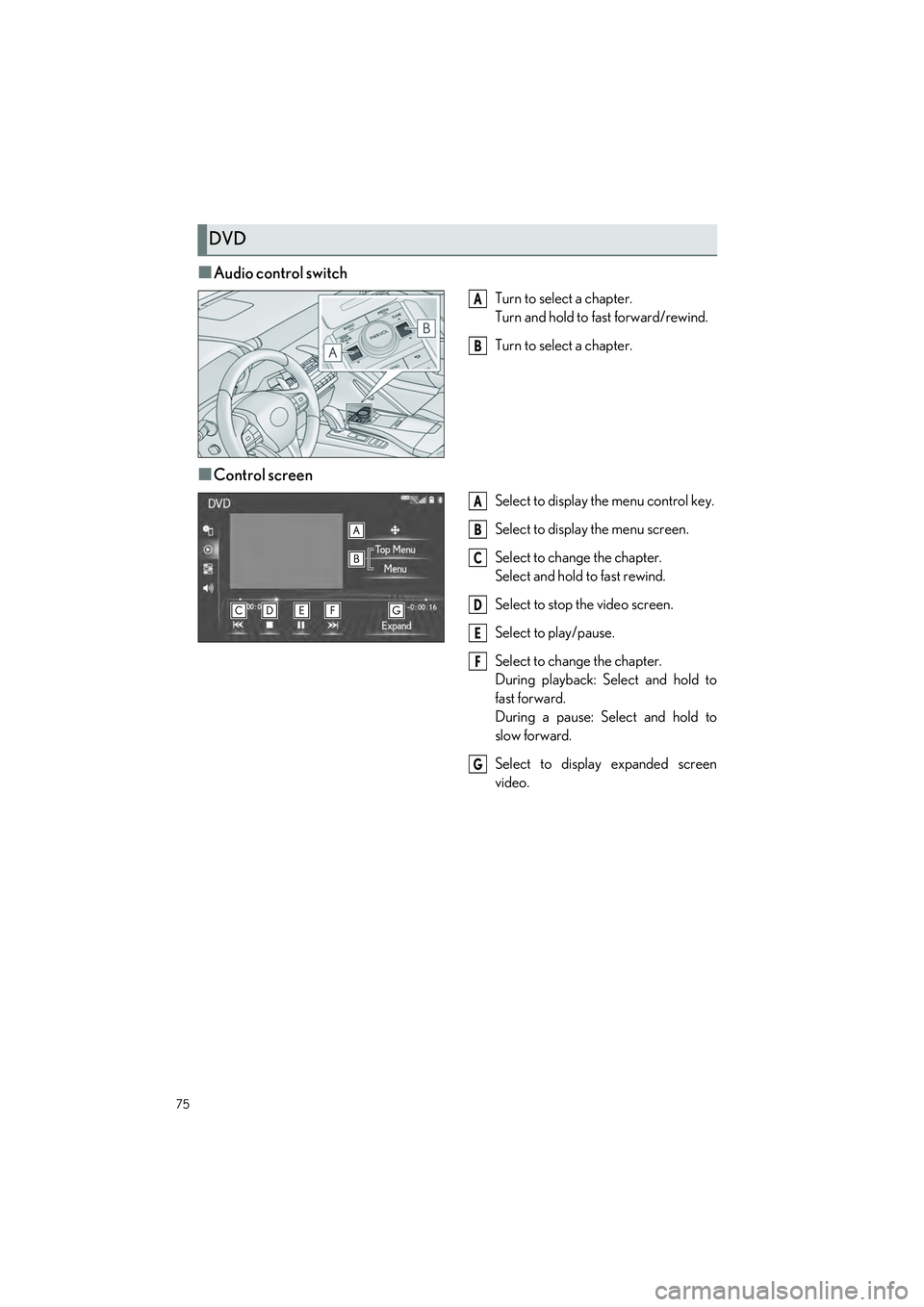

■Audio control switch
Turn to select a chapter.
Turn and hold to fast forward/rewind.
Turn to select a chapter.
■Control screen
Select to display the menu control key.
Select to display the menu screen.
Select to change the chapter.
Select and hold to fast rewind.
Select to stop the video screen.
Select to play/pause.
Select to change the chapter.
During playback: Select and hold to
fast forward.
During a pause: Select and hold to
slow forward.
Select to display expanded screen
video.
DVD
A
B
A
B
C
D
E
F
G
Page 106 of 112

What to do if...
105
LC500_LC500h_QG_OM11688U_(U)
1Push in the depression on the front edge of the driver’s door handle.
2Insert the mechanical key while pulling
on the driver’s door handle.
3Turn the key in order to perform the fol-
lowing operations.
Locks both side doors
Closes the windows (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other door.
Opens the windows (turn and hold)
*
*
: These settings must be customized at your Lexus dealer.
Unlock the doors, and press the trunk
opener switch.
If the electronic key does not operate properly
Locking and unlocking the door
A
B
C
D
Opening the trunk
Page 107 of 112

106
What to do if...
LC500_LC500h_QG_OM11688U_(U)
1Depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch
When the electronic key is detected, a
buzzer sounds and the engine switch
ON mode
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch
SORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the engine switch
In the event that the engine
dealer.
Starting the engine
If the electronic key battery becomes deplet ed, a warning message will be shown on the
multi-information display. Replace the battery with a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance, contact your Lexus dealer.
