lexus LFA 2012 Owner's Manual / LEXUS 2012 LFA OWNERS MANUAL (OM77006U)

149
2-2. Instrument cluster
2
When driving
■“Needle”
Each time right on the control pad
is pressed, the color of the
tachometer needle will change as
follows:

150
2-2. Instrument cluster
■“Rev Peak”
When the engine speed reaches
or exceeds 6000 rpm, an afterim-
age of the tachometer needle will
be displayed at the highest engine
speed for approximately 0.5 sec-
onds.
Set up procedure Press the right side of the control
pad to turn this function “ON” or
“OFF”
The afterimage color of the
tachometer needle changes as fol-
lows:
Tachometer
needle colorAfterimage color
Blue Red Red Blue
White Blue

151
2-2. Instrument cluster
2
When driving

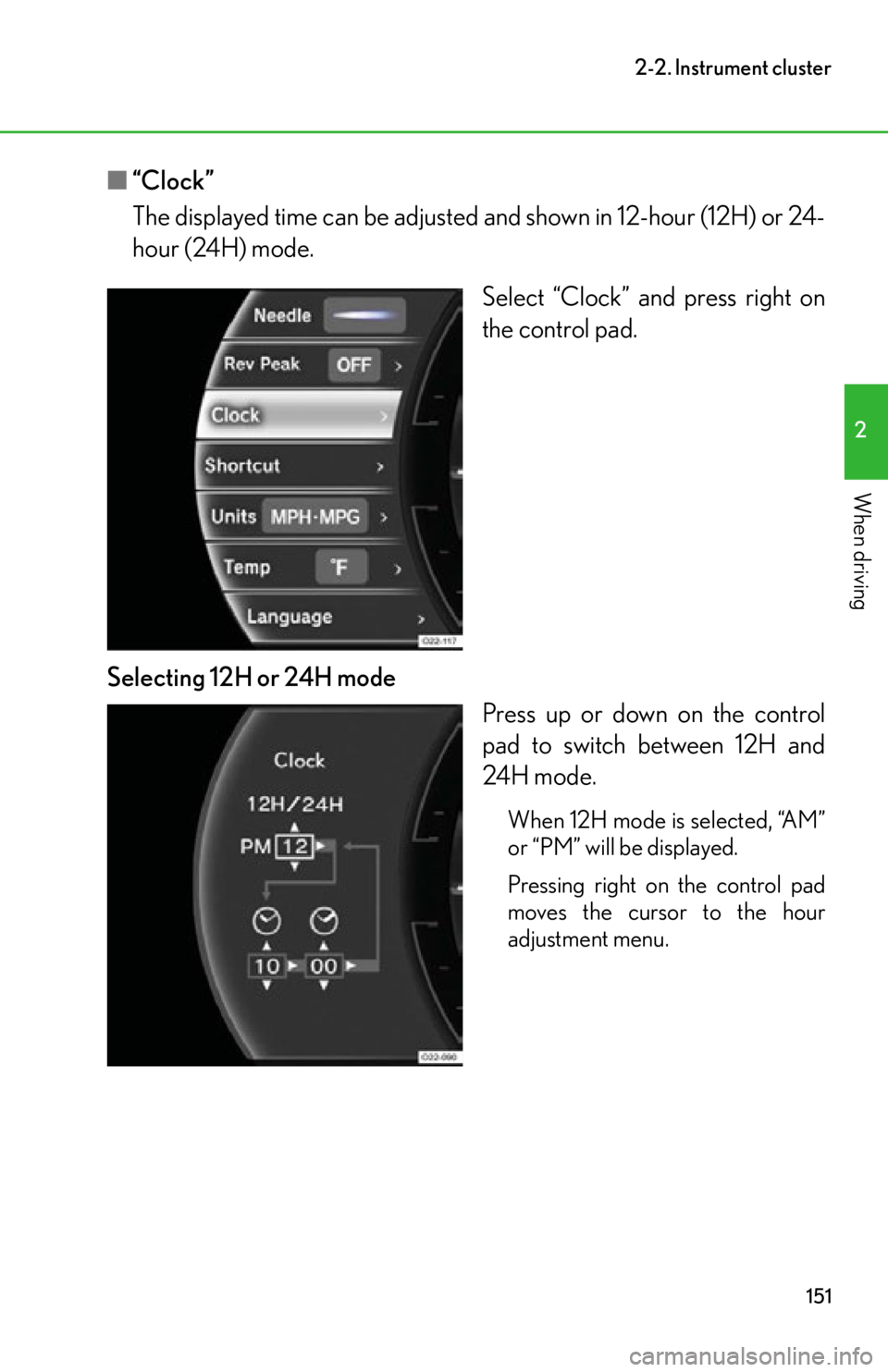

■“Clock”
The displayed time can be adjusted and shown in 12-hour (12H) or 24-
hour (24H) mode.
Select “Clock” and press right on
the control pad.
Selecting 12H or 24H mode Press up or down on the control
pad to switch between 12H and
24H mode.
When 12H mode is selected, “AM”
or “PM” will be displayed.
Pressing right on the control pad
moves the cursor to the hour
adjustment menu.

152
2-2. Instrument cluster
Clock adjustmentHour adjustment
Minute adjustmentPress right on the control
pad to move the cursor to
the hour adjustment menu.
Press up or down on the
control pad to adjust the
hour.
Press right on the control
pad to move the cursor to
the minute adjustment
menu.
Press up or down on the
control pad to adjust the
minute.
Pressing right on the control
pad moves the cursor to the
12H/24H mode adjustment
menu.
STEP1
STEP2
STEP3
STEP4

153
2-2. Instrument cluster
2
When driving

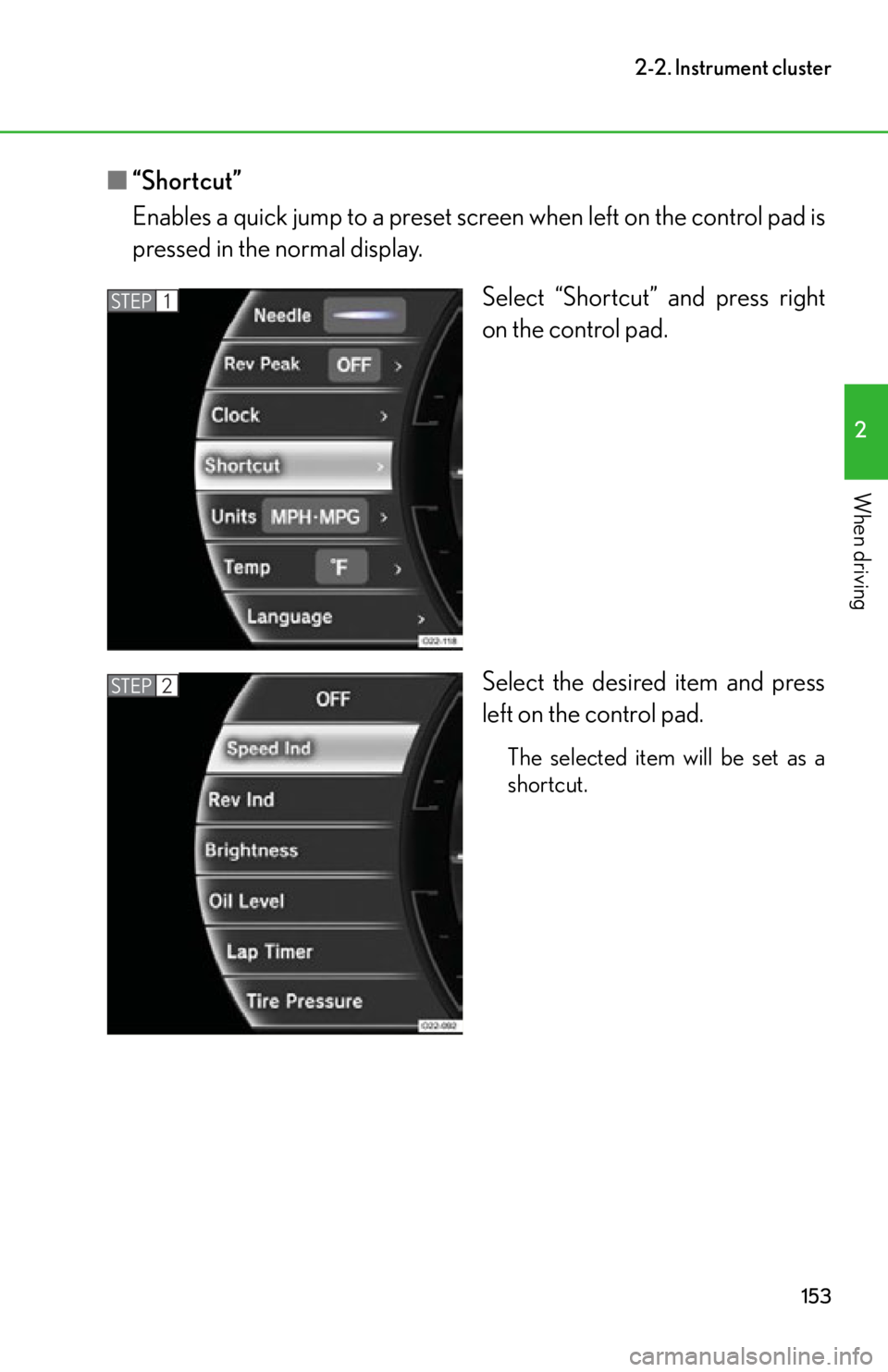

■“Shortcut”
Enables a quick jump to a preset scr een when left on the control pad is
pressed in the normal display.
Select “Shortcut” and press right
on the control pad.
Select the desired item and press
left on the control pad.
The selected item will be set as a
shortcut.
STEP1
STEP2

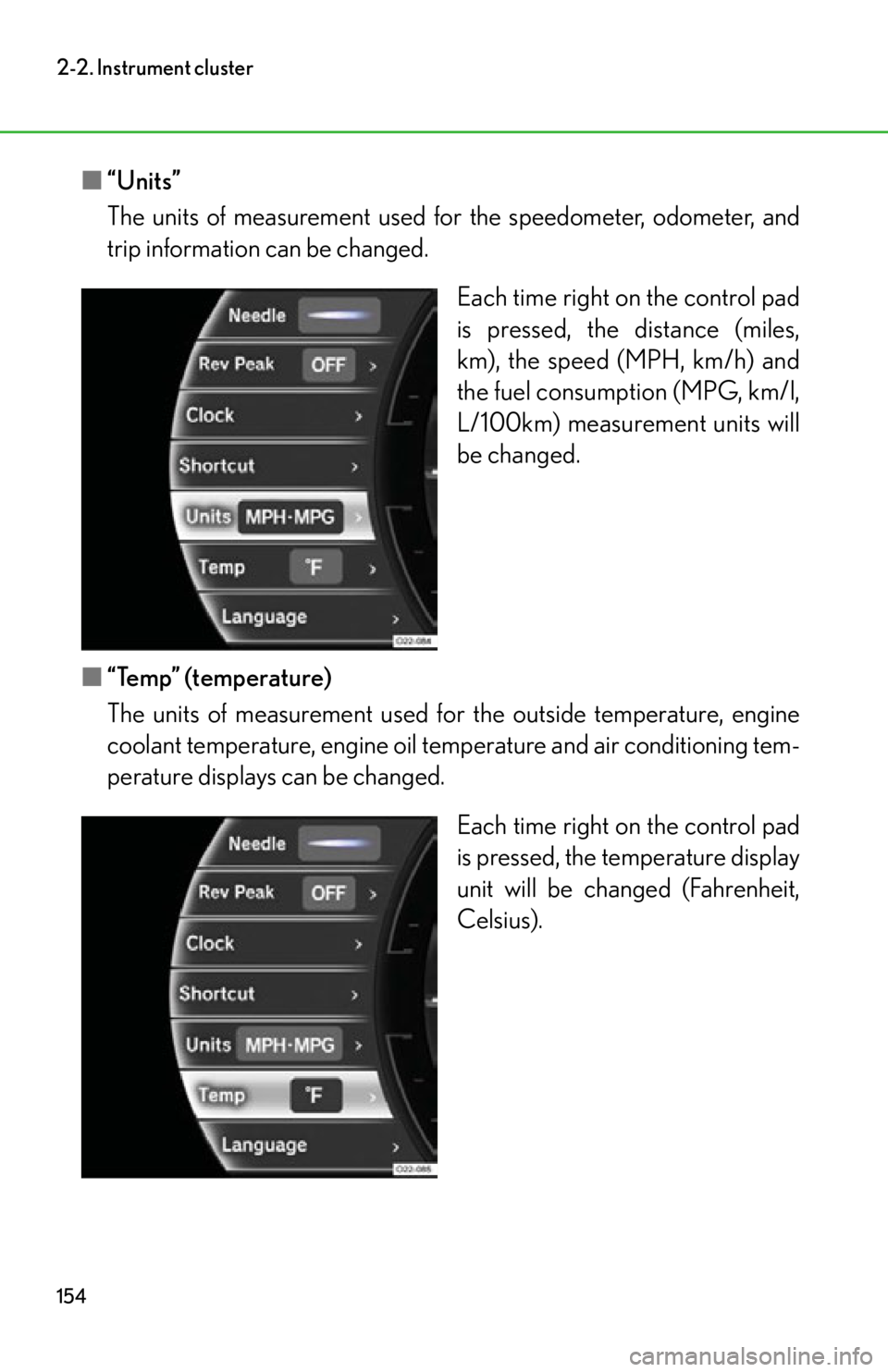

154
2-2. Instrument cluster
■“Units”
The units of measurement used fo r the speedometer, odometer, and
trip information can be changed.
Each time right on the control pad
is pressed, the distance (miles,
km), the speed (MPH, km/h) and
the fuel consumption (MPG, km/l,
L/100km) measurement units will
be changed.
■ “Temp” (temperature)
The units of measurement used fo r the outside temperature, engine
coolant temperature, engine oil temperature and air conditioning tem-
perature displays can be changed.
Each time right on the control pad
is pressed, the temperature display
unit will be changed (Fahrenheit,
Celsius).

155
2-2. Instrument cluster
2
When driving

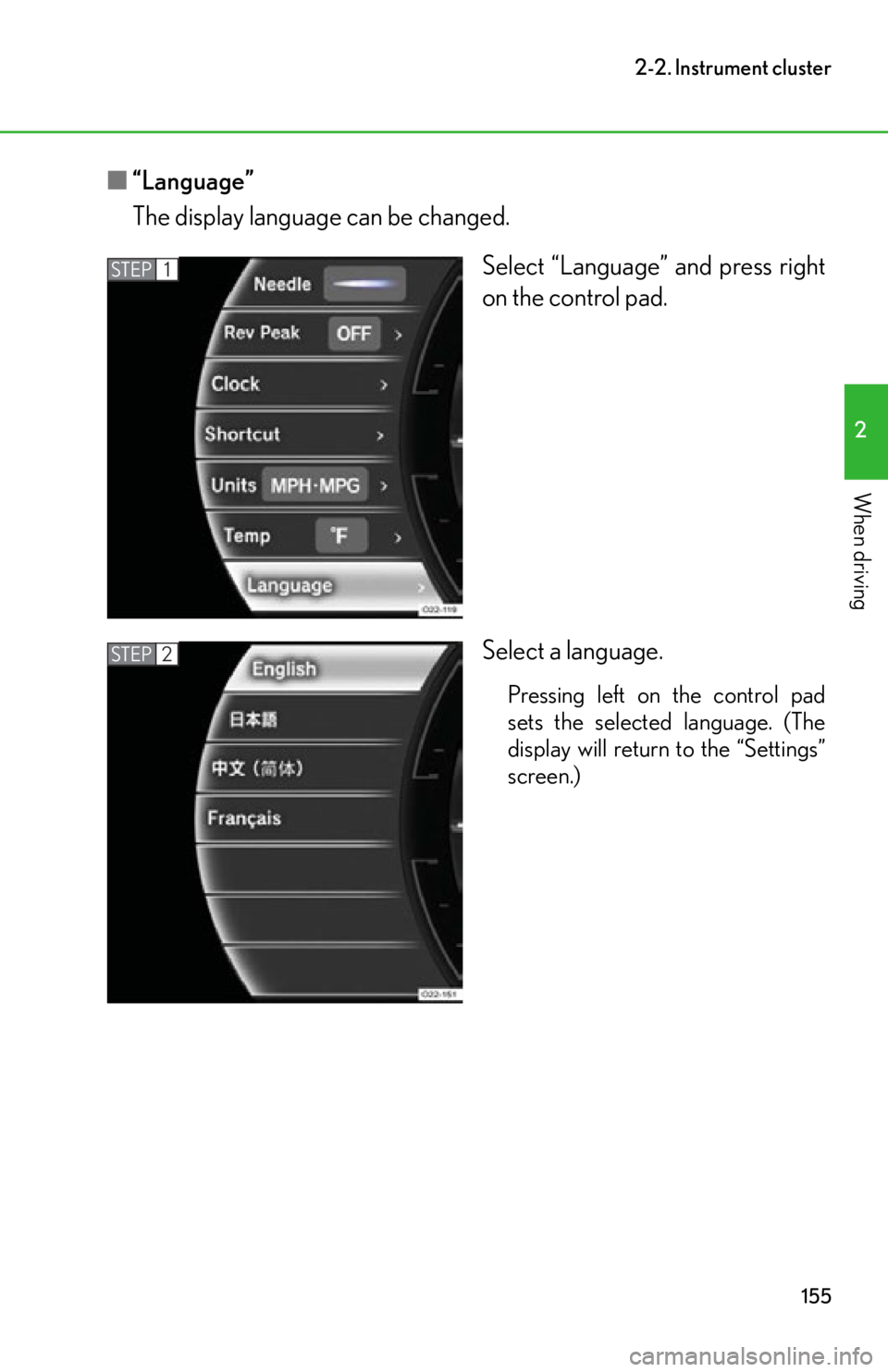

■“Language”
The display language can be changed.
Select “Language” and press right
on the control pad.
Select a language.
Pressing left on the control pad
sets the selected language. (The
display will return to the “Settings”
screen.)
STEP1
STEP2

156
2-2. Instrument cluster
■Meter operation restrictions while vehicle is in motion
While the vehicle is in motion, some menu items cannot be changed using the con-
trol pad. Restricted items are displayed in gray or without an arrow. These items can
be operated once the vehicle is stopped.
■“Rev Ind” (rev indicator)
●Even if the green or amber indicator is set to 9000 rpm, the over-rev warning
will be displayed.
●If the green and amber indicators are both set to the same engine speed, the
indicator will be shown in amber.
■Measuring the engine oil level
●The dry sump lubrication system circulates the engine oil between the engine
and oil tank according to driving conditions. Accordingly, the engine oil level in
the oil tank may vary even if the overall amount is constant, affecting the mea-
surement results.
●It takes some time for the engine oil level to stabilize after the engine is started.
To obtain a more stable result, drive the vehicle for a while and then perform the
measurement without stopping the engine.
●If an attempt to measure the oil level is made immediately after the previous oil
level measurement process was completed, the previous measurement may be
displayed.
●If the measurement result flashes, the measuring function is malfunctioning.
Have the vehicle inspected by your Lexus dealer.
■Engine oil maintenance
“Oil maintenance required” will be displayed once the vehicle has been driven for
more than 6214 miles (10000 km) since the last reset. (
P. 3 2 7 )
The engine oil may need to be replaced earlier depending on driving conditions.
●Over-rev warning (regular setting)
If the engine speed enters the red zone, the
over-rev warning will be shown in red
regardless of the set speed.

157
2-2. Instrument cluster
2
When driving
■Using the “Lap Timer”
●When the “Lap Timer” function is turned “OFF” or the engine is stopped while a
lap is being timed, the lap timer will stop and the lap time up to that point will be
recorded.
●If the lap time being recorded ends with the same time as the fastest lap, the
newer time will be saved as the fastest lap time.
●If the lap time exceeds “9:59:59.99”, the display will return to “0:00:00.00” but
the total time will be recorded.
●If a warning message is displayed when a lap time is being measured, the lap
time will still continue to be recorded.
Operating the control pad while the warning message is shown returns the dis-
play to the stopwatch but the warning message will continue to appear until the
warning is resolved.
●In the normal display, the current measurement time and the latest lap time will
be displayed.
■Changing the temperature measurement unit
When the “Temp” measurement unit is ch anged, the air conditioning system tem-
perature setting, air outlet s and fan speed characteristic s may be changed. This is
normal and does not indicate a malfunction.
■If the battery is disconnected or discharges
“Lap Timer” data and “Clock” settings will be reset.

158
2-3.Operating the lights and windshield wipers
Headlight switch
Off
Canada only:
The daytime running lights
turn on.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
Canada only:
The daytime running lights
and all lights listed above
turn on.
The headlights and all
lights listed above turn
on.
Turning on the high beam headlights
With the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever rearward to the cen-
ter position to turn the high beams
off.
Pull the lever rearward and
release it to flash the high beams
once.
You can flash the high beams with
the headlights on or off.
U.S.A.Canada
