lexus LFA 2012 Technical Information / LEXUS 2012 LFA: INSIDE THE LFA

109
Technical information

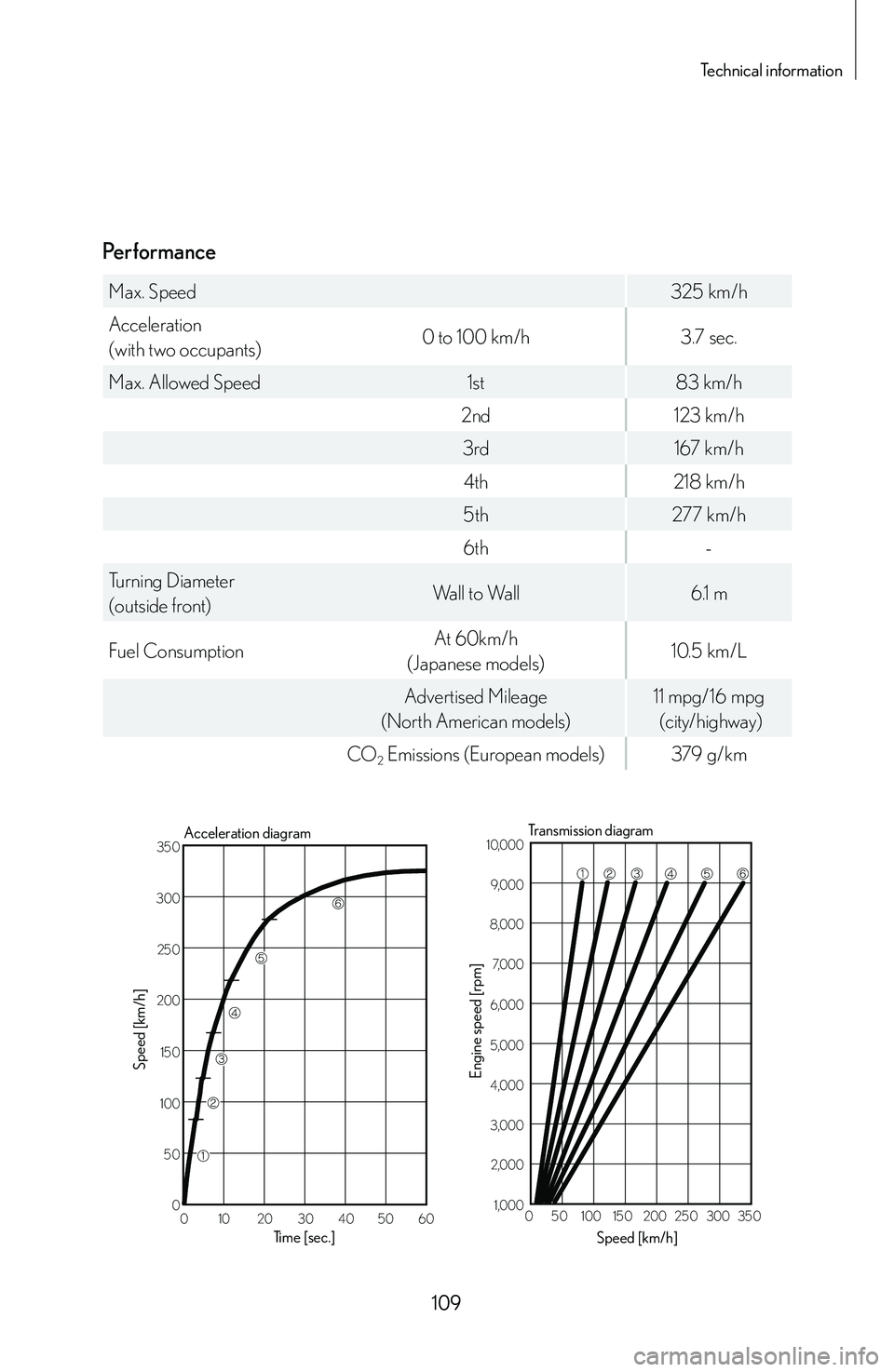

Performance
Max. Speed325 km/h
Acceleration
(with two occupants) 0 to 100 km/h
3.7 sec.
Max. Allowed Speed 1st83 km/h
2nd 123 km/h
3rd 167 km/h
4th 218 km/h
5th 277 km/h
6th -
Turning Diameter
(outside front) Wall to Wall
6.1 m
Fuel Consumption At 60km/h
(Japanese models) 10.5 km/L
Advertised Mileage
(North American models) 11 mpg/16 mpg
(city/highway)
CO
2 Emissions (European models) 379 g/km
Acceleration diagram
Time [sec.]
Speed [km/h]
350
300 250
200
150
100 50 0 0 10 20 30 40 50 60

Transmission diagram
Speed [km/h]
Engine speed [rpm]
10,0009,000
8,000 7,000
6,000 5,000 4,000
3,000 2,000
1,000 0 50 100 150 200 250 300 350

110
Engine
Engine Type1LR-GUE
No. of Cyls. & Arrangement 10-cylinders, 72°V type
Valve Mechanism 40-valve DOHC, Rocker Arm Type
Bore x Stroke 88.0 mm x 79.0 mm
Displacement 4,805 cm
3
Compression Ratio12.0:1
Spark Plug Type
*1PK22HTBR-L8 (DENSO)
Engine Oil “Mobil 1 5W-50” API SM or SN
Engine Oil Capacity
*2Single Oil Cooler 13.5 L (14.2 qt., 11.9 Imp. qt.)
Twin Oil Cooler 14.5 L (15.3 qt., 12.8 Imp. qt.)
Lubrication Type Dry Sump
Coolant Type Super Long Life Coolant
Coolant Capacity 25.5 L (26.9 qt., 22.4 Imp. qt.)
Max. Output (SAE-NET) 412 kW (560 PS) 8,700 rpm
Max. Torque (SAE-NET) 480 Nm (48.9 kgf•m) 7,000 rpm
Maximum Engine Speed 9,000 rpm
*1: The spark plugs have been developed exclusively for the 1LR-GUE engine.*2: The figure shown is the total amount of oil contained in the engine, and not the amount of oil required for an oil change.

Engine powerband (Internal measurement)
Engine speed (rpm)
Power (kW)
Torque (Nm)
2,000
450
400
350
300
250
200
150
100
50
0 4,000 6,000 8,000 10,000 500
400
300

111
Technical information

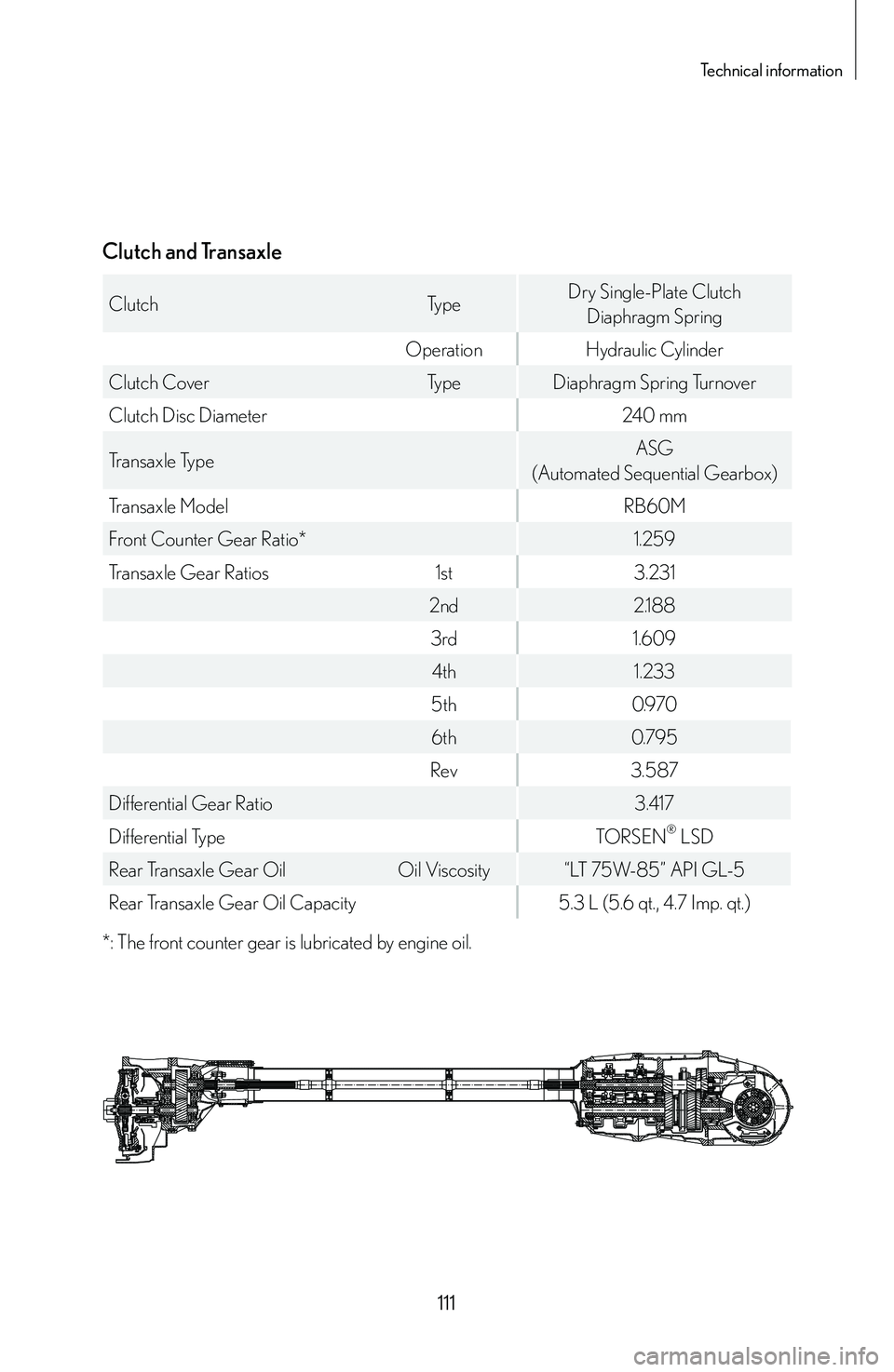

Clutch and Transaxle
ClutchTypeDry Single-Plate Clutch
Diaphragm Spring
Operation Hydraulic Cylinder
Clutch Cover TypeDiaphragm Spring Turnover
Clutch Disc Diameter 240 mm
Transaxle Type ASG
(Automated Sequential Gearbox)
Transaxle Model RB60M
Front Counter Gear Ratio* 1.259
Transaxle Gear Ratios 1st3.231
2nd 2.188
3rd 1.609
4th 1.233
5th 0.970
6th 0.795
Rev 3.587
Differential Gear Ratio 3.417
Differential Type TORSEN
® LSD
Rear Transaxle Gear Oil Oil Viscosity“LT 75W-85” API GL-5
Rear Transaxle Gear Oil Capacity 5.3 L (5.6 qt., 4.7 Imp. qt.)
*: The front counter gear is lubricated by engine oil.

112

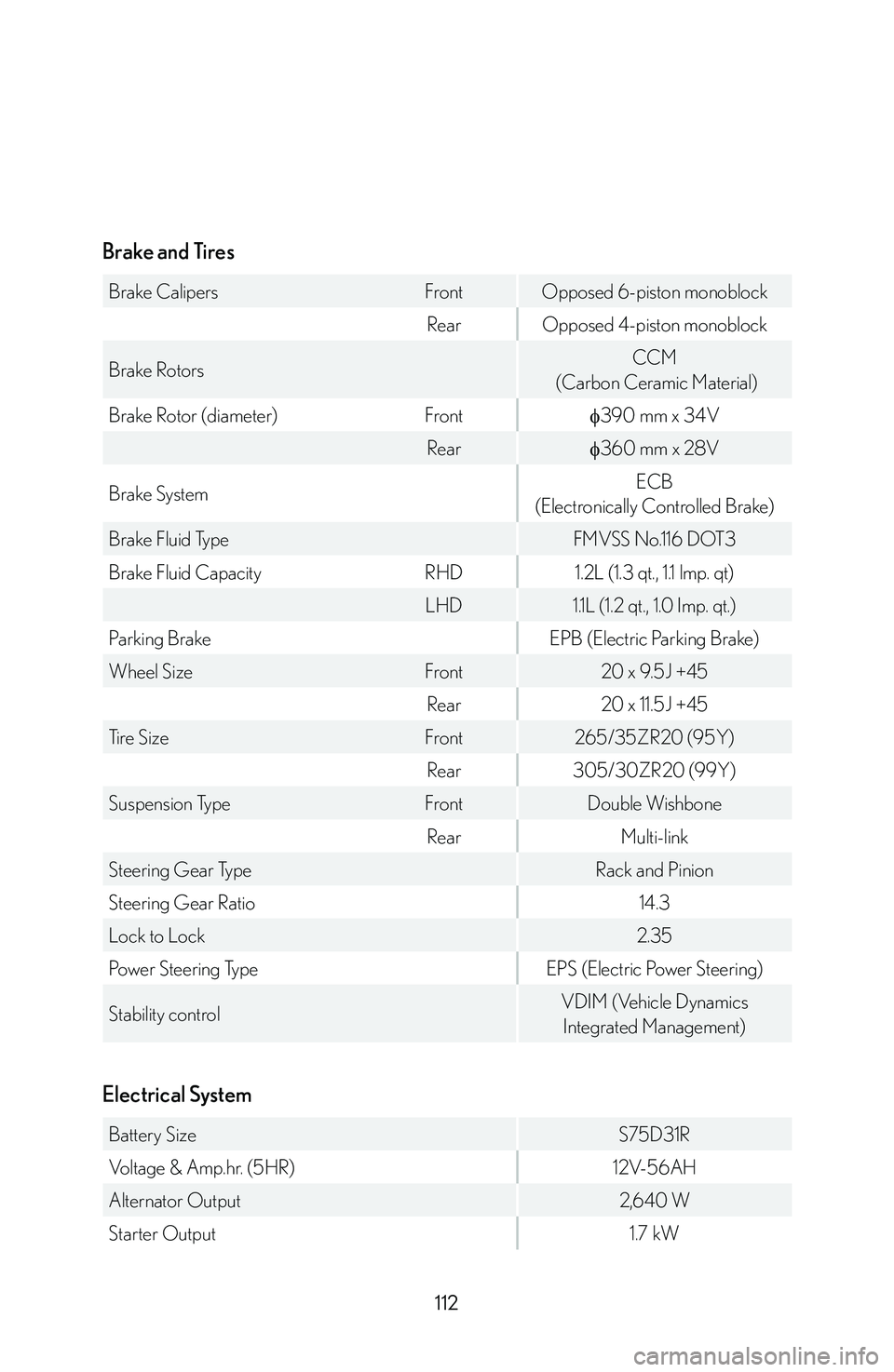

Brake and Tires
Brake Calipers FrontOpposed 6-piston monoblock
Rear Opposed 4-piston monoblock
Brake Rotors CCM
(Carbon Ceramic Material)
Brake Rotor (diameter) Front
f390 mm x 34V
Rear f360 mm x 28V
Brake System ECB
(Electronically Controlled Brake)
Brake Fluid Type FMVSS No.116 DOT3
Brake Fluid Capacity RHD1.2L (1.3 qt., 1.1 lmp. qt)
LHD 1.1L (1.2 qt., 1.0 Imp. qt.)
Parking Brake EPB (Electric Parking Brake)
Wheel Size Front20 x 9.5J +45
Rear 20 x 11.5J +45
Tire Size Front265/35ZR20 (95Y)
Rear 305/30ZR20 (99Y)
Suspension Type FrontDouble Wishbone
Rear Multi-link
Steering Gear Type Rack and Pinion
Steering Gear Ratio 14.3
Lock to Lock 2.35
Power Steering Type EPS (Electric Power Steering)
Stability control VDIM (Vehicle Dynamics
Integrated Management)
Electrical System
Battery Size S75D31R
Voltage & Amp.hr. (5HR) 12V-56AH
Alternator Output 2,640 W
Starter Output 1.7 kW

114
