BASIC OPERATION − QUICK REFERENCE
Parking, engine starting
and key removal position
Reverse position
Neutral position
Normal driving position
Position for engine braking
Position for stronger engine
braking than that in “2” positionWith the brake pedal depressed, shift
while holding the lock release button in
(The ignition switch must be in “ON”
position.)
Shift while pressing the lock release
button in
Shift normally without pressing the
button

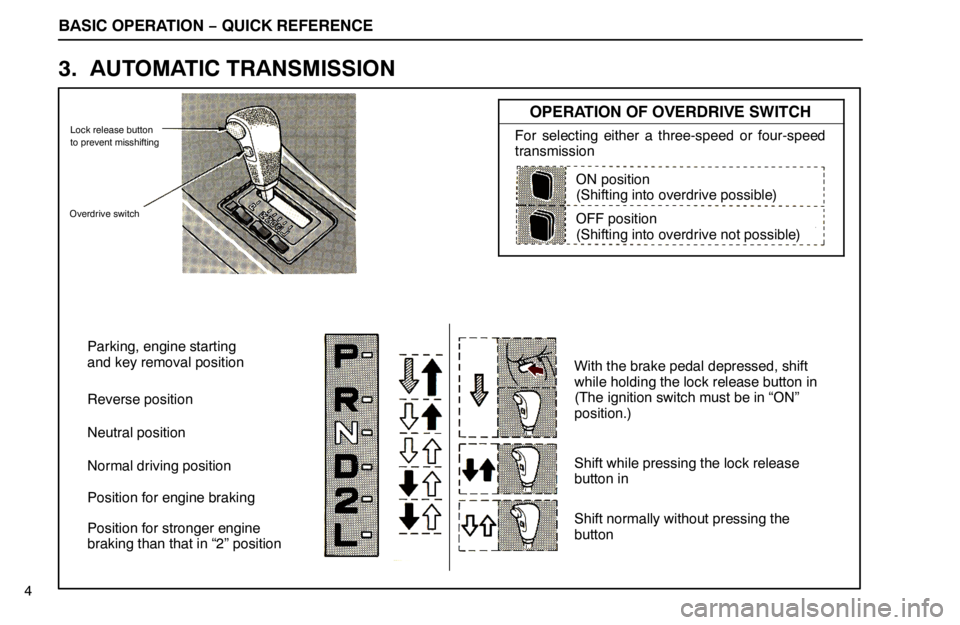

Lock release button
to prevent misshifting
Overdrive switch
ON position
(Shifting into overdrive possible)
OFF position
(Shifting into overdrive not possible)
4
3. AUTOMATIC TRANSMISSION
OPERATION OF OVERDRIVE SWITCH
For selecting either a three-speed or four-speed
transmission

BASIC OPERATION − QUICK REFERENCE

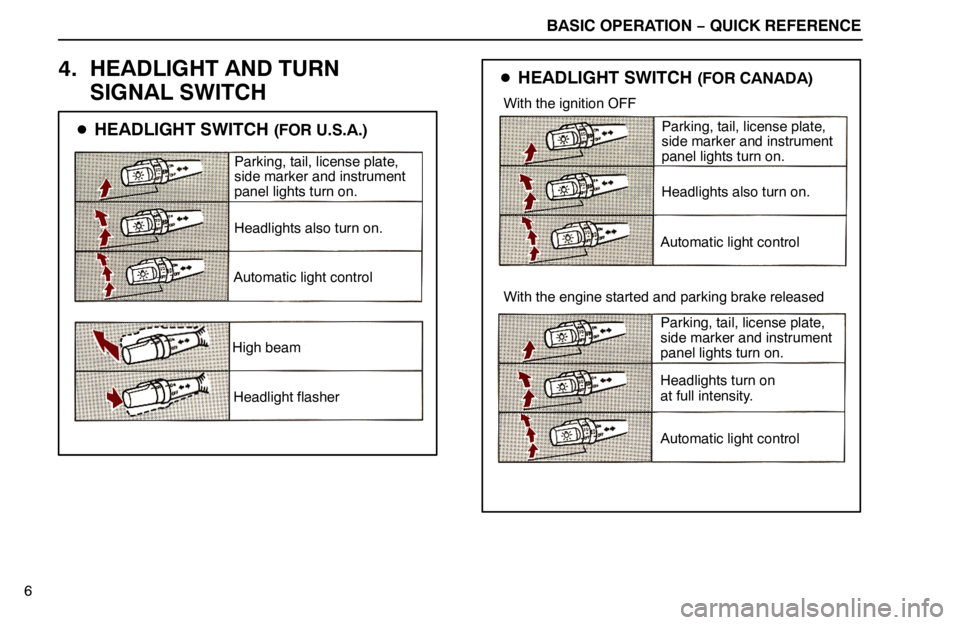

HEADLIGHT SWITCH (FOR U.S.A.)
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Automatic light control
High beam
Headlight flasher

HEADLIGHT SWITCH (FOR CANADA)
With the ignition OFF
With the engine started and parking brake released
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on
at full intensity.
Automatic light control
6
4. HEADLIGHT AND TURN
SIGNAL SWITCH
