EXTERIOR EQUIPMENT
50

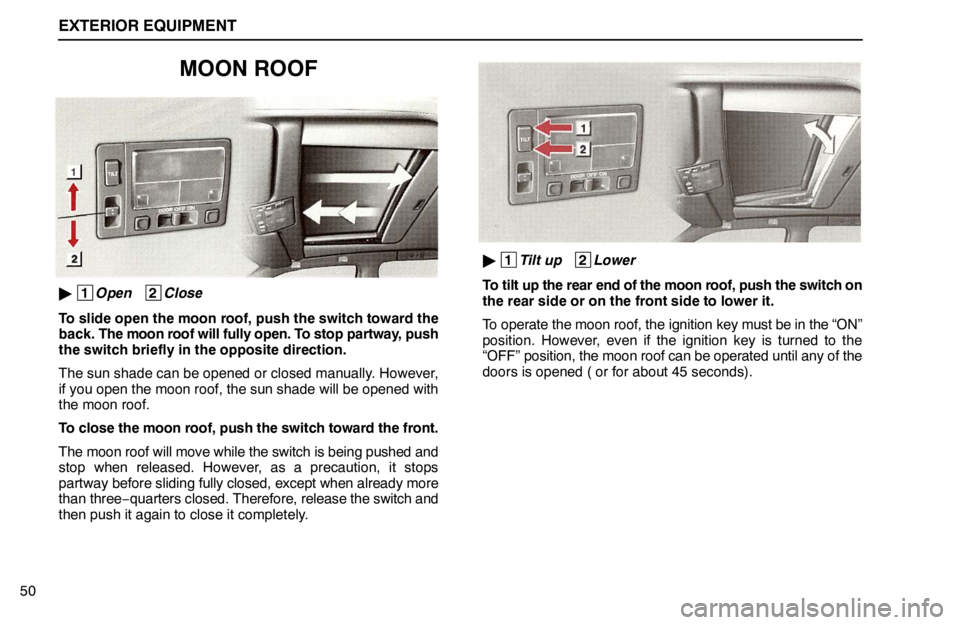

MOON ROOF
1
Open 2
Close
To slide open the moon roof, push the switch toward the
back. The moon roof will fully open. To stop partway, push
the switch briefly in the opposite direction.
The sun shade can be opened or closed manually. However,
if you open the moon roof, the sun shade will be opened with
the moon roof.
To close the moon roof, push the switch toward the front.
The moon roof will move while the switch is being pushed and
stop when released. However, as a precaution, it stops
partway before sliding fully closed, except when already more
than three−quarters closed. Therefore, release the switch and
then push it again to close it completely.
1
Tilt up 2
Lower
To tilt up the rear end of the moon roof, push the switch on
the rear side or on the front side to lower it.
To operate the moon roof, the ignition key must be in the “ON”
position. However, even if the ignition key is turned to the
“OFF” position, the moon roof can be operated until any of the
doors is opened ( or for about 45 seconds).
EXTERIOR EQUIPMENT
51

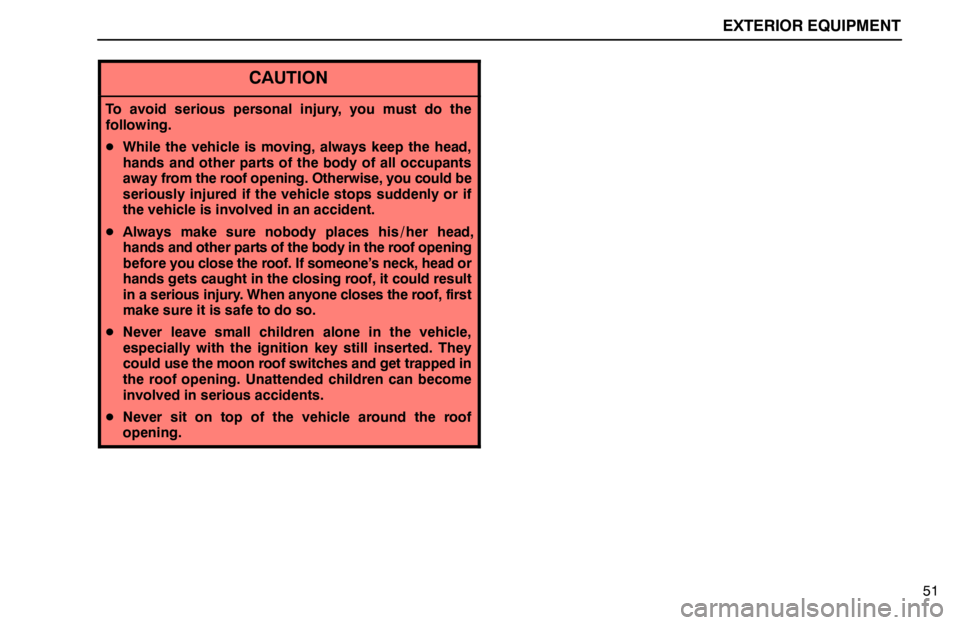

CAUTION
To avoid serious personal injury, you must do the
following.
While the vehicle is moving, always keep the head,
hands and other parts of the body of all occupants
away from the roof opening. Otherwise, you could be
seriously injured if the vehicle stops suddenly or if
the vehicle is involved in an accident.
Always make sure nobody places his / her head,
hands and other parts of the body in the roof opening
before you close the roof. If someone’s neck, head or
hands gets caught in the closing roof, it could result
in a serious injury. When anyone closes the roof, first
make sure it is safe to do so.
Never leave small children alone in the vehicle,
especially with the ignition key still inserted. They
could use the moon roof switches and get trapped in
the roof opening. Unattended children can become
involved in serious accidents.
Never sit on top of the vehicle around the roof
opening.
