window lexus LS400 1996 Engine / 1996 LS400: SWITCHES

15
SECTION 1 ± 2
INSTRUMENTS AND CONTROLS
Switches
Headlight switch 16
Headlight dimmer and turn signal switch 17
Fog light switch 18
Windshield wiper and washer switch 19
Headlight cleaner switch 20
Rear window and outside rear view mirror
defogger switch 20
Power window switches 21
Emergency flasher switch 24
Seat heater switches 24

SWITCHES
20
HEADLIGHT CLEANER SWITCH
(CANADA ONLY)
To spray fluid on the headlights, push the switch with
the headlights on.
The ignition key must be in the ªONº position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see ªAdding
washer fluidº on page 224.
NOTICE
Do not turn the headlight cleaner on with the tank
empty. It may cause the cleaner motor to overheat.
REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER
SWITCH
To turn the electric rear window defogger on, push the
switch.
The ignition key must be in the ªONº position.
The thin heater wires on the inside of the rear window and
the heater panels in the outside rear view mirrors will quickly
clear the surface. Keep your hands off the mirror faces when
the switch is on. An indicator light is on when the defogger
is operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.

SWITCHES
21 If further defrosting or defogging is desired, simply actuate
the switch again. When the surface has cleared, push the
switch once again to turn the defogger off. Continuous use
may cause the battery to discharge, especially during
stop±and±go driving. The defogger is not designed to dry
rain water or to melt snow.
If the outside rear view mirrors are heavily coated with ice,
use a spray de±icer before operating the switch.
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires.
To prevent the battery from being discharged, do
not operate the defogger continuously longer than
necessary.
POWER WINDOW SWITCHES

For driver's window
For front passenger's window
For left rear window
For right rear window
To raise or lower the windows, use the switch on each
door. The passengers' windows can also be controlled
by the switches on the driver's door.
The ignition key must be in the ªONº position. However, even
if the ignition key is turned to the ªACCº or ªLOCKº position,
the window can be operated until any of the doors is opened
(or for about 45 seconds).

SWITCHES
22
Operating the driver's switch
To lower the window, push the switch halfway down.
Pull it up to raise the window. The window glass moves
as long as the switch is operated.
To fully lower the driver's window automatically, push
the switch fully down.
In automatic operation, the window will fully open even if you
let go of the switch. To stop the window partway, lightly pull
the switch up and then release it.
Operating the passenger's switches
To lower the window, push the switch down. Pull it up
to raise the window. The window moves as long as the
switch is operated.
Operating the window lock switch
Indicator light
With the window lock switch pressed in, only the
driver 's window can be raised or lowered.
The indicator lights on the switch tell you which of the
switches can be operated.

SWITCHES
23

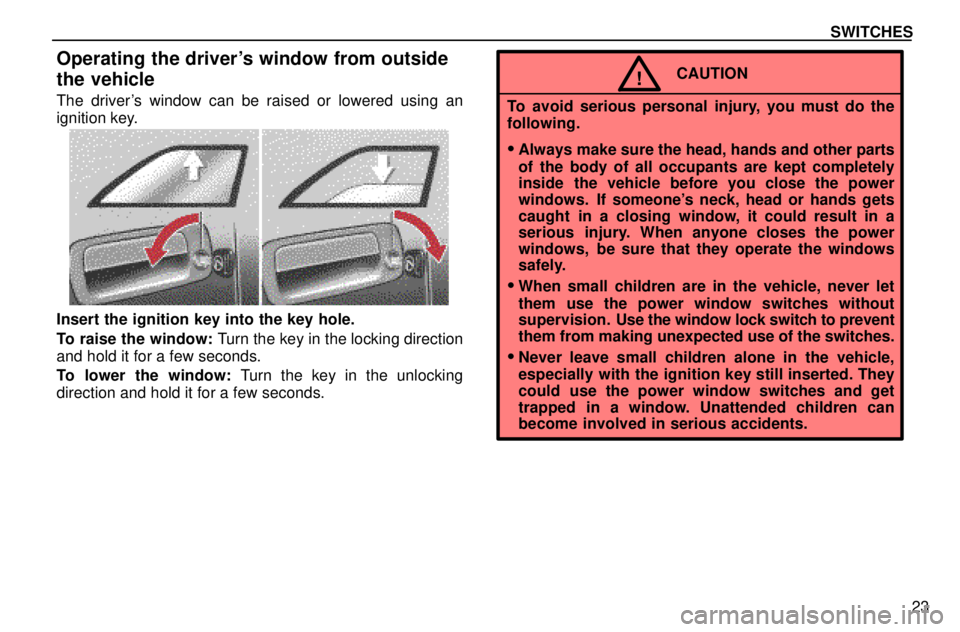

Operating the driver's window from outside
the vehicle
The driver's window can be raised or lowered using an
ignition key.
Insert the ignition key into the key hole.
To raise the window: Turn the key in the locking direction
and hold it for a few seconds.
To lower the window: Turn the key in the unlocking
direction and hold it for a few seconds.
CAUTION!
To avoid serious personal injury, you must do the
following.
Always make sure the head, hands and other parts
of the body of all occupants are kept completely
inside the vehicle before you close the power
windows. If someone's neck, head or hands gets
caught in a closing window, it could result in a
serious injury. When anyone closes the power
windows, be sure that they operate the windows
safely.
When small children are in the vehicle, never let
them use the power window switches without
supervision. Use the window lock switch to prevent
them from making unexpected use of the switches.
Never leave small children alone in the vehicle,
especially with the ignition key still inserted. They
could use the power window switches and get
trapped in a window. Unattended children can
become involved in serious accidents.
