SWITCHES
24
HEADLIGHT DIMMER AND TURN
SIGNAL SWITCH
12L003
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is off.
12L004
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the ”ON” position.
The turn signal is selfcancelling after a turn, but after a lane change,
you may have to cancel it by hand. You can also signal a lane change
by moving the turn signal lever partway and holding it there.
If the green light in the instrument cluster flashes faster than normal,
it indicates that the front or rear turn signal bulb has burned out. If
this indicator light does not come on, the fuse or the indicator light
itself has probably failed.

INTERIOR EQUIPMENT
53
POWER OUTLET
14L0381
The power outlet is designed for power supply for car
accessories.
The ignition key must be in the ”ACC” or ”ON” position for the
power outlet to be used.
NOTICE
To prevent the fuse from being blown, do not use the
electricity over the total vehicle capacity of 3.5A/12V.
To prevent the battery from being discharged, do not use the
power outlet longer than necessary when the engine is not
running.
Close the power outlet lid when the power outlet is not in use.
Inserting a foreign object other than the appropriate plug
that fits the outlet, or allowing any liquid into the outlet may
cause electrical failure or short circuits.

AIR CONDITIONING AND AUDIO
124
(a) Climate control
SETTING OPERATION automatic control
21L003-3
1. Push the ”AUTO” button.
Air flow quantity, switching of the diffusers, onoff of the air
conditioning, and switching of the air intake between
RECIRCULATED AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by each indicator.
When one of the manual control buttons is depressed while operating
in automatic mode, the operation corresponding to the button
depressed is set. Other conditions continue to be adjusted
automatically.
Push the ”OFF” button to turn the air conditioning off.
21L0401
2. Use the ”TEMP” or ”PASSENGER TEMP” button to set the
desired temperature.
The ”TEMP” or ”PASSENGER TEMP” button is used to set the
desired temperature. The temperature will be controlled on the
driver and passenger sides simultaneously or individually.
”TEMP” button Changes the temperature on the driver and
passenger sides simultaneously or the driver side only.
”PASSENGER TEMP” button Changes the temperature on the
passenger side only.
”DUAL” button Changes the mode of the temperature setting.
The indicator on the ”DUAL” button has two modes:
With the indicator on For individual temperature setting
With the indicator off For simultaneous temperature setting

AIR CONDITIONING AND AUDIO
138
20L0461

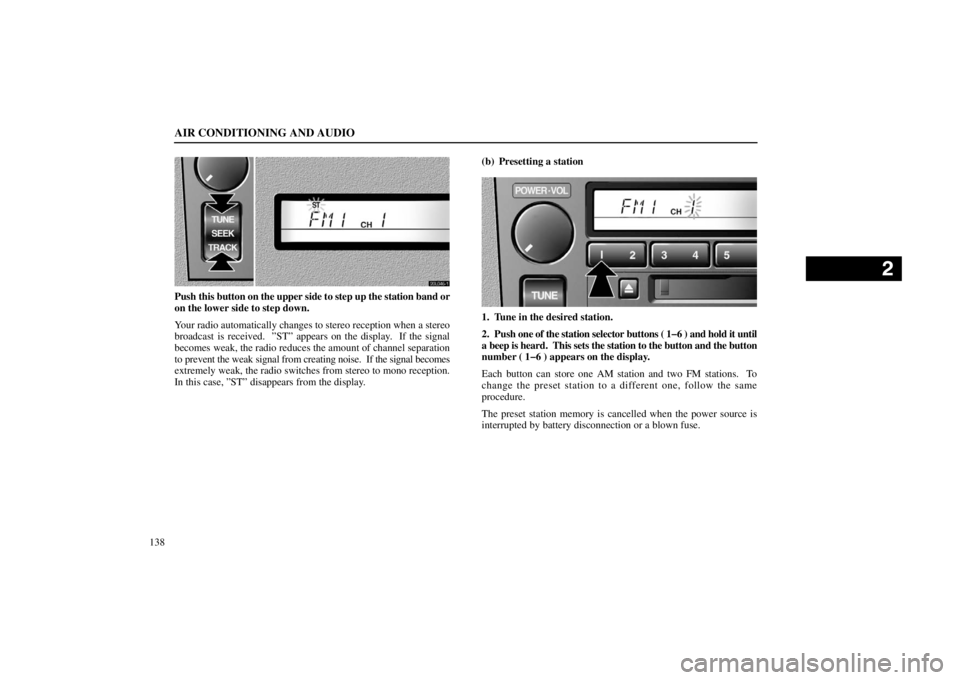

Push this button on the upper side to step up the station band or
on the lower side to step down.
Your radio automatically changes to stereo reception when a stereo
broadcast is received. ”ST” appears on the display. If the signal
becomes weak, the radio reduces the amount of channel separation
to prevent the weak signal from creating noise. If the signal becomes
extremely weak, the radio switches from stereo to mono reception.
In this case, ”ST” disappears from the display.(b) Presetting a station
20L047-1
1. Tune in the desired station.
2. Push one of the station selector buttons ( 16 ) and hold it until
a beep is heard. This sets the station to the button and the button
number ( 16 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power source is
interrupted by battery disconnection or a blown fuse.

61L005-5
INTRODUCTION
220
ENGINE COMPARTMENT OVERVIEW
1 Brake fluid reservoir
2 Fuse box
3 Battery
4 Washer fluid tank
5 Engine oil level dipstick
6 Engine oil filler cap
7 Power steering fluid
reservoir
8 Engine coolant reservoir

INTRODUCTION
223
Checking brake fluid
Parts (if level is low):
FMVSS No. 116 DOT 3 or SAE J1703 brake fluid
Tools:
Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEXRON
II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
Checking battery condition
Nonmaintenance batteries
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal clamp bolts)
Maintenance type batteries
Parts (if level is low):
Distilled waterTools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal clamp bolts)
Coin (for vent plugs)
Funnel (only for adding distilled water)
Checking and replacing the blade type fuses
Parts (if replacement is necessary):
Fuse with same amperage rating as original
Checking the cartridge type fuses
Parts (if replacement is necessary):
Genuine Lexus fuse or equivalent with same amperage rating as
original
Adding washer fluid
Parts:
Water
Washer fluid containing antifreeze (for winter use)
Tools:
Funnel

SECTION 6 4
248
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications 249. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking battery condition 253. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 257. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 258. . . . . . . . . . . . . . . . . . . .
Checking the cartridge type fuses 260. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 261. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the headlight aim 261. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 264. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ELECTRICAL COMPONENTS
249
SPECIFICATIONS
FUSE LOCATIONS
64L0061
1
Engine compartment
2
Driver’s side instrument panel FUSES
64L0071
Driver’s side instrument panel

ELECTRICAL COMPONENTS
251
No.FUSEAMPERECIRCUIT
1 TURN7.5Turn signal lights
2 WIPER20Windshield wipers
3 HEATER10
Air conditioning system,
Rear window defogger, Multiport
fuel injection system/sequential
multiport fuel injection system
4 FR FOG15Fog lights
5 ECUIG10Power steering control system,
Charging system,
Vehicle skid control system
6 PWRIG15
Automatic headlight leveling
system, Moon roof,
Headlight cleaner,
Power seat switch,
Tilt and telescopic steering, Shift
lock system
7 GAUGE10
Gauges and meters, service
reminder indicators and warning
buzzers,
Backup lights,
Vehicle skid control system,
Multiport fuel injection
system/sequential multiport fuel
injection system, Automatic
transmission system
8 IGN10SRS, Multiport fuel injection
system/sequential multiport fuel
injection system
9 RR FOG7.5No circuit
10 FUEL OPN10Fuel opener system
No.FUSEAMPERECIRCUIT
11 RR CIG15Rear cigarette lighter,
Power outlet
12 FR CIG15Front cigarette lighter, SRS
13 A/C7.5Air conditioning system
14 P RR
DOOR20Rear door lock,
Rear power window
15 STOP LP25Stop lights,
High mounted stop light
16 RADIO
NO.215
Audio system,
Outside rear view mirror,
Shift lock system,
Air conditioning system
17 PANEL7.5Instrument panel lights,
Air conditioning system, Glovebox
light, Audio system
18 STARTER7.5
Starting system,
Automatic transmission system,
Multiport fuel injection
system/sequential multiport fuel
injection system
19 TAIL7.5Tail lights, Side marker lights,
License plate lights
20 STOPS7.5
Shift lock system,
Height control system, Antilock
brake system,
Vehicle skid control system
21 RR S/HTR15No circuit
22 WASHER20Windshield washer

ELECTRICAL COMPONENTS
252
No.FUSEAMPERECIRCUIT
23 AIR SUS20Height control system
24 D RR
DOOR20Rear door lock,
Rear power window
25 HORN10Horns
26 ETCS15Electronic throttle control system
27 HLP L
UPR10Lefthand headlight (high beam)
28 HLP R
UPR10Righthand headlight (high beam)
29 EFI NO.210Emission control system
30 MIRHTR15Outside rear view mirror defogger
31 FR S/HTR15Seat heater
32 ALTS7.5Charging system
33 TEL15Telephone
34 CRT15Multi information display
35 RADIO
NO.120Audio system
36 MPXB10Power window, Door lock,
Tilt and telescopic steering
37 ECUB7.5Vehicle skid control system,
Daytime running light system
38 HAZ10Emergency flashers
No.FUSEAMPERECIRCUIT
39 EFI NO.120Multiport fuel injection
system/sequential multiport fuel
injection system
40 DOME10Interior light, Vanity lights,
Foot lights, Rear personal light,
Garage door opener
41 OBD7.5Onboard diagnosis system
42 DRL10Vehicles sold in Canada
Daytime running light system
43 HLP R
LW R15Righthand headlight (low beam)
44 HLP L
LW R15Lefthand headlight (low beam)
