INSTRUMENT lexus LS400 1998 Engine / LEXUS 1998 LS400 (OM50498U) User Guide

SECTION 1 2
21
INSTRUMENTS AND CONTROLS
Switches
Headlight switch 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 24. . . . . . . . . . . . . . . . . . . . . . .
Fog light switch 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 25. . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight cleaner switch 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror
defogger switch 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power window switches 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
22
HEADLIGHT SWITCH
12L001
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (”AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
Vehicles sold in U.S.A.: When the headlights are on, the headlight
indicator lights up in the instrument cluster.
Vehicles sold in Canada: When the tail lights are on, the tail light
indicator lights up in the instrument cluster.
Manually twist the knob to the second clickstop to turn on the
headlights if they are needed immediately when entering a dark
tunnel, parking structure, etc.
12L002
The automatic light control sensor is on top of the driver’s side
instrument panel.
Do not place anything on the instrument panel, and/or do not affix
anything on the windshield to block this sensor.
When the headlights come on, the lights automatically turn off about
30 seconds after any of the doors is opened and closed with the
ignition key turned to the ”ACC” or ”LOCK” position.** To turn
them on again, turn the ignition key to the ”ON” position, or turn the
headlight switch off and then twist the knob until the first or second
clickstop. If you are going to park for over one week, make sure the
headlight switch is off.
When the headlight switch is on with all the doors locked, pushing
the ”LOCK” button on the wireless remote control key turns off the
headlights.
NOTE: *The operating condition or sensitivity can be changed.
**The time before turning off the lights can be changed. Ask your
Lexus dealer for details.

SWITCHES
23 Daytime Running Light System (Canada only)
The headlights turn on when the parking brake is released with the
engine started, even with the light switch in the ”OFF” position.
They will not go off until the ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights, twist
the knob to the first clickstop.
Under the daytime running light system, the headlights turn on at
reduced intensity. Twist the knob to the second clickstop to turn to
full intensity for driving at night.
When setting the knob to the third clickstop (”AUTO”), the
headlights will automatically adjust to full intensity and/or turn on
the other lights depending on the darkness of the surroundings.
Likewise, as the surroundings become brighter, the headlights will
turn to reduced intensity, ultimately turning off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the
lights on longer than necessary when the engine is not running.
Automatic headlight leveling system (Vehicles with
discharge headlight only)
As the headlight beam level is always maintained automatically at
the proper level in all loading conditions, your headlights do not
dazzle other road users.
If this system fails, the multi information display shows a message
”HEADLIGHT LEVELING”. If this occurs, have your vehicle
checked by Lexus dealer.

SWITCHES
24
HEADLIGHT DIMMER AND TURN
SIGNAL SWITCH
12L003

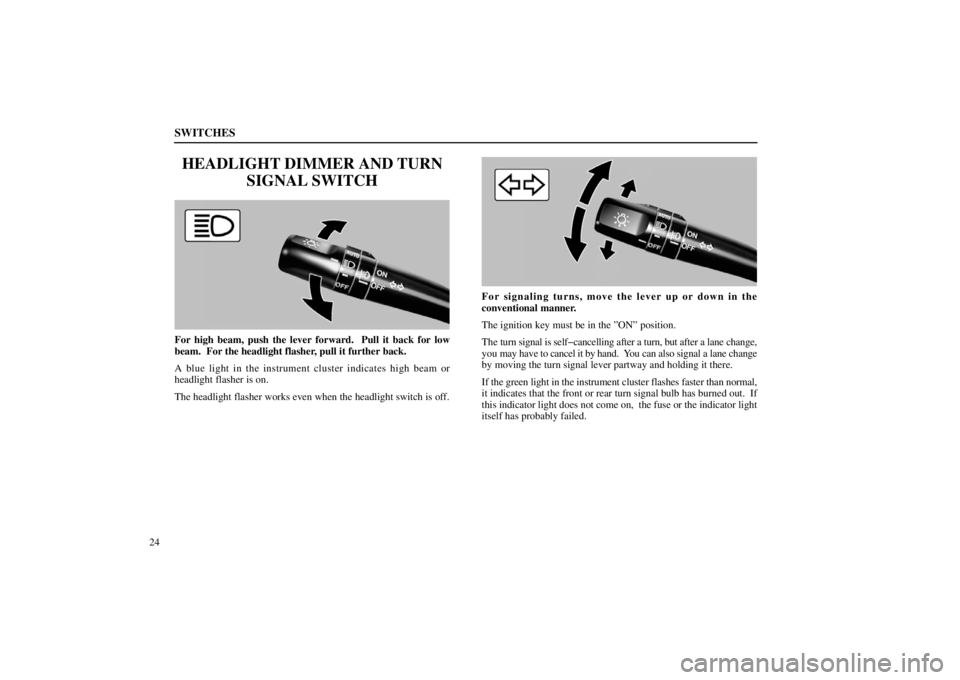

For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is off.
12L004
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the ”ON” position.
The turn signal is selfcancelling after a turn, but after a lane change,
you may have to cancel it by hand. You can also signal a lane change
by moving the turn signal lever partway and holding it there.
If the green light in the instrument cluster flashes faster than normal,
it indicates that the front or rear turn signal bulb has burned out. If
this indicator light does not come on, the fuse or the indicator light
itself has probably failed.

SECTION 1 3
33
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and trip meter 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 36. . . . . . . . . . . . . . . . .
Multi information display 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
46
W51 W51
When the fluid level in the tank becomes nearly empty, the above
message appears, the reminder light comes on and the warning
tone sounds.
Fill the tank as soon as possible.
W53 W53
When there is a problem somewhere in the automatic headlight
leveling system, the above message appears, the reminder light
comes on and the warning tone sounds.
If this message appears, have your vehicle checked by your Lexus
dealer.
INSTRUMENT PANEL LIGHT
CONTROL
13L005
To adjust the brightness of the instrument panel lights, turn the
knob.

SECTION 1 4
47
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lights 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glovebox 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin box 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Penlight 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTERIOR EQUIPMENT
59
14L036
CAUTION
Make sure the floor mat is properly placed on the floor carpet.
If the floor mat slips and interferes with the movement of the
pedals during driving, it may cause an accident.
LUGGAGE STOWAGE
PRECAUTIONS
When stowing luggage or cargo in the vehicle, observe the
following:
Put luggage or cargo in the trunk when at all possible. Be sure all
items are secured in place.
Be careful to keep the vehicle level. Placing the weight as far
forward as possible helps maintain vehicle balance.
For better fuel economy, do not carry unnecessary weight.
CAUTION
Do not place anything on the filler panel behind the rear
seatback. Such items may be thrown about and possibly
injure people in the vehicle during sudden braking or an
accident.
Do not drive with objects left on top of the instrument
panel. They may interfere with the driver’s field of view.
Or they may move during sharp vehicle acceleration or
turning, and impair the driver’s control of the vehicle. In
an accident they may injure the vehicle occupants.

SECTION 1 5
61
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EXTERIOR EQUIPMENT
62
HOOD
15L001
To open the hood, pull the hood lock release lever under the
instrument panel. The hood will spring up slightly.
15L002-3
Insert your fingers under the hood, push up the auxiliary catch
lever and lift the hood.Before closing the hood, check to see that you have not forgotten any
tools, rags, etc. Then lower the hood and make sure it locks.
CAUTION
Before driving, be sure that the hood is securely locked.
Otherwise, the hood may open unexpectedly while driving and
an accident may occur.
