Page 211 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
195
16L168±1
CAUTION

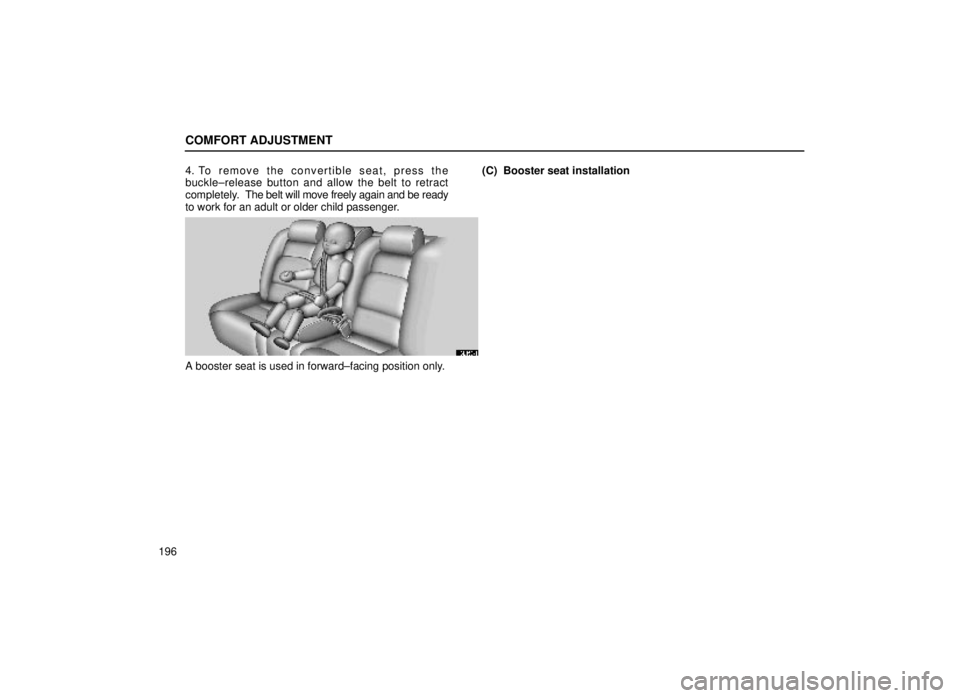

Push and pull the child restraint system in different
directions to be sure it is secure.  Follow all the
installation instructions provided by its manufacture

Page 212 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
1964. To remove the convertible seat, press the
buckle±release button and allow the belt to retract
completely.  The belt will move freely again and be ready
to work for an adult o

Page 213 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
197
16L152

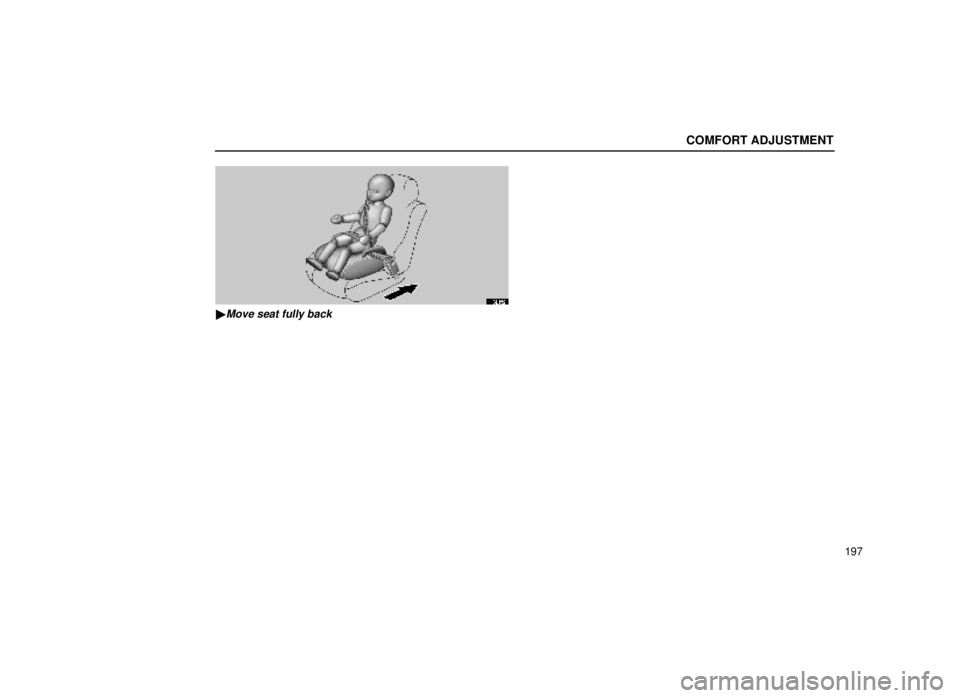

Move seat fully back

Page 214 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
198

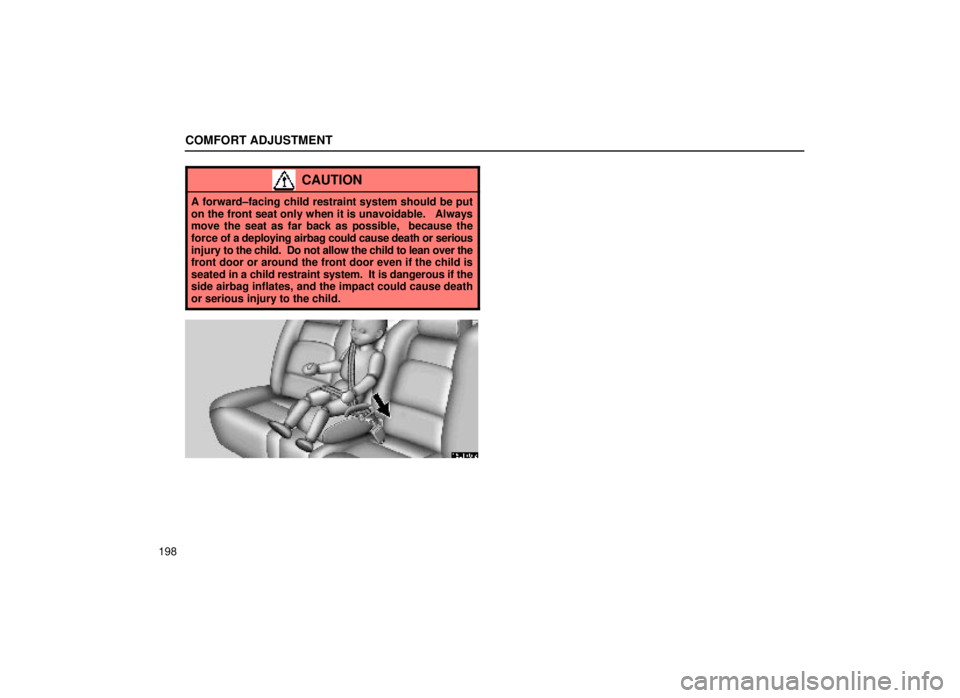

CAUTION
A forward±facing child restraint system should be put
on the front seat only when it is unavoidable.   Always
move the seat as far back as possible,  because the
force

Page 215 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
199
1. Sit the child on a booster seat.  Run the lap and
shoulder belt through or around the booster seat and
child following the instructions provided by its
manufacturer and inser

Page 216 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
200
16L171±1

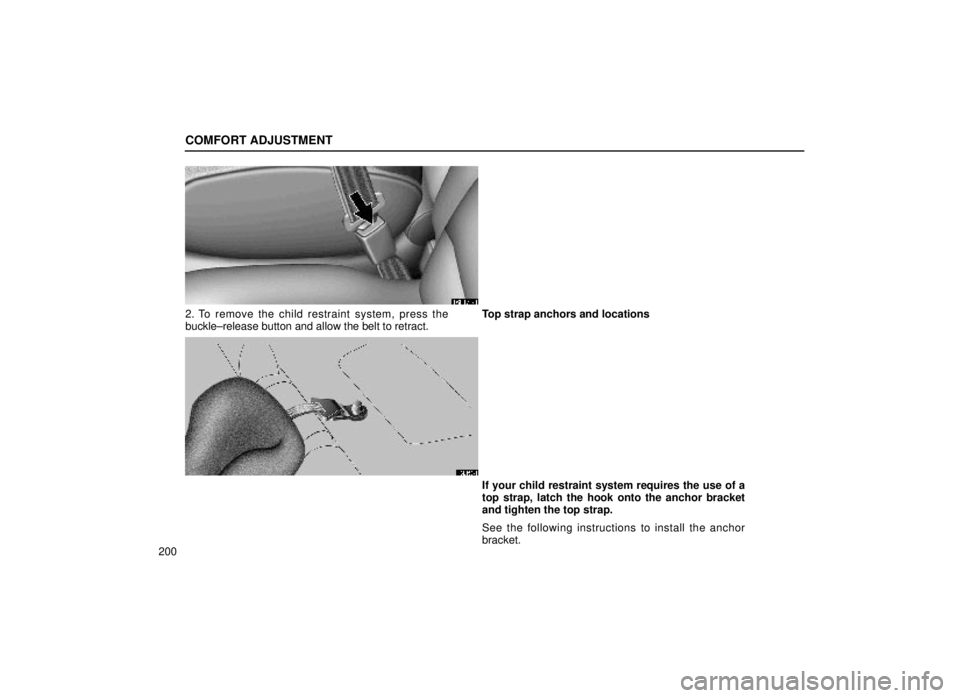

2. To remove the child restraint system, press the
buckle±release button and allow the belt to retract.Top strap anchors and locations
16L156
If your child restraint

Page 217 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
201
16L038±1
 1Center   2362 mm (14.3 in.)   355 mm (2.2
in.)
 452 mm (2.0 in.)   55 mm (0.2 in.)
1. Run your fingers across the trim of the filler panel to
locate the holes under

Page 218 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
202
16L039

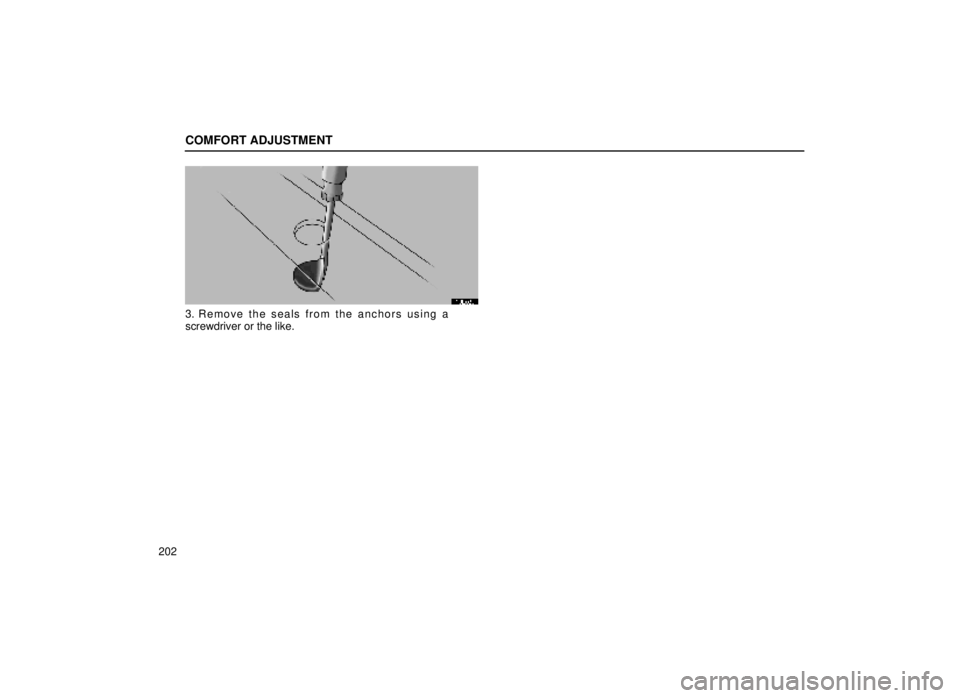

3. R e m o v e t h e s e a l s f r o m t h e a n c h o r s u s i n g a
screwdriver or the like.

Page 219 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
203
16L040±1

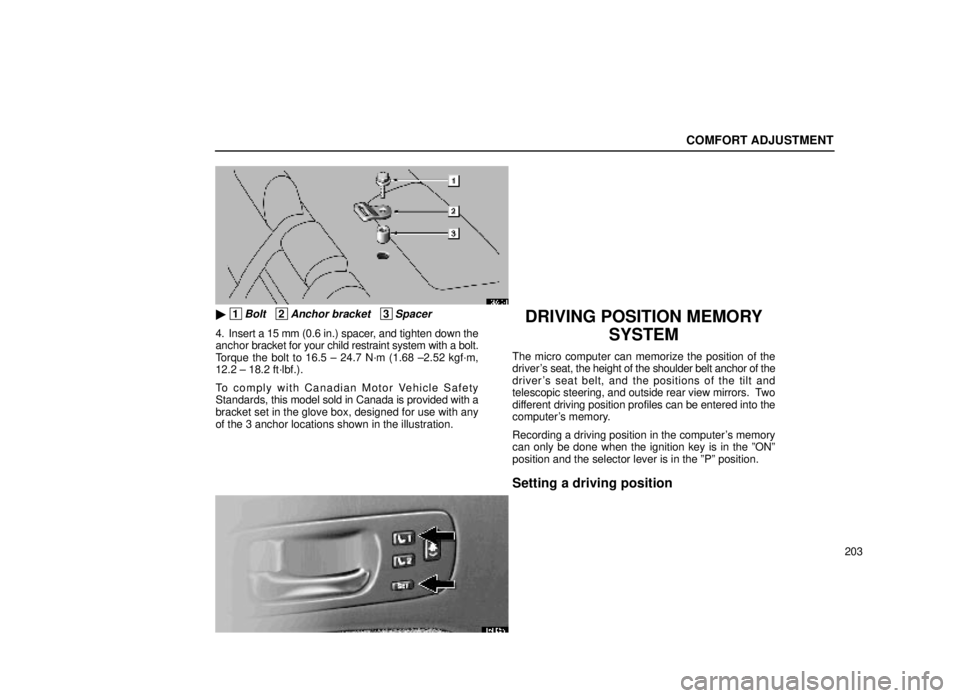

 1Bolt   2Anchor bracket   3Spacer
4. Insert a 15 mm (0.6 in.) spacer, and tighten down the
anchor bracket for your child restraint system with a bolt.
Torque the bol

Page 220 of 495

lexus LS400 1999  Comfort Adjustment / LEXUS 1999 LS400 OWNERS MANUAL (OM50514U) COMFORT ADJUSTMENT
2041. Adjust the drivers seat, drivers shoulder belt
anchor,
tilt and telescopic steering and outside rear
view mirrors to the desired position.
2. While  pushing the ºSETº but
