lexus LS400 1999 Comfort Adjustment / LEXUS 1999 LS400 OWNER'S MANUAL (OM50514U)

ELECTRICAL COMPONENTS
455
64L064

Good
Blown
a. Look carefully at the fuse. If the thin wire is broken,
the fuse has blown. If you are not sure or if it is too dark
to see, try replacing the suspected fuse with one of the
same value that you know is good.
b. Only install a fuse with the amperage rating
designated on the fuse box lid.
If you do not have a spare fuse, in an emergency you can
pull out the ºRADIO NO.1º ºMIR±HTRº or ºOBDº fuse,
which may be dispensable for normal driving, and use it
if its amperage rating is the same.
If you cannot use one of the same amperage, use one
lower than, but as close as possible to, the amperage.
If the amperage is lower than that specified, the fuse
might blow out again but this does not indicate anything
wrong. Be sure to get the correct fuse as soon as
possible and return the substitute to its original clips. It is a good idea to purchase a set of spare fuses and
keep them in your vehicle for emergencies.
If the new fuse immediately blows out, there is a problem
with the electrical system. Have your Lexus dealer
correct it as soon as possible.

ELECTRICAL COMPONENTS
456

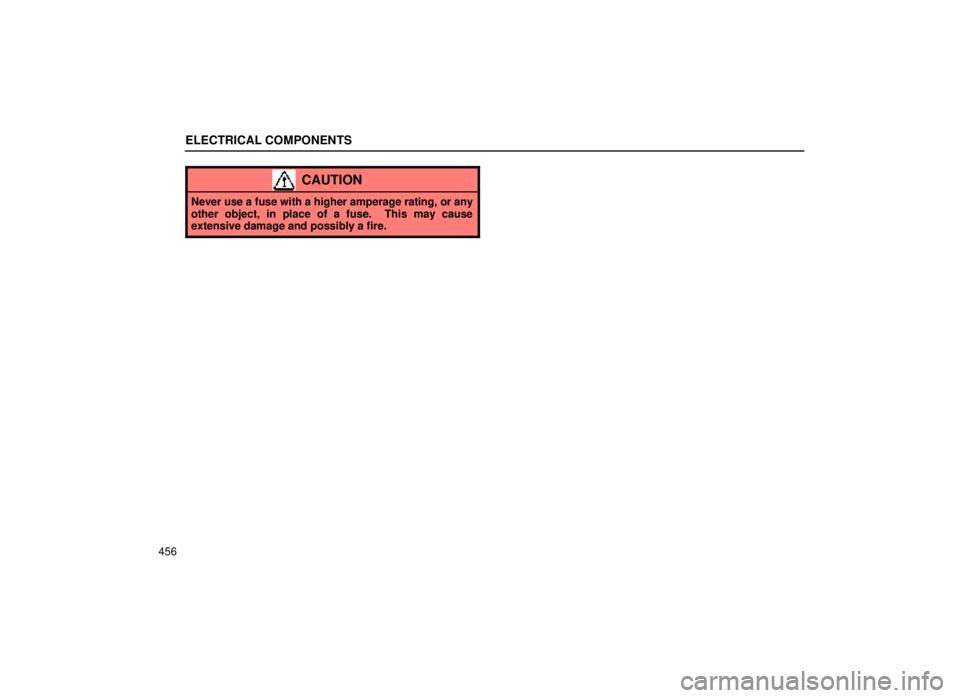

CAUTION
Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.

ELECTRICAL COMPONENTS
457
CHECKING THE CARTRIDGETYPE FUSES
64L016-3

ELECTRICAL COMPONENTS
458

1Good 2Melted
If the headlights or other electrical components do
not work and the blade type fuses are O.K., check
the cartridge type fuses. If any of the cartridge type
fuses are blown, they must be replaced.
If there is an overload in the circuits from the battery, the
fuses are designed to blow before the entire wiring
harness is damaged.
NOTICE
Before replacing the fuses, have the cause of
electrical overload determined and repaired byyour Lexus dealer.
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire±even for a
temporary fix. This may cause extensive damage and
possibly a fire.

ELECTRICAL COMPONENTS
459
ADDING WASHER FLUID
64L017
If the washer tank becomes nearly empty, add
washer fluid.
You may use plain water as washer fluid. However, in
cold areas where temperatures range below the
freezing point, use washer fluid containing antifreeze.
This product is available at your Lexus dealer and most
auto parts stores. Follow the manufacturer's directions
for how much to mix with water.
NOTICE
Do not use engine antifreeze or any othersubstitute because it may damage your vehicle'spaint.
CHECKING THE HEADLIGHT AIM
(Vehicles with discharge headlight
only)

ELECTRICAL COMPONENTS
460
64L073a

1Vertical movement adjusting bolt 1
2Vertical movement adjusting bolt 2
Before checking the headlight aim:
1. Be sure that the body around the headlight is not
deformed.
2. Park the vehicle on a level spot.
3. The driver gets into the driver's seat and puts the
vehicle in a state readying for a driving (with a full tank).
4. Bounce the vehicle several times.
Adjusting the vertical aiming

ELECTRICAL COMPONENTS
461
64L077a
1. Turn the vertical movement adjusting bolt 1 in either
direction. At this time, keep the turning direction and
number of turns in mind.

ELECTRICAL COMPONENTS
462
64L076a
2. Turn the vertical movement adjusting bolt 2 the same
number of turns and in the same direction at step 1.REPLACING LIGHT BULBS
The illustration on the following pages show the
locations of light bulbs. If it is necessary to replace a
bulb, take your vehicle to your Lexus dealer as soon as
possible. Use bulbs with the bulb numbers and wattage
ratings given in the table.

ELECTRICAL COMPONENTS
463
CAUTION
Do not disassemble, repair or take apart the low beam
headlight bulbs, connector, power supply circuits
and rotated components. Or you may be injured by
electric shocks. Call your dealer when the headlights
fail to work or have to be replaced or disposed of.
 Halogen bulbs have pressurized gas inside and
require special handling. They can burst or shatter if
scratched or dropped. Hold a bulb only by its plastic
or metal case. Do not touch the glass part of a bulb
with bare hands.
NOTICE
Only use a bulb of the listed type.
LIGHT LOCATION
64L022-5

ELECTRICAL COMPONENTS
464Light Bulbs Bulb No. W T
ype
1 Headlights (High beam) HB3 60
A
2 Parking lights ±±± 5
D
3 Headlights (Low beam)
Discharge bulbs D2R 35
B
Halogen bulbs HB4 51
C
4 Front turn signal lights ±±± 21
D
5 Front side marker lights 194 3.8
D
6 Fog lights HB4 51
C
