CD player lexus LS400 1999 Electrical Components / LEXUS 1999 LS400 (OM50514U) User Guide

AIR CONDITIONING AND AUDIO
257
20L023-1

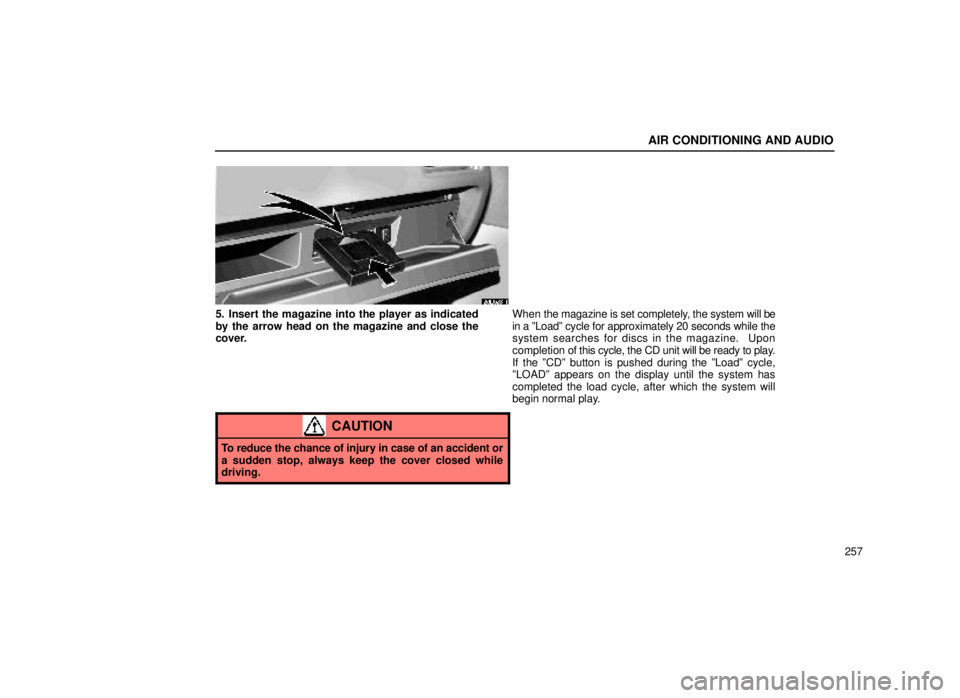

5. Insert the magazine into the player as indicated
by the arrow head on the magazine and close the
cover.When
the magazine is set completely, the system will be
in a ºLoadº cycle for approximately 20 seconds while the
system searches for discs in the magazine. Upon
completion of this cycle, the CD unit will be ready to play.
If the ºCDº button is pushed during the ºLoadº cycle,
ºLOADº appears on the display until the system has
completed the load cycle, after which the system will
begin normal play.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the cover closed while
driving.

AIR CONDITIONING AND AUDIO
258(b) Playing a compact disc
20L058-1

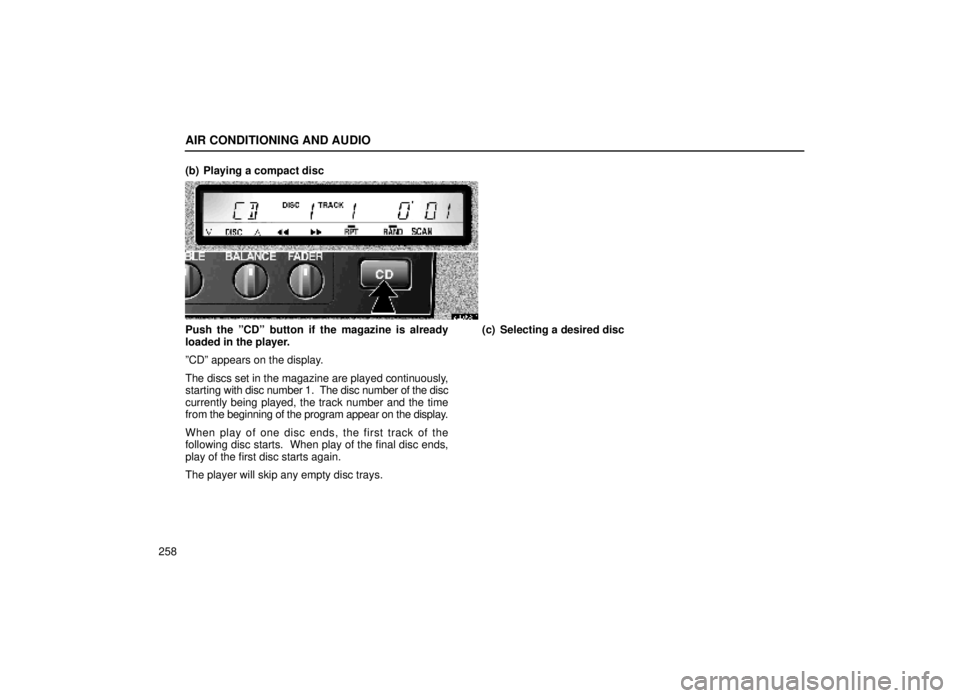

Push the ºCDº button if the magazine is already
loaded in the player.
ºCDº appears on the display.
The discs set in the magazine are played continuously,
starting with disc number 1. The disc number of the disc
currently being played, the track number and the time
from
the beginning of the program appear on the display.
When play of one disc ends, the first track of the
following disc starts. When play of the final disc ends,
play of the first disc starts again.
The player will skip any empty disc trays. (c) Selecting a desired disc

AIR CONDITIONING AND AUDIO
259
20L025-1

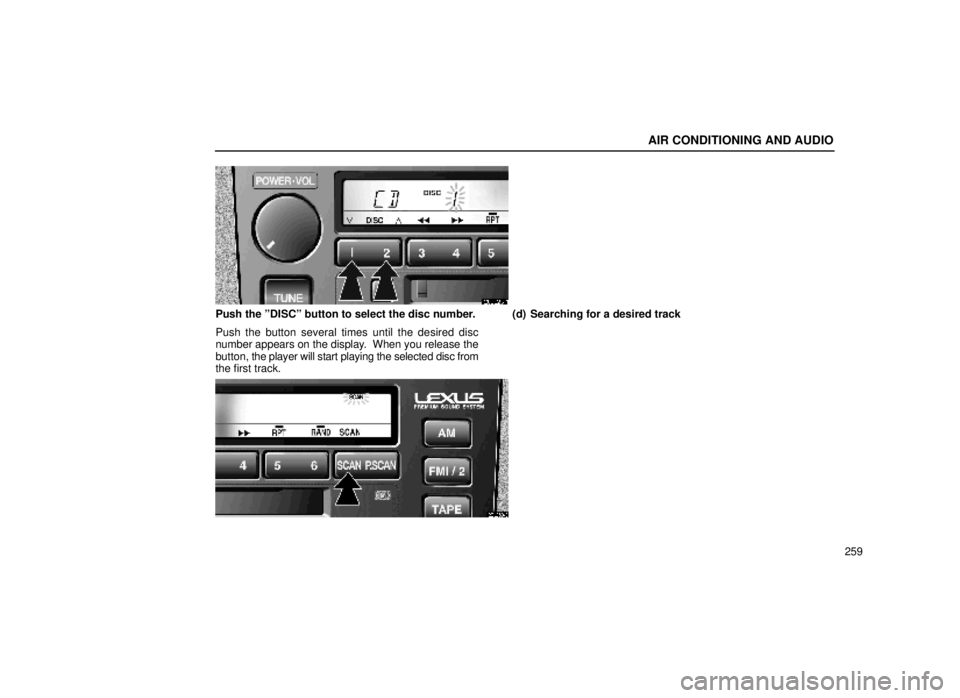

Push the ºDISCº button to select the disc number.
Push the button several times until the desired disc
number appears on the display. When you release the
button, the player will start playing the selected disc from
the first track. (d) Searching for a desired track
20L053-3

AIR CONDITIONING AND AUDIO
260Push the ºSCANº button briefly.
ºSCANº will appear on the display. The compact disc
player will play the next track for 10 seconds, then scan
again. To select a track, push the ºSCANº button a
second time. If the player reaches the end of the disc,
it will continue scanning at track 1.
After
all the tracks are scanned in one pass, normal play
resumes. (e) Searching for a desired disc

AIR CONDITIONING AND AUDIO
262
20L100

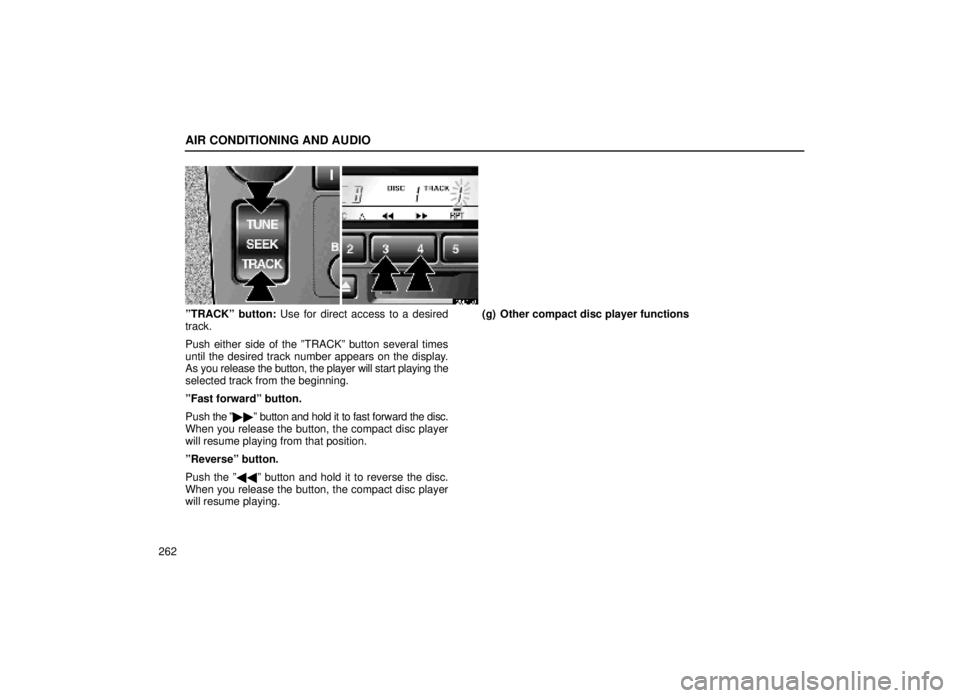

ºTRACKº button: Use for direct access to a desired
track.
Push either side of the ºTRACKº button several times
until the desired track number appears on the display.
As you release the button, the player will start playing the
selected track from the beginning.
ºFast forwardº button.
Push the º

º button and hold it to fast forward the disc.
When you release the button, the compact disc player
will resume playing from that position.
ºReverseº button.
Push the º º button and hold it to reverse the disc.
When you release the button, the compact disc player
will resume playing. (g) Other compact disc player functions

AIR CONDITIONING AND AUDIO
263
20L055-2
ºRPTº button: Use it for automatic repeat of the track
you are currently listening to.
Push the button while the track is playing. When the
track is finished, the player will automatically go back to
the beginning of the track and play the track again. To
cancel it, push the button once again.
ºRANDº button: Use it for automatic track selection
and play by the system.
When the button is pushed, the system selects a track
in the discs which are set and plays it. To cancel it, push
the button once again.
When a track is skipped or the system is inoperative,
push the button to reset.(h) If the player malfunctions
If ºWAITº appears on the display, audio signals of the
disc
cannot be read or the system has trouble. Push the
ºCDº button once again.
If the player does not operate, check that the disc
surface is not soiled or damaged. If the disc is O.K., the
following two causes are possible.
 Condensation may have occurred on the internal
mechanism of the automatic changer. Open the
cover to let the air circulate.
 The temperature of the player's internal mechanism
is raised because of high external temperature.
Remove the magazine from the player to cool it.
If the player still does not operate, take it to your Lexus
dealer.

AIR CONDITIONING AND AUDIO
265
fluttering.
Station swapping ± If the FM signal you are listening to
is interrupted or weakened, and there is another strong
station nearby on the FM band, your radio may tune in
the second station until the original signal can be picked
up again.
AM
Fading ± AM broadcasts are reflected by the upper
atmosphere ± especially at night. These reflected
signals can interfere with those received directly from
the radio station, causing the radio station to sound
alternately strong and weak.
Station interference ± When a reflected signal and a
signal received directly from a radio station are very
nearly the same frequency, they can interfere with each
other, making it difficult to hear the broadcast.
Static ± AM is easily affected by external sources of
electrical noise, such as high tension power lines,
lightening, or electrical motors. This results in static.
Caring for your cassette player and tapes
For high performance from your cassette player and
tapes:
Clean the tape head and other parts regularly.
 A dirty tape head or tape path can decrease sound
quality and tangle your cassette tapes. The easiest
way to clean them is by using a cleaning tape. (A wet
type is recommended.)

AIR CONDITIONING AND AUDIO
266Use high±quality cassettes:

Low±quality cassette tapes can cause many
problems, including poor sound, inconsistent playing
speed, and constant auto±reversing. They can also
get stuck or tangled in the cassette player.
 Do not use a cassette if it has been damaged or
tangled or if its label is peeling off.
 Do not leave a cassette in the player if you are not
listening to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct
sunlight.
 Avoid using cassettes with a total playing time longer
than 100 minutes (50 minutes per side). The tape
used in these cassette is thin and could get stuck or
tangled in the cassette player. Caring for your compact disc player and discs
20L037

AIR CONDITIONING AND AUDIO
267

Use only compact discs labeled as shown. The
player is intended for use with 12 cm (4.7 in.) discs
only.
 Extremely high temperature can keep your compact
disc player from working. On hot days, use air
conditioning to cool the vehicle interior before you
listen to a disc.
 Bumpy roads or other vibrations may make your
compact disc player skip.
 If moisture gets into your compact disc player, you
may not hear any sound even though your compact
disc player appears to be working. Remove the
magazine from the player and wait until it dries.
20e081
Your automatic changer cannot play special shaped
compact discs as shown. Do not use them as the
changer could be damaged.

AIR CONDITIONING AND AUDIO
268
20L038

Correct
Wrong

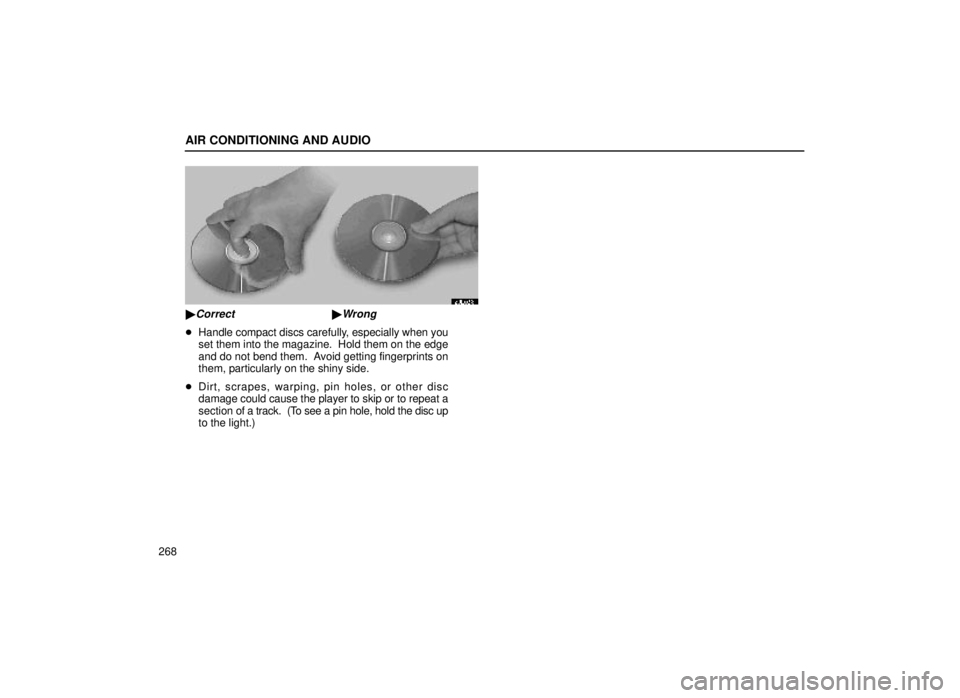

Handle compact discs carefully, especially when you
set them into the magazine. Hold them on the edge
and do not bend them. Avoid getting fingerprints on
them, particularly on the shiny side.
 Dirt, scrapes, warping, pin holes, or other disc
damage could cause the player to skip or to repeat a
section of a track. (To see a pin hole, hold the disc up
to the light.)
