seat adjustment lexus LS400 1999 Electrical Components / LEXUS 1999 LS400 OWNER'S MANUAL (OM50514U)

00L054±1
PICTORIAL INDEX
xiv
SEAT AND STEERING WHEEL
Page
1 Tilt and telescopicsteering adjustmentswitch 130 . . . . . . . . . . . . . .
2 Seat position, seat
cushionangle and height control
switch 122, 124 . . . . . . . . . .
3 Seatback angle and head
restraint control switch . . 123, 125
4 Lumbar support control
switch 125 . . . . . . . . . . . . . .
For detailed information, refer to the description givenin each section.

00L05700L056

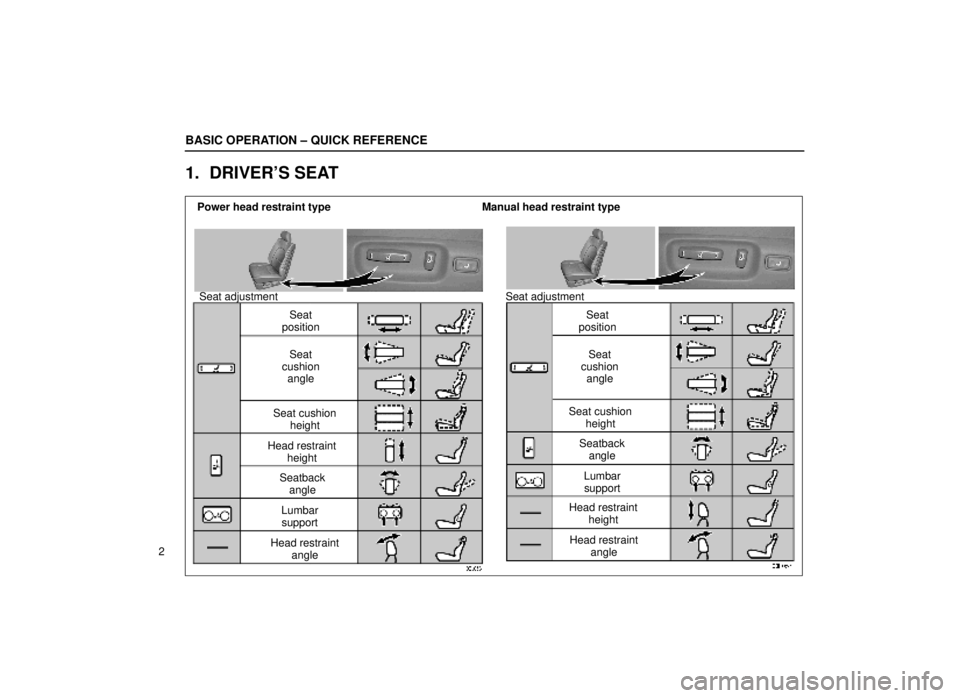

Seat adjustmentSeat
position
Seat
cushion angle
Seat cushion height
Head restraint height
Seatback angle
Lumbar support
Head restraint angle Seat adjustment
Seat
position
Seat
cushion angle
Seat cushion height
Head restraint height
Seatback
angle
Lumbar support
Head restraint angle
BASIC OPERATION ± QUICK REFERENCE
2
1. DRIVER'S SEAT
Power head restraint type Manual head restraint type

SECTION 1 ± 6
11 8
INSTRUMENTS AND CONTROLS
Comfort adjustment
Front seats118
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt and telescopic steering wheel 130
. . . . . . . . . . . . . . .
Outside rear view mirrors 132
. . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror 137
. . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental restraint system (SRS) 151
. . . . . . . . . . . .
Child restraint 176
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving position memory system 203
. . . . . . . . . . . . . . . .
FRONT SEATS
Front seat precautions

COMFORT ADJUSTMENT
11 9
CAUTION
The SRS side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
Do not lean over the front door when the vehicle is in
use. The side airbag inflates with considerable speed
and force; you may be killed or severely injured.
 Do not modify or replace the seats or the surface of
the seats with side airbags. Such changes may
disable the system, or cause the side airbags to
inflate, resulting in death or serious injury. Consult
your Lexus dealer.
 Do not use accessories for the seats which cover the
parts where the side airbags should inflate. Such
accessories may prevent the side airbags from
activating correctly, causing death or serious injury.

COMFORT ADJUSTMENT
120
Seat adjustment precautions
Adjust the driver's seat so that the foot pedals, steering
wheel and instrument panel controls are within easy
reach of the driver.
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
 Be careful not to hit the seat against a passenger,
luggage or the rear seat.
NOTICE
Do not operate the control switch in more than
one dimension at a time. It may cause electricaloverload.
Adjusting front seats

COMFORT ADJUSTMENT
122

1Seat position control switch, seat cushion
angle and height control switch
2Seatback angle and head restraint control
switch
3Lumbar support control switch
Adjusting seat position
16L111
Move the control switch in the desired direction.
Releasing the switch will stop the seat in that position.
Do not place anything under the seat. It might interfere
with the seat movement.

COMFORT ADJUSTMENT
123
Adjusting seatback angle
16L112
Move the control switch in the desired direction.
Releasing the switch will stop the seatback in that
position.
CAUTION
To reduce the risk of sliding under the lap belt during a
collision, avoid reclining the seatback any more than
needed. The seat belts provide maximum protection in
a frontal or rear collision when the driver and the
passenger are sitting up straight and well back in the
seats. If you are reclined, the lap belt may slide past
your hips and apply restraint forces directly to the
abdomen. Therefore, in the event of a frontal collision,
the risk of personal injury may increase with increasing
recline of the seatback.

COMFORT ADJUSTMENT
124
Adjusting seat cushion angle and height
16L113
Move the control switch in the desired direction.
Releasing the switch will stop the seat cushion in that
position.

COMFORT ADJUSTMENT
125
Adjusting lumbar support
16L114
Push the control switch on either side.
The amount of lumbar support will change as long as the
switch is pushed.HEAD RESTRAINTS
Front seats (power type)
16L007
Move the control switch in the desired direction.
Releasing the switch will stop the head restraint in that
position.

COMFORT ADJUSTMENT
126
16L008
To move the head restraint forward or rearward, pull
or push on the top.
The head restraint is most effective when it is close to
your head. Therefore, using a cushion on the seatback
is not recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
