jacking lexus LS400 2000 Engine / LEXUS 2000 LS400 OWNER'S MANUAL (OM50533U)

STARTING AND DRIVING
312
31L016-2

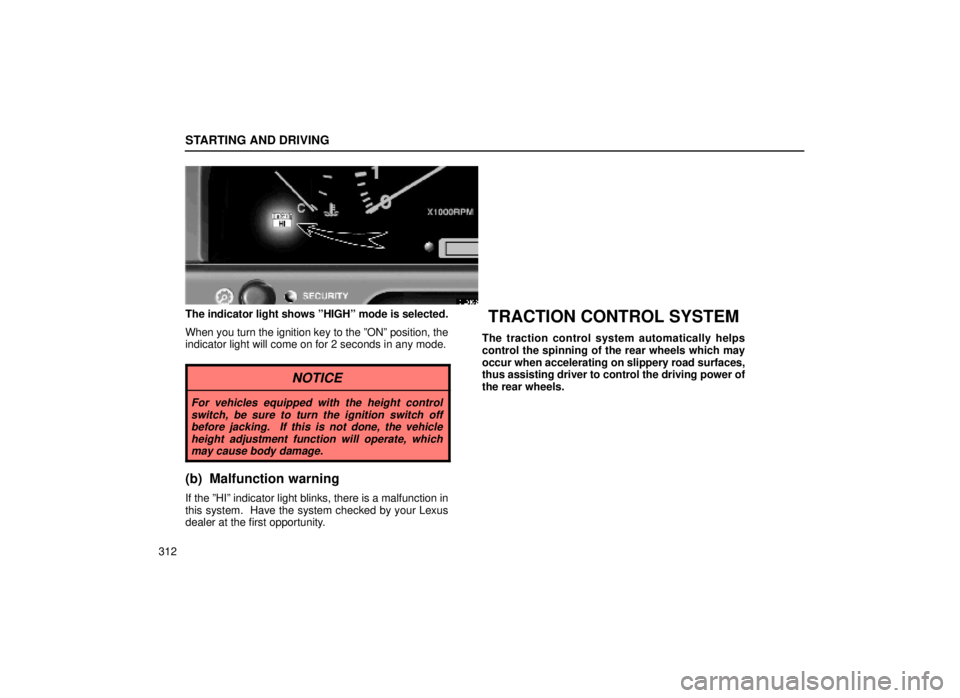

The indicator light shows ºHIGHº mode is selected.
When you turn the ignition key to the ºONº position, the
indicator light will come on for 2 seconds in any mode.
NOTICE
For vehicles equipped with the height controlswitch, be sure to turn the ignition switch offbefore jacking. If this is not done, the vehicleheight adjustment function will operate, whichmay cause body damage.
(b) Malfunction warning
If the ºHIº indicator light blinks, there is a malfunction in
this system. Have the system checked by your Lexus
dealer at the first opportunity.
TRACTION CONTROL SYSTEM
The traction control system automatically helps
control the spinning of the rear wheels which may
occur when accelerating on slippery road surfaces,
thus assisting driver to control the driving power of
the rear wheels.

IN CASE OF AN EMERGENCY
359
from traffic.
5. Read the following instructions thoroughly.

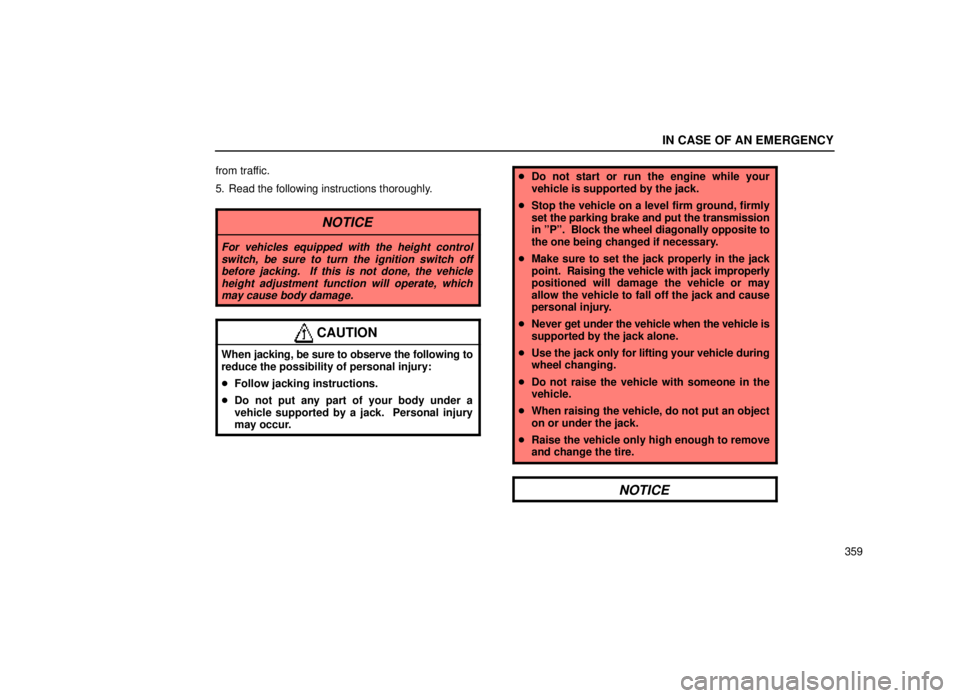

NOTICE
For vehicles equipped with the height control
switch, be sure to turn the ignition switch offbefore jacking. If this is not done, the vehicleheight adjustment function will operate, whichmay cause body damage.
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under a
vehicle supported by a jack. Personal injury
may occur.
Do not start or run the engine while your
vehicle is supported by the jack.
 Stop the vehicle on a level firm ground, firmly
set the parking brake and put the transmission
in ºPº. Block the wheel diagonally opposite to
the one being changed if necessary.
 Make sure to set the jack properly in the jack
point. Raising the vehicle with jack improperly
positioned will damage the vehicle or may
allow the vehicle to fall off the jack and cause
personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone.
 Use the jack only for lifting your vehicle during
wheel changing.
 Do not raise the vehicle with someone in the
vehicle.
 When raising the vehicle, do not put an object
on or under the jack.
 Raise the vehicle only high enough to remove
and change the tire.
NOTICE
