DRIVING TIPS
333
Do not rest your foot on the brake pedal while
driving. It can cause dangerous overheating,
needless wear, and poor fuel economy.
 To drive down a long or steep hill, reduce your
speed and downshift. Remember, if you ride
the brakes excessively, they may overheat and
not work properly. See page 296.
 Be careful when accelerating, upshifting,
downshifting or braking on a slippery surface.
The abrupt change in engine speed, such as
sudden acceleration or engine braking, could
cause the vehicle to spin or skid.
 Do not drive in excess of the speed limit. Even
if the legal speed limit permits it, do not drive
over 140 km/h (85 mph) unless your vehicle has
high±speed capability tires. Driving over 140
km/h (85 mph) may result in tire failure, loss of
control and possible injury. Be sure to consult
a tire dealer to determine whether the tires on
your vehicle are high±speed capability tires or
not before driving at such speeds.
 Do not continue normal driving when the
brakes are wet. If they are wet, your vehicle will
require a longer stopping distance, and it may
pull to one side when the brakes are applied.
Also, the parking brake will not hold the vehicle
securely.WINTER DRIVING TIPS
Make sure you have a proper freeze protection of
engine coolant.
Your coolant must contain ethylene±glycol type coolant
for a proper corrosion protection of aluminum
components. Use ºToyota Long Life Coolantº or
equivalent. See ºChecking the engine coolant levelº on
page 417 for instructions.
NOTICE
Do not use alcohol type antifreeze or plain water
alone.
When it is extremely cold, we recommend to use 60%
solution for your Lexus, to provide protection down to
about ±50 C (±58 F). Do not use more than 70%
solution for better coolant performance.
Check the condition of the battery and cables.
Cold temperatures reduce the capacity of any battery, so
it must be in top shape to provide enough power for
winter starting. Page 453 tells you how to visually
inspect the battery. Your Lexus dealer and most service
stations will be pleased to check the battery charge
level.
Make sure the engine oil viscosity is suitable for the
cold weather.

DRIVING TIPS
334See page 416 for recommended viscosity. Leaving a
heavy summer oil in your vehicle during winter months
may cause harder starting. If you are not sure about
which oil to use, call your Lexus dealer ± they will be
pleased to help.
Check the electronic ignition system for loose
connections or obvious damage.
Keep the door locks from freezing.
Squirt lock de±icer or glycerine into the locks to keep
them from freezing.
Use a washer fluid containing an antifreeze solution.
This product is available at your Lexus dealer and most
auto parts stores. Follow the manufacturer's directions
for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other
substitute because it may damage your vehicle'spaint.
Do not use your parking brake when there is a
possibility it could freeze.
When parking, put the transmission into ºPº and block
the front wheels. Do not use the parking brake, or snow
or water accumulated in and around the parking brake
mechanism may freeze the parking brake, making it hard to release.
Keep ice and snow from accumulating under the
fenders.
Ice and snow built up under your fenders can make
steering difficult. During bad winter driving, stop and
check under the fenders occasionally.

INTRODUCTION
401
NOTICE

Remember that battery and ignition cablescarry high currents or voltages. Be careful ofaccidentally causing a short circuit.

Before closing the engine hood, check to seethat you have not forgotten any tools, rags, etc.

Do not drive with the air cleaner removed, or
excessive engine wear could result. Alsobackfiring could cause a fire in the enginecompartment.

Do not overfill automatic transmission fluid, orthe transmission could be damaged.

Be careful not to scratch the glass surface withthe wiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do±it±yourself maintenance. Remember all Lexus parts
are designed in metric sizes, so your tools must be
metric.
Checking the engine oil level
Parts (if level is low):

Use API grade SJ, ºEnergy±Conservingº multigrade
engine oil or ILSAC multigrade engine oil. For
recommended oil viscosity, see page 416.
Tools:

Rag or paper towel

Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):

ªToyota Long Life Coolantº or equivalent
See ºChecking the engine coolant levelº on page 417
for instructions.

Demineralized or distilled water
Tools:

Funnel (only for adding coolant)

62L005±1
Temperature range anticipated before next oil change
ENGINE
405
Model
Type
Bore and stroke
Displacement
Valve clearance (engine cold)
Intake
Exhaust
Drive belt tension
1UZ±FE
8 cylinder V type, 4 cycle, gasoline
87.5 X 82.5 mm (3.44 X 3.25 in.)
3969 cm
3 (242.1 cu.in.)
0.15 ± 0.25 mm (0.006 ± 0.010 in.)
0.25 ± 0.35 mm (0.010 ± 0.014 in.)
Automatic adjustment
± LUBRICATION SYSTEM Oil capacity Drain and refillwith filter
without filter
Oil grade

Recommended oil viscosity (SAE):
5.6 L (5.9 qt., 4.9 lmp.qt.)
5.3 L (5.6 qt., 4.7 lmp.qt.)
API SJ, ºEnergy±Conservingº multigrade engine oil or
ILSAC multigrade engine oil

ENGINE
410combustion process.
Oil is also used to lubricate the stems of the intake
valves. Some of this oil is sucked into the combustion
chamber together with the intake air and is burned
along with the fuel. High temperature exhaust gases
also burn the oil used to lubricate the exhaust valve
stems.
The amount of engine oil consumed depends on the
viscosity of the oil, the quality of the oil and the way
the vehicle is driven.
More oil is consumed by high±speed driving and
frequent acceleration and deceleration.
A new engine consumes more oil, since its pistons,
piston rings and cylinder walls have not become
conditioned.
When judging the amount of oil consumption, keep
in mind that the oil may have become diluted,
making it difficult to judge the true level accurately.
For example, if a vehicle is used for repeated short trips
and consumes a normal amount of oil, the dipstick may
not show any drop in the oil level at all, even after 1000
km (600 miles) or more. This is because the oil is
gradually becoming diluted with fuel or moisture, making
it appear that the oil level has not changed.
The diluting ingredients evaporate out when the vehicle
is then driven at high speeds, as on an expressway,
making it appear that oil is excessively consumed after
driving at high speeds.

ENGINE
416
Engine oil selection
Use API SJ, ºEnergy±Conservingº multigrade engine oil
or ILSAC multigrade engine oil.

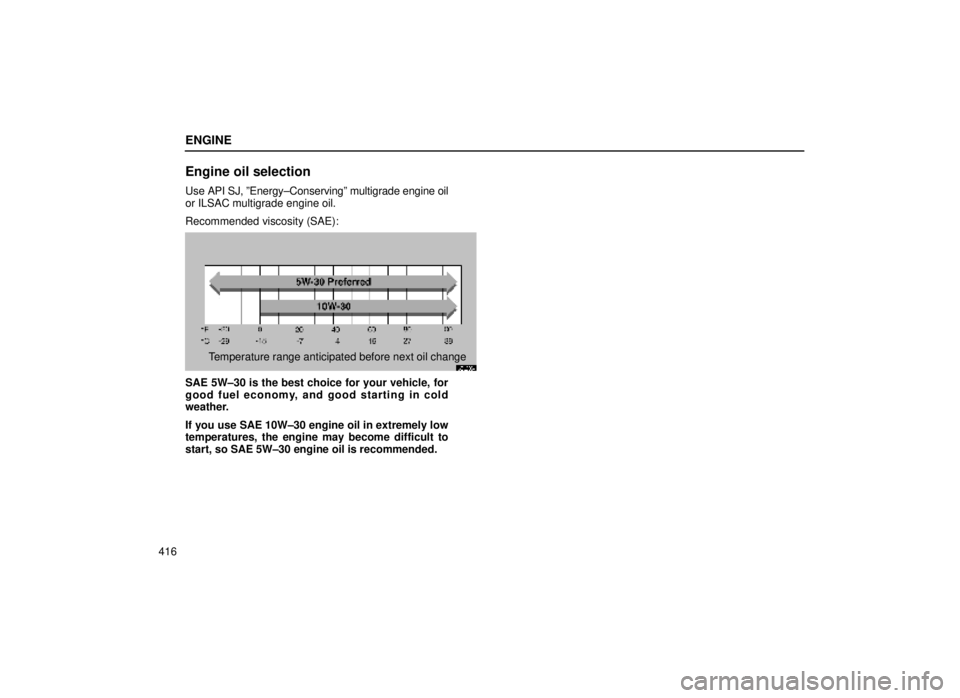

Recommended viscosity (SAE):
62L005±1
Temperature range anticipated before next oil change
SAE 5W±30 is the best choice for your vehicle, for
good fuel economy, and good starting in cold
weather.
If you use SAE 10W±30 engine oil in extremely low
temperatures, the engine may become difficult to
start, so SAE 5W±30 engine oil is recommended.

ENGINE
417
Oil identification marks
62L006±1

API Service Symbol
ILSAC Certification
Mark
Either or both API registered marks are added to some
oil containers to help you select the oil you should use.
 The API Service Symbol is located anywhere on the
outside of the container.
The top portion of the label shows the oil quality by
API (American Petroleum Institute) designation such
as SJ. The center portion of the label shows the SAE
viscosity grade such as SAE 5W±30.
ºEnergy±Conservingº, shown in the lower portion,
indicates that the oil has fuel±saving capabilities.
 The ILSAC (International Lubricant Standardization
and Approval Committee) Certification Mark is
displayed on the front of the container.
CHECKING THE ENGINE
COOLANT LEVEL

CHASSIS
424
SPECIFICATIONS
± AUTOMATIC TRANSMISSIONFluid capacity Drain and refill
Fluid type
1.9 L (2.0 qt., 1.7 lmp.qt.)
Automatic transmission fluid Type T ± IV*
± DIFFERENTIAL
Oil capacity
Oil type
Oil viscosity
1.3 L (1.4 qt., 1.1 lmp.qt.)
Hypoid gear oil API GL±5
Above ±18 C (0F): SAE 90
Below ±18 C (0F): SAE 80W or SAE 80W±90
*Change automatic transmission fluid only as
necessary. Generally, it is necessary to change
automatic transmission fluid only if your vehicle is driven
under one of the Special Operating Conditions listed in
your ªOwner's Manual Supplement / Maintenance
Scheduleº. When changing the automatic transmission
fluid, use only Toyota Genuine ATF Type T±IV ( AT F
JWS3309 or NWS6500) to aid in assuring optimum
transmission performance.NOTICE
Using automatic transmission fluid other than Toyota Genuine ATF Type T±IV may causedeterioration in shift quality, locking up of yourtransmission accompanied by vibration, andultimately damage the automatic transmission ofyour vehicle.
