key LEXUS LS430 2005 User Guide

KEYS AND DOORS
13
11L221
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.
11L241a
 Do not bend the key grip or flat keys.
 Do not cover the key grip or engine start flat key with
any material that cuts off electromagnetic waves.
 Do not knock the key or flat keys hard against other
objects.
 Do not leave the key or flat keys exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.
 Do not put the key or flat keys in water or wash it in
an ultrasonic washer.
 Do not use the key or engine start flat key with
electromagnetic materials.

KEYS AND DOORS
14
Vehicles not equipped with smart key system
(Type B)
11L025c
1Master keys (black) These keys work for every lock.
For your Lexus dealer to make a new key with a
builtin transponder chip, your dealer will need one
of them.
2 Valet key (gray) This key will not open the trunk,
trunk main switch, the glove box and trunk storage
extension door.
3Key number plate Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for the engine immobilizer system has
been placed in the head of the master and valet keys. These
chips are required for the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine. To protect items locked in the trunk or glove box when using
valet parking, leave the valet key with the attendant.
Since
the doors and trunk lid can be locked without a key, you
should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS
15
Flat key
11g039c
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for the engine immobilizer system has
been placed in the key case of the flat key. This chip is required
for the system to function correctly, so be careful not to lose this
key. If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
Insert your flat key plate in its key case as shown. We
recommend that you always carry this with you for emergency
use. Do not leave it in your vehicle.
Starting the engine using a flat key
11L050a
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The security
indicator light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically canceled. (For details, see “Engine immobilizer
system” on page 17.) You can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have passed after you inserted the key plate. You need to
remove the key plate from the ignition switch and try it again
from the step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have passed after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.

KEYS AND DOORS
16
NOTICE
Do not let the key case become bent as the key plate
may fall out or become bent also.
 The flat key is designed for emergency use only, so
do not use it regularly instead of the other master
keys.
11L021-2
When using a key containing a transponder chip,
observe the following precautions:
When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.
11R055
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.

KEYS AND DOORS
17
11L358
Do not bend the key grip or flat key.
 Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
 Do not knock the key or flat key hard against other
objects.
 Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.
 Do not put the key or flat key in water or wash it in an
ultrasonic washer.
 Do not use the key or flat key with electromagnetic
materials.
ENGINE IMMOBILIZER SYSTEM
Deactivation using the smart key system
11L222a
The engine immobilizer system is a theft prevention
system. When you enter the vehicle carrying a smart key
and push the ignition switch, the electronic code in the
key is automatically checked to determine whether it
corresponds to the registered ID code for the vehicle. If
the key indicator light comes on after the ID code
verification, you can start the engine.
This system is automatically set when the ignition switch is
turned to the “LOCK” position. At this time, the security
indicator light flashes. When you push the ignition switch, the
security indicator light goes out and the system is cancelled
automatically, which enables the engine to start.
The engine immobilizer system cannot be cancelled if the
cancel switch of the smart key system is turned on. For details,
see “Deactivating the smart key system” on page 34.

KEYS AND DOORS
18For your Lexus dealer to make you a new key with built
−in
transponder chip, your dealer will need your key number and
master key. However, there is a limit to the number of
additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
NOTICE
Do not modify, remove or disassemble the engine
immobilizer system. If any unauthorized changes or
modifications are made, proper operation of the system
cannot be guaranteed.
Deactivation using the key
11L223a
 1 Type A 2Type B
The engine immobilizer system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.
The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.
The transponder chip of the flat key is in its key case. You can
cancel the engine immobilizer system using the flat key. (For
details, see pages 12 and 15.)

KEYS AND DOORS
19
For your Lexus dealer to make you a new key with built
−in
transponder chip, your dealer will need your key number and
master key or the flat key. However, there is a limit to the
number of additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZRI20BTY
MADE IN JAPAN
FCC ID: MOZRI15HTYMADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference re-
ceived, including interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
For vehicles sold in Canada
This device complies with RSS− 210 of Industry
Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of the
device.

11L229c
KEYS AND DOORS
20

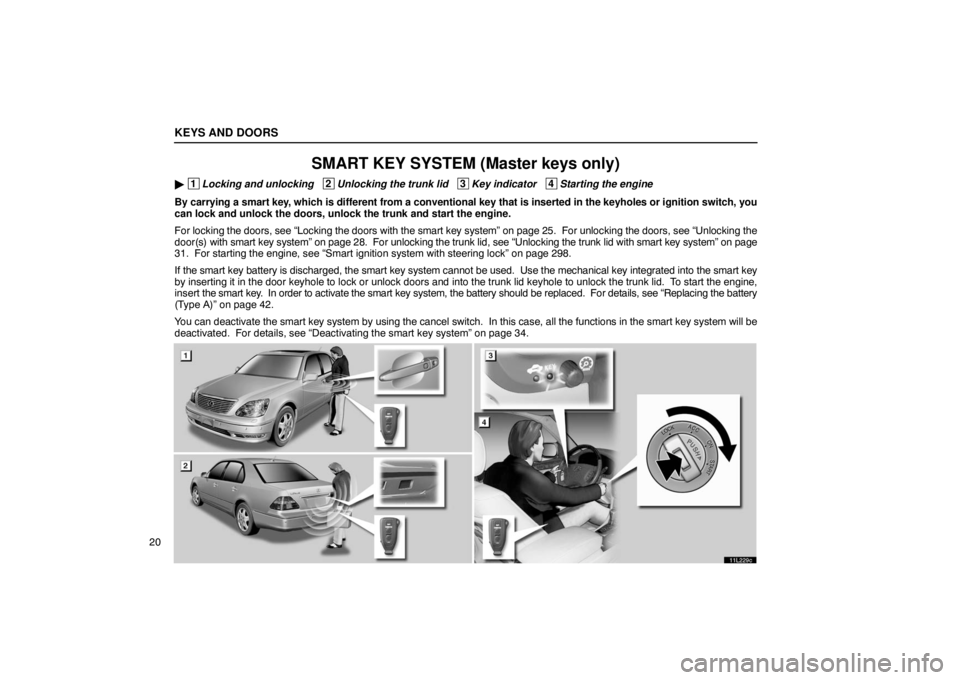

SMART KEY SYSTEM (Master keys only)
 1Locking and unlocking 2Unlocking the trunk lid 3Key indicator 4Starting the engine
By carrying a smart key, which is different from a conventional key that is inserted in the key\
holes or ignition switch, you
can lock and unlock the doors, unlock the trunk and start the engine.
For locking the doors, see “Locking the doors with the smart key system”\
on page 25. For unlocking the doors, see “Unlocking t he
door(s) with smart key system” on page 28. For unlocking the trunk lid, see \
“Unlocking the trunk lid with smart key system” on page
31. For starting the engine, see “Smart ignition system with steerin\
g lock” on page 298.
If the smart key battery is discharged, the smart key system cannot be use\
d. Use the mechanical key integrated into the smart key
by inserting it in the door keyhole to lock or unlock doors and into the\
trunk lid keyhole to unlock the trunk lid. To start t he engine,
insert the smart key. In order to activate the smart key system, the battery should be replaced. For details, see “Replacing the battery
(Type A)” on page 42.
You can deactivate the smart key system by using the cancel switch. In th\
is case, all the functions in the smart key system wi ll be
deactivated. For details, see “Deactivating the smart key system” on page 34.\

KEYS AND DOORS
21
INFORMATION
Be sure to take the smart key with you.
 In the following cases, the smart key system or
wireless remote control feature may not operate
properly. (If this happens, use a mechanical key to
lock or unlock the doors and trunk lid and a smart key
to start the engine.)
When facilities issuing strong electromagnetic
waves such as TV towers, electric power stations,
broadcasting stations are nearby.
When you are carrying a smart key together with a
mobile communications system such as a
twoway radio or cellular phone.
When the smart key is in contact with or covered
by a metallic object.
When another person is operating a wireless
remote control function on another vehicle near
your vehicle.
 If you do not drive your vehicle, store the smart key,
keeping it at least 5 m (15 ft.) away from the vehicle.
Alarms and warning messages
Your Lexus is equipped with alarms inside and outside, as
well as warning messages in the multiinformation
display, that remind you if there is a problem involving the
smart key system.
Cases which are expected to happen frequently are
shown in the illustrations and the other cases are
described in the table. If an alarm or warning message
comes on, check to see what the problem is referring to
the illustrations and table, and take the appropriate
measure.

KEYS AND DOORS
22
11L230a
When a door is opened and closed with the ignition
switch in the “ACC” or “ON” position and with the
selector lever in the “P” position, and then the smart key
is carried outside of the vehicle.
Inside alarm: One chime
Outside alarm: 3 beeps
Multiinformation display: “Key is not Detected”
See page 100 for details.
11L231a
 When you attempted to lock the door(s) with the smart
key still in the vehicle or without turning off the ignition
switch.
Outside alarm: One beep (sounds for 2 seconds)
See page 26 and 27 for details.
