OCCUPANT RESTRAINT SYSTEMS
176
Seat belt pretensioners

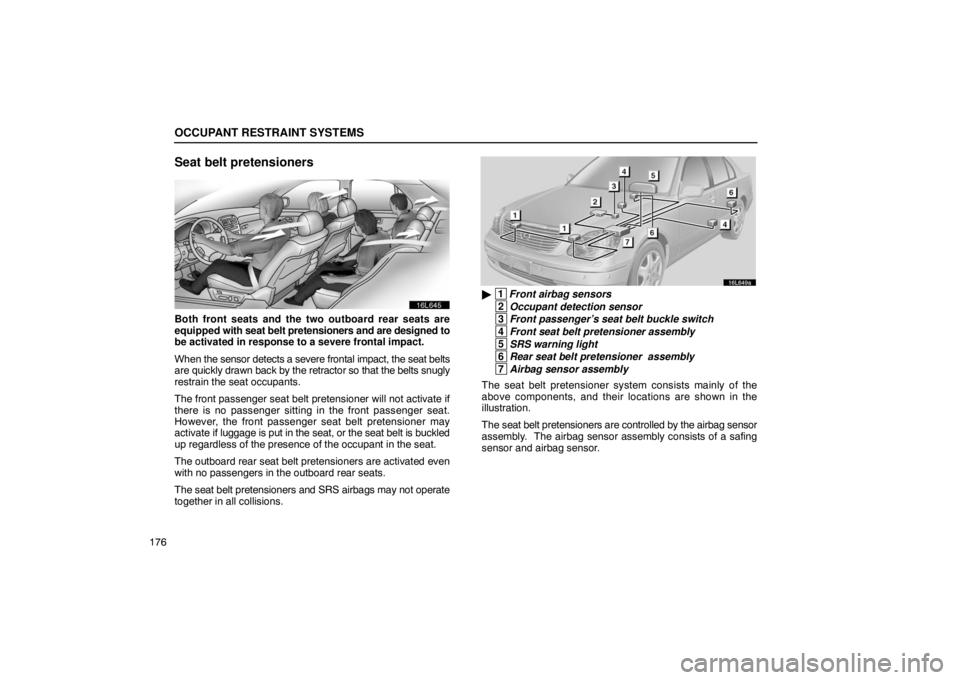

16L645
Both front seats and the two outboard rear seats are
equipped with seat belt pretensioners and are designed to
be activated in response to a severe frontal impact.
When the sensor detects a severe frontal impact, the seat belts
are quickly drawn back by the retractor so that the belts snugly
restrain the seat occupants.
The front passenger seat belt pretensioner will not activate if
there is no passenger sitting in the front passenger seat.
However, the front passenger seat belt pretensioner may
activate if luggage is put in the seat, or the seat belt is buckled
up regardless of the presence of the occupant in the seat.
The outboard rear seat belt pretensioners are activated even
with no passengers in the outboard rear seats.
The seat belt pretensioners and SRS airbags may not operate
together in all collisions.
16L649a
 1 Front airbag sensors
2Occupant detection sensor
3Front passenger’s seat belt buckle switch
4Front seat belt pretensioner assembly
5SRS warning light
6Rear seat belt pretensioner assembly
7Airbag sensor assembly
The seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The seat belt pretensioners are controlled by the airbag sensor
assembly. The airbag sensor assembly consists of a safing
sensor and airbag sensor.

OCCUPANT RESTRAINT SYSTEMS
177
When the seat belt pretensioners are activated, an operating
noise
may be heard and a small amount of non −toxic gas may
be released. This does not indicate that a fire is occurring. This
gas is normally harmless.
Once the seat belt pretensioners have been activated, the seat
belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open the seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Failure to follow these instructions may
prevent the seat belt pretensioners from activating
correctly, cause sudden operation of the system or
disable the system, which could result in death or
serious injury. Consult your Lexus dealer about any
repair and modification.
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the seat belt
pretensioners in some cases.
 Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player.
 Repairs on or near the seat belt retractor assemblies.
 Modification of the suspension system.
 Modification of the front end structure.
 Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.
 Repairs made on or near the front fenders, front end
structure or console.

OCCUPANT RESTRAINT SYSTEMS
178

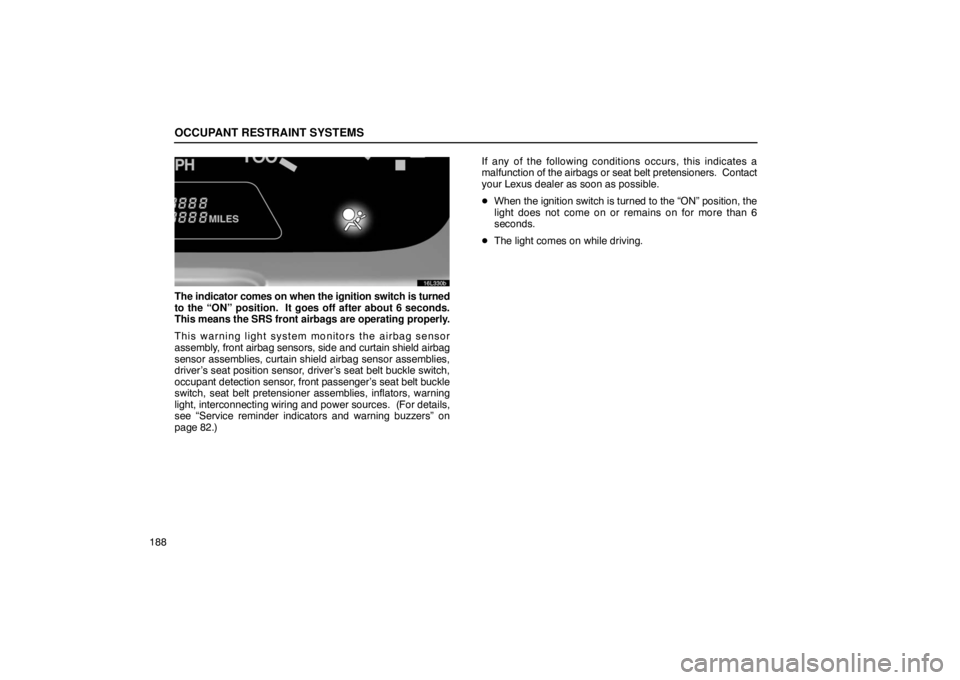

16L330b
This indicator comes on when the ignition switch is turned
to the “ON” position. It goes off after about 6 seconds.
This means the seat belt pretensioners are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
occupant detection sensor, front passenger’s seat belt buckle
switch, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and warning buzzers” on
page 82.) If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

When the ignition switch is turned to the “ON” position, the
light does not come on or remains on for more than 6
seconds.
 The light comes on while driving.
 If any seat belt does not retract or cannot be pulled out due
to a malfunction or activation of the relevant seat belt
pretensioner.
 The seat belt pretensioner assembly or surrounding area
has been damaged.

OCCUPANT RESTRAINT SYSTEMS
183
16L653a
 1Occupant detection sensor
2Airbag module for front passenger
(airbag and inflator)
3 Knee airbag module for front passenger
(airbag and inflator)
4 Front passenger’s seat belt buckle switch
5SRS warning light
6Airbag module for driver (airbag and inflator)
7Knee airbag module for driver (airbag and inflator)
8Driver’s seat belt buckle switch
9Driver’s seat position sensor
10Airbag sensor assembly
11Front airbag sensors
The SRS front airbag system consists mainly of the above
components, and their locations are shown in the illustration.
The airbag sensor assembly consists of a safing sensor and
airbag sensors. The front airbag sensors constantly monitor the forward
deceleration of the vehicle. If an impact results in a forward
deceleration beyond the designed threshold level, the system
triggers
the airbag inflators. At this time a chemical reaction in
the inflators very quickly fills the airbags with non−toxic gas to
help restrain the forward motion of the occupants. The front
airbags then quickly deflate, so that there is no obstruction of
the driver’s vision should it be necessary to continue driving.
When the airbags inflate, they produce a loud noise and
release some smoke and residue along with non −toxic gas.
This does not indicate a fire. This smoke may remain inside
the vehicle for some time, and may cause some minor irritation
to the eyes, skin or breathing. Be sure to wash off any residue
as soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.

OCCUPANT RESTRAINT SYSTEMS
186

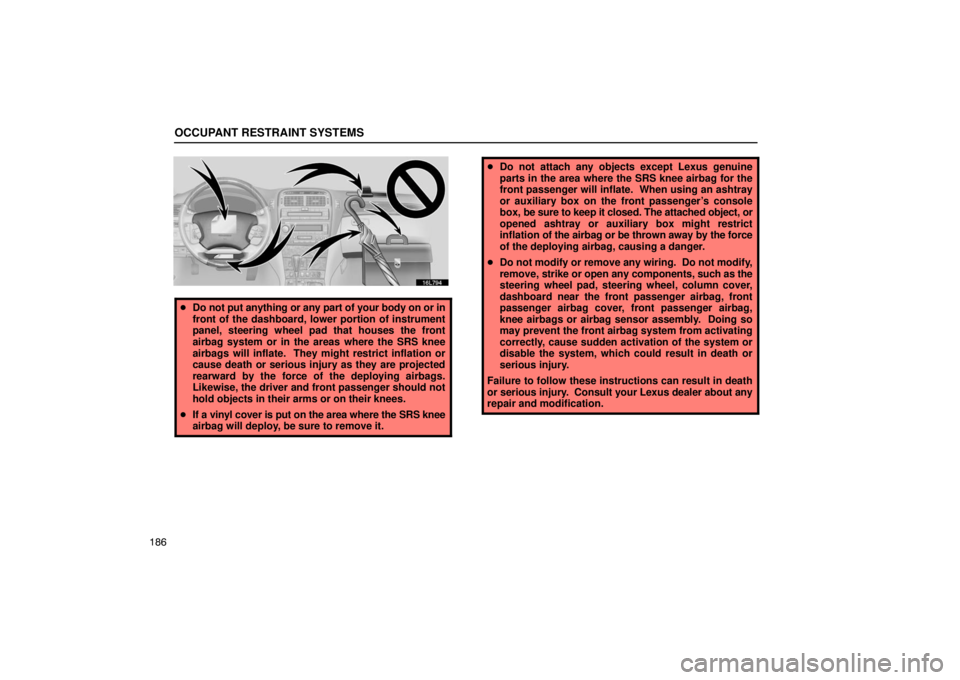

16L794
Do not put anything or any part of your body on or in
front of the dashboard, lower portion of instrument
panel, steering wheel pad that houses the front
airbag system or in the areas where the SRS knee
airbags will inflate. They might restrict inflation or
cause death or serious injury as they are projected
rearward by the force of the deploying airbags.
Likewise, the driver and front passenger should not
hold objects in their arms or on their knees.
 If a vinyl cover is put on the area where the SRS knee
airbag will deploy, be sure to remove it.
Do not attach any objects except Lexus genuine
parts in the area where the SRS knee airbag for the
front passenger will inflate. When using an ashtray
or auxiliary box on the front passenger’s console
box, be sure to keep it closed. The attached object, or
opened ashtray or auxiliary box might restrict
inflation of the airbag or be thrown away by the force
of the deploying airbag, causing a danger.
 Do not modify or remove any wiring. Do not modify,
remove, strike or open any components, such as the
steering wheel pad, steering wheel, column cover,
dashboard near the front passenger airbag, front
passenger airbag cover, front passenger airbag,
knee airbags or airbag sensor assembly. Doing so
may prevent the front airbag system from activating
correctly, cause sudden activation of the system or
disable the system, which could result in death or
serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.

OCCUPANT RESTRAINT SYSTEMS
188
16L330b
The indicator comes on when the ignition switch is turned
to the “ON” position. It goes off after about 6 seconds.
This means the SRS front airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
occupant detection sensor, front passenger’s seat belt buckle
switch, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and warning buzzers” on
page 82.) If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

When the ignition switch is turned to the “ON” position, the
light does not come on or remains on for more than 6
seconds.
 The light comes on while driving.

OCCUPANT RESTRAINT SYSTEMS
192
16L656
 1Collision from the front
2Collision from the rear
3Vehicle rollover
The SRS side airbags and curtain shield airbags are not
generally designed to inflate if the vehicle is involved in a
front or rear collision, if it rolls over, or if it is involved in
a lowspeed side collision.
16L657
 1 Curtain shield airbag module (airbag and inflator)
2Side airbag module (airbag and inflator)
3Curtain shield airbag sensor assembly
4Side and curtain shield airbag sensor assembly
5SRS warning light
6Airbag sensor assembly
The SRS side airbag and curtain shield airbag system consists
mainly of the above components, and their locations are
shown in the illustration.
The SRS side airbag and curtain shield airbag system is
controlled by the airbag sensor assembly. The airbag sensor
assembly consists of a safing sensor and airbag sensor.

OCCUPANT RESTRAINT SYSTEMS
193
In a severe side impact, the side and curtain shield airbag
sensor and/or the curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain shield airbag inflators.
At this time a chemical reaction in the inflators quickly fills the
airbags with non
−toxic gas to help restrain the lateral motion
of the occupants.
When the airbags inflate, they produce a fairly loud noise and
release some smoke and residue along with non −toxic gas.
This does not indicate a fire. This smoke may remain inside
the vehicle for some time, and may cause some minor irritation
to the eyes, skin or breathing. Be sure to wash off any residue
as soon as possible to prevent any potential skin irritation with
soap and water. If you can safely exit from the vehicle, you
should do so immediately.
Deployment of the airbags happens in a fraction of a second,
so the airbags must inflate with considerable force. While the
system is designed to reduce serious injuries, it may also
cause minor burns or abrasions and swelling.
Front seats as well as parts of the front and rear pillars, and roof
side rail may be hot for several minutes, but the airbags
themselves will not be hot. The airbags are designed to inflate
only once.
CAUTION
SRS side airbags and curtain shield airbags inflate with
considerable force. To reduce the possibility of death
or serious injury when they inflate, the driver, front
passenger and rear outboard passengers must:
 Wear their seat belts properly.
 Remain properly seated with their backs upright and
against the seats at all times.

OCCUPANT RESTRAINT SYSTEMS
197
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS side airbag
and curtain shield airbag system in some cases.
Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player.
 Modification of the suspension system.
 Modification of the structure of the passenger
compartment.
 Repairs made on or near the console or front seat.
16L330b
The indicator comes on when the ignition switch is turned
to the “ON” position. It goes off after about 6 seconds.
This means the SRS side airbags and curtain shield
airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airba g sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
occupant detection sensor, front passenger’s seat belt buckle
switch, seat belt pretensioner assemblies, inflators, warning
light, interconnecting wiring and power sources. (For details,
see “Service reminder indicators and warning buzzers” on
page 82.)

STEERING WHEEL AND MIRRORS
235
16L784
To ensure correct functioning of antiglare mirror sensors
located on both sides of the mirror, do not touch or cover
the sensors with your finger or a piece of cloth, etc.
157.VANITY MIRRORS
Front
14L206
To use the front vanity mirrors, swing the sun visor down
and open the cover.
The vanity light comes on when you open the cover. However
if the sun visor is not hooked securely, the light may not come
on.
