LEXUS LS430 2005 Owners Manual

STARTING AND DRIVING
322The Lexus park assist system may detect the following by
mistake:

Bumpy roads or gravelled roads or grass when driving on
such surfaces, or on grass
 Devices issuing ultrasonic waves, such as a horn from
another vehicle, motorcycle engine, air braking sound from
heavy−duty vehicles, if such a device is operated around
your vehicle
 Rain or water splashing over the sensor
 The ground on which the vehicle is tilted
 Radio antenna or fender pole mounted on your vehicle
 Mud, ice or snowflakes on the sensor
 Tall curb stone
 Towing eyelet mounted on your vehicle
 Towing hitch mounted on your vehicle The Lexus park assist system may not detect the
following:

Thin objects such as wire or rope
 Objects with a surface area too small to reflect ultrasonic
waves such as wire gauze or fence
 Sound wave absorbing objects such as cotton or snow
 Objects with a sharp edge
 Shorter objects
 Tall objects with the upper part projected
For vehicles with a Navigation System, the park assist
graphics appear both on the navigation display and
multi− information display. For details, see the separate
“Navigation System Owner’s Manual”.
For vehicles sold in Canada
This ISM device complies with Canadian ICES −001.

STARTING AND DRIVING
323
REAR VIEW MONITOR SYSTEM
The rear view monitor system assists the driver by
displaying an image of the rear of the vehicle while
backing up. The displayed image on the screen is a
horizontally reversed mirror image of the inside rear view
mirror.
To display the rear view image on the screen, place the
selector lever in the “R” position when the ignition switch
is in the “ON” position.
If you move the selector lever out of the “R” position, the screen
returns to the previous screen. Operating another function of
the navigation system will display another screen.
The rear view monitor system is a supplemental device
intended to assist back up. When backing up, be sure to check
behind and all around the vehicle visually.
CAUTION
 Never depend on the rear view monitor system
entirely when backing up. Always make sure your
intended path is clear.
Use caution just as you would when backing up any
vehicle.
 Never back up while looking only at the screen. The
image on the screen is different from actual
conditions. Depicted distances between objects and
flat surfaces will differ from actual distances. If you
back up while looking only at the screen, you may hit
a vehicle, a person or an object. When backing up, be
sure to check behind and all around the vehicle
visually and with mirrors before proceeding.
 Do not use the system when the trunk is not
completely closed.
 If the back of the vehicle is hit, the position and
mounting angle of the camera may change. Be sure
to have the camera’s position and mounting angle
checked at your Lexus dealer.
 If the temperature changes rapidly , such as when hot
water is poured on the vehicle in cold weather, the
system may not operate normally.

STARTING AND DRIVING
324
If the camera lens becomes dirty, it cannot transmit
a clear image. If water droplets, snow, or mud adhere
to the lens, rinse with water and wipe with a soft cloth.
If the lens is extremely dirty, wash it with a mild
cleanser and rinse.
 The displayed image may become darker and moving
images may be slightly distorted when the system is
cold. When backing up, be sure to check behind and
all around the vehicle visually and with mirror before
proceeding.AREA DISPLAYED ON SCREEN
Image is displayed approximately level on screen.
31L356
Check surroundings for safety.
 Corners of bumper

STARTING AND DRIVING
325

The area covered by the camera is limited. Objects
which are close to either corner of the bumper or under
the bumper cannot be seen on the screen.
 The area displayed on the screen may vary according
to vehicle orientation or road conditions. REAR VIEW MONITOR SYSTEM CAMERA
31L352
The rear view monitor system camera is located on the trunk
as shown in the illustration. The camera uses a special lens.
The distance of the image that appears on the screen differs
from the actual distance.
In the following cases, it may become difficult to see the images
on the screen, even when the system is functioning.

In the dark (for example, at night)
 When the temperature near the lens is extremely high or low
 When water droplets are adhering to the camera, or when
humidity is high (for example, when it rains)
 When foreign matter (for example, snow or mud) adheres
to the camera lens
 When the sun or the beam of headlights is shining directly
into the camera lens

STARTING AND DRIVING
326
31L357
Check surroundings for safety.
If a bright light (for example, sunlight reflected off the vehicle
body) is picked up by the camera, the smear effect* peculiar
to the camera may occur.
*: Smear effect — A phenomenon that occurs when a bright
light (for example, sunlight reflected off the vehicle body) is
picked up by the camera; when transmitted by the camera, the
light source appears to have a vertical streak above and below
it.
CRUISE CONTROL
The cruise control allows you to cruise the vehicle at a
desired speed over about 40 km/h (25 mph) with your foot
off the accelerator pedal.
Your cruising speed can be maintained although a slight speed
change may occur when driving up or down a gradient, within
the limits of engine performance. On steeper hills, a great
speed change will occur so it is better to drive without the cruise
control.
When the cruise control is on, the driving pattern of the
automatic transmission is fixed in the normal position,
regardless of the position of the selector switch.
CAUTION
 To help maintain maximum control of your vehicle,
do not use the cruise control when driving in heavy
or varying traffic, or on slippery (rainy, icy or
snowcovered) or winding roads.
 Avoid vehicle speed increases when driving
downhill. If the vehicle speed is too fast in relation to
the cruise control set speed, cancel the cruise
control then downshift the transmission to use
engine braking to slow down.

STARTING AND DRIVING
327
Turning the system on
31L629
To operate the cruise control, push the “ON−OFF” button. This
turns the system on. The indicator light in the instrument
cluster shows that you can now set your desired cruising
speed. Another push on the button will turn the system
completely off.
When the ignition switch is turned off, the “ON −OFF” button is
also automatically turned off. To use the cruise control again,
push the “ON −OFF” button again to turn it on.
CAUTION
To avoid accidental cruise control engagement, keep
the “ONOFF” button off when not using the cruise
control.
Setting operation
31L630
 Each function is described below.
1
Setting at a desired speed.
The transmission must be in the “D” position, or the shift range
position must be “4” (fourth range), “5” (fifth range) o\
r “6” (sixth
range) in the “S” mode before you set the cruise control speed.
Bring the vehicle to the desired speed, press the control lever
downward in the “– SET” direction and release it. This sets the
vehicle at that speed. Now you may take your foot off the
accelerator pedal. If you need acceleration − for example,
when passing − depress the accelerator pedal enough for the
vehicle to exceed the set speed. When you release the
accelerator pe dal, the vehicle will return to the speed set prior
to the acceleration.

STARTING AND DRIVING
328
2Cancelling the preset speed
You can cancel the preset speed by either of the following:
a. Pulling the control lever in the “CANCEL” direction.
b. Depressing the brake pedal.
c. Pushing the “ON −OFF” button.
If the vehicle speed falls below about 40 km/h (25 mph), the
preset speed will be automatically cancelled.
If the vehicle speed drops 16 km/h (10 mph) below the preset
speed, the preset speed will also automatically be cancelled.
If the slip indicator light blinks and a warning tone sounds, the
preset speed will be automatically cancelled.
If the preset speed automatically cancels out for other than the
above reasons, do not operate the cruise control. Although it
is no problem to continue driving, have your vehicle checked
by your Lexus dealer at the earliest opportunity.
3 Resetting to a faster speed
Press the control lever upward in the “+ RES” direction and
hold it. Release the lever when the desired speed is attained.
While the lever is held upward, the vehicle will gradually gain
speed.
When the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
increased 1. 6 km/h (1 mph) each time by pressing the control
lever upward in the “+ RES” direction quickly within 0.6
seconds. However, a quicker way to reset is to accelerate the vehicle
and then press the control lever downward in the “– SET”
direction.
4
Resetting to a slower speed
Press the co ntrol lever downward in the “– SET” direction and
hold it. Release the lever when the desired speed is attained.
While the lever is held downward, the vehicle speed will
gradually decrease.
When the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
lowered 1.6 km/h (1 mph) each time by pressing the control
lever downward in the “– SET” direction quickly within 0.6
seconds.
However, a quicker way to reset is to depress the brake pedal
and then press the control lever downward in the “– SET”
direction.
With the cruise control on, even if you downshift the
transmission from the “D” position or “6” (sixth range) to the “5”\
(fifth range), or from the “D” position or “5” (fifth ran\
ge) to the
“4” (fourth range), engine braking will not be enabled because
the cruise control is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the cruise control lever or
depress the brake pedal. If you use the brake pedal, cruise
control is cancelled.

STARTING AND DRIVING
329
5Resuming the preset speed
If the preset speed is cancelled by pulling the control lever, by
depressing the brake pedal or vehicle stability control
activation, pushing the lever up in the “+ RES” direction will
restore the speed set prior to cancellation. However, once the
vehicle speed falls below about 40 km/h (25 mph), the preset
speed will not be resumed.
Cruise control failure warning
If the “CRUISE” indicator light in the instrument cluster flashes
when using the cruise control, push the “ON −OFF” button to
turn the system off and then push it again to turn it on.
If any of the following conditions then occurs, there is some
trouble in the cruise control system.
 The indicator light does not come on.
 The indicator light flashes again.
 The indicator light goes out after it comes on.
If this is the case, contact your Lexus dealer and have your
Lexus inspected.

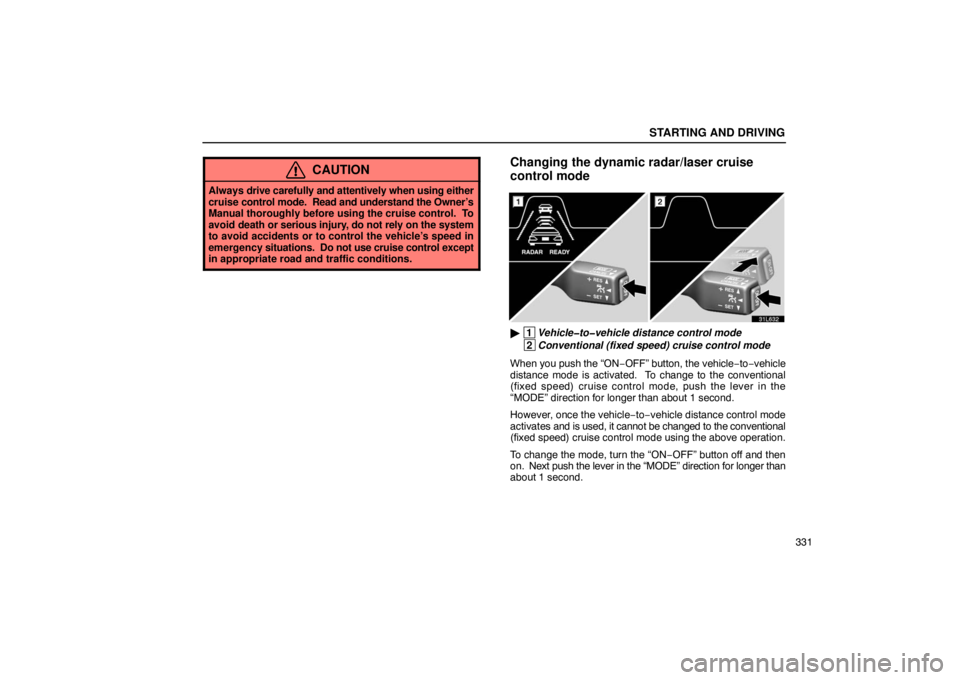

DYNAMIC RADAR/LASER CRUISE CONTROL
The vehicles with precollision safety system are
equipped with dynamic radar cruise control. For the
vehicles without precollision safety system, dynamic
laser cruise control can be equipped as optional.
Dynamic radar/laser cruise control allows you to drive at
a selected cruising speed over about 45 km/h (28 mph)
with your foot off the accelerator pedal, maintaining an
appropriate vehicletovehicle distance.
31L359a
Dynamic radar cruise control
(Vehicles with precollision safety system)
1 Millimeter wave grille cover
2Millimeter wave radar sensor

STARTING AND DRIVING
330
31L363
Dynamic laser cruise control
(Vehicles without precollision safety system)
1 Laser radar sensor
31L631
Inside view
1
Master warning light 2Multiinformation display
3“CRUISE” indicator light
4DISP2 switch (for changing vehicletovehicle
distance)
5 Cruise control lever
The dynamic radar/laser cruise control function has 2 cruise
control modes: vehicle−to−vehicle distance control mode for
maintaining an appropriate distance between vehicles, and a
conventional (fixed speed) cruise control mode for cruising at
preset speeds.

STARTING AND DRIVING
331
CAUTION
Always drive carefully and attentively when using either
cruise control mode. Read and understand the Owner’s
Manual thoroughly before using the cruise control. To
avoid death or serious injury, do not rely on the system
to avoid accidents or to control the vehicle’s speed in
emergency situations. Do not use cruise control except
in appropriate road and traffic conditions.
Changing the dynamic radar/laser cruise
control mode
31L632
 1 Vehicletovehicle distance control mode
2Conventional (fixed speed) cruise control mode
When you push the “ON −OFF” button, the vehicle −to− vehicle
distance mode is activated. To change to the conventional
(fixed speed) cruise control mode, push the lever in the
“MODE” direction for longer than about 1 second.
However, once the vehicle− to−vehicle distance control mode
activates and is used, it cannot be changed to the conventional
(fixed speed) cruise control mode using the above operation.
To change the mode, turn the “ON−OFF” button off and then
on. Next push the lever in the “MODE” direction for longer than
about 1 second.
