LEXUS LS430 2005 Service Manual

KEYS AND DOORS
22
11L230a
When a door is opened and closed with the ignition
switch in the “ACC” or “ON” position and with the
selector lever in the “P” position, and then the smart key
is carried outside of the vehicle.
Inside alarm: One chime
Outside alarm: 3 beeps
Multiinformation display: “Key is not Detected”
See page 100 for details.
11L231a
 When you attempted to lock the door(s) with the smart
key still in the vehicle or without turning off the ignition
switch.
Outside alarm: One beep (sounds for 2 seconds)
See page 26 and 27 for details.

KEYS AND DOORS
23

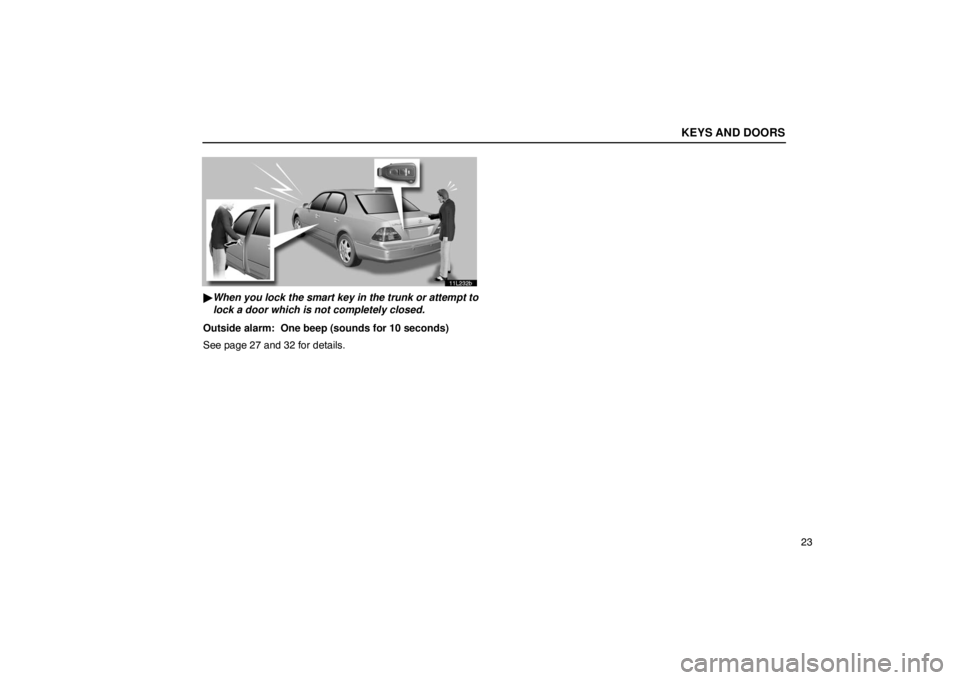

11L232b
When you lock the smart key in the trunk or attempt to
lock a door which is not completely closed.
Outside alarm: One beep (sounds for 10 seconds)
See page 27 and 32 for details.

KEYS AND DOORS
24Inside warning alarm
Outside warning
alarmMulti−information
warning message displayCausesReference page
ChimesNoneNoneYou opened a door without
turning off the ignition
switch.47
BeepNone“Shift to P Range”You opened a door without
turning off the ignition switch
when the selector lever is in
a position other than “P”.100
BeepBeep“Shift to P Range” and “Key
is not Detected” appear
alternately.You exited and closed a
door without turning off the
ignition switch when the
selector lever is in a position
other than “P”.100
One chimeNone“Low Key Battery”
(shown for about 5 seconds)Smart key battery power is
insufficient.101
One chimeNone“Key is not Detected”
(shown for about 5 seconds)The smart key was not in the
vehicle when you pushed
the ignition switch in the
“LOCK” position.100

KEYS AND DOORS
25

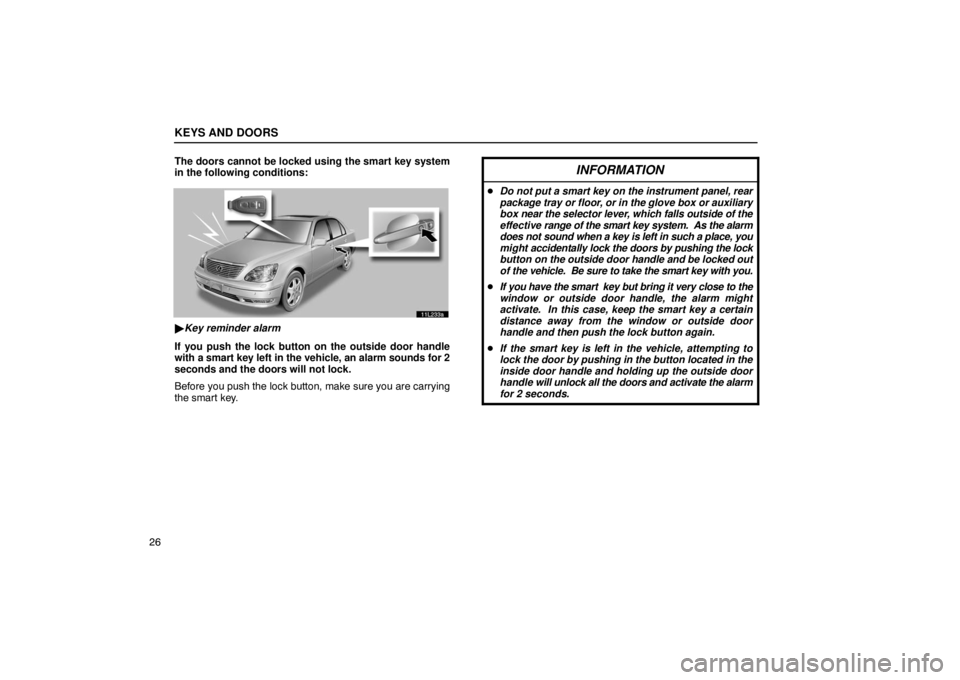

Locking the doors with smart key system
11L224
The smart key system will lock the doors without being
inserted into the door keyhole.
When you exit the vehicle carrying the smart key and push the
lock button on the outside door handle with all the doors
closed, all the doors will be locked provided that the electronic
code in the key corresponds to the registered ID code for the
vehicle.
At this time, you will hear one beep and the turn signal lights
flash once. However, when you push the lock button on the
outside door handle with any door not closed securely, a beep
sounds for 10 seconds. (For details, see page 27.)
If outer foot lights are illuminated, you can turn off the lights by
pushing the “LOCK” button on the smart key. (For details, see
“Outer foot lights” on page 233.)
INFORMATION
 When locking the doors, be sure to push the lock
button on the outside door handle slowly and surely.
If you push the button quickly, the doors may not
lock.
 When opening or closing a door, do not touch the
lock button on the outside door handle.
 When a wireless key is used to lock the doors and a
smart key is left in the ef fective range of the smart key
system in the vehicle, the doors cannot be unlocked
using the smart key system. In this case, use the
wireless remote function to unlock the doors.
 You cannot activate smart unlocking functions
within 3 seconds after the smart locking function is
activated.

KEYS AND DOORS
26The doors cannot be locked using the smart key system
in the following conditions:
11L233a

Key reminder alarm
If you push the lock button on the outside door handle
with a smart key left in the vehicle, an alarm sounds for 2
seconds and the doors will not lock.
Before you push the lock button, make sure you are carrying
the smart key.
INFORMATION
 Do not put a smart key on the instrument panel, rear
package tray or floor, or in the glove box or auxiliary
box near the selector lever, which falls outside of the
effective range of the smart key system. As the alarm
does not sound when a key is left in such a place, you
might accidentally lock the doors by pushing the lock
button on the outside door handle and be locked out
of the vehicle. Be sure to take the smart key with you.
 If you have the smart key but bring it very close to the
window or outside door handle, the alarm might
activate. In this case, keep the smart key a certain
distance away from the window or outside door
handle and then push the lock button again.
 If the smart key is left in the vehicle, attempting to
lock the door by pushing in the button located in the
inside door handle and holding up the outside door
handle will unlock all the doors and activate the alarm
for 2 seconds.

KEYS AND DOORS
27

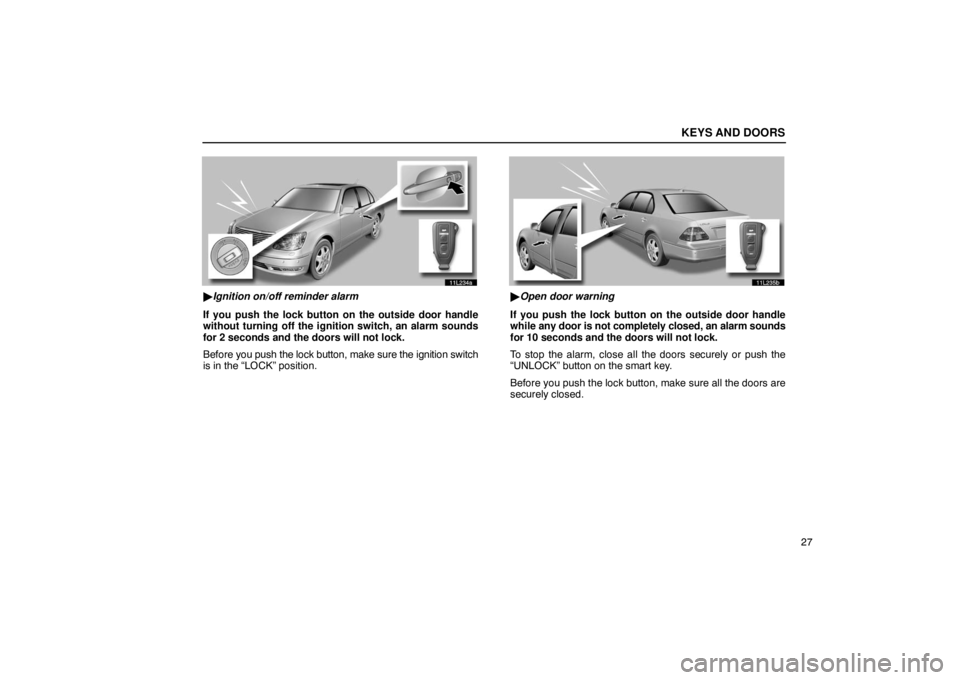

11L234a
Ignition on/off reminder alarm
If you push the lock button on the outside door handle
without turning off the ignition switch, an alarm sounds
for 2 seconds and the doors will not lock.
Before you push the lock button, make sure the ignition switch
is in the “LOCK” position.
11L235b
 Open door warning
If you push the lock button on the outside door handle
while any door is not completely closed, an alarm sounds
for 10 seconds and the doors will not lock.
To stop the alarm, close all the doors securely or push the
“UNLOCK” button on the smart key.
Before you push the lock button, make sure all the doors are
securely closed.

KEYS AND DOORS
28
Unlocking the door(s) with smart key system
11L225
The smart key system can be used to unlock the door(s)
without being inserted into the door keyhole.
When you get close to your vehicle (about 1 m (3 ft.) from each
outside door handle), and are carrying the smart key, the
electronic code emitted from the key is automatically checked
to determine if it corresponds to the registered ID code for the
vehicle. After this, the outer foot lights come on. (For outer foot
lights, see “Outer foot lights” on page 233.) When you take
hold of the back side of the outside door handle on the door
firmly, it will unlock and the key indicator light blinks. (You can
select the doors to be unlocked. For details, see “Changing the
doors to be unlocked” on page 30.) At this time, two beeps sound and the turn signal lights flash
twice. As the door(s) is(are) unlocked, the interior light comes
on for 15 seconds if the interior light switch is in the “DOOR”
position. However, the interior lights go out when you push the
power door lock switch in the lock position or turn the ignition
switch to the “ACC” or “ON” position. For further information,
see “Interior lights” on page 112.
You have 30 seconds to open a door after operating the smart
unlocking
function. If a door is not opened by then, all the doors
will be automatically locked again.

KEYS AND DOORS
29
INFORMATION
When unlocking the door(s), be sure to take hold of
the back side of the outside door handle firmly as
shown in the illustration. Taking hold of the handle
with a gloved hand might cause a delay in unlocking
or may not unlock.
 When you take hold of the handle to unlock the
door(s), be sure to confirm that the door(s) has(have)
been unlocked. If the emergency flashers flash twice,
two beeps sound outside the vehicle and the key
indicator starts blinking, the doors are unlocked. At
this time, you can pull the outside door handle to
open the door. If you quickly move closer to the
vehicle or pull the outside door handle quickly, the
doors might not unlock. If you cannot open the door
by pulling the outside door handle at this time, push
it back to the original position and then pull it out
again.
 If you bring the smart key very close to the outside
door handle, the doors might not unlock.
 If another person who is not carrying a smart key
takes hold of an outside door handle when you are
within the effective range of the smart key system, the
door(s) may not unlock.
 If a large amount of water is applied to the outside
door handle during heavy rain or a car wash, and
someone ca rrying a smart key is near the vehicle, the
door(s) might be unlocked. However, if the outside
door handle is not pulled out, the doors will lock
automatically after about 30 seconds.

KEYS AND DOORS
30
Adjusting the volume of beeps
11L340b
You can adjust the volume of the beeps which confirm the
locking or unlocking the doors or remind you when the
doors are not completely closed.
Turn the volume adjustment knob counterclockwise to
increase the volume or clockwise to decrease it. The beep
sound is completely deactivated when you turn the knob
clockwise until you hear a click.
INFORMATION
The volume of the smart key system alarm is not
adjustable.
Changing the doors to be unlocked
11L214
 1Unlocking a single door 2Unlocking all the doors
3
Unlocking side doors
When you push the “LOCK” button together with the
“TRUNK” button on the smart key for about 5 seconds
with the ignition switch off, you can change the settings
for door unlocking.
The settings will change from the door on which you take hold
of the outside door handle, to all the doors, to the doors on the
side closest to the smart key, and then back to the door on
which you take hold of the outside door handle.
After setting, a tone sounds and the multi −information display
shows which setting is selected. Outside the vehicle, one beep
sounds when a door is set to be unlocked, 2 beeps sound when
side doors are set, and 3 beeps sound when all the doors are
set.

KEYS AND DOORS
31
INFORMATION
If you get in the vehicle from the driver’s door using a
smart key while the side doors or one door is set to be
unlocked, all the smart unlocking controls activated by
the smart key will be stopped for security. If you get out
of the vehicle from the driver’s door carrying the smart
key and reaches out of the effective range of the smart
key system, unlocking control by the smart key will be
possible. However, unlocking control may not be
carried out for 5 seconds after you get out from the
vehicle. In this case, perform unl ocking operation again
after 5 seconds.

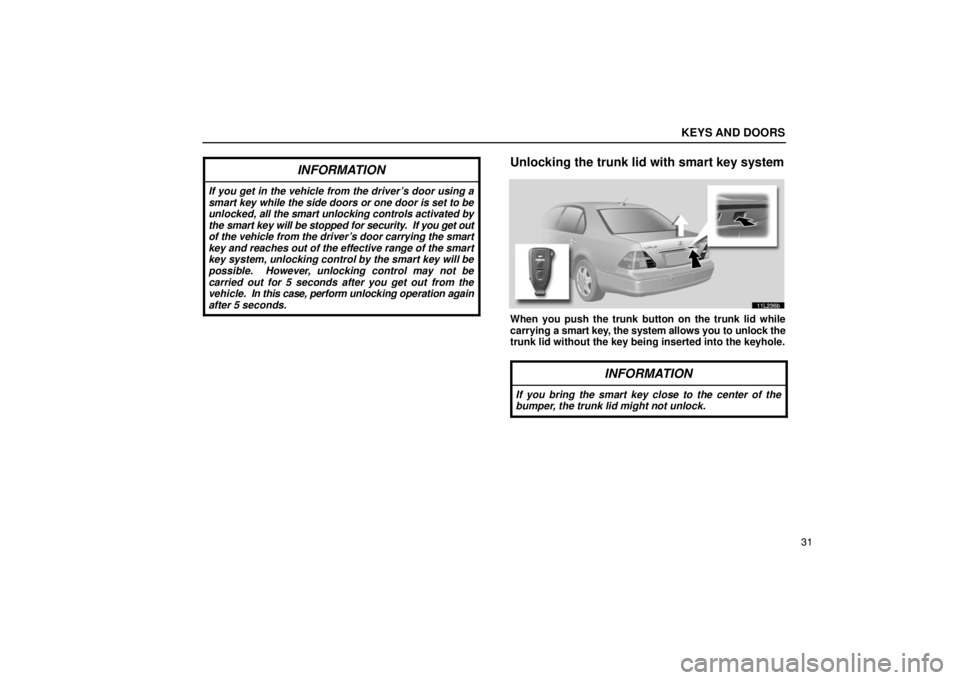

Unlocking the trunk lid with smart key system
11L236b
When you push the trunk button on the trunk lid while
carrying a smart key, the system allows you to unlock the
trunk lid without the key being inserted into the keyhole.
INFORMATION
If you bring the smart key close to the center of the
bumper, the trunk lid might not unlock.
