ENGINE
453
62L019c
If the oil level is below or only slightly above the low mark,
add engine oil of the same type as already in the engine.
Remove the oil filler cap and add engine oil a little at a time,
checking the dipstick. We recommend that you use a funnel
when adding oil. The approximate quantity of oil needed to fill
between the low level mark and the full level mark on the
dipstick is indicated below for reference.
When the level reaches within the correct range, return the
filler cap and turn the cap clockwise until you hear a click.
Oil quantity. L (qt., lmp. qt.) 1.5 (1.6, 1.3)
NOTICE
Be careful not to spill engine oil on the vehicle
components.
 Avoid overfilling, or the engine could be damaged.
 Check the oil level on the dipstick once again after
adding the oil.

ENGINE
455
To ensure excellent lubrication performance for your engine,
“Toyota Genuine Motor Oil” is available, which has been
specifically tested and approved for all Lexus engines.
Please contact your Lexus deal
er for further details about
“Toyota Genuine Motor Oil”.
328.CHECKING THE ENGINE COOLANT LEVEL
62L041
 1Reservoir cap 2“FULL” (upper) line
3“LOW”(lower) line
Look at the seethrough coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between the“FULL” and “LOW” lines on the reservoir. If
the level is low, add the coolant. (For the coolant type, see
“Coolant type selection” described below.)
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the “LOW”
line, add coolant. Bring the level up to the “FULL” line.

ENGINE
456If the coolant level drops within a short time after replenishing,
there
may be a leak in the system. V isually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the cap
pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.
Coolant type selection329.
Use of improper coolants may damage your engine cooling
system.
Only use “Toyota Super Long Life Coolant” or similar high
quality ethylene glycol based non −silicate, non −amine,
non− nitrite, and non −borate coolant with long −life hybrid
organic acid technology. (Coolant with long −life hybrid organic
acid technology is a combination of low phosphates and
organic acids.)
For the U.S.A.—“Toyota Super Long Life Coolant” is a mixture
of 50% coolant and 50% deionized water. This coolant
provides protection down to about −35C (− 31F).
For Canada—“Toyota Super Long Life Coolant” is a mixture of
55% coolant and 45% deionized water. This coolant provides
protection down to about −42C (− 44F).
NOTICE
Do not use plain water alone.
Lexus recommends “Toyota Super Long Life Coolant”, which
has been tested to ensure that it will not cause corrosion nor
result in malfunction of your engine coolant system with proper
usage. “Toyota Super Long Life Coolant” is formulated with
long−life hybrid organic acid technology and has been
specifically designed to avoid engine cooling system
malfunction on Lexus vehicles.
Please contact your Lexus dealer for further details.

ENGINE
457
330.CHECKING THE RADIATORAND CONDENSER
If either of the above parts are extremely dirty or you are not
sure of their condition, take your vehicle to your Lexus dealer.
CAUTION
To prevent burning yourself, be careful not to touch the
radiator or condenser when the engine is hot.
NOTICE
To prevent damage to the radiator and condenser, do
not perform the work by yourself.
331.SPARK PLUGS
62R031c
Your engine is fitted with iridiumtipped spark plugs.
NOTICE
Use only iridiumtipped spark plugs and do not adjust
gaps for your engine performance and smooth
drivability.

CHASSIS
467
CHECKING POWER STEERINGFLUID
63L011a

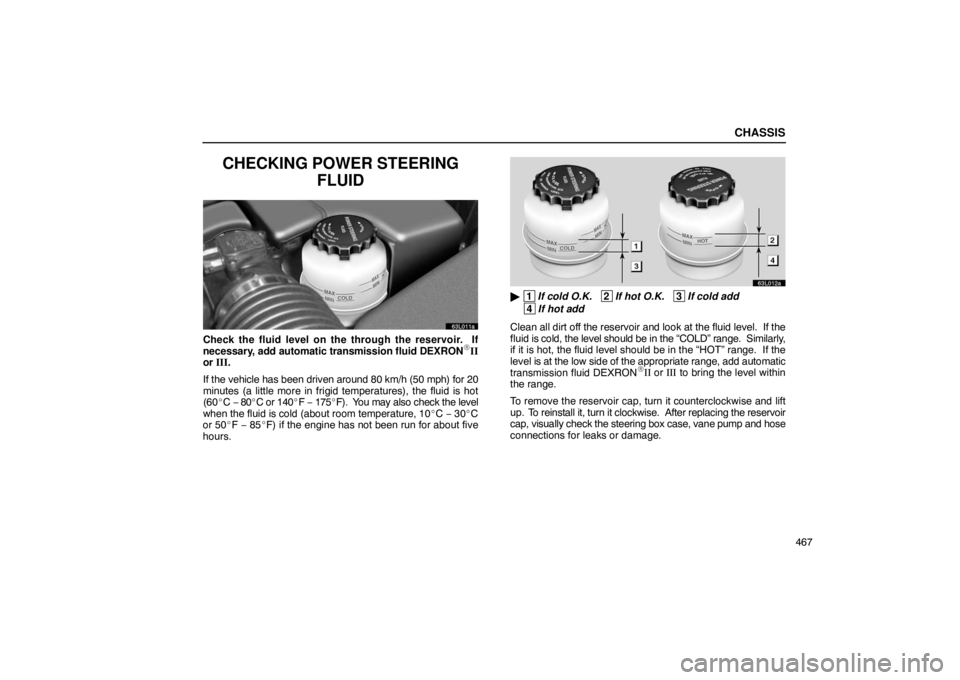

Check the fluid level on the through the reservoir. If
necessary, add automatic transmission fluid DEXRON\bII
or III.
If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60 C − 80C or 140F − 175F). You may also check the level
when the fluid is cold (about room temperature, 10 C − 30C
or 50F − 85F) if the engine has not been run for about five
hours.
63L012a
 1 If cold O.K. 2If hot O.K. 3If cold add
4If hot add
Clean all dirt off the reservoir and look at the fluid level. If the
fluid is cold, the level should be in the “COLD” range. Similarly,
if it is hot, the fluid level should be in the “HOT” range. If th\
e
level is at the low side of the appropriate range, add automatic
transmission fluid DEXRON
\bII or III to bring the level within
the range.
To remove the reservoir cap, turn it counterclockwise and lift
up. To reinstall it, turn it clockwise. After replacing the reservoir
cap, visually check the steering box case, vane pump and hose
connections for leaks or damage.

ELECTRICAL COMPONENTS
498
NOTICE
Make sure the engine and all accessories are turned
off before performing maintenance.
 When checking the battery, remove the ground cable
first and reinstall it last.
 Be careful not to cause a short circuit with tools.
 Take care no solution gets into the battery when
washing it.
Checking battery condition
Checking by indicator
64L086a
Check the battery condition by the indicator color.
1
BLUE − Good condition.
2
WHITE − Charging necessary. Have the battery checked
by your Lexus dealer.
3 RED − Have the battery checked by your Lexus dealer.
NOTICE
Do not refill the battery with water.

ELECTRICAL COMPONENTS
499
BATTERY RECHARGINGPRECAUTIONS
During recharging, the battery is producing hydrogen
gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.
2. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Only do a slow charge (5 A or less). Charging at a
quicker rate is dangerous. The battery may explode
causing personal injuries.
NOTICE
Never recharge the battery while the engine is running.
Also, make sure all accessories are turned off.
CHECKING AND REPLACING THE BLADE TYPE FUSES
64L087a
Engine compartment 1
Spare fuses 2Pullout tool
64L089a
Engine compartment

ELECTRICAL COMPONENTS
502
CHECKING THE CARTRIDGE TYPEFUSES
64L201
Engine compartment
64L202
Engine compartment
omg062d
Good Blown
If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wireeven for a
temporary fix. This may cause extensive damage and
possibly a fire.

GAS STATION INFORMATION
Fuel selection:
Select premium unleaded gasoline with an Octane Rating
of 91 (Research Octane Number 96) or higher for optimum
engine performance. However, if such premium type
cannot be obtained, you may temporarily use unleaded
gasoline with an Octane Rating as low as 87 (Research
Octane Number 91).
 Fuel tank capacity:
84 L (22.2 gal., 18.5 lmp.gal.)
 Engine oil:
“Toyota Genuine Motor Oil” or equivalent
Oil grade: API grade SL “Energy −Conserving” or ILSAC
multigrade engine oil.
Recommended oil viscosity − SAE 5W−30 if normal
temperatures are below 38 C (100F)
Oil capacity: L (qt., lmp.qt.)
Drain and refill with filter 5.1 (5.4 , 4.8)
without filter 4.5 (4.8 , 4.0)
See page 452 for detailed information.
 Engine coolant:
Capacity: 9.5 L (10.0 qt, 8.4 lmp.qt.)
Coolant type − “Toyota Super Long Life Coolant” or similar
high quality ethylene glycol based non −silicate, non −amine,
non−nitrite, and non −borate coolant with long −life hybrid
organic acid technology (Coolant with long −life hybrid
organic acid technology is a combination of low phosphates
and organic acids.) Do not use plain water alone.
For checking the engine coolant, see page 455.
 Automatic transmission:
Fluid type − “Toyota Genuine ATF WS”
See page 461 for detailed information.
 Tire information:
See page 468 through 485 for detailed information.
 Tire inflation pressure:
cold tires
kPa (kgf/cm
2 or bar, psi)
Ti
re sizeFrontRear
P225/55R17 95H 220 (2.2, 32) 220 (2.2, 32)
245/45R18 96W 230 (2.3, 33) 230 (2.3, 33)
P245/45R18 96V 230 (2.3, 33) 230 (2.3, 33)
For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the
tire pressure given below to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on
the tire sidewall.
P225/55R17 95H 20kPa (0.2 kgf/cm
2 or bar, 3 psi)
245/45R18 96W 40kPa (0.4 kgf/cm2 or bar, 6 psi)
P245/45R18 96V 40kPa (0.4 kgf/cm2 or bar, 6 psi)
