Page 10 of 539
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
x
5 Window lock switch65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
6 Side vents 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
7 Headlight, turn signal and fog
light switches 54, 57, 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Windshield wiper and washer switch 58
. . . . . . . . . . . . . . . . . . . . .
9 Automatic air conditioning controls 238, 240
. . . . . . . . . . . . . . . .
10 Rear window and outside rear view mirror defogger
switch 63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
11 Clock 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
12 Lexus park assist system/Rear view monitor/
Navigation system display
(See “Navigation System Owner’s Manual”) 316/323 . . . . . . . . .
13 Outside temperature display 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Front passenger’s seat belt reminder light 85
. . . . . . . . . . . . . . . .
15 Center vents 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
16 Emergency flasher switch 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Audio system 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
18 Glove box 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
19 Driving pattern selector switch 305
. . . . . . . . . . . . . . . . . . . . . . . . .
20 Auxiliary box 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
21 Seat heater switches/
Climate control seat switches 69/71 . . . . . . . . . . . . . . . . . . . . . . . . .
22 Power outlet 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
23 Auxiliary box if power outlet is selected/
Ashtray if cigarette lighter is selected 129/119 . . . . . . . . . . . . . . .
24 Cigarette lighter 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
25 Headlight cleaner switch 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Rear seat and rear head restraints
return switch 163 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
27 Traction control system off switch 363
. . . . . . . . . . . . . . . . . . . . . .
28 Rear electric sunshade switch 137
. . . . . . . . . . . . . . . . . . . . . . . . . .
29 CD automatic changer 282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 Height control switch 360
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31 Damping mode select switch 361
. . . . . . . . . . . . . . . . . . . . . . . . . . .
32 Automatic transmission selector lever 305
. . . . . . . . . . . . . . . . . .
33 Ignition switch 298, 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34 Volume adjustment knob 30, 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
35 Key cancel switch 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
36 Tire pressure warning system reset switch 372
. . . . . . . . . . . . . .
37 Cruise control switch/Dynamic radar/laser cruise
control switch 326/329 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
38 Multi information display control switch 90
. . . . . . . . . . . . . . . . .
39 Rear view mirror folding switch 232
. . . . . . . . . . . . . . . . . . . . . . . . .
40 Steering switches 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
41 Adaptive Front Lighting System cancel switch 56
. . . . . . . . . . . .
42 Trunk lid opener 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
43 Parking brake 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
44 Hood opener 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
45 Lexus park assist system switch 316
. . . . . . . . . . . . . . . . . . . . . . . .
46 Parking brake release lever 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47 Fuel filler door opener 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48 Coin box 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
49 Power rear view mirror control switches 231
. . . . . . . . . . . . . . . . .
Page 12 of 539
For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
xii
5 Window lock switch65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
6 Side vents 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
7 Headlight, turn signal and fog
light switches 54, 57, 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Windshield wiper and washer switch 58
. . . . . . . . . . . . . . . . . . . . .
9 Automatic air conditioning controls 238, 240
. . . . . . . . . . . . . . . .
10 Rear window and outside rear view mirror defogger
switch 63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
11 Center vents 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
12 Clock 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
13 Emergency flasher switch 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Outside temperature display 117
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 Front passenger’s seat belt reminder light 85
. . . . . . . . . . . . . . . .
16 Audio system 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
17 Glove box 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
18 Driving pattern selector switch 305
. . . . . . . . . . . . . . . . . . . . . . . . .
19 Auxiliary box 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
20 Seat heater switches/
Climate control seat switches 69/71 . . . . . . . . . . . . . . . . . . . . . . . . .
21 Power outlet 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
22 Auxiliary box if power outlet is selected/
Ashtray if cigarette lighter is selected 129/119 . . . . . . . . . . . . . . .
23 Cigarette lighter 119
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
24 Headlight cleaner switch 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25 Rear seat and rear head restraints
return switch 163 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
26 Traction control system off switch 363
. . . . . . . . . . . . . . . . . . . . . .
27 Rear electric sunshade switch 137
. . . . . . . . . . . . . . . . . . . . . . . . . .
28 CD automatic changer 282
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29 Height control switch 360
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 Damping mode select switch 361
. . . . . . . . . . . . . . . . . . . . . . . . . . .
31 Automatic transmission selector lever 305
. . . . . . . . . . . . . . . . . .
32 Ignition switch 298, 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33 Volume adjustment knob 30, 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
34 Key cancel switch 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
35 Tire pressure warning system reset switch 372
. . . . . . . . . . . . . .
36 Cruise control switch/Dynamic radar/laser cruise
control switch 326/329 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
37 Multi information display control switch 90
. . . . . . . . . . . . . . . . .
38 Rear view mirror folding switch 232
. . . . . . . . . . . . . . . . . . . . . . . . .
39 Steering switches 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
40 Adaptive Front Lighting System cancel switch 56
. . . . . . . . . . . .
41 Trunk lid opener 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
42 Parking brake 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
43 Hood opener 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
44 Lexus park assist system switch 316
. . . . . . . . . . . . . . . . . . . . . . . .
45 Parking brake release lever 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46 Fuel filler door opener 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47 Coin box 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
48 Power rear view mirror control switches 231
. . . . . . . . . . . . . . . . .
Page 49 of 539
KEYS AND DOORS
30
Adjusting the volume of beeps
11L340b
You can adjust the volume of the beeps which confirm the
locking or unlocking the doors or remind you when the
doors are not completely closed.
Turn the volume adjustment knob counterclockwise to
increase the volume or clockwise to decrease it. The beep
sound is completely deactivated when you turn the knob
clockwise until you hear a click.
INFORMATION
The volume of the smart key system alarm is not
adjustable.
Changing the doors to be unlocked
11L214
1Unlocking a single door 2Unlocking all the doors
3
Unlocking side doors
When you push the “LOCK” button together with the
“TRUNK” button on the smart key for about 5 seconds
with the ignition switch off, you can change the settings
for door unlocking.
The settings will change from the door on which you take hold
of the outside door handle, to all the doors, to the doors on the
side closest to the smart key, and then back to the door on
which you take hold of the outside door handle.
After setting, a tone sounds and the multi −information display
shows which setting is selected. Outside the vehicle, one beep
sounds when a door is set to be unlocked, 2 beeps sound when
side doors are set, and 3 beeps sound when all the doors are
set.
Page 90 of 539
SWITCHES
71
CLIMATE CONTROL SEATSWITCHES
The climate control seat feeds air at the temperature you
desire from the seat surface, for the comfort of the
occupants.
Front climate control seats
12L175
1For driver’s seat 2For front passenger’s seat
3Air at room temperature 4Cool air 5Warm air
The front climate control s eat has two switches: one
marked “L” (for the front left seat) and the other marked
“R” (for the front right seat).
The ignition switch must be in the “ON” position.
The front climate control seat has three modes: air at room
temperature, cool air and warm air. To use the front seat climate control, push the knob to pop
it out and then turn the knob. The indicator light comes
on.
To feed air at room temperature,
turn the knob to the gray
zone.
To feed cool air, turn the knob counterclockwise and set the
knob in the blue zone. Three setting levels are available.
To feed warm air, turn the knob clockwise and set the knob in
the red zone. Three setting levels are available.
After the switch is turned on, it takes several minutes until you
feel warm or cool.
To disable this function, turn the knob to the center position (the
gray dot). The indicator light goes off.
Push the knob into the recessed position when not in use.
Page 91 of 539
SWITCHES
72
Rear climate control seats
12L178
1For left seat 2For right seat
3Warm air 4Air at room temperature 5Cool air
The rear climate control switches are located in the rear
armrest.
The rear climate control seat has two switches: one
marked “L” (for the rear left seat) and the other marked
“R” (for the rear right seat).
The ignition switch must be in the “ON” position.
The rear climate control seat has three modes: air at room
temperature, cool air and warm air. To use the rear seat climate control, push the knob and
turn the knob. The indicator light comes on.
To feed air at room temperature,
turn the knob to the gray
zone.
To feed cool air, turn the knob counterclockwise and set the
knob in the blue zone. Three setting levels are available.
To feed warm air, turn the knob clockwise and set the knob in
the red zone. Three setting levels are available. When you
push and turn the knob to the red zone, the seat heater turns
on first and then the rear climate control operates to feed warm
air.
After the switch is turned on, it takes several minutes until you
feel warm or cool.
To disable this function, push the knob again. The indicator
light goes off.
If you turn off the ignition switch without turning off the rear
climate control seat, the rear climate control seat does not turn
on with the ignition on.
Page 135 of 539
INTERIOR EQUIPMENT
11 6
FOOT LIGHTS
14L327
1Front foot light 2Rear foot light
The foot lights come on and go out in the following conditions.
The lights come on for about 15 seconds when any of the
doors are opened.* However, when all the doors are closed
and locked, the lights go out immediately.
The lights come on when the ignition switch is turned to
“ON” from “ACC” with the selector lever in the “P” position.
When you move the lever out of “P” position, the intensity
of the lights are reduced.
Turning the instrument panel light control counterclockwise
fully turns off the foot lights. NOTE:
*The illumination time of the foot lights can be changed.
Ask your Lexus dealer for details.
CLOCK
14L225
Vehicles with navigation system
For clock setting, see the separate “Navigation System
Owner’s Manual”.
Page 136 of 539
INTERIOR EQUIPMENT
11 7

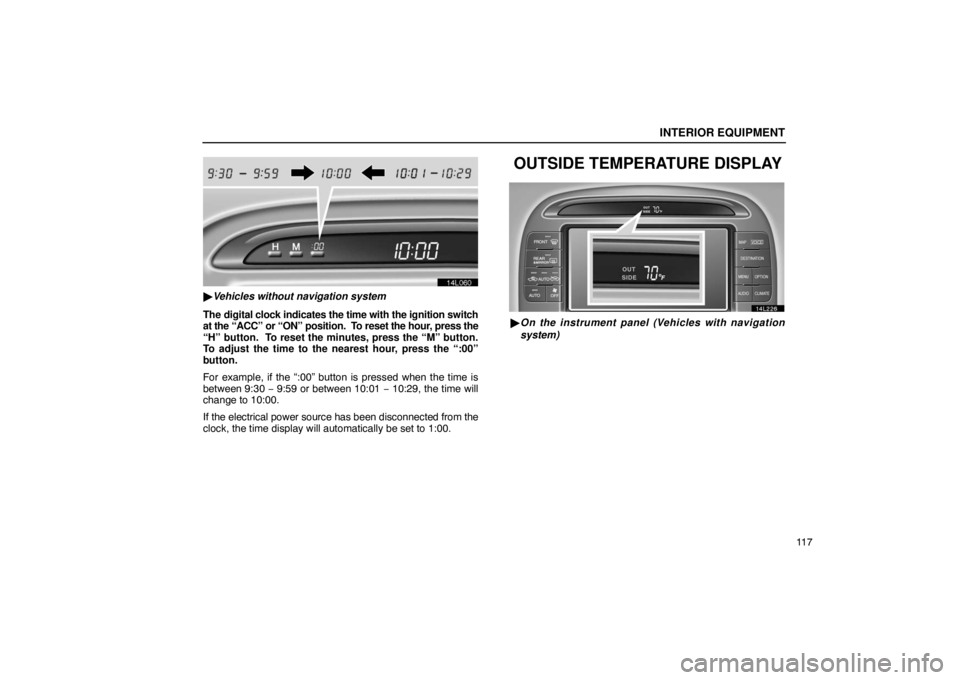

14L060
Vehicles without navigation system
The digital clock indicates the time with the ignition switch
at the “ACC” or “ON” position. To reset the hour, press the
“H” button. To reset the minutes, press the “M” button.
To adjust the time to the nearest hour, press the “:00”
button.
For example, if the “:00” button is pressed when the time is
between 9:30 − 9:59 or between 10:01 − 10:29, the time will
change to 10:00.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00.
OUTSIDE TEMPERATURE DISPLAY
14L226
On the instrument panel (Vehicles with navigation
system)
