navigation LEXUS LS460L 2016 User Guide

37Pictorial index
LS460/LS460L_GE (OM50G06E)
Auxiliary boxes*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Ashtrays*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 236
Retractable table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 484
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Rear seat console
Rear seat relaxation system/pelvic support seat controller . . . . P. 210, 212
Rear seat entertainment system controller*2
Cigarette lighter*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 471
Power outlet*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
A/V input port (VTR and HDMI port)*2
Cool box/auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 459
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Rear seat entertainment system player*2
Disc slot*2
SD card slot*2
Headphone jacks*2
*1: If equipped
*2: Refer to “Navigation and Multimedia System Owner’s Manual”
or “Navigation System Owner’s Manual”.
8
9
10
11
12
13
14
15

39Pictorial index
LS460/LS460L_GE (OM50G06E)
Rear seat entertainment system display*3
Rear seat entertainment system player*1, 3
Disc slot*3
SD card slot*3
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
A/V input port (VTR and HDMI port)*1, 3
Cigarette lighter*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 471
Power outlet*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
*1: If equipped
*2: Location of the switches varies according to the vehicle grade level.
*3: Refer to “Navigation and Multimedia System Owner’s Manual”
or “Navigation System Owner’s Manual”.
Vehicles with rear
console display
Vehicles without
rear console display
1
2
3
4
5
6

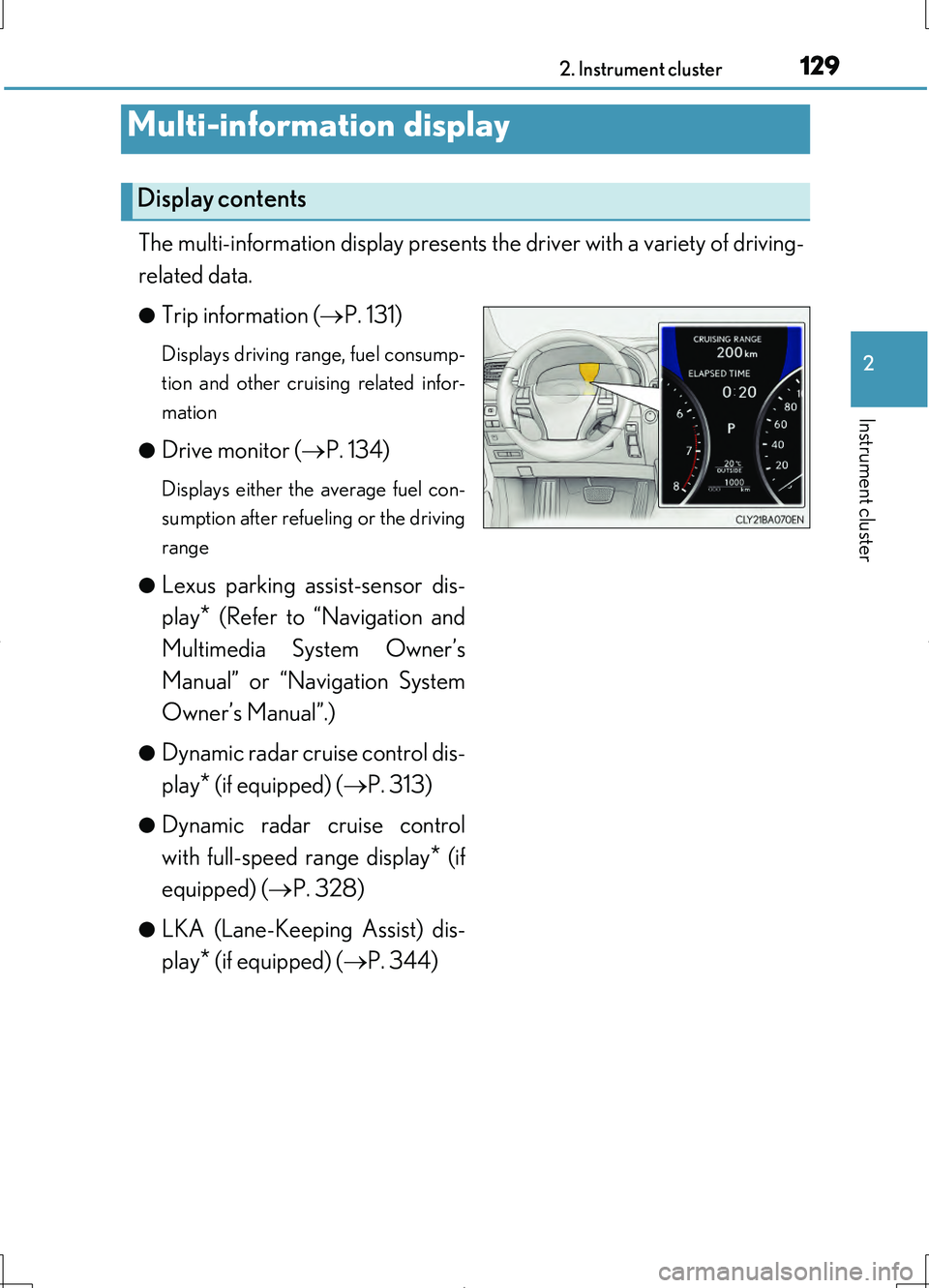

1292. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)
The multi-information display presents the driver with a variety of driving-
related data.
●Trip information ( P. 131)
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●Drive monitor ( P. 134)
Displays either the average fuel con-
sumption after refueling or the driving
range
●Lexus parking assist-sensor dis-
play* (Refer to “Navigation and
Multimedia System Owner’s
Manual” or “Navigation System
Owner’s Manual”.)
●Dynamic radar cruise control dis-
play* (if equipped) ( P. 313)
●Dynamic radar cruise control
with full-speed range display* (if
equipped) ( P. 328)
●LKA (Lane-Keeping Assist) dis-
play* (if equipped) ( P. 344)
Multi-information display
Display contents

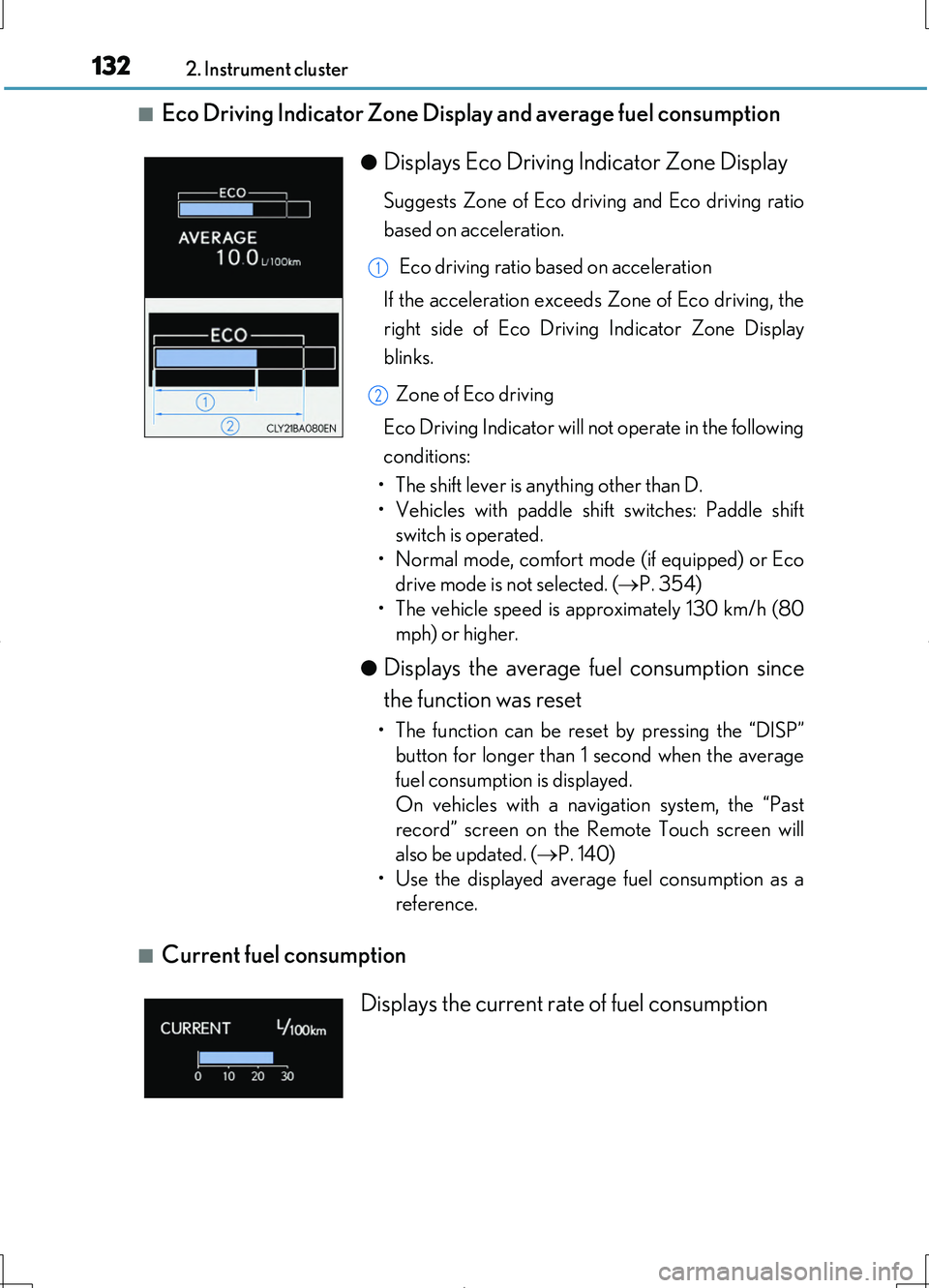

1322. Instrument cluster
LS460/LS460L_GE (OM50G06E)
■Eco Driving Indicator Zone Display and average fuel consumption
■Current fuel consumption
●Displays Eco Driving Indicator Zone Display
Suggests Zone of Eco driving and Eco driving ratio
based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driving, the
right side of Eco Driving Indicator Zone Display
blinks.
Zone of Eco driving
Eco Driving Indicator will not operate in the following
conditions:
• The shift lever is anything other than D.
• Vehicles with paddle shift switches: Paddle shift
switch is operated.
• Normal mode, comfort mode (if equipped) or Eco
drive mode is not selected. ( P. 354)
• The vehicle speed is approximately 130 km/h (80
mph) or higher.
●Displays the average fuel consumption since
the function was reset
• The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
On vehicles with a navigation system, the “Past
record” screen on the Remote Touch screen will
also be updated. ( P. 140)
• Use the displayed average fuel consumption as a
reference.
1
2
Displays the current rate of fuel consumption

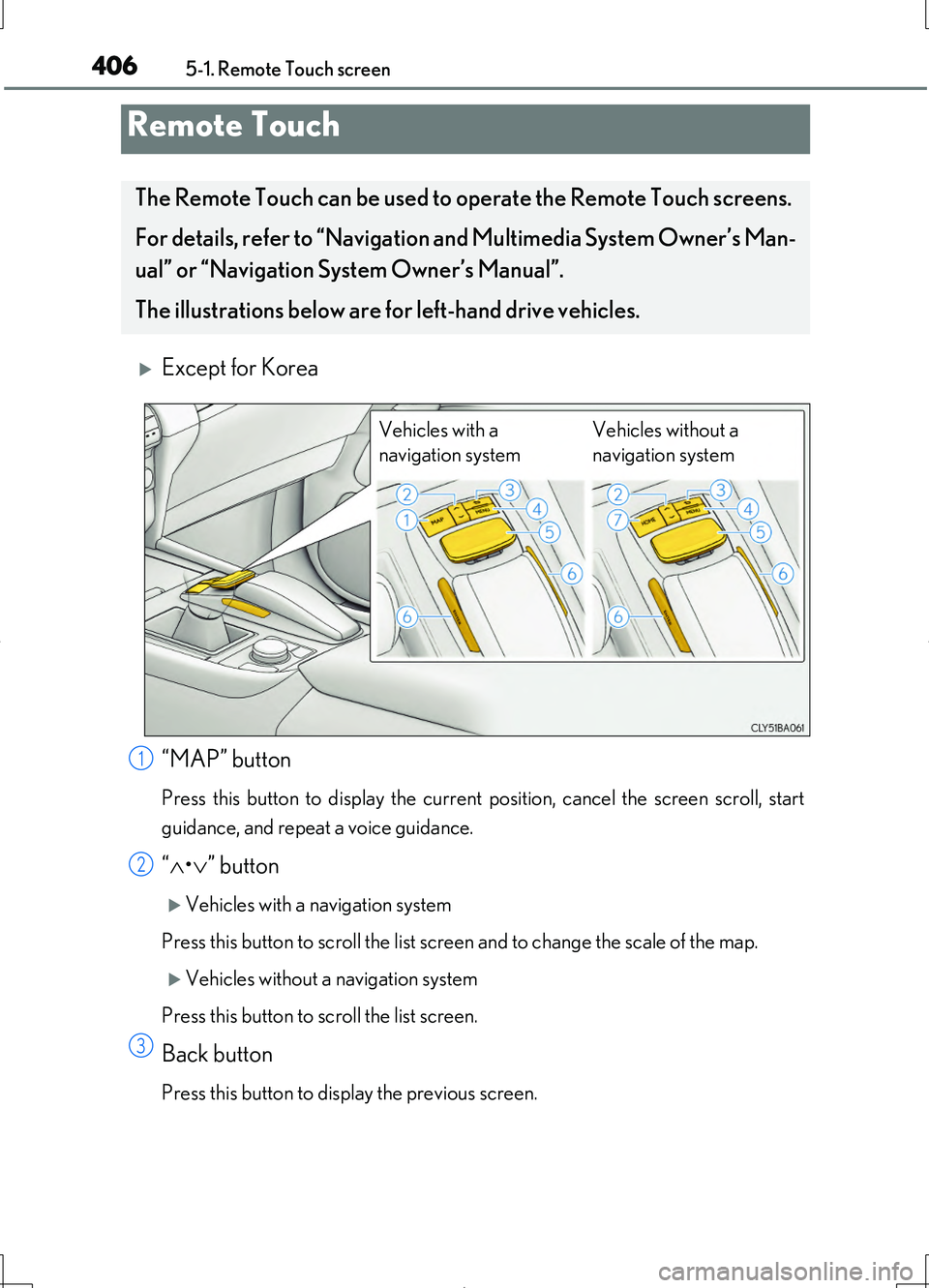

406
LS460/LS460L_GE (OM50G06E)
5-1. Remote Touch screen
Except for Korea
“MAP” button
Press this button to display the current position, cancel the screen scroll, start
guidance, and repeat a voice guidance.
“ •” button
Vehicles with a navigation system
Press this button to scroll the list screen and to change the scale of the map.
Vehicles without a navigation system
Press this button to scroll the list screen.
Back button
Press this button to display the previous screen.
Remote Touch
The Remote Touch can be used to operate the Remote Touch screens.
For details, refer to “Navigation and Multimedia System Owner’s Man-
ual” or “Navigation System Owner’s Manual”.
The illustrations below are for left-hand drive vehicles.
Vehicles with a
navigation system
Vehicles without a
navigation system
1
2
3

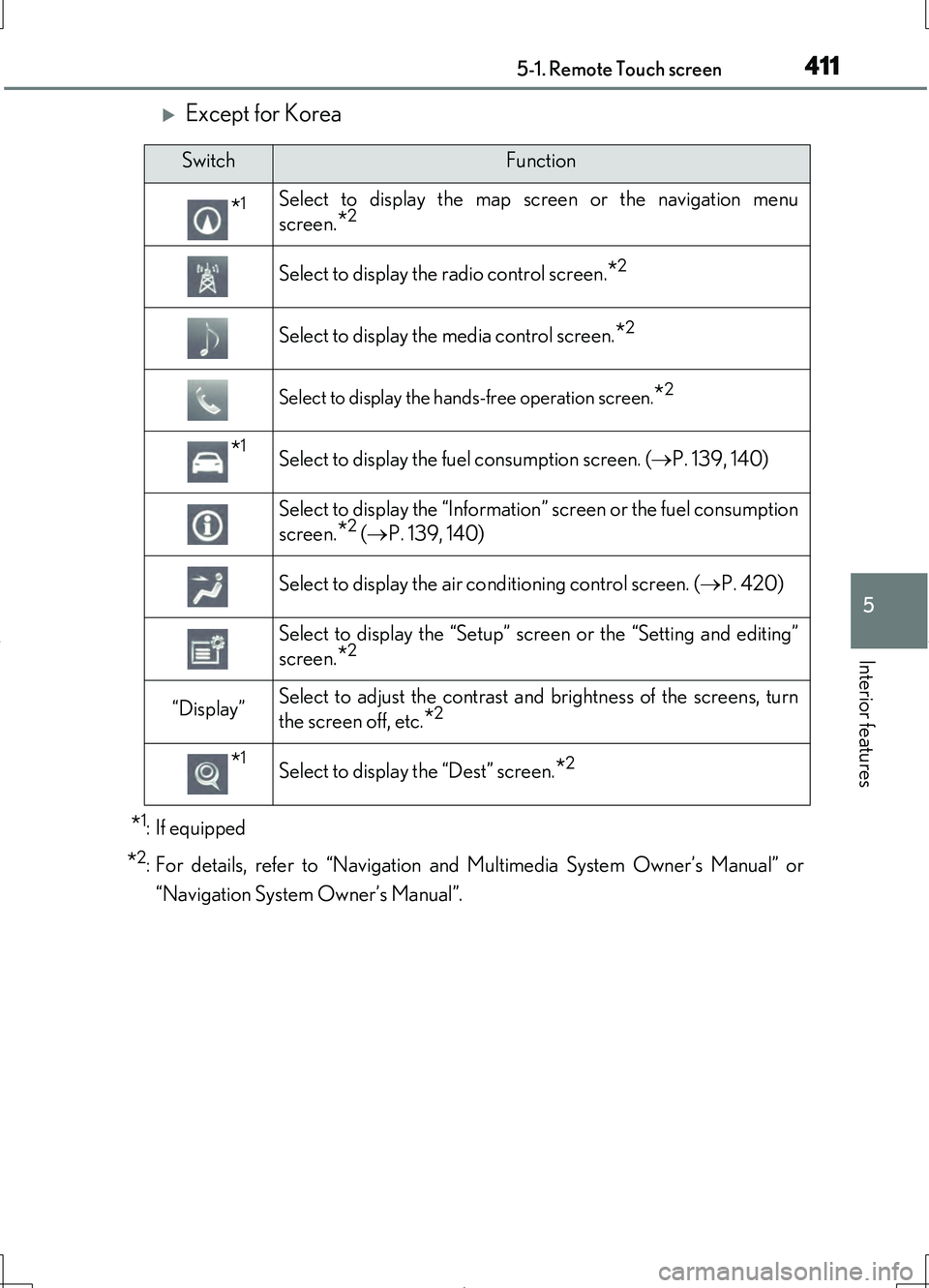

4115-1. Remote Touch screen
5
Interior features
LS460/LS460L_GE (OM50G06E)
Except for Korea
*1: If equipped
*2:For details, refer to “Navigation and Multimedia System Owner’s Manual” or
“Navigation System Owner’s Manual”.
SwitchFunction
*1Select to display the map screen or the navigation menu
screen.
*2
Select to display the radio control screen.*2
Select to display the media control screen.*2
Select to display the hand s-free operation screen.*2
*1Select to display the fuel consumption screen. ( P. 139, 140)
Select to display the “Information” screen or the fuel consumption
screen.
*2 (  P. 139, 140)
Select to display the air conditioning control screen. ( P. 420)
Select to display the “Setup” screen or the “Setting and editing”
screen.
*2
“Display”Select to adjust the contrast and brightness of the screens, turn
the screen off, etc.
*2
*1Select to display the “Dest” screen.*2

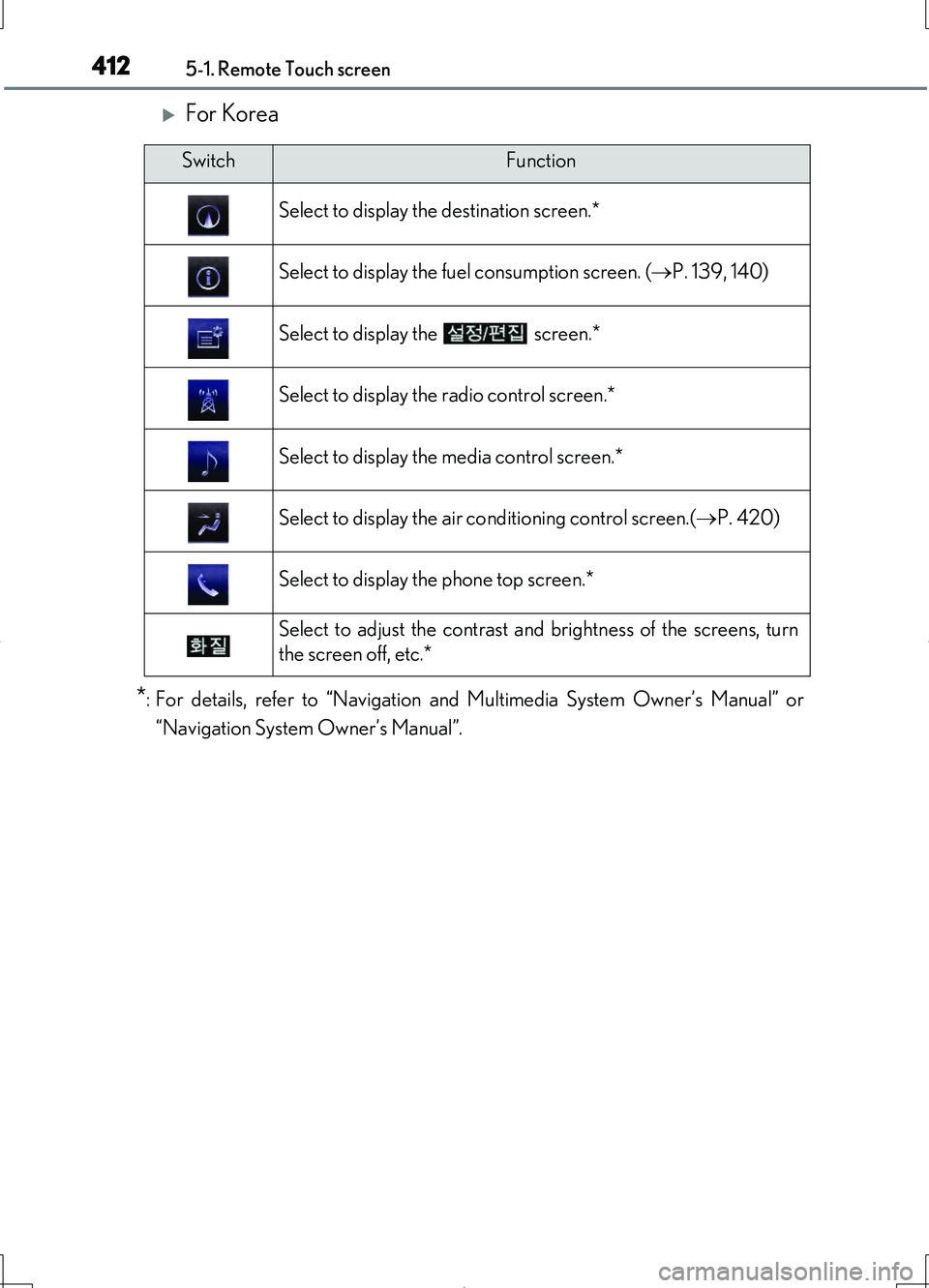

4125-1. Remote Touch screen
LS460/LS460L_GE (OM50G06E)
For Korea
*:For details, refer to “Navigation and Multimedia System Owner’s Manual” or
“Navigation System Owner’s Manual”.
SwitchFunction
Select to display the destination screen.*
Select to display the fuel consumption screen. ( P. 139, 140)
Select to display the screen.*
Select to display the radio control screen.*
Select to display the media control screen.*
Select to display the air conditioning control screen.( P. 420)
Select to display the phone top screen.*
Select to adjust the contrast and brightness of the screens, turn
the screen off, etc.*

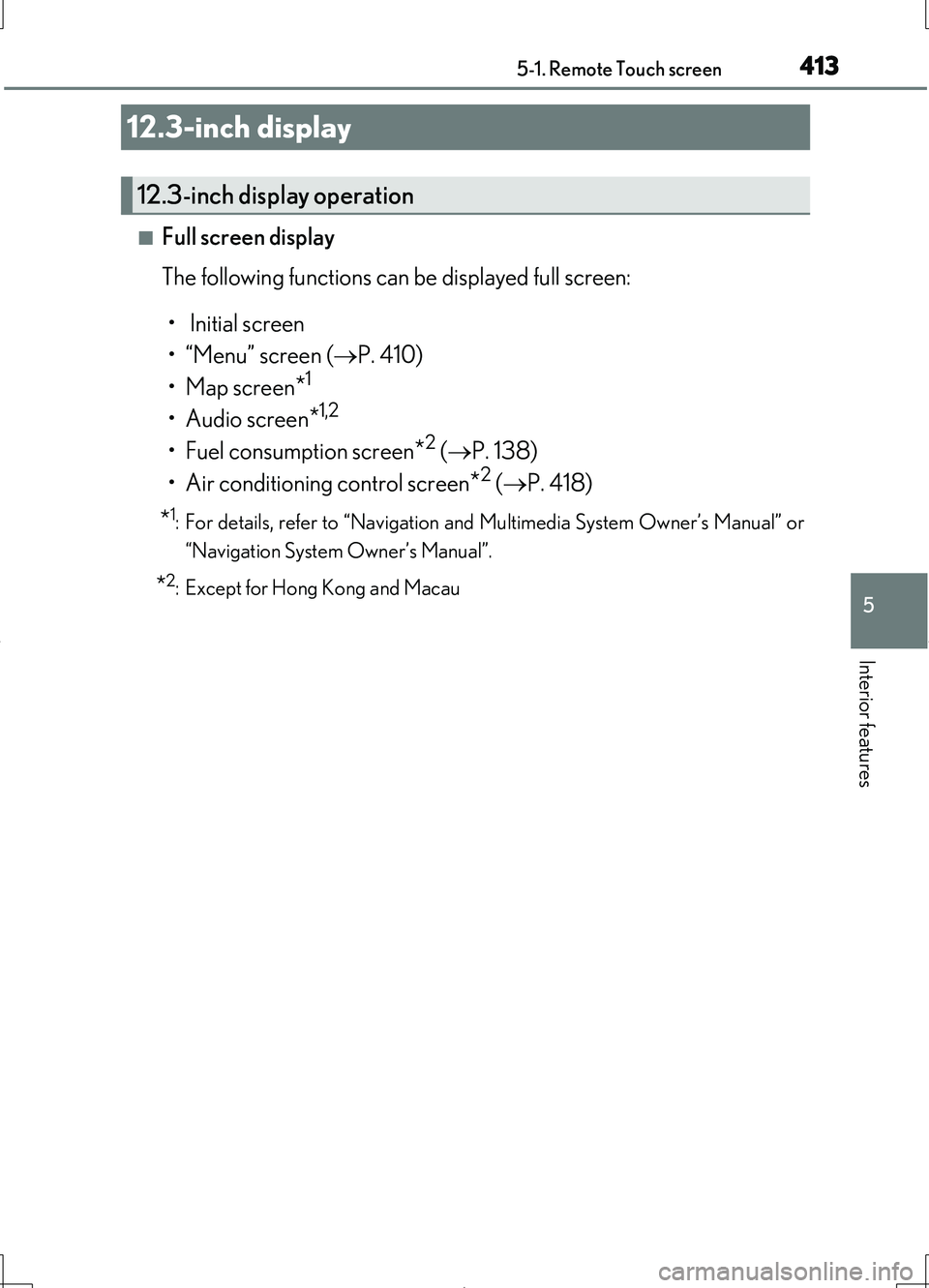

4135-1. Remote Touch screen
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Full screen display
The following functions can be displayed full screen:
• Initial screen
•“Menu” screen ( P. 410)
•Map screen*1
•Audio screen*1,2
• Fuel consumption screen*2 ( P. 138)
• Air conditioning control screen*2 ( P. 418)
*1: For details, refer to “Navigation and Multimedia System Owner’s Manual” or
“Navigation System Owner’s Manual”.
*2: Except for Hong Kong and Macau
12.3-inch display
12.3-inch display operation

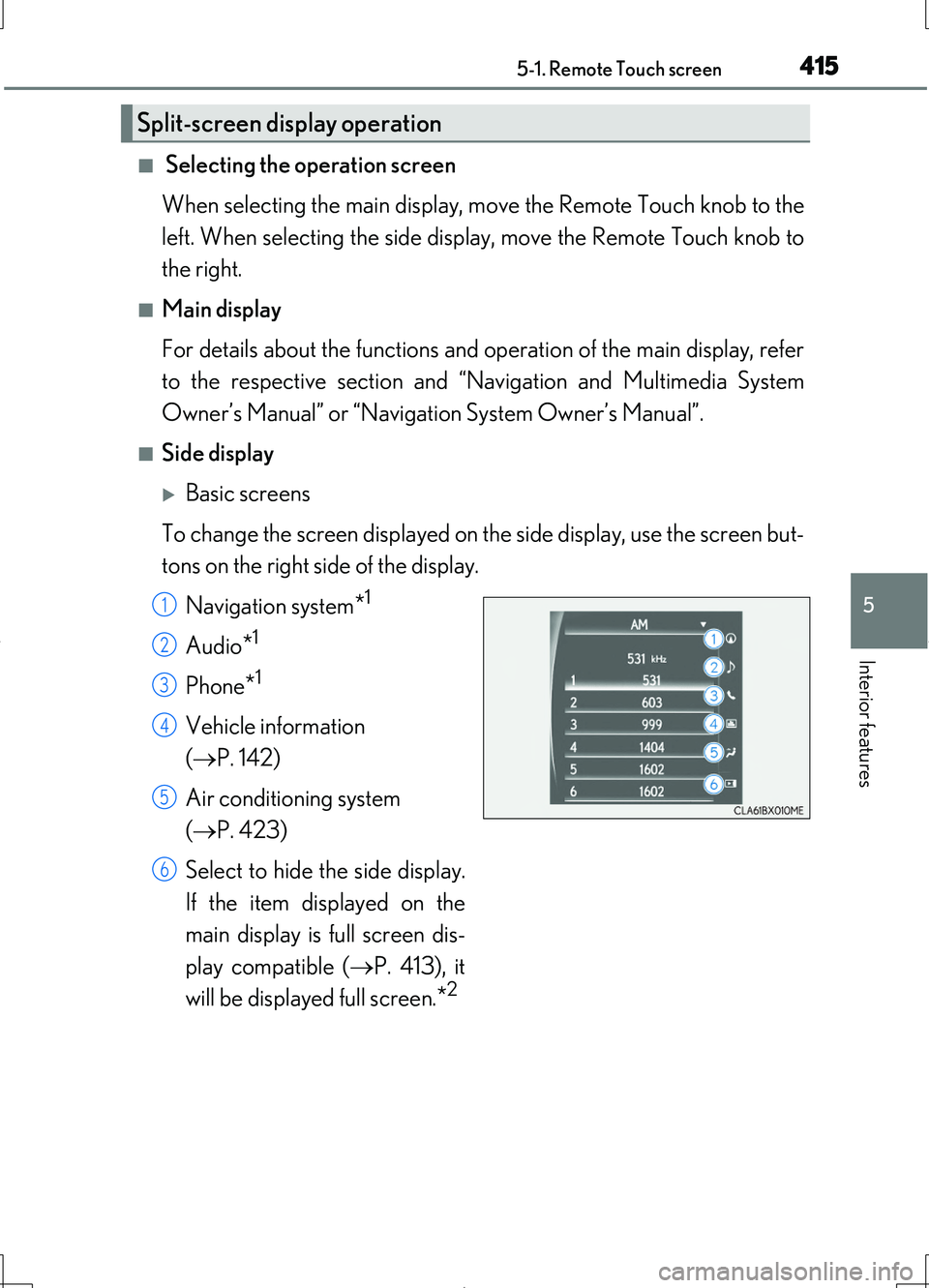

4155-1. Remote Touch screen
5
Interior features
LS460/LS460L_GE (OM50G06E)
■ Selecting the operation screen
When selecting the main display, move the Remote Touch knob to the
left. When selecting the side display, move the Remote Touch knob to
the right.
■Main display
For details about the functions and operation of the main display, refer
to the respective section and “Navigation and Multimedia System
Owner’s Manual” or “Navigation System Owner’s Manual”.
■Side display
Basic screens
To change the screen displayed on th e side display, use the screen but-
tons on the right side of the display.
Navigation system*1
Audio*1
Phone*1
Vehicle information
( P. 142)
Air conditioning system
( P. 423)
Select to hide the side display.
If the item displayed on the
main display is full screen dis-
play compatible ( P. 413), it
will be displayed full screen.*2
Split-screen display operation
1
2
3
4
5
6

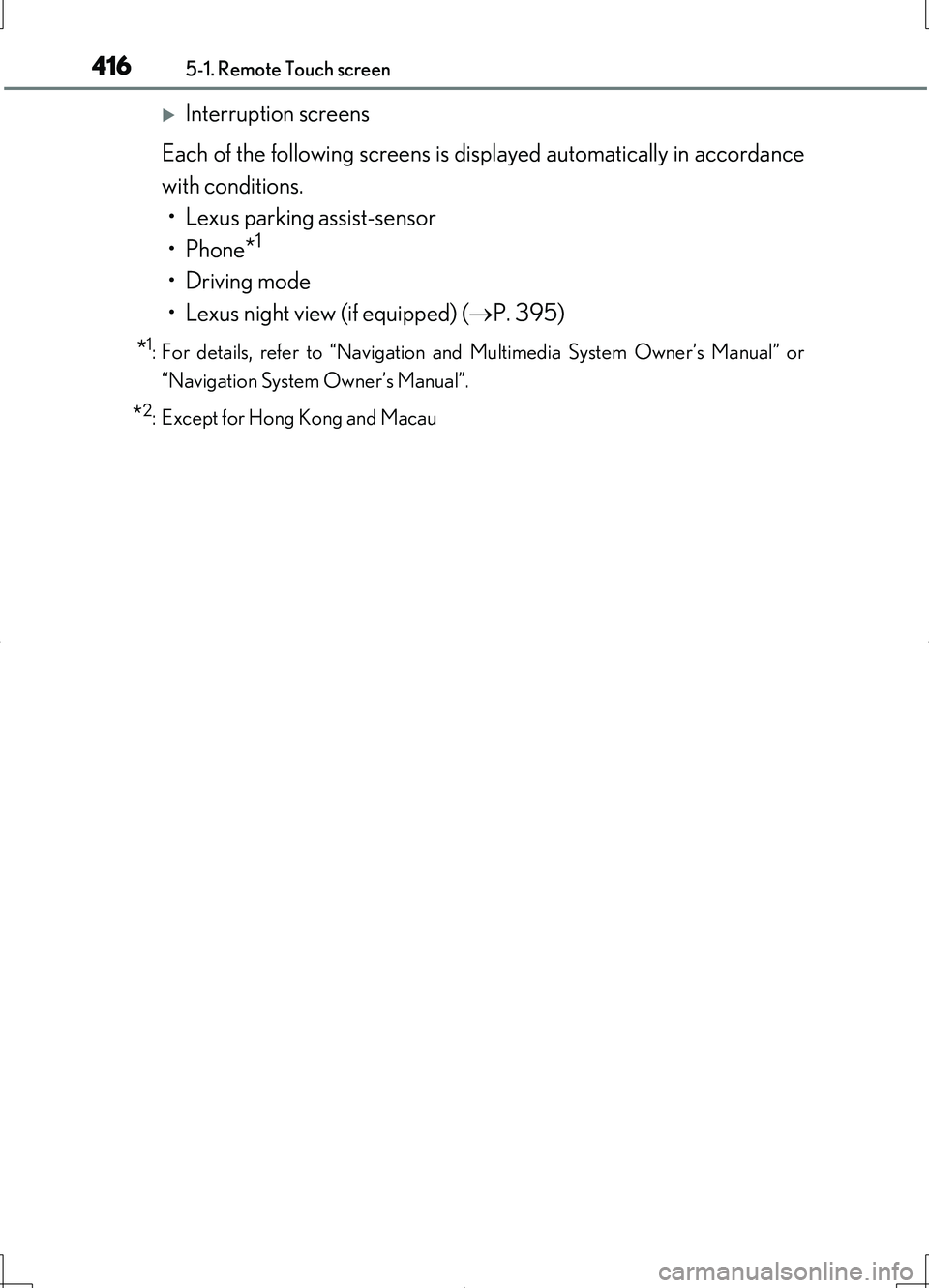

4165-1. Remote Touch screen
LS460/LS460L_GE (OM50G06E)
Interruption screens
Each of the following screens is displayed automatically in accordance
with conditions.
• Lexus parking assist-sensor
•Phone*1
• Driving mode
• Lexus night view (if equipped) ( P. 395)
*1: For details, refer to “Navigation and Multimedia System Owner’s Manual” or
“Navigation System Owner’s Manual”.
*2: Except for Hong Kong and Macau
