LEXUS LS460L 2016 Owners Manual

2614-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
■Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes with the shift
lever in P, the engine switch will automatically turn off.
■Electronic key battery depletion
 P. 166
■Conditions affecting operation
 P. 163
■Notes for the entry function
 P. 164
■If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 104)
Contact your Lexus dealer.
■Steering lock
After turning the engine switch off and opening and closing the doors, the steering
wheel will be locked due to the steering lock function. Operating the engine switch
again automatically cancels the steering lock.
■When the steering lock cannot be released
■Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be suspended if
the engine is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine. After about 10 seconds, the steering lock motor
will resume functioning.
The green indicator light on the engine switch
will flash and a message will be shown on the
multi-information display. Press the engine
switch again while turning the steering wheel
left and right.

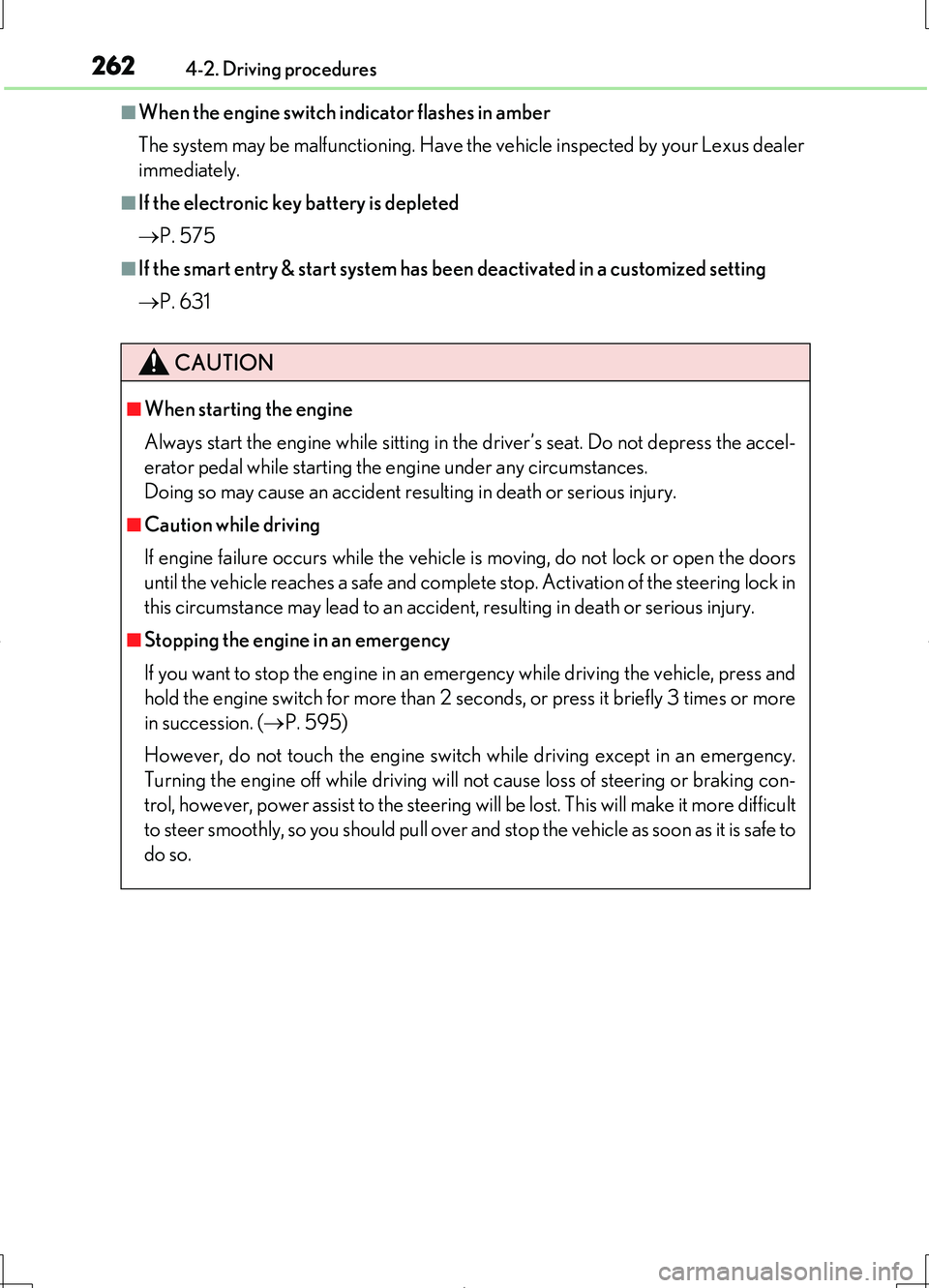

2624-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
■When the engine switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer
immediately.
■If the electronic key battery is depleted
 P. 575
■If the smart entry & start system has been deactivated in a customized setting
 P. 631
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the accel-
erator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the doors
until the vehicle reaches a safe and complete stop. Activation of the steering lock in
this circumstance may lead to an accident, resulting in death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, press and
hold the engine switch for more than 2 seconds, or press it briefly 3 times or more
in succession. ( P. 595)
However, do not touch the engine switch while driving except in an emergency.
Turning the engine off while driving will no t cause loss of steering or braking con-
trol, however, power assist to the steering w ill be lost. This will make it more difficult
to steer smoothly, so you should pull over and stop the vehicle as soon as it is safe to
do so.

2634-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
NOTICE
■To prevent battery discharge
Do not leave the engine switch in ACCESSORY or IGNITION ON mode for long
periods of time without the engine running.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle
checked by your Lexus dealer immediately.
■Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual, such as
the switch sticking slightly, there may be a malfunction. Contact your Lexus dealer
immediately.

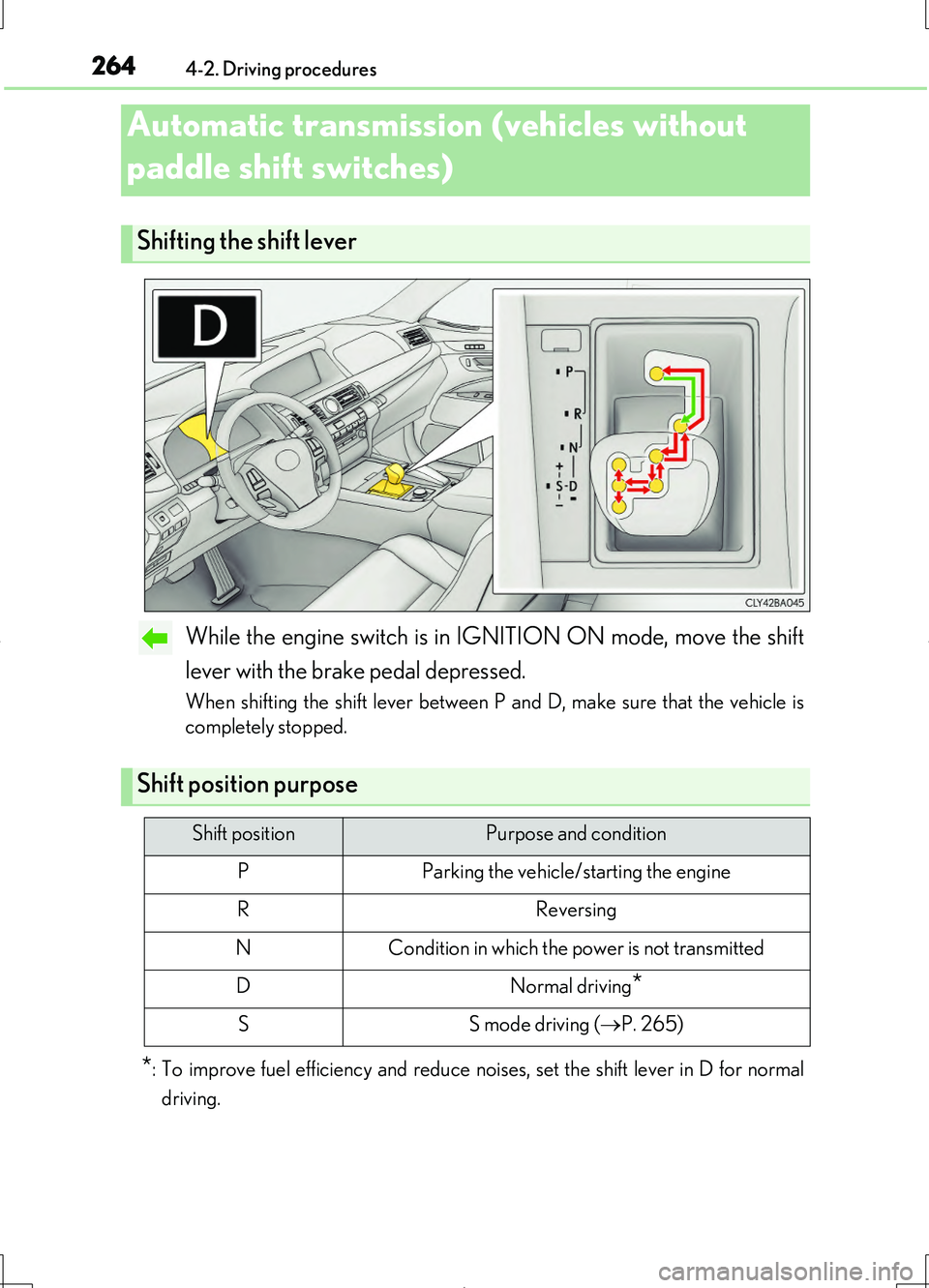

2644-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
While the engine switch is in IGNITION ON mode, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
*: To improve fuel efficiency and reduce noises, set the shift lever in D for normal
driving.
Automatic transmission (vehicles without
paddle shift switches)
Shifting the shift lever
Shift position purpose
Shift positionPurpose and condition
PParking the vehicle/starting the engine
RReversing
NCondition in which the power is not transmitted
DNormal driving*
SS mode driving ( P. 265)

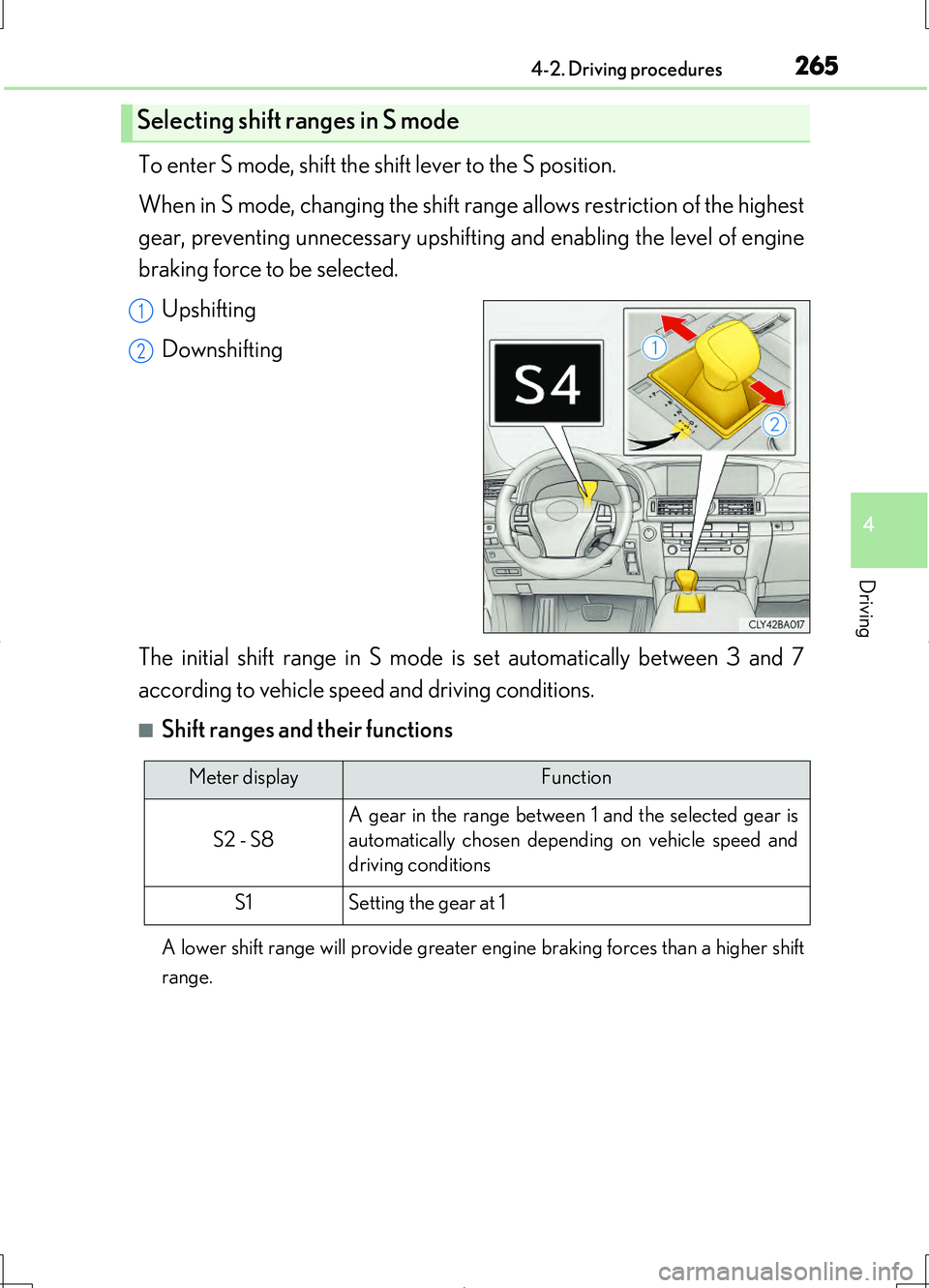

2654-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
To enter S mode, shift the shift lever to the S position.
When in S mode, changing the shift range allows restriction of the highest
gear, preventing unnecessary upshifting and enabling the level of engine
braking force to be selected.
Upshifting
Downshifting
The initial shift range in S mode is set automatically between 3 and 7
according to vehicle speed and driving conditions.
■Shift ranges and their functions
A lower shift range will provide greater engine braking forces than a higher shift
range.
Selecting shift ranges in S mode
1
2
Meter displayFunction
S2 - S8
A gear in the range between 1 and the selected gear is
automatically chosen depending on vehicle speed and
driving conditions
S1Setting the gear at 1

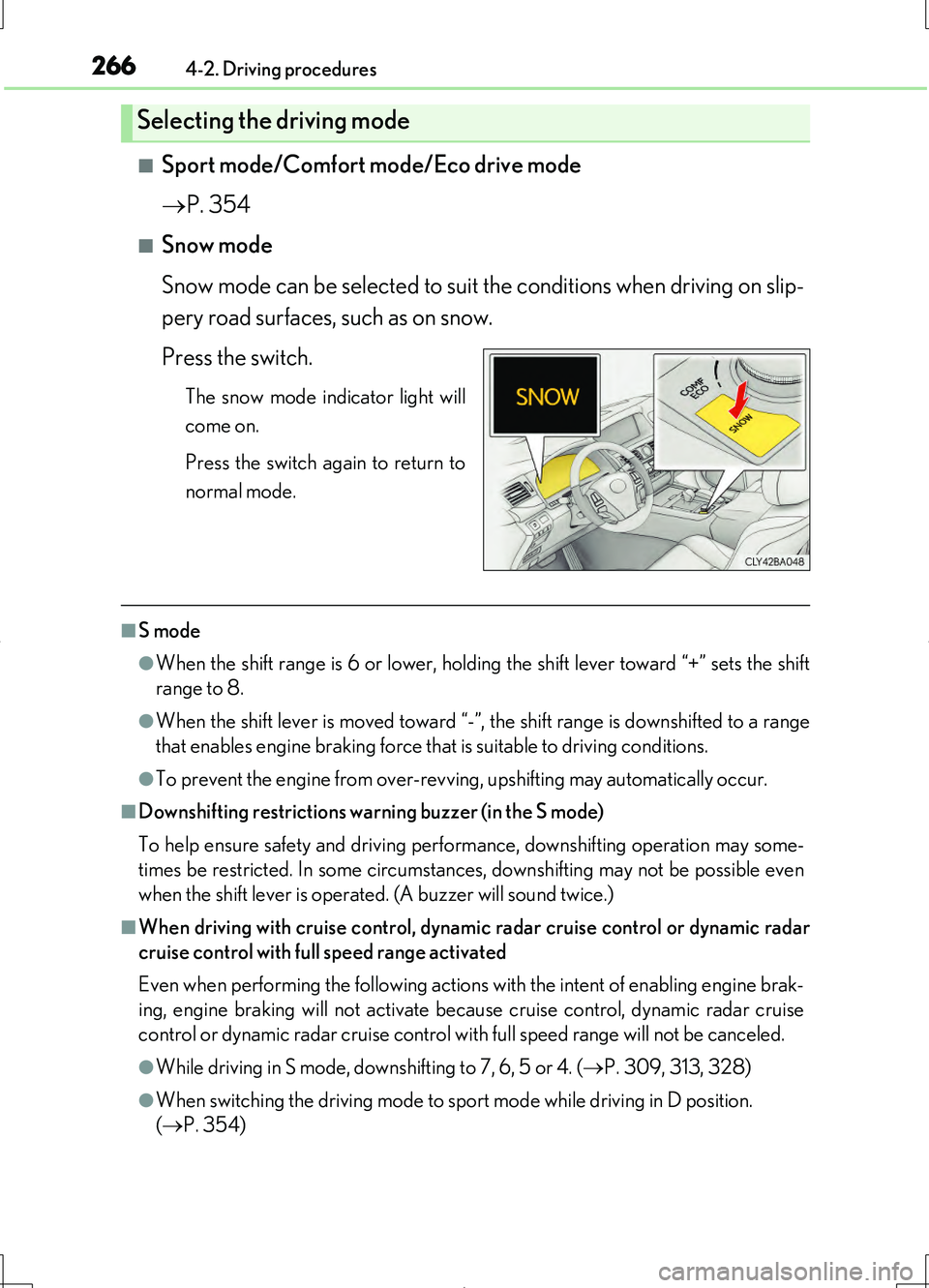

2664-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
■Sport mode/Comfort mode/Eco drive mode
 P. 354
■Snow mode
Snow mode can be selected to suit the conditions when driving on slip-
pery road surfaces, such as on snow.
Press the switch.
The snow mode indicator light will
come on.
Press the switch again to return to
normal mode.
■S mode
●When the shift range is 6 or lower, holdin g the shift lever toward “+” sets the shift
range to 8.
●When the shift lever is moved toward “-”, the shift range is downshifted to a range
that enables engine braking force that is suitable to driving conditions.
●To prevent the engine from over-revving, upshifting may automatically occur.
■Downshifting restrictions warning buzzer (in the S mode)
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (A buzzer will sound twice.)
■When driving with cruise control, dynamic radar cruise control or dynamic radar
cruise control with full speed range activated
Even when performing the following actions with the intent of enabling engine brak-
ing, engine braking will not activate because cruise control, dynamic radar cruise
control or dynamic radar cruise control with full speed range will not be canceled.
●While driving in S mode, downshifting to 7, 6, 5 or 4. ( P. 309, 313, 328)
●When switching the driving mode to sport mode while driving in D position.
( P. 354)
Selecting the driving mode

2674-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the engine switch is turned off after driv-
ing in snow mode.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift lever in
starting.
The shift lever can be shifted from P only when the engine switch is in IGNITION
ON mode and the brake pedal is being depressed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may be a
problem with the shift lock system. Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that the shift
lever can be shifted.
Releasing the shift lock:
Turn the engine switch to IGNITION ON mode ( P. 260) and check that the
parking brake is set.
Turn the engine switch off.
Depress the brake pedal.
Left-hand drive vehicles
1
2
3
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
4
5

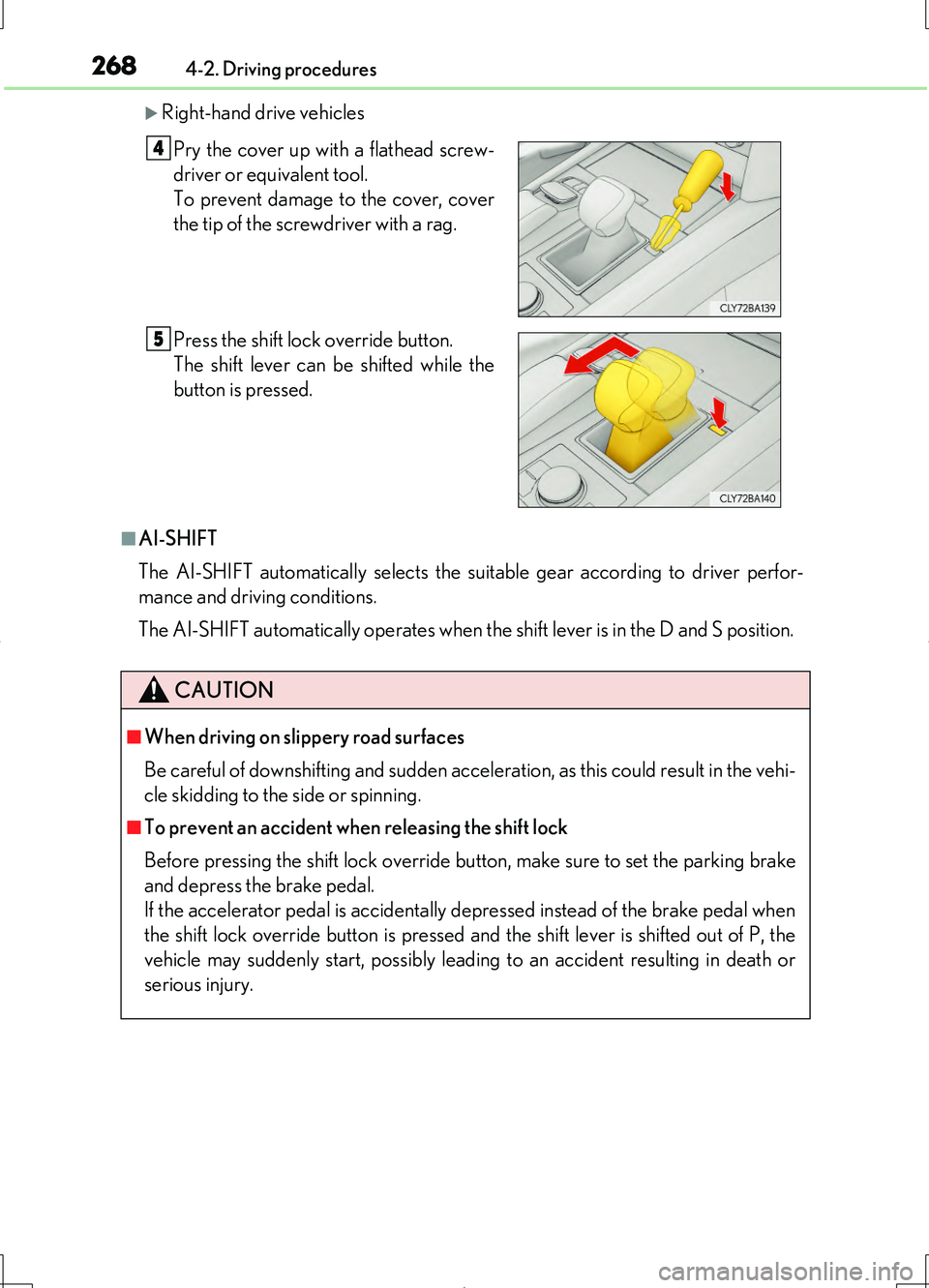

2684-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
Right-hand drive vehicles
■AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D and S position.
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damage to the cover, cover
the tip of the screwdriver with a rag.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehi-
cle skidding to the side or spinning.
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking brake
and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal when
the shift lock override button is pressed and the shift lever is shifted out of P, the
vehicle may suddenly start, possibly leading to an accident resulting in death or
serious injury.
4
5

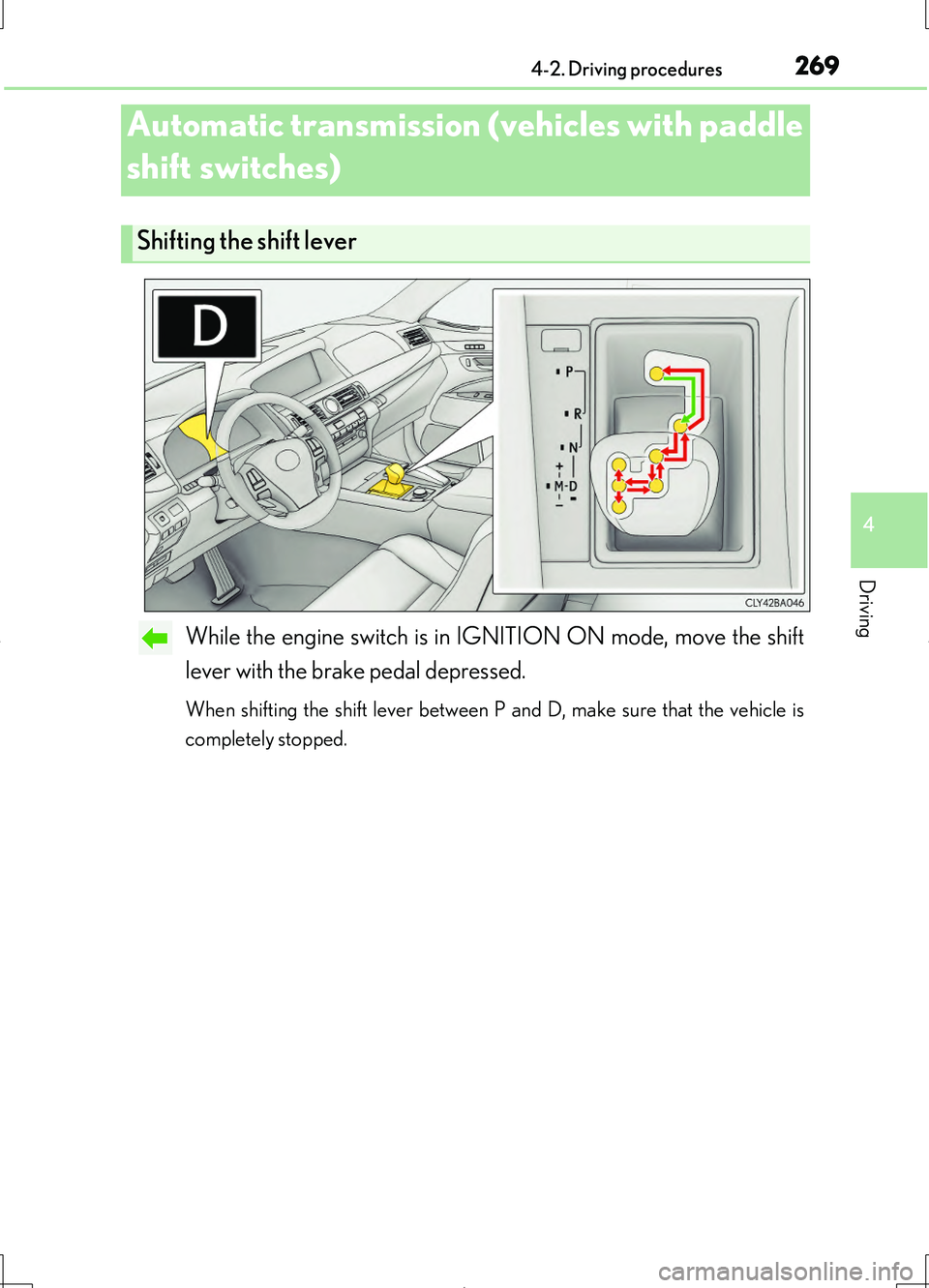

2694-2. Driving procedures
4
Driving
LS460/LS460L_GE (OM50G06E)
While the engine switch is in IGNITION ON mode, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the vehicle is
completely stopped.
Automatic transmission (vehicles with paddle
shift switches)
Shifting the shift lever

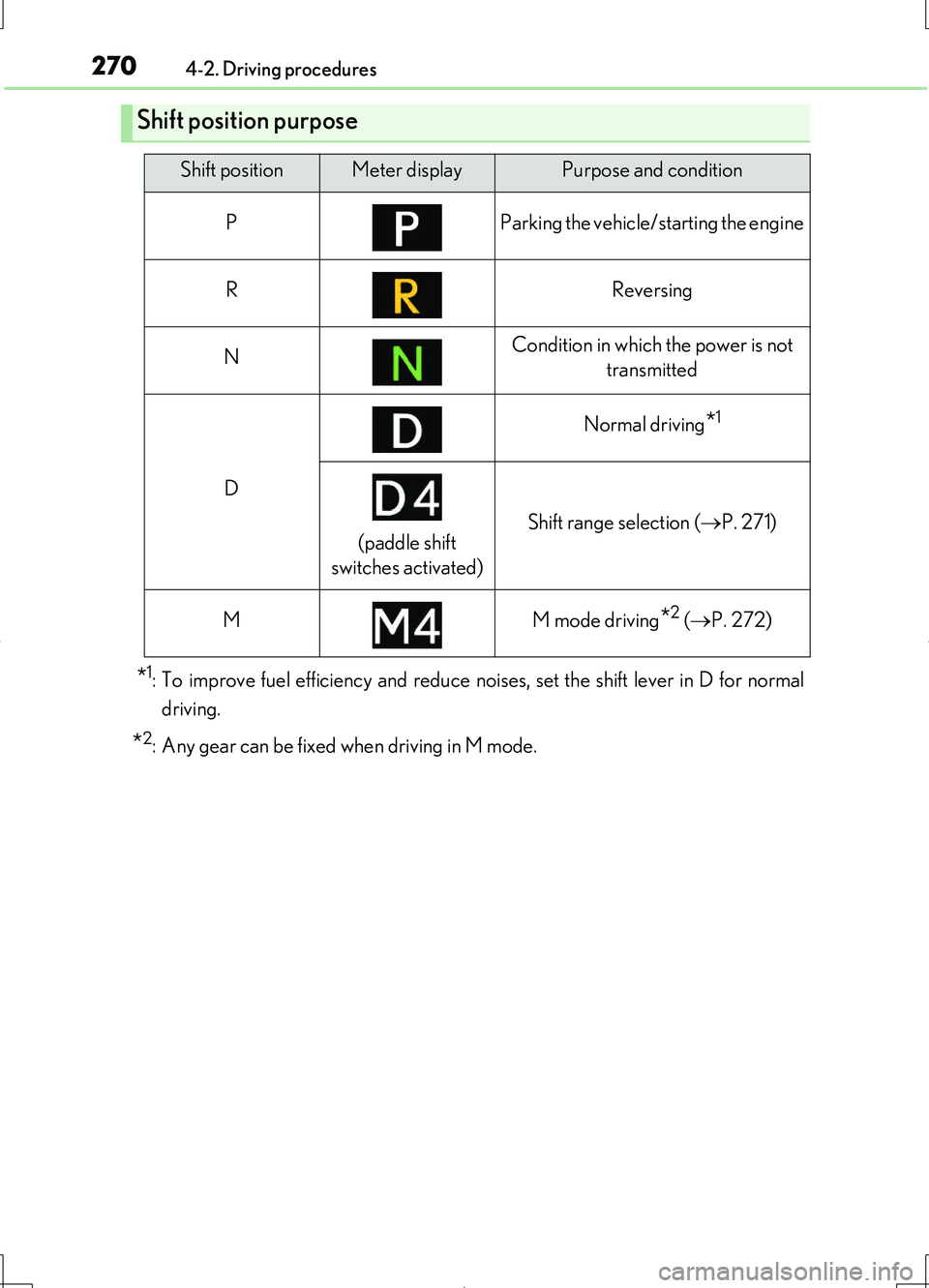

2704-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for normal
driving.
*2: Any gear can be fixed when driving in M mode.
Shift position purpose
Shift positionMeter displayPurpose and condition
PParking the vehicle/starting the engine
RReversing
NCondition in which the power is not
transmitted
D
Normal driving*1
(paddle shift
switches activated)
Shift range selection ( P. 271)
MM mode driving*2 (P. 272)
