LEXUS LS460L 2016 Owners Manual

4215-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)

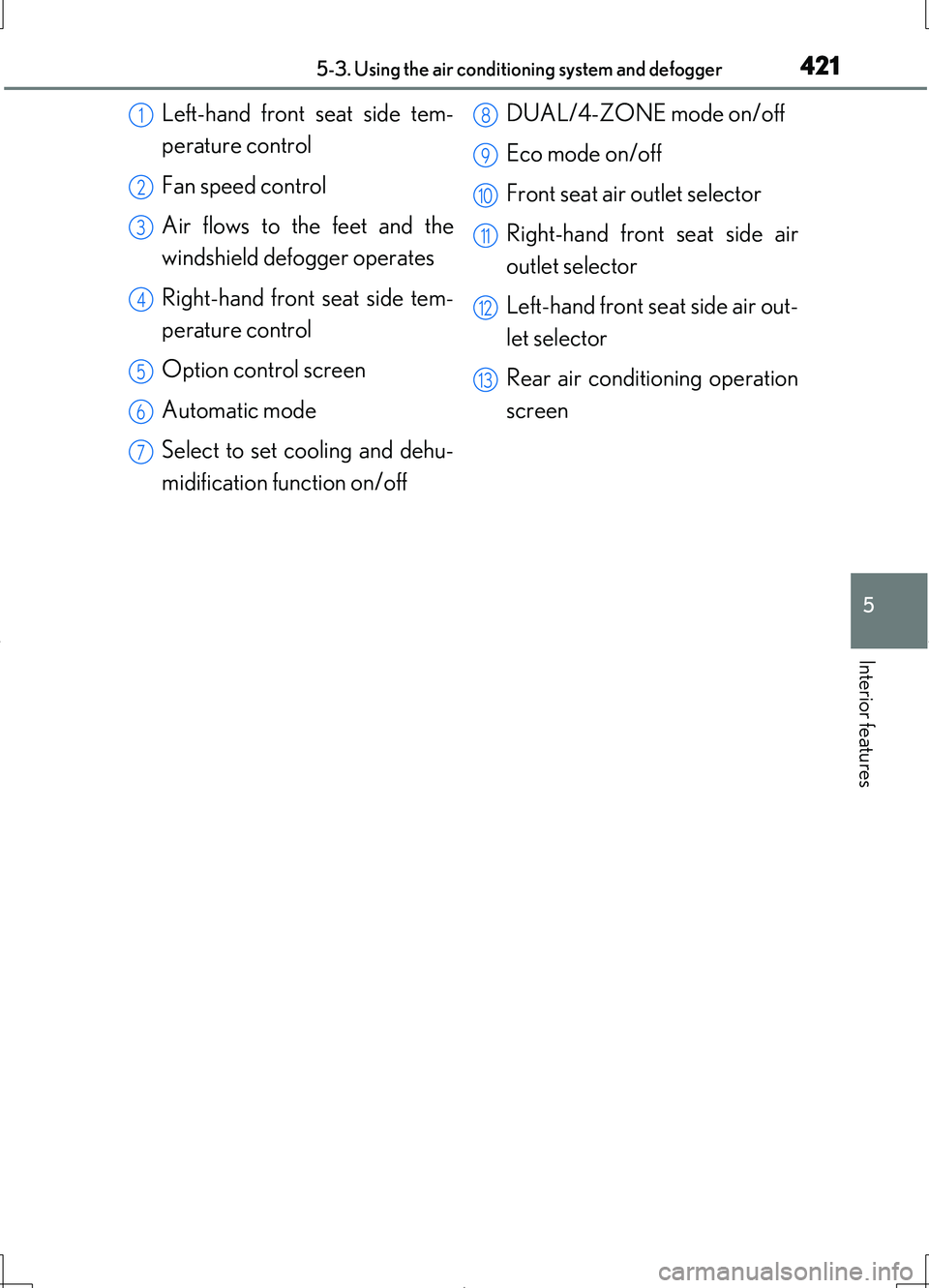

Left-hand front seat side tem-
perature control
Fan speed control
Air flows to the feet and the
windshield defogger operates
Right-hand front seat side tem-
perature control
Option control screen
Automatic mode
Select to set cooling and dehu-
midification function on/off
DUAL/4-ZONE mode on/off
Eco mode on/off
Front seat air outlet selector
Right-hand front seat side air
outlet selector
Left-hand front seat side air out-
let selector
Rear air conditioning operation
screen
1
2
3
4
5
6
7
8
9
10
11
12
13

4225-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

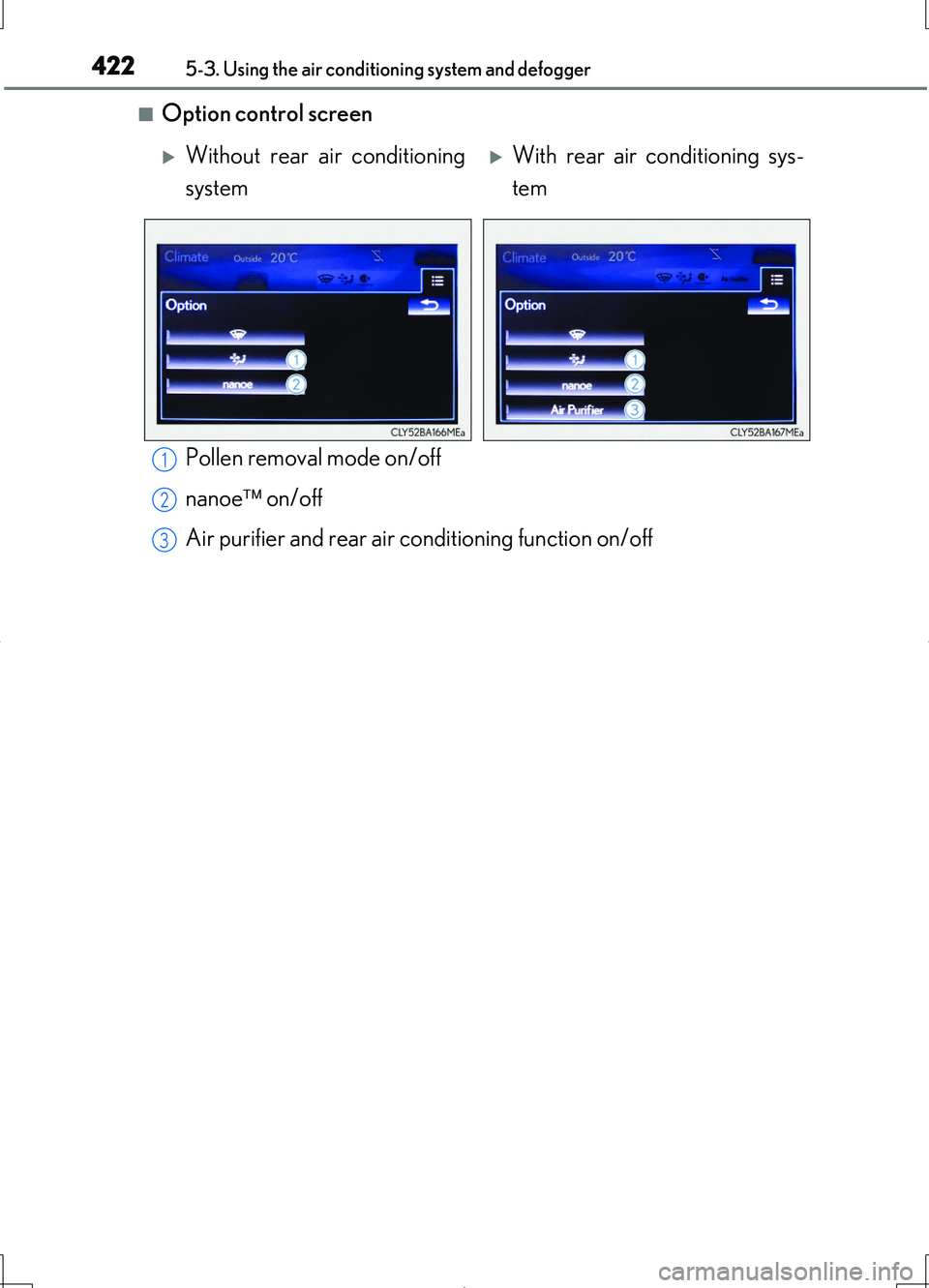

■Option control screen
Pollen removal mode on/off
nanoe  on/off
Air purifier and rear air conditioning function on/off
Without rear air conditioning
system
With rear air conditioning sys-
tem
1
2
3

4235-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)

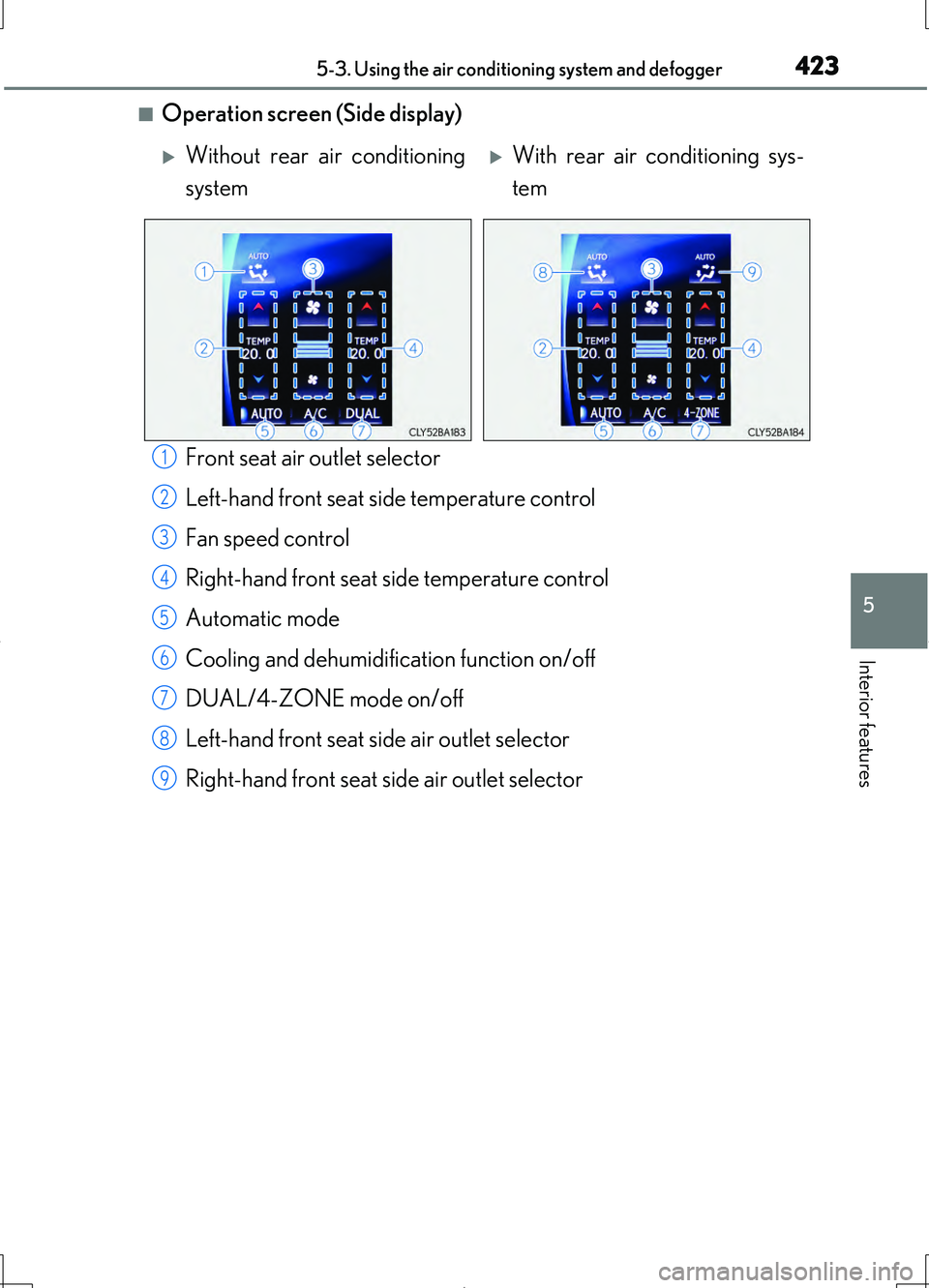

■Operation screen (Side display)
Front seat air outlet selector
Left-hand front seat side temperature control
Fan speed control
Right-hand front seat side temperature control
Automatic mode
Cooling and dehumidification function on/off
DUAL/4-ZONE mode on/off
Left-hand front seat side air outlet selector
Right-hand front seat si de air outlet selector
Without rear air conditioning
system
With rear air conditioning sys-
tem
1
2
3
4
5
6
7
8
9

4245-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

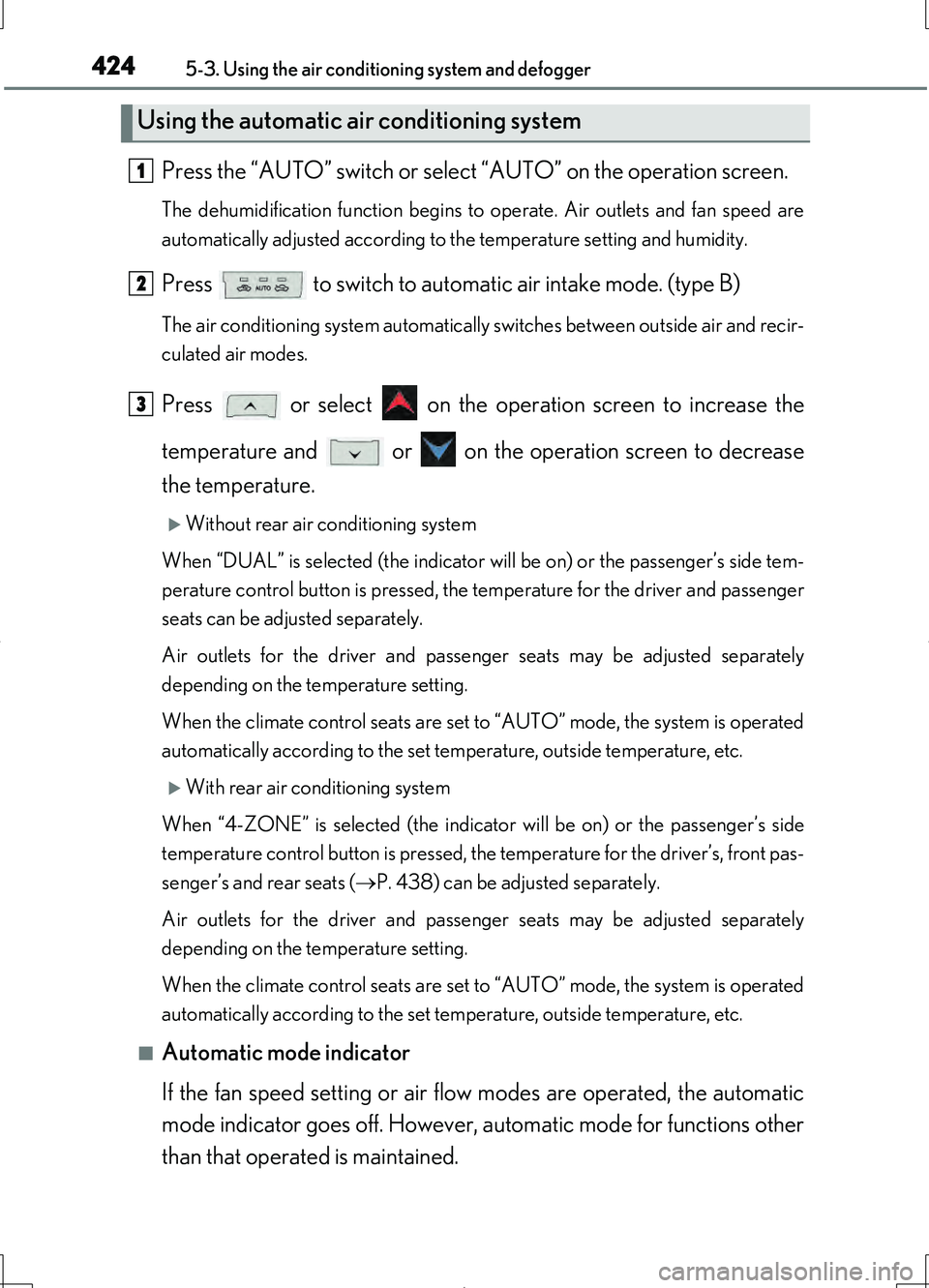

Press the “AUTO” switch or select “AUTO” on the operation screen.
The dehumidification function begins to operate. Air outlets and fan speed are
automatically adjusted according to the temperature setting and humidity.
Press to switch to automatic air intake mode. (type B)
The air conditioning system automatically switches between outside air and recir-
culated air modes.
Press or select on the operation screen to increase the
temperature and or on the operation screen to decrease
the temperature.
Without rear air conditioning system
When “DUAL” is selected (the indicator will be on) or the passenger’s side tem-
perature control button is pressed, the temperature for the driver and passenger
seats can be adjusted separately.
Air outlets for the driver and passenger seats may be adjusted separately
depending on the temperature setting.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
With rear air conditioning system
When “4-ZONE” is selected (the indicator will be on) or the passenger’s side
temperature control button is pressed, the temperature for the driver’s, front pas-
senger’s and rear seats ( P. 438) can be adjusted separately.
Air outlets for the driver and passenger seats may be adjusted separately
depending on the temperature setting.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions other
than that operated is maintained.
Using the automatic air conditioning system
1
2
3

4255-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
Without rear air conditioning system
To adjust the fan speed, press or select on the operation
screen to increase the fan speed and or on the operation
screen to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, press or select on the
operation screen to increase the temperature and or on
the operation screen to decrease the temperature.
The air conditioning system switches between individual and simultaneous modes
each time “DUAL” is selected.
When “DUAL” is selected (the indicator will be on) or the passenger’s side tem-
perature control button is pressed, the temperature for the driver and passenger
seats can be adjusted separately.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
To change the air outlets, press
or select an air outlet
switch.
Adjusting the settings manually
1
2
3

4265-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

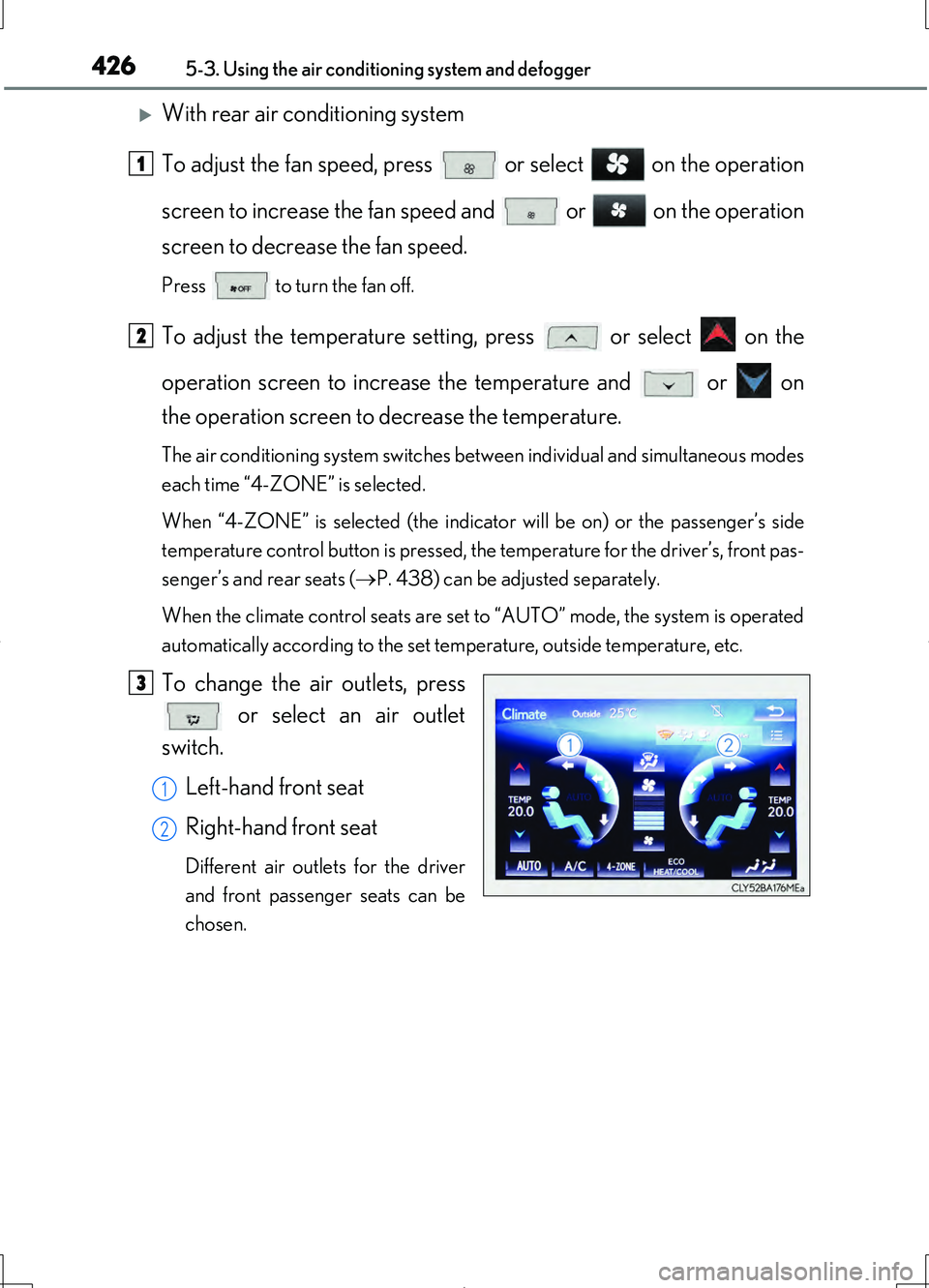

With rear air conditioning system
To adjust the fan speed, press or select on the operation
screen to increase the fan speed and or on the operation
screen to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, press or select on the
operation screen to increase the temperature and or on
the operation screen to decrease the temperature.
The air conditioning system switches between individual and simultaneous modes
each time “4-ZONE” is selected.
When “4-ZONE” is selected (the indicator will be on) or the passenger’s side
temperature control button is pressed, the temperature for the driver’s, front pas-
senger’s and rear seats ( P. 438) can be adjusted separately.
When the climate control seats are set to “AUTO” mode, the system is operated
automatically according to the set temperature, outside temperature, etc.
To change the air outlets, press or select an air outlet
switch.
Left-hand front seat
Right-hand front seat
Different air outlets for the driver
and front passenger seats can be
chosen.
1
2
3
1
2

4275-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)

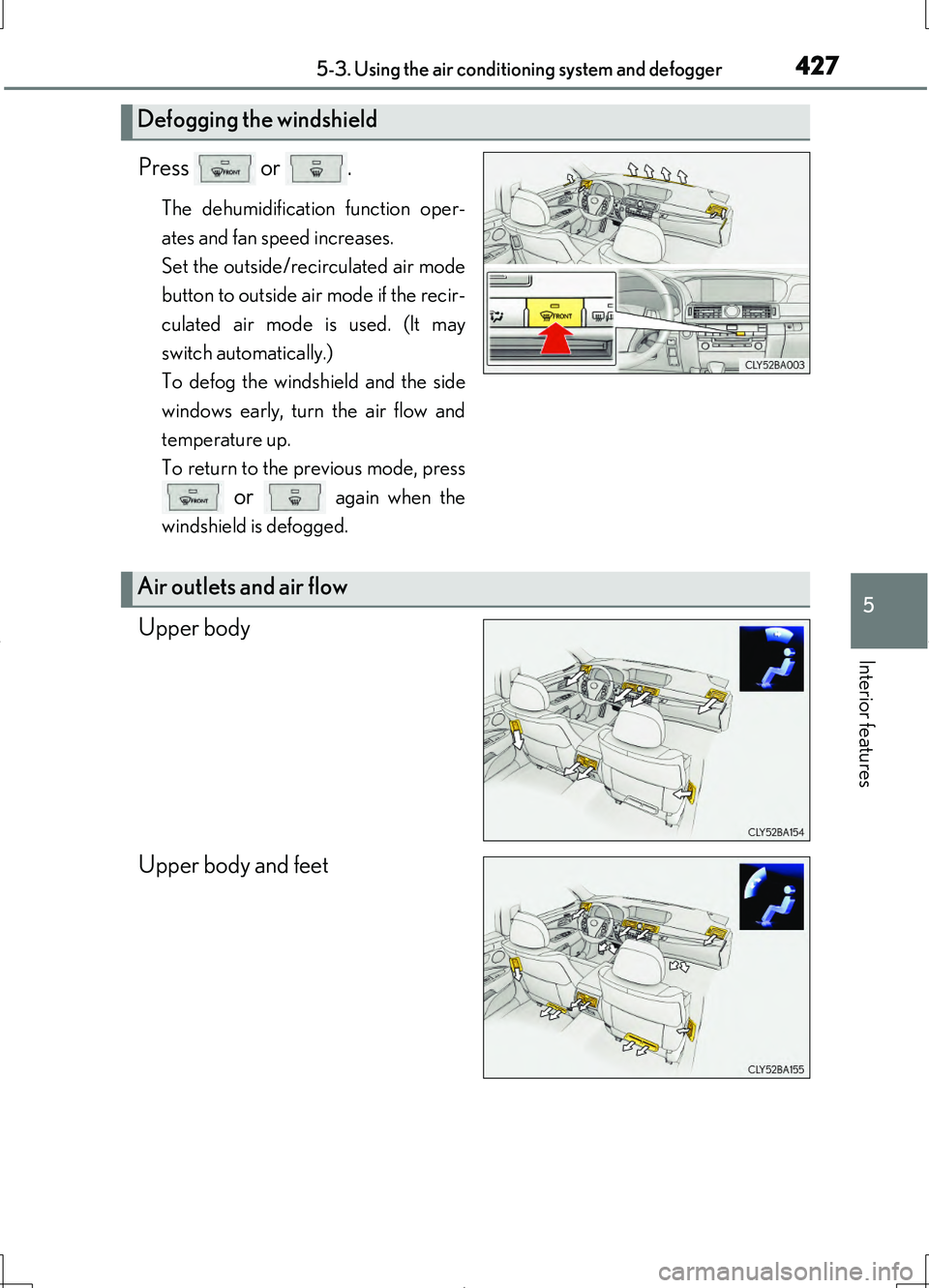

Press or .
The dehumidification function oper-
ates and fan speed increases.
Set the outside/recirculated air mode
button to outside air mode if the recir-
culated air mode is used. (It may
switch automatically.)
To defog the windshield and the side
windows early, turn the air flow and
temperature up.
To return to the previous mode, press
or again when the
windshield is defogged.
Upper body
Upper body and feet
Defogging the windshield
Air outlets and air flow

4285-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

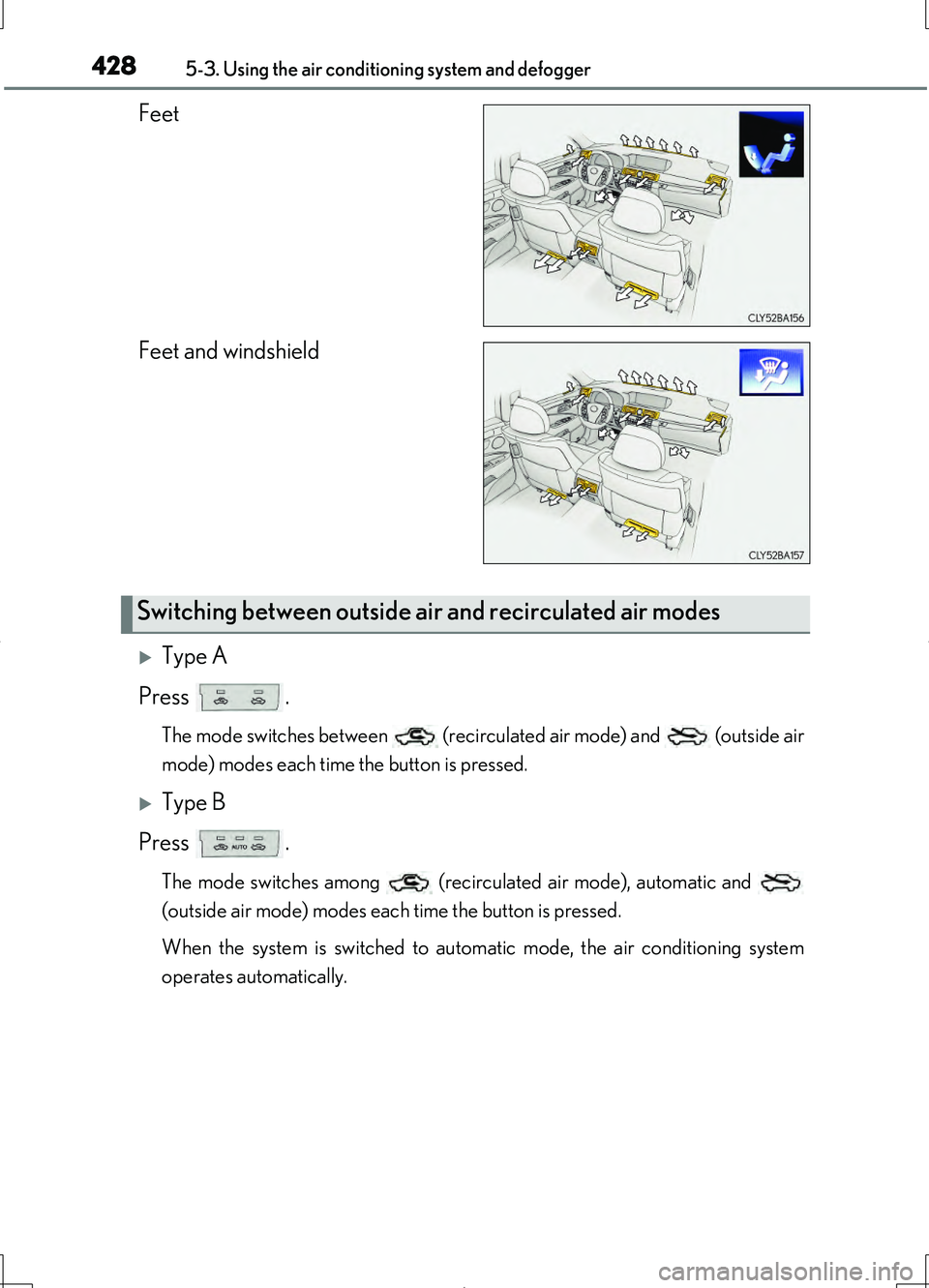

Feet
Feet and windshield
Type A
Press .
The mode switches between (recirculated air mode) and (outside air
mode) modes each time the button is pressed.
Type B
Press .
The mode switches among (recirculated air mode), automatic and
(outside air mode) modes each time the button is pressed.
When the system is switched to automatic mode, the air conditioning system
operates automatically.
Switching between outside air and recirculated air modes

4295-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)

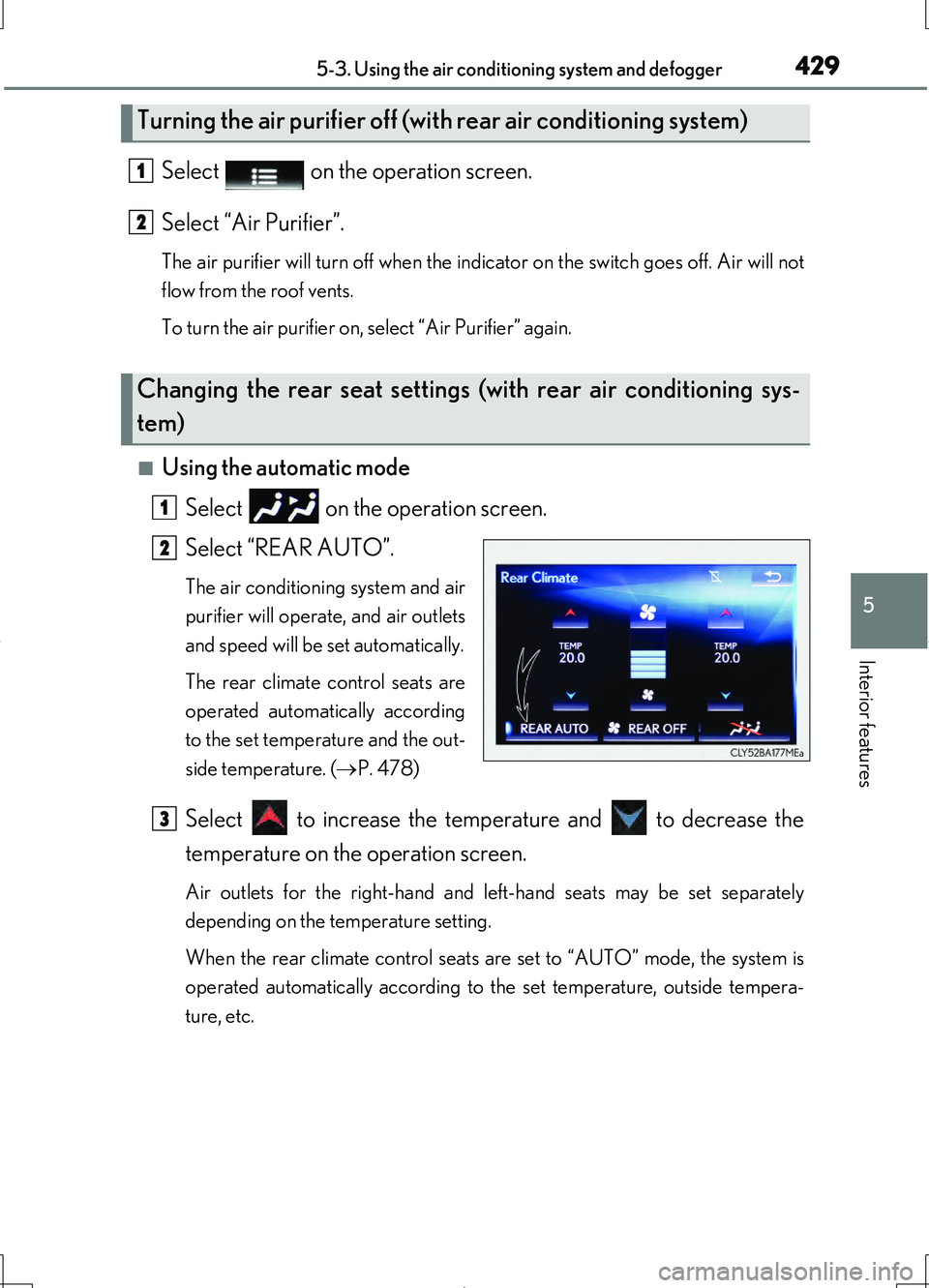

Select on the operation screen.
Select “Air Purifier”.
The air purifier will turn off when the indicator on the switch goes off. Air will not
flow from the roof vents.
To turn the air purifier on, select “Air Purifier” again.
■Using the automatic mode
Select on the operation screen.
Select “REAR AUTO”.
The air conditioning system and air
purifier will operate, and air outlets
and speed will be set automatically.
The rear climate control seats are
operated automatically according
to the set temperature and the out-
side temperature. ( P. 478)
Select to increase the temperature and to decrease the
temperature on the operation screen.
Air outlets for the right-hand and left-hand seats may be set separately
depending on the temperature setting.
When the rear climate control seats are set to “AUTO” mode, the system is
operated automatically according to the set temperature, outside tempera-
ture, etc.
Turning the air purifier off (with rear air conditioning system)
Changing the rear seat settings (with rear air conditioning sys-
tem)
1
2
1
2
3

4305-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)

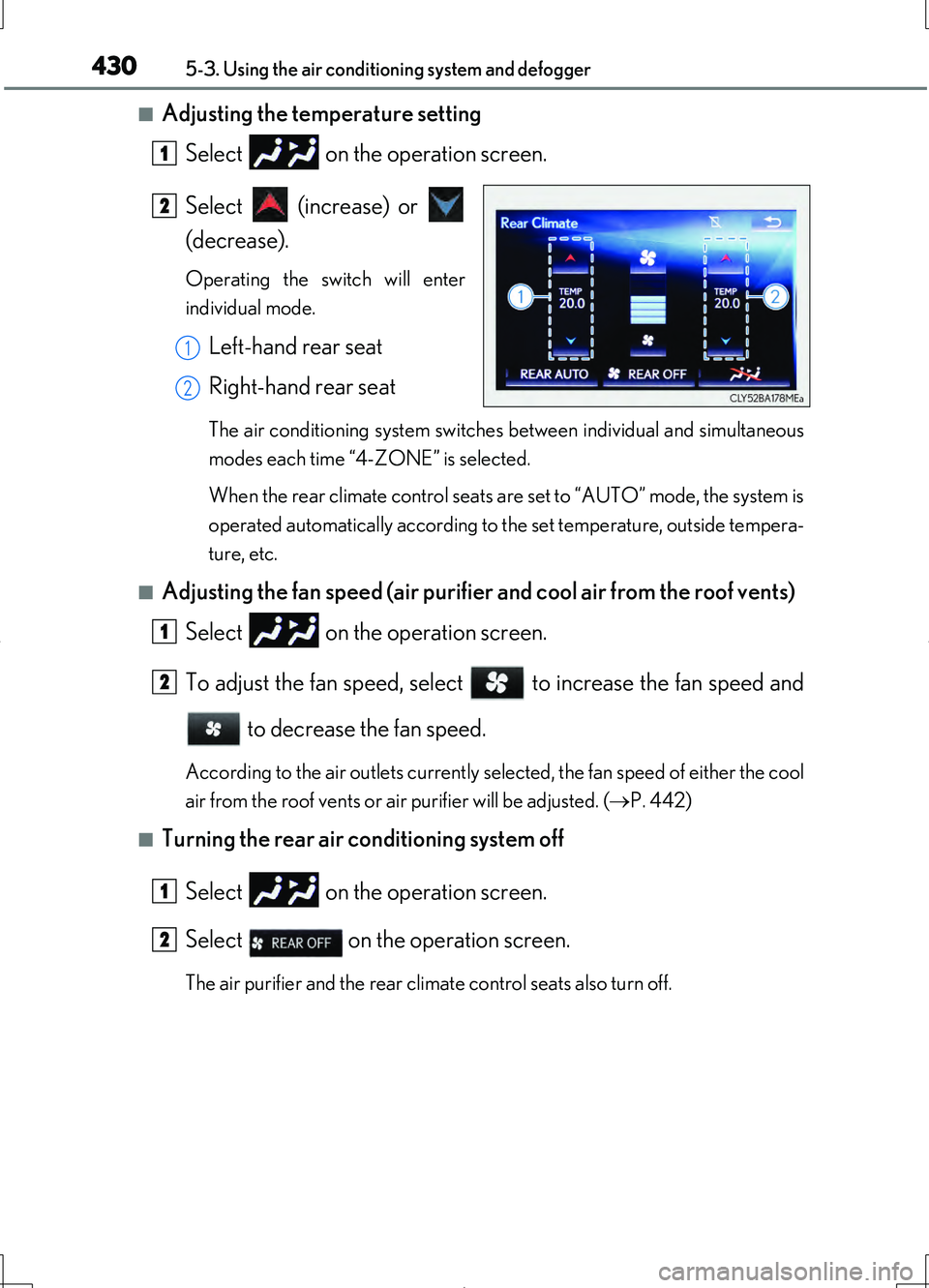

■Adjusting the temperature setting Select on the operation screen.
Select (increase) or
(decrease).
Operating the switch will enter
individual mode.
Left-hand rear seat
Right-hand rear seat
The air conditioning system switches between individual and simultaneous
modes each time “4-ZONE” is selected.
When the rear climate control seats are set to “AUTO” mode, the system is
operated automatically according to the set temperature, outside tempera-
ture, etc.
■Adjusting the fan speed (air purifier and cool air from the roof vents)
Select on the operation screen.
To adjust the fan speed, select to increase the fan speed and to decrease the fan speed.
According to the air outlets currently selected, the fan speed of either the cool
air from the roof vents or air purifier will be adjusted. ( P. 442)
■Turning the rear air conditioning system off
Select on the operation screen.
Select on the operation screen.
The air purifier and the rear climate control seats also turn off.
1
2
1
2
1
2
1
2
