1252. Instrument cluster
2

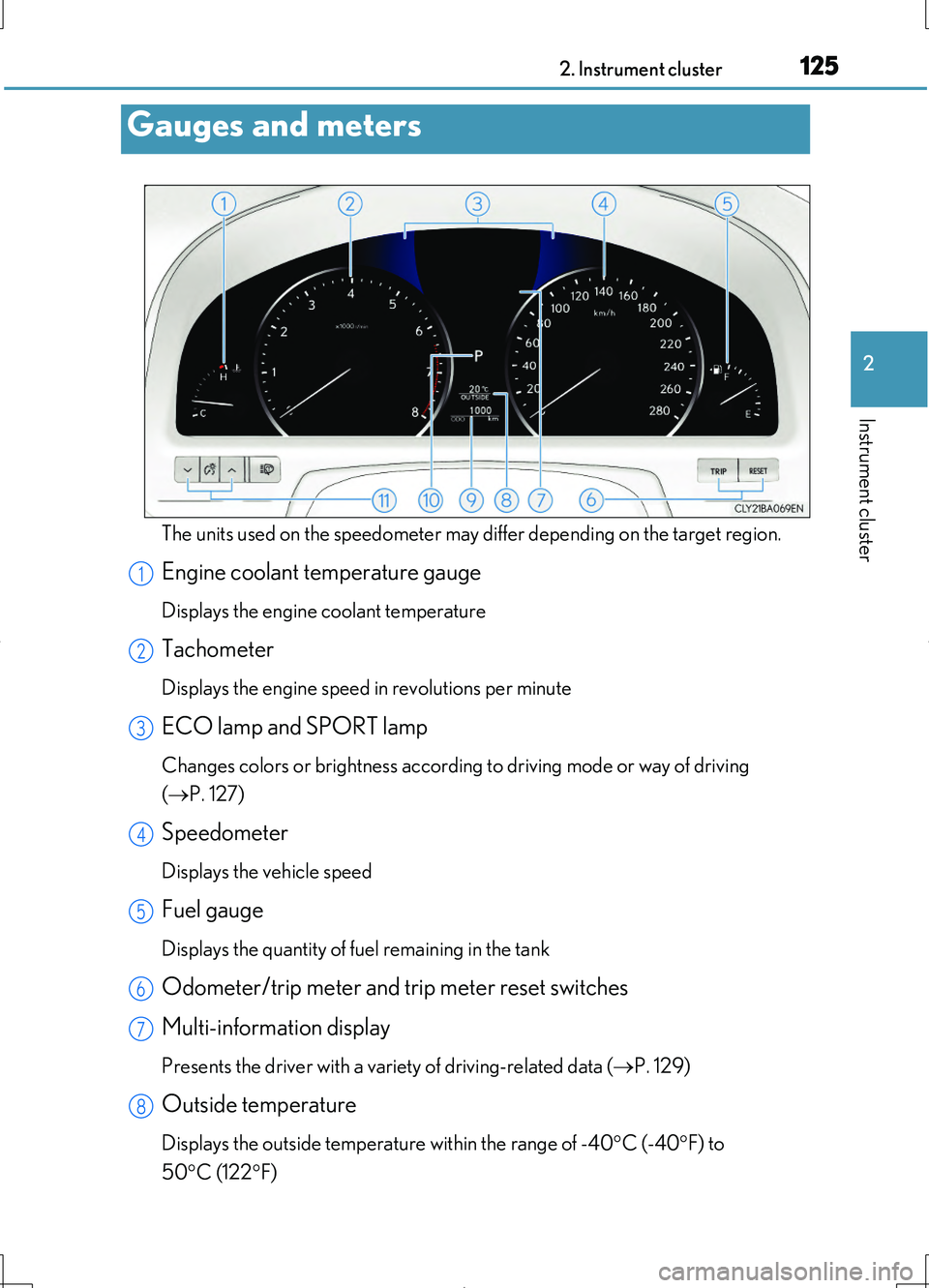

Instrument cluster
LS460/LS460L_GE (OM50G06E)
The units used on the speedometer may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
( P. 127)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Odometer/trip meter and trip meter reset switches
Multi-information display
Presents the driver with a variety of driving-related data ( P. 129)
Outside temperature
Displays the outside temperature within the range of -40C (-40F) to
50 C (122F)
Gauges and meters
1
2
3
4
5
6
7
8

1282. Instrument cluster
LS460/LS460L_GE (OM50G06E)
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features P. 668)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 641)

2724-2. Driving procedures
LS460/LS460L_GE (OM50G06E)
To enter M mode, shift the shift lever to the M position.
Gears can be selected by operating the shift lever or paddle shift
switches, allowing you to drive in the gear of your choosing.
Upshifting
Downshifting
The gear changes once every time the
shift lever or paddle shift switch is
operated.
The selected gear, from M1 to M8, will
be fixed and displayed in the meter.
●When in the M position, the gear will not change unless the shift
lever or paddle shift switches are operated. However, even when in
the M position, the gears will be automatically changed in the follow-
ing situation:
• When vehicle speed drops (downshift only).
• When the automatic transmission fluid or engine coolant tem-
perature is low.
• When the automatic transmission fluid temperature is high.
• When the needle of the tachometer is in the red zone (the range
which exceeds the allowable revs of the engine).
●When in the vehicle speed is low, the gear will not upshift even if the
shift lever or paddle shift switches are operated.

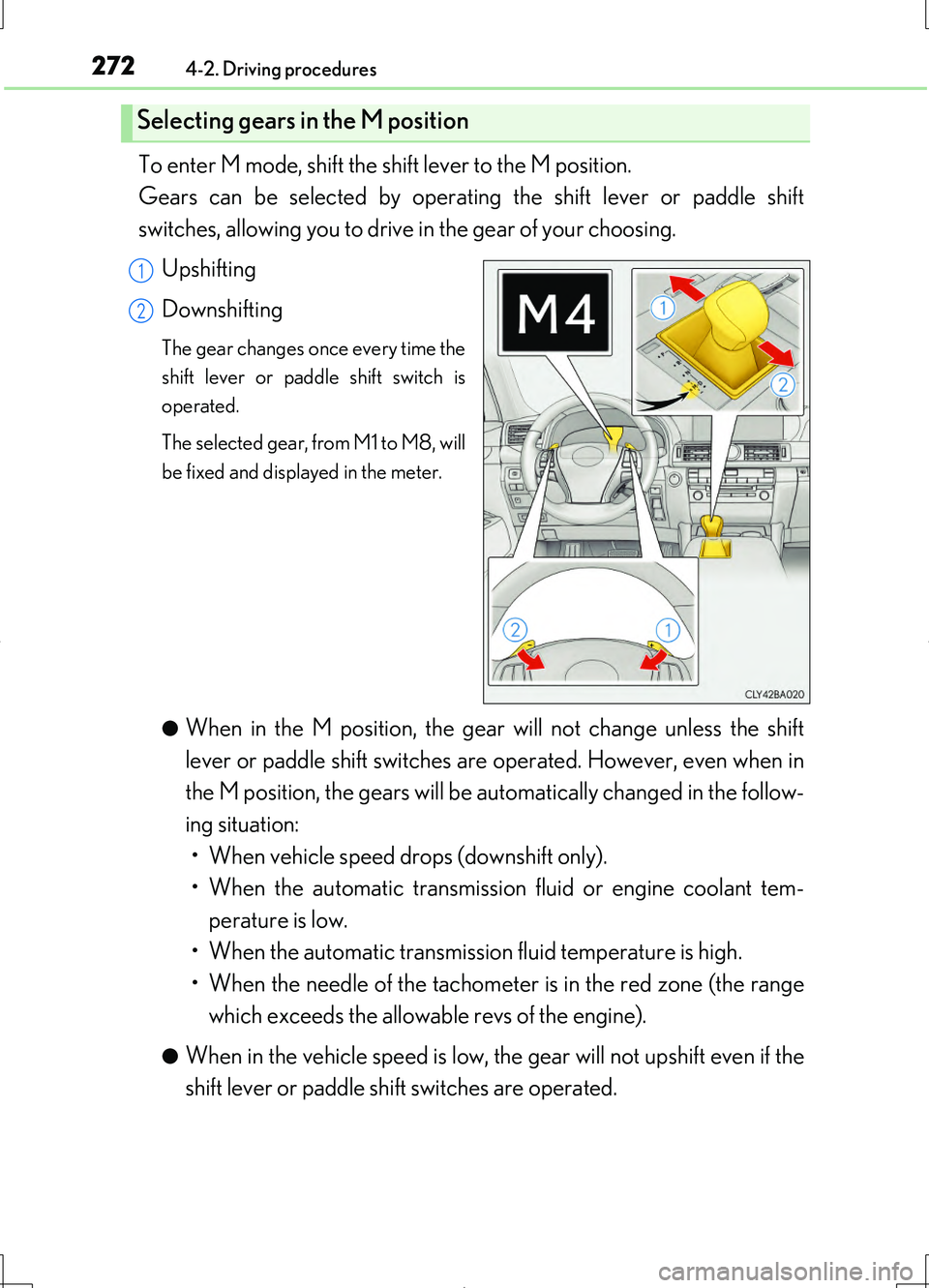

Selecting gears in the M position
1
2

399
4
Driving
LS460/LS460L_GE (OM50G06E)
4-6. Driving tips
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
•Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the rear tires.
Ensure that all tires are the specified size and brand, and that chains match the
size of the tires.

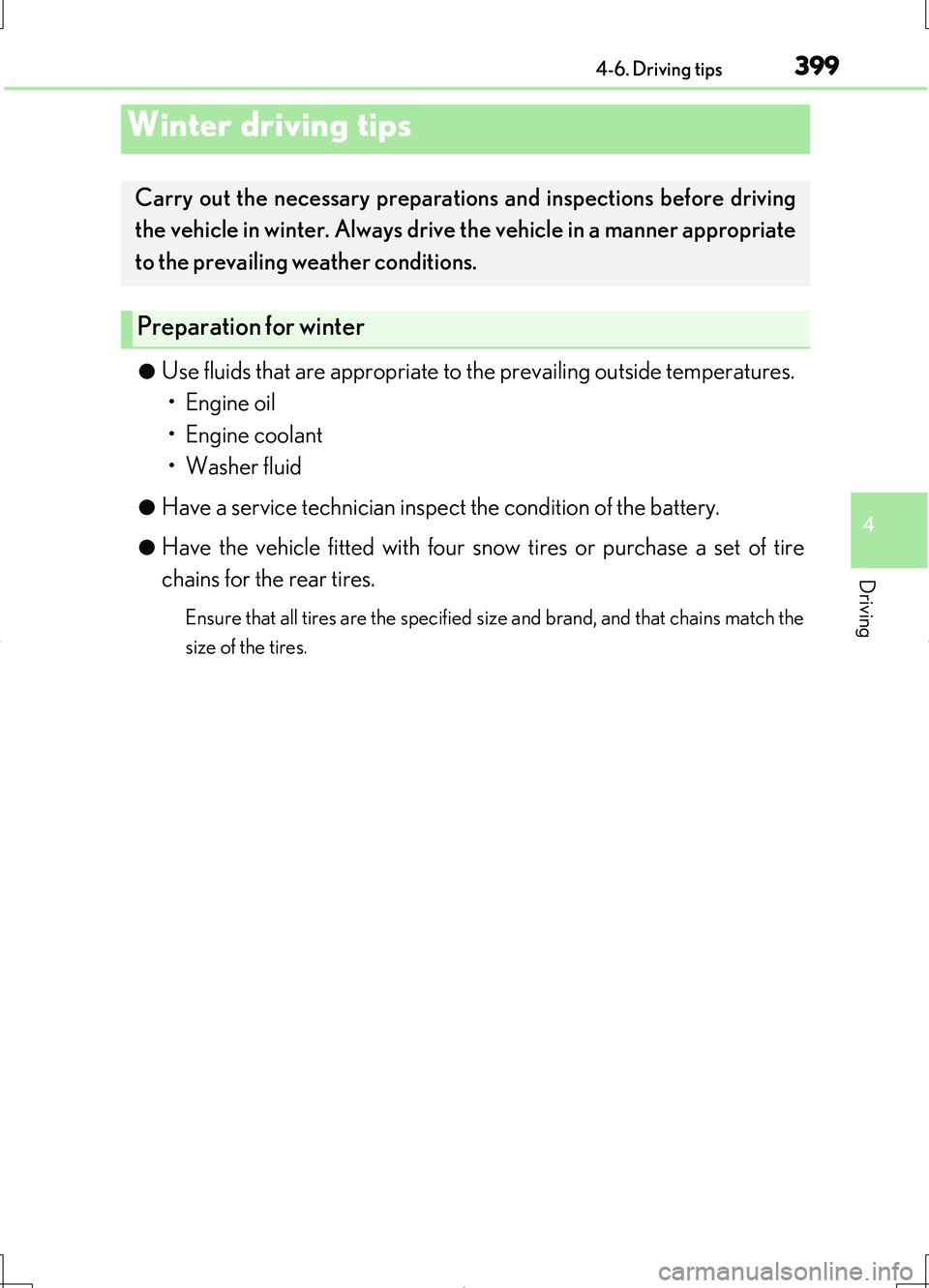

Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropriate
to the prevailing weather conditions.
Preparation for winter

5186-2. Maintenance
LS460/LS460L_GE (OM50G06E)
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little mechan-
ical ability and a few basic automotive tools. Simple instructions for how to per-
form them are presented in this section.
Note, however, that some maintenance tasks require special tools and skills.
These are best performed by qualified technicians. Even if you are an experi-
enced do-it-yourself mechanic, we recommend that repairs and maintenance be
conducted by your Lexus dealer who will keep a record of maintenance on your
vehicle. This record could be helpful should you ever require Warranty Service.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indi-
cate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning
system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak.
Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the
floor, vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 125)
If you notice any of these clues, take your vehicle to your Lexus dealer as soon as
possible. Your vehicle may need adjustment or repair.
Do-it-yourself maintenance

5486-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

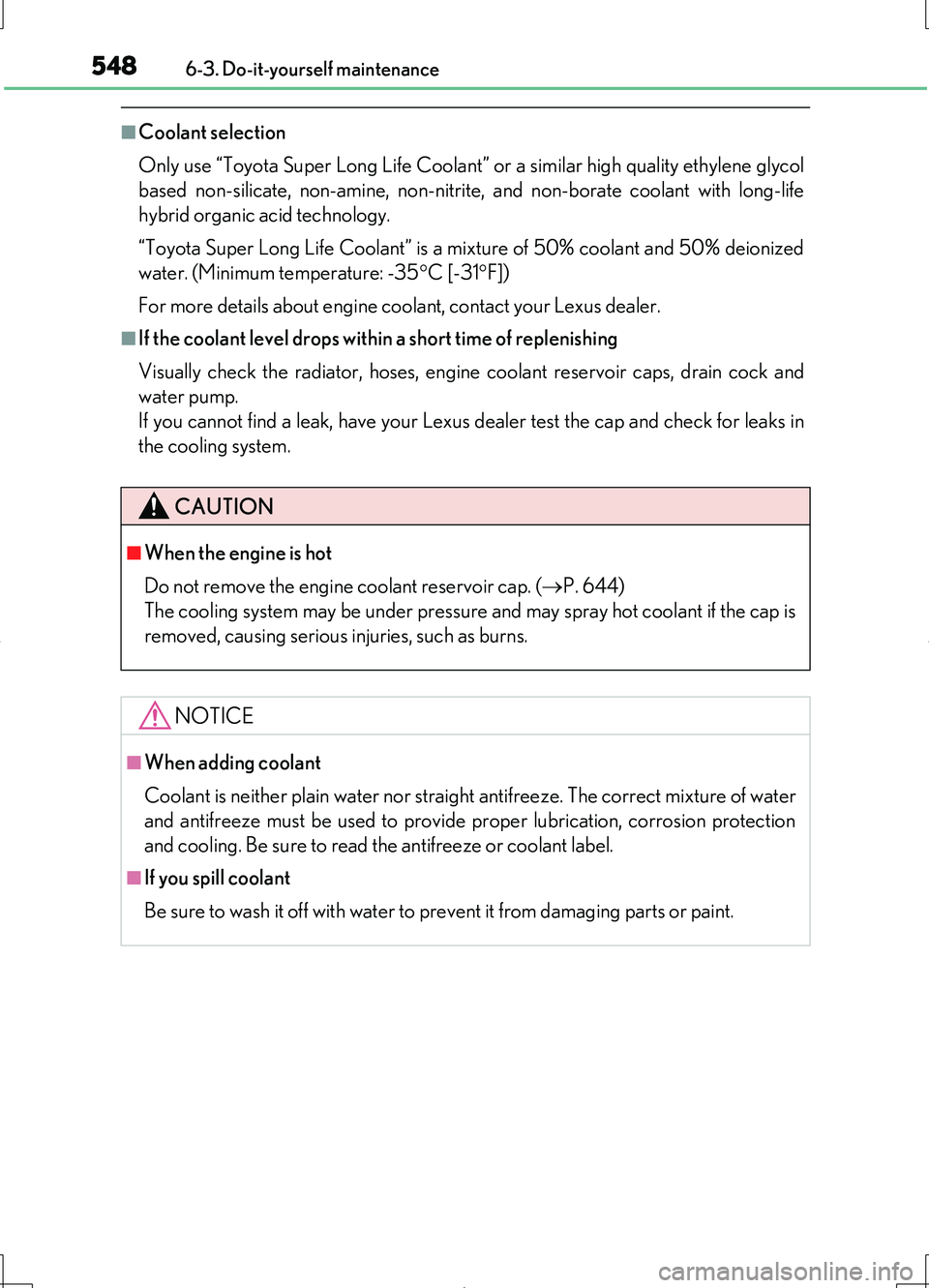

■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized
water. (Minimum temperature: -35 C [-31F])
For more details about engine coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and
water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling system.
CAUTION
■When the engine is hot
Do not remove the engine coolant reservoir cap. ( P. 644)
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

6037-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor

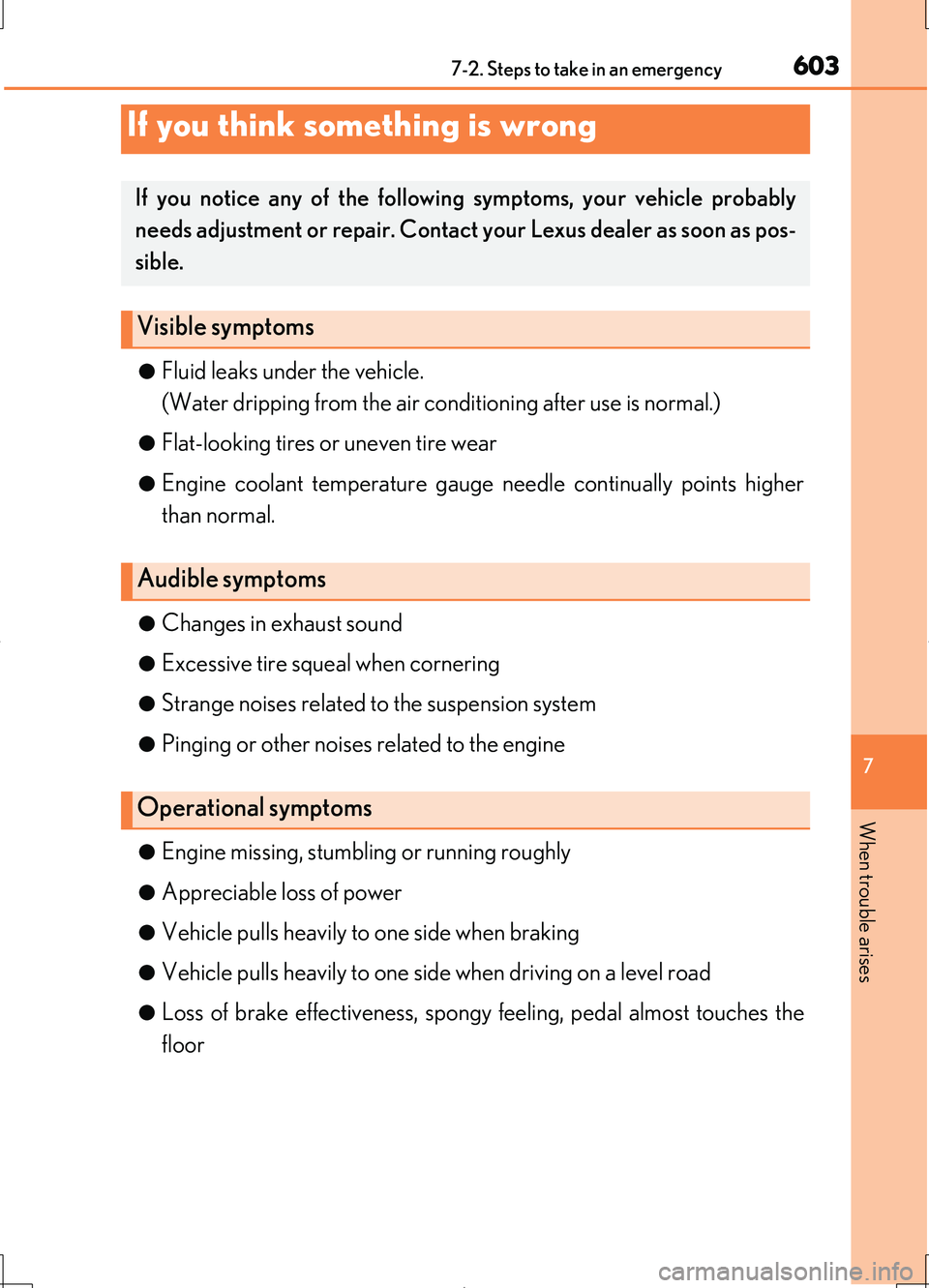

If you think something is wrong
If you notice any of the followin g symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms

6167-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)

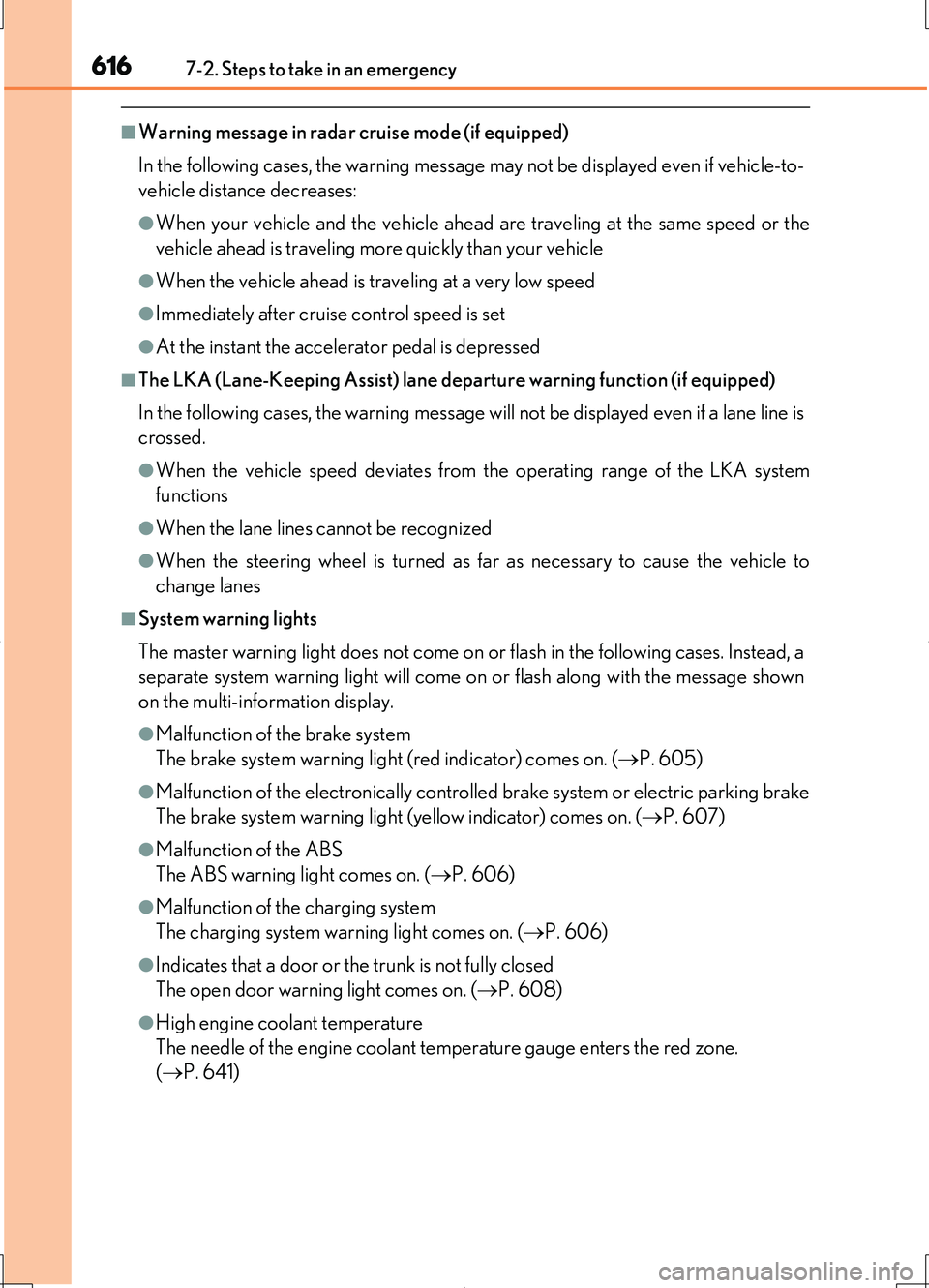

■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane de parture warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a
separate system warning light will come on or flash along with the message shown
on the multi-information display.
●Malfunction of the brake system
The brake system warning light (red indicator) comes on. ( P. 605)
●Malfunction of the electronically controlled brake system or electric parking brake
The brake system warning light (yellow indicator) comes on. ( P. 607)
●Malfunction of the ABS
The ABS warning light comes on. ( P. 606)
●Malfunction of the charging system
The charging system warning light comes on. ( P. 606)
●Indicates that a door or the trunk is not fully closed
The open door warning light comes on. ( P. 608)
●High engine coolant temperature
The needle of the engine coolant temperature gauge enters the red zone.
( P. 641)

6417-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
●The needle of the engine coolant temperature gauge ( P. 125) enters
the red zone or a loss of engine po wer is experienced. (For example,
the vehicle speed does not increase.)
●Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning system,
and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.

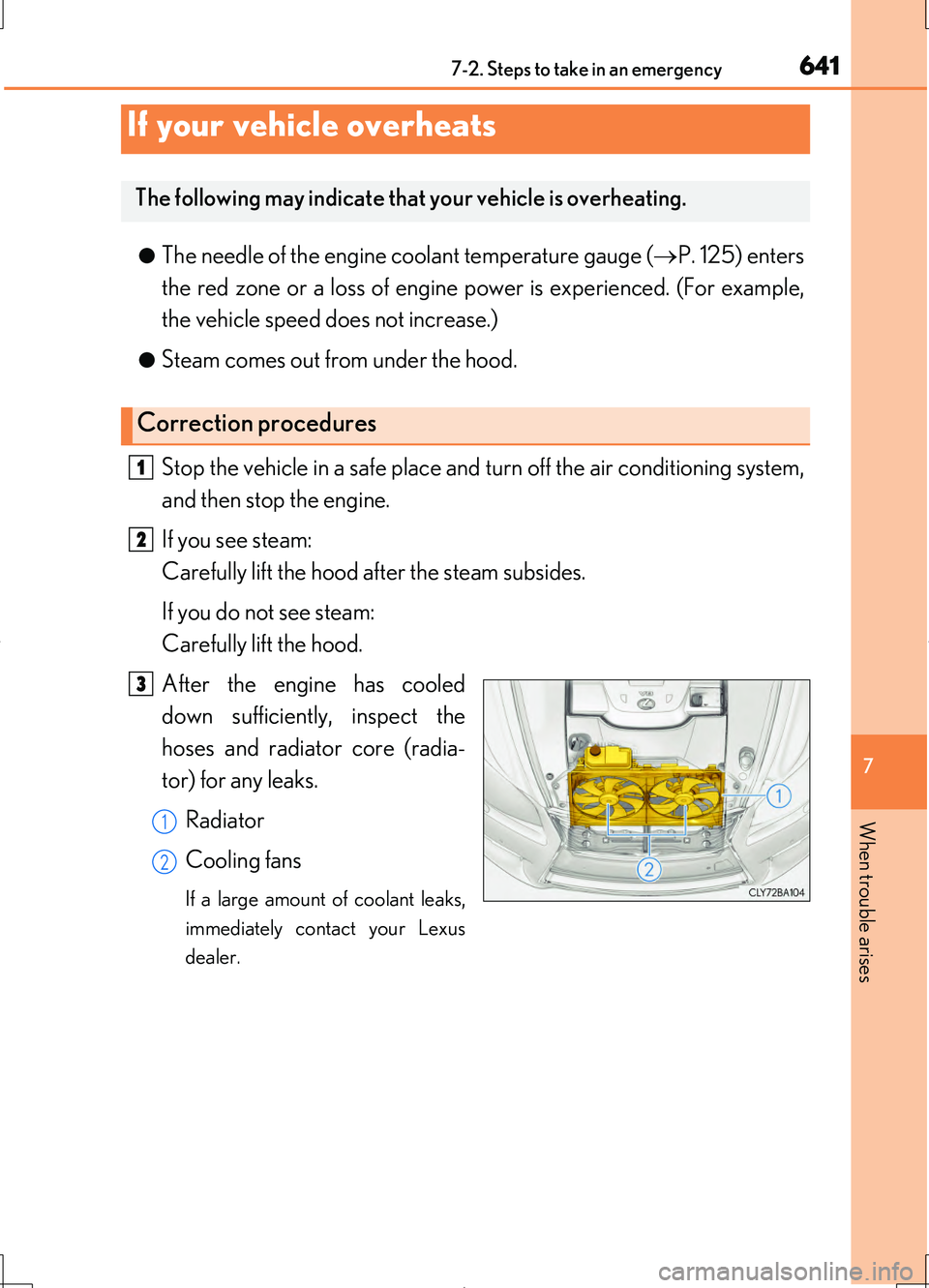

If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

6437-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
Start the engine and turn the air conditioning system on to check that
the radiator cooling fan operates and to check for coolant leaks from
the radiator or hoses.
The fan operates when the air conditioning system is turned on immediately after
a cold start. Confirm that the fan is operating by checking the fan sound and air
flow. If it is difficult to check these, turn the air conditioning system on and off
repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Lexus dealer.
