5396-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

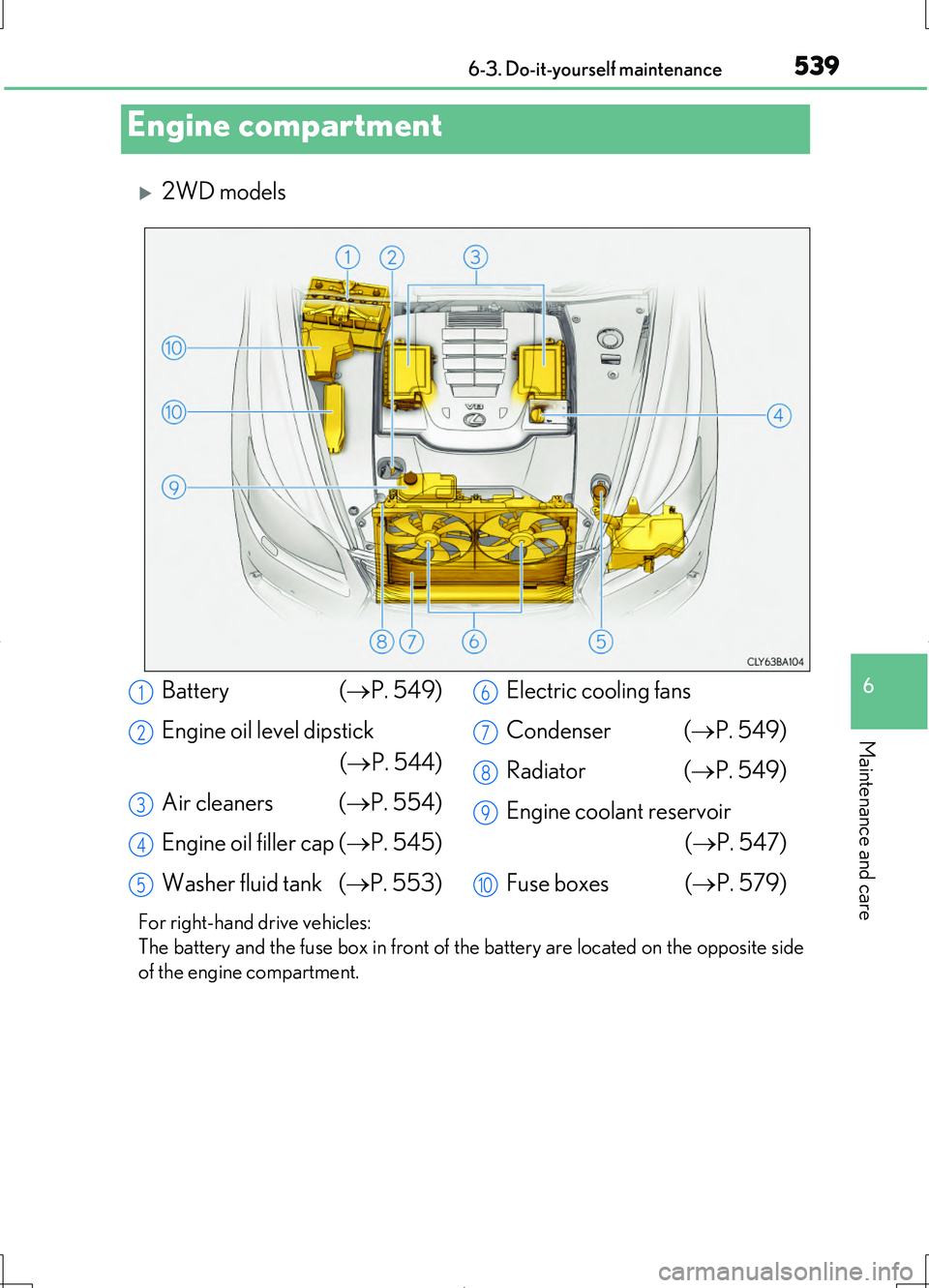

2WD models
For right-hand drive vehicles:
The battery and the fuse box in front of the battery are located on the opposite side
of the engine compartment.
Engine compartment
Battery ( P. 549)
Engine oil level dipstick
( P. 544)
Air cleaners ( P. 554)
Engine oil filler cap ( P. 545)
Washer fluid tank ( P. 553)
Electric cooling fans
Condenser ( P. 549)
Radiator ( P. 549)
Engine coolant reservoir
( P. 547)
Fuse boxes ( P. 579)
1
2
3
4
5
6
7
8
9
10

5406-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

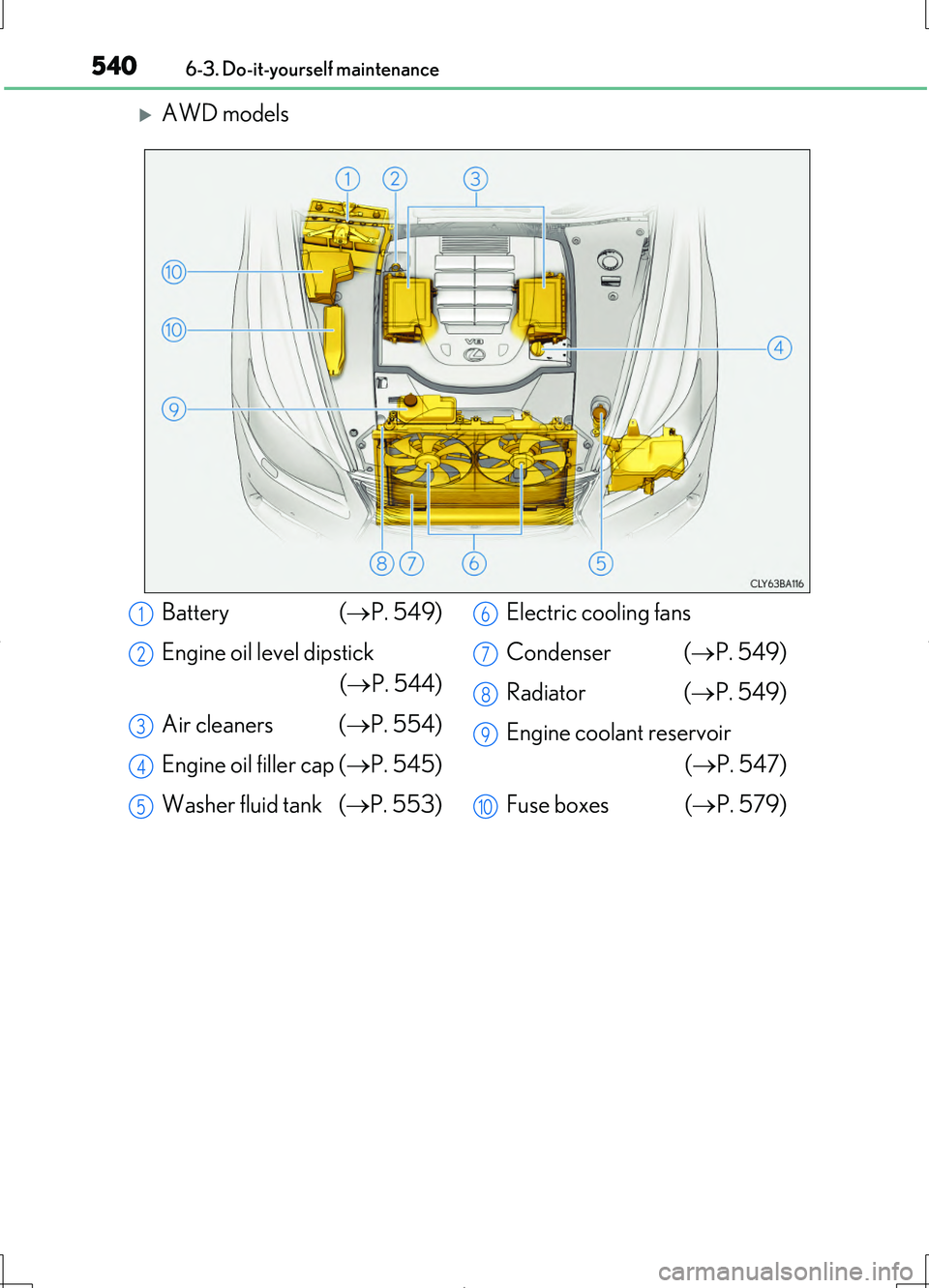

AWD models
Battery (P. 549)
Engine oil level dipstick
( P. 544)
Air cleaners ( P. 554)
Engine oil filler cap ( P. 545)
Washer fluid tank ( P. 553)
Electric cooling fans
Condenser ( P. 549)
Radiator ( P. 549)
Engine coolant reservoir
( P. 547)
Fuse boxes ( P. 579)
1
2
3
4
5
6
7
8
9
10

5796-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

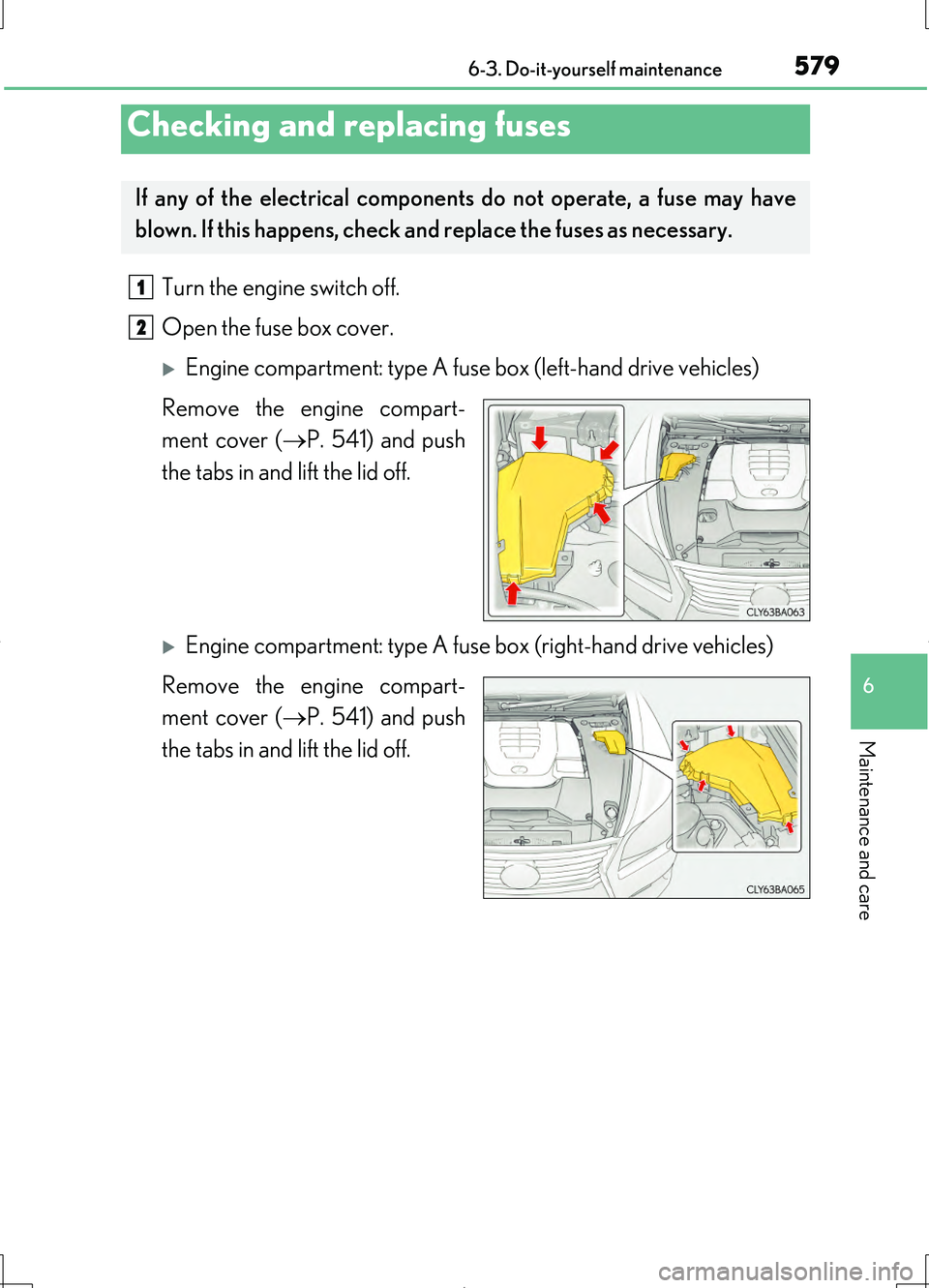

Turn the engine switch off.
Open the fuse box cover.
Engine compartment: type A fuse box (left-hand drive vehicles)
Remove the engine compart-
ment cover ( P. 541) and push
the tabs in and lift the lid off.
Engine compartment: type A fuse box (right-hand drive vehicles)
Remove the engine compart-
ment cover ( P. 541) and push
the tabs in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2

5806-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

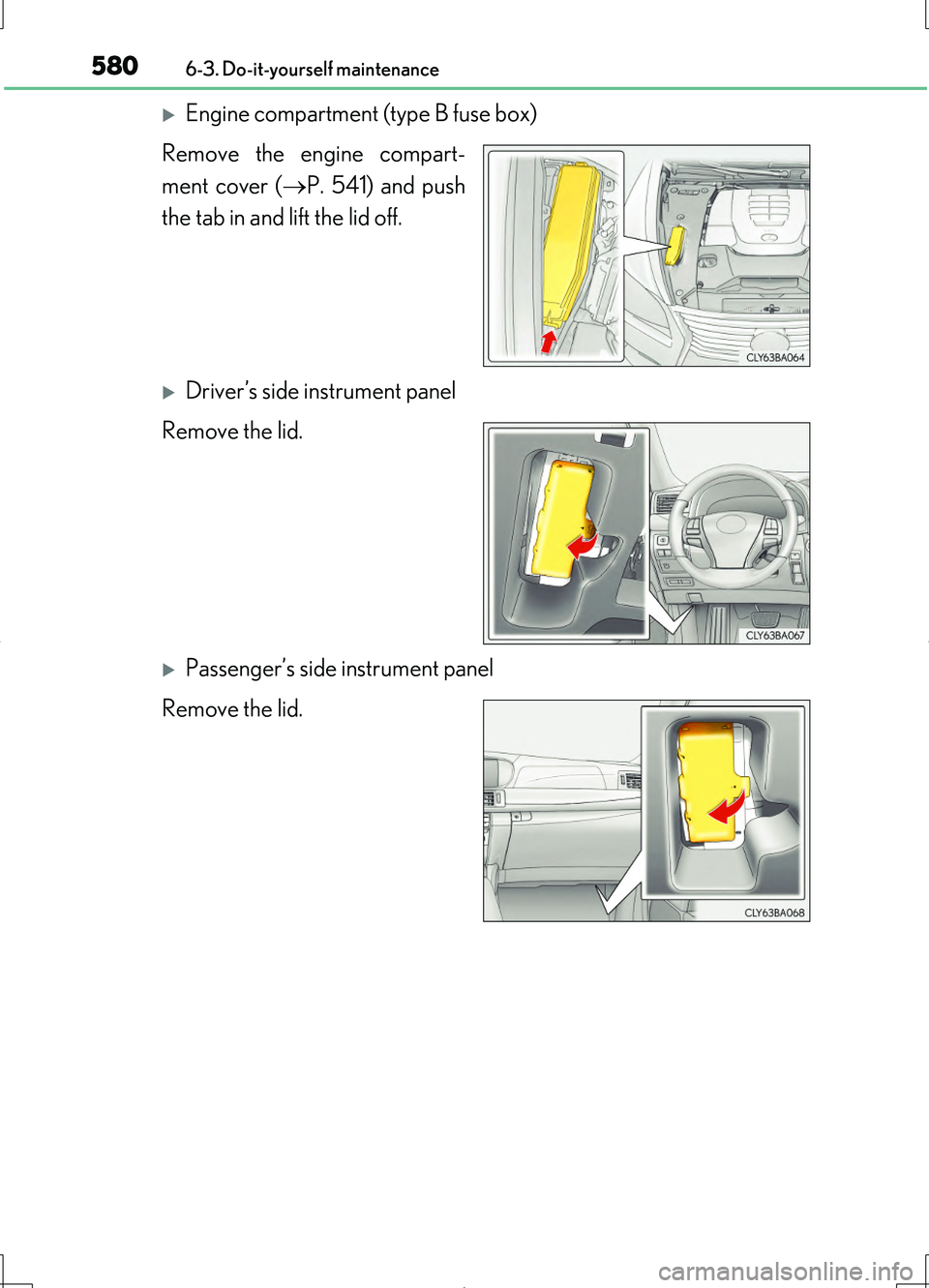

Engine compartment (type B fuse box)
Remove the engine compart-
ment cover ( P. 541) and push
the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.
Passenger’s side instrument panel
Remove the lid.

5826-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)

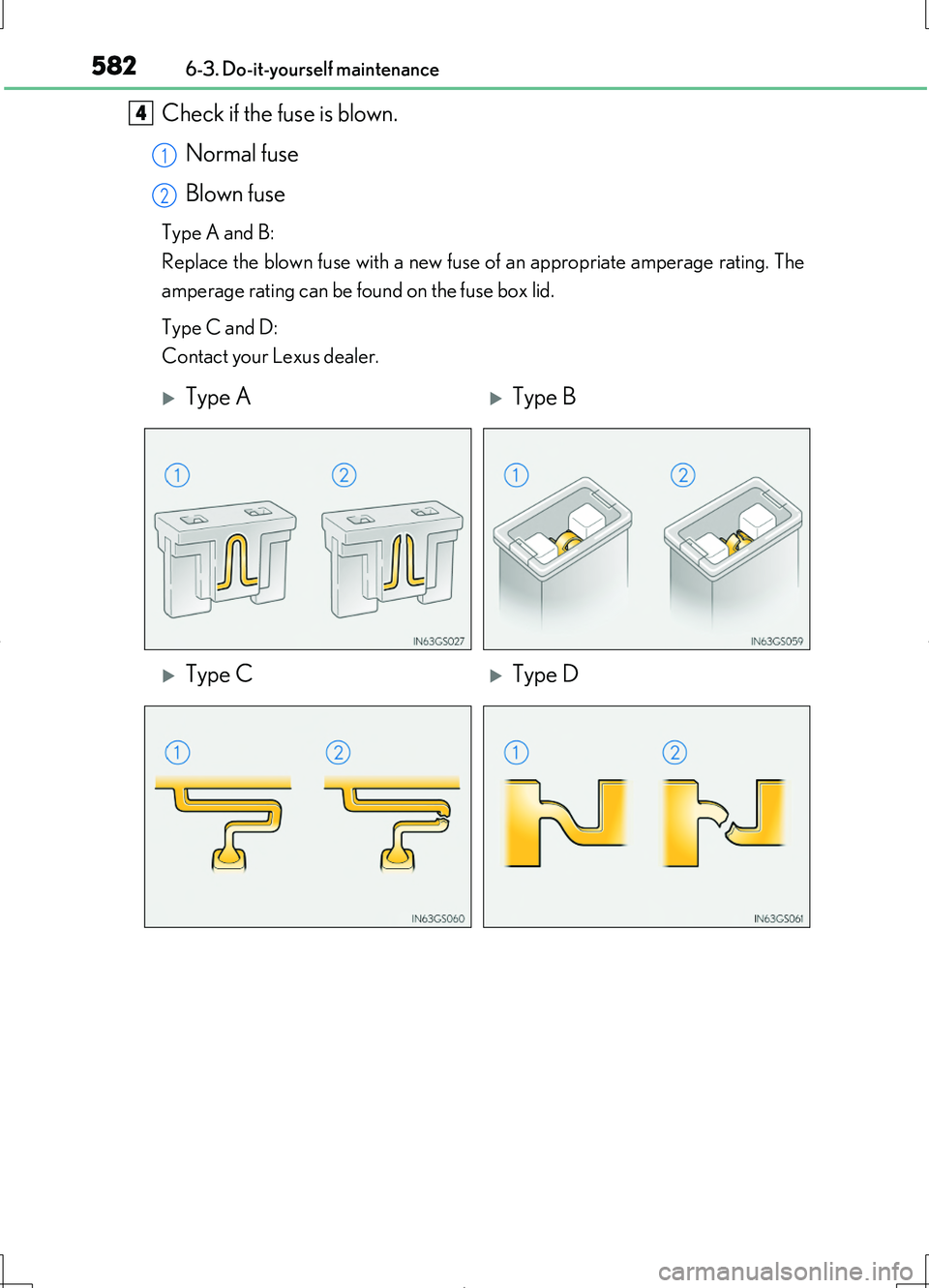

Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Lexus dealer.
4
1
2
Type AType B
Type CType D

5836-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

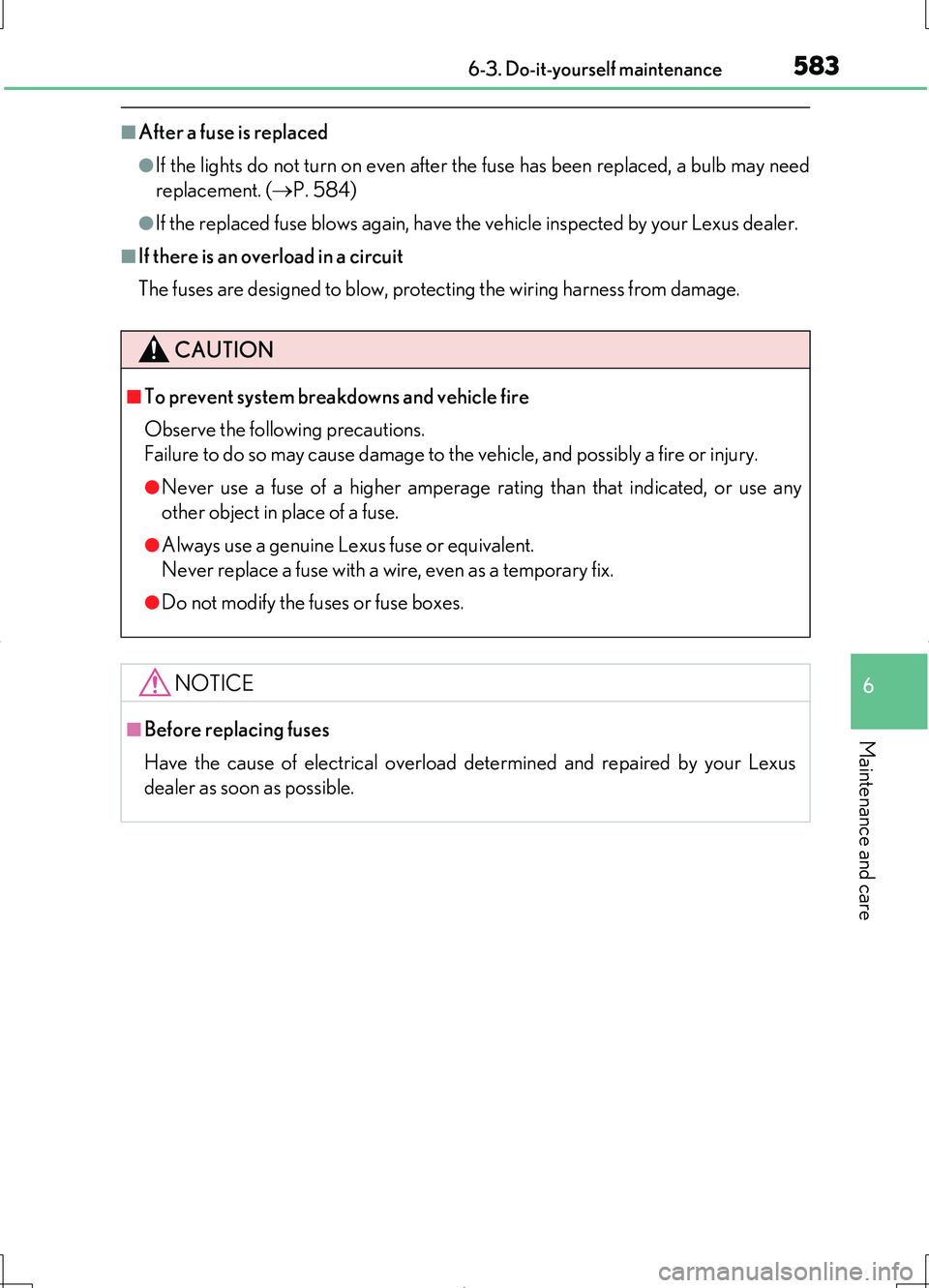

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 584)
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protect ing the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
