20Pictorial index
LS460/LS460L_GE (OM50G06E)
■Instrument panel switches (Left-hand drive vehicles)
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 232
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Headlight cleaner switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 304
Lexus parking assist-sensor switch*2
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
Heated steering wheel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 476
Adaptive High-beam System switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Odometer/trip meter and trip meter reset sw itches . . . . . . . . . . . . . . P. 126
Lexus night view switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 393
1
2
3
4
5
6
7
8
9

25Pictorial index
LS460/LS460L_GE (OM50G06E)
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 448
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 449
Moon roof switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 240
“SOS” button*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 504
Intrusion sensor and tilt sensor cancel switch*1 . . . . . . . . . . . . . . . . . . . . . P. 115
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
Sun visors*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Garage door opener switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 498
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
1
2
3
4
5
6
7
8
9
*3: Except for Taiwan: NEVER use a rear-
ward facing child restraint on a seat
protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJU-
RY to the CHILD can occur. ( P. 98)
*1: If equipped
*2: Refer to “Navigation and Multimedia System Owner’s Manual”
or “Navigation System Owner’s Manual”.
For Taiwan: DO NOT carry baby, infant
and children on the front passenger
seat. Except for the front passenger
seat, NEVER use a rearward facing
child restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. ( P. 101)

28Pictorial index
LS460/LS460L_GE (OM50G06E)
■Instrument panel switches (Right-hand drive vehicles)
Odometer/trip meter and trip meter reset switches . . . . . . . . . . . . . . P. 126
Headlight cleaner switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 304
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 232
Adaptive High-beam System switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Heated steering wheel switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 476
BSM (Blind Spot Monitor) main switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 381
Lexus parking assist-sensor switch*2
1
2
3
4
5
6
7
8

33Pictorial index
LS460/LS460L_GE (OM50G06E) Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 240
Intrusion sensor and tilt sensor cancel switch . . . . . . . . . . . . . . . . . . . . . . . P. 115
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 448
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 449
Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Sun visors
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 467
1
2
3
4
5
6
7
*3: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur. ( P. 98)
*1: If equipped
*2: Refer to “Navigation and Multimedia System Owner’s Manual”
or “Navigation System Owner’s Manual”.

501-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■Seat belt pretensioners
●Vehicles with front passenger occupant classification system:
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS warning light will come on. In that case,
the seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
( P. 47)
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function co rrectly, immediately contact your Lexus
dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling may lead to incorrect operation.

531-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
SRS airbag system components
Front passenger’s seat belt
buckle switch
Front passenger occupant clas-
sification system (ECU and sen-
sors) (if equipped)
Side impact sensors (front)
“PASSENGER AIR BAG” indi-
cator light (if equipped)/“AIR
BAG ON” and “AIR BAG OFF”
indicator light (if equipped)
Airbag manual on-off switch
(if equipped)
Front passenger airbag
Curtain shield airbags
Knee airbags
Front side airbags
Active head restraints
(if equipped)
SRS warning light
Rear side airbags (if equipped)
Seat belt pretensioners and
force limiters
Driver airbag
Seat cushion airbag
(if equipped)
Side impact sensors (rear)
Side impact sensors (front door)
(if equipped)
Driver’s seat belt buckle switch
Driver’s seat position sensor
Airbag sensor assembly
Front impact sensors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

541-1. For safe use
LS460/LS460L_GE (OM50G06E)
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a fi rm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, t ilt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining con-
trol of the foot pedals, steering wheel, and your view of the instrument panel con-
trols.

571-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION
■SRS airbag precautions
●Do not use seat accessories which cover the parts where the SRS side airbags
and SRS seat cushion airbag inflate as they may interfere with inflation of the SRS
airbags. Such accessories may prevent the side airbags and SRS seat cushion air-
bag from activating correctly, disable th e system or cause the side airbags and
SRS seat cushion airbag to inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag
components. Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes are damaged or cracked, have them replaced by
your Lexus dealer.
●Vehicles with front passenger occupant classification system:
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the SRS front passenger airbag may
not deploy in the event of a collision.

1121-2. Theft deterrent system
LS460/LS460L_GE (OM50G06E)

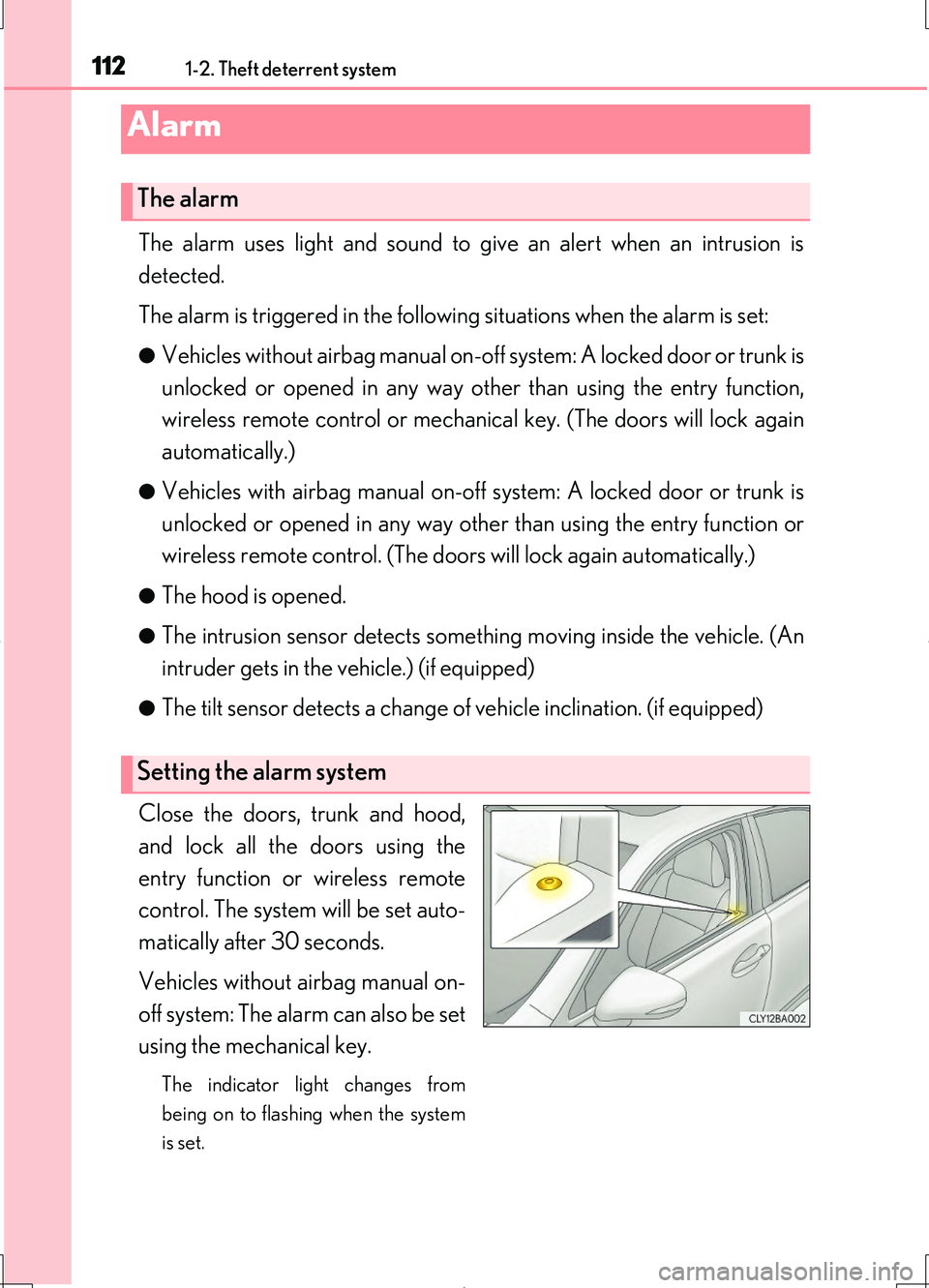

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●Vehicles without airbag manual on-off system: A locked door or trunk is
unlocked or opened in any way ot her than using the entry function,
wireless remote control or mechanical key. (The doors will lock again
automatically.)
●Vehicles with airbag manual on-off system: A locked door or trunk is
unlocked or opened in any way other than using the entry function or
wireless remote control. (The do ors will lock again automatically.)
●The hood is opened.
●The intrusion sensor detects something moving inside the vehicle. (An
intruder gets in the vehicle.) (if equipped)
●The tilt sensor detects a change of vehicle inclination. (if equipped)
Close the doors, trunk and hood,
and lock all the doors using the
entry function or wireless remote
control. The system will be set auto-
matically after 30 seconds.
Vehicles without airbag manual on-
off system: The alarm can also be set
using the mechanical key.
The indicator light changes from
being on to flashing when the system
is set.
Alarm
The alarm
Setting the alarm system
