Page 239 of 516

2394-5. Using the driving support systems
4
Driving
available from navigation system, the
sign will be displayed on the
multi-information display.
When the Driving support system
information display is selected, a
maximum of 3 signs can be dis-
played. ( P.80)
When a tab other than the Driving
support system information display
is selected, only a recognized speed
limit sign or do not enter sign (when
notification is necessary) will be dis-
played. ( P.80)
If signs other than speed limit signs are rec-
ognized, they will be displayed in an over-
lapping stack under the current speed limit
sign.
The following types of road signs,
including electronic signs and blinking
signs, are recognized.
A non-official or recent ly introduced traffic
signs may not be recognized.
In the following situations, the RSA sys-
tem will notify the driver.
When the vehicle speed exceeds
the speed warning threshold of the
speed limit sign displayed, the sign
display will be emphasized and a
buzzer will sound.
When the RSA system recognizes a
do not enter sign and determines
that your vehicle has entered a
no-entry area, the displayed sign will
flash and a buzzer will sound.
Depending on the situation, a notifica-
tion display may not operate properly.
■Setting procedure
1 Press or of the meter control
switches and select .Supported types of road signs
Speed limit
US Night speed limit
Do Not Enter
Stop
Yield
Notification display
Page 240 of 516

2404-5. Using the driving support systems
2Press or of the meter control
switches and select “Vehicle Settings”,
then press .
3 Press or of the meter control
switches and select , then press
.
4 Press or of the meter control
switches and select “RSA”, then press
.
■Automatic turn-off of RSA sign display
In the following situations, a displayed
speed limit, do not enter signs will stop
being displayed automatically:
●A new sign is not recognized for a certain
distance.
●The road changes due to a left or right
turn, etc.
In the following situations, stop and yield
signs will stop being displayed automati-
cally:
●The system determines that your vehicle
has passed the sign.
●The road changes due to a left or right
turn, etc.
■Conditions in whic h the function may
not operate or detect correctly
In the following situations, RSA does not
operate normally and may not recognize
signs, display the incorrect sign, etc. How-
ever, this does not indicate a malfunction.
●The front camera is misaligned due to a
strong impact being applied to the sen-
sor, etc.
●Dirt, snow, stickers, etc. are on the wind-
shield near the front camera.
●In inclement weather such as heavy rain,
fog, snow or sand storms
●Light from an oncoming vehicle, the sun,
etc. enters the front camera.
●The sign is dirty, fade d, tilted or bent, and
if an electronic sign, the contrast is poor.
●All or part of the sign is hidden by the
leaves of a tree, a pole, etc.
●The sign is only visible to the front camera
for a short amount of time.
●The driving scene (turning, lane change,
etc.) is judged incorrectly.
●Even if it is a sign not appropriate for the
currently traveled lane, such a sign exists
directly after a freeway branches, or in an
adjacent lane just before merging.
●Stickers are attached to the rear of the
preceding vehicle.
●A sign resembling a system compatible
sign is recognized.
●Side road speed signs may be detected
and displayed (if positioned in sight of the
front camera) while the vehicle is travel-
ing on the main road.
●Roundabout exit road speed signs may
be detected and displayed (if positioned
in sight of the front camera) while travel-
ing on a roundabout.
●The front of the vehicle is raised or low-
ered due to the carried load.
●The surrounding brightness is not suffi-
cient or changes suddenly.
●When a sign intended for trucks, etc. is
recognized.
●The speed information displayed on the
meter and that displayed on the naviga-
tion system may be different due to the
navigation system using map data.
■Speed limit sign display
If the engine switch wa s last turned off while
a speed limit sign was displayed on the
multi-information display, the same sign dis-
plays again when the engine switch is
turned to IGNITION ON mode.
■Customization
Some functions can be customized. (Cus-
tomizable features: P.470)
Page 308 of 516

3085-1. Remote Touch/Display
5-1.Remote Touch/Display
■Switches“MAP” button
Vehicles with navigation function:
Press this button to display the vehicle’s
current position.
Vehicles without navigation function:
Press this button to display the compass
mode screen.
“MENU” button
Press this button to display the menu
screen.
Back button
Press this button to display the previous
screen.
Touchpad
Slide your finger on the touchpad and
move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, su
ch as changing map
scalings and scrolling list screens.
Sub function button
When is displayed on the screen, a
function screen assigned to the screen can
be displayed.
■Using the touchpad
1 Select: Touch the touchpad to
select the desired button on the
screen.
2 Enter: Buttons on the screen can be
selected by either depressing or
double tapping the touchpad.
Once a button has been selected,
the screen will change.
■Touch operation
Operations are performed by touching
the touchpad with your finger.
Trace
Trace the pad surface while maintaining
contact with the touchpad. Moving the
cursor and the pointer.
Remote Touch
The Remote Touch can be used to
operate the Center Display.
For details on the Remote touch,
refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Remote Touch operation
A
B
C
D
E
Page 310 of 516

3105-1. Remote Touch/Display
■Menu screen
Press the “MENU” button on the
Remote Touch to display the menu
screen.
The displays shown in the illustrations
are used for example only and may dif-
fer from the actual vehicle.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
*2: This function is not available on some models.
■Split-screen display

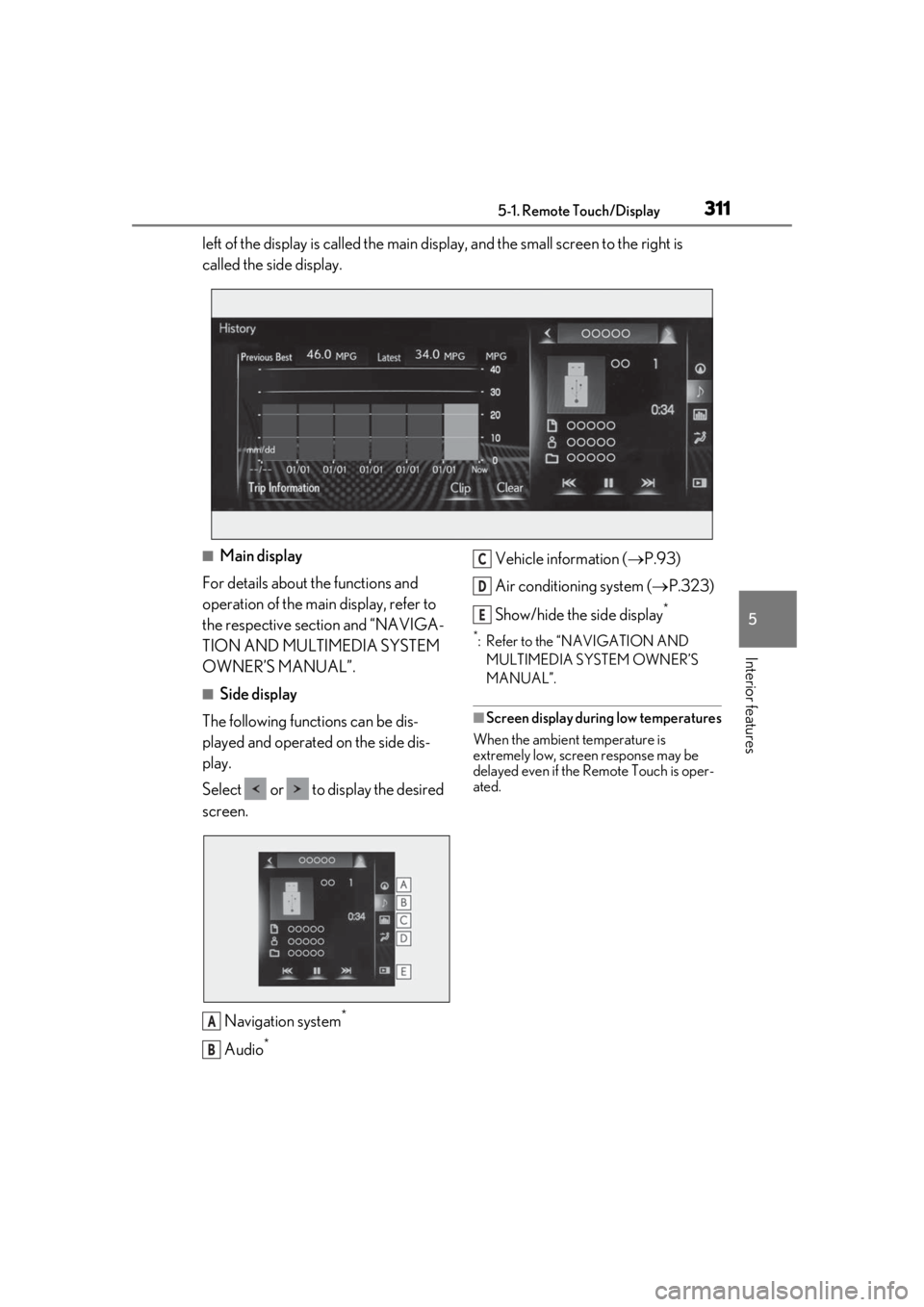

Different information can be displayed on the left and right sides of the screen. For
example, air conditioning system screen can be displayed and operated while the
fuel consumption information screen is be ing displayed. The large screen on the
Center Display
Center Display overview
SwitchFunction
Select to display the
“Destination”
screen.
*1
Select to display the
media control
screen or the audio
control screen.
*1
Select to display the
hands-free control
screen.
*1
Select to display the
“Apps” screen.
*1, 2
When an Apple
CarPlay connection
is established and
button displays
“Apple CarPlay”,
select to display the
home screen of
Apple CarPlay.
*1, 2
Select to display the
information screen.
*1
( P.91)
Select to display the
setup screen.
*1
Select to display the
air conditioning con-
trol screen.
( P.320)
SwitchFunction
Page 311 of 516

3115-1. Remote Touch/Display
5
Interior features
left of the display is called the main display, and the small screen to the right is
called the side display.
■Main display
For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
■Side display
The following functions can be dis-
played and operated on the side dis-
play.
Select or to display the desired
screen.
Navigation system
*
Audio*
Vehicle information ( P.93)
Air conditioning system ( P.323)
Show/hide the side display
*
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
■Screen display during low temperatures
When the ambient temperature is
extremely low, screen response may be
delayed even if the Remote Touch is oper-
ated.
A
B
C
D
E
Page 312 of 516

3125-1. Remote Touch/Display
*:If equipped
■Home screenTouch to display the audio control
screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Touch to display the rear air condi-
tioning control screen. ( P.328,
331)
Touch to display the rear seat
adjustment screen. ( P.126, 134,
136)
Touch to display the relaxation seat
(if equipped) control screen. (
P.128)
Touch to display the rear sunshade
(if equipped)/rear interior light con-
trol screen. ( P.335, 350)
Touch to display the Rear Multi
Operation Panel settings screen.
( P.312)
Touch to display/hide the shortcut
screen.
Shortcut screen
The following can be adjusted or operated:
• Rear air conditioning system tempera- ture setting ( P.328)
• Rear seat heaters/rear seat ventilators ( P.331)
• Audio system
Refer to “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”.
• Rear door sunshades/rear quarter sun- shades/rear sunshade ( P.351)
button
Press to display the home screen.
When the screen is on, press and
hold to turn the screen off.
■Rear Multi Operation Panel set-
tings screen
Screen operation settings and the
brightness of the screen can be
changed.
Rear Multi Operation Panel*
The Rear Multi Operation Panel
built-into the rear armrest can be
used to operate the rear audio sys-
tem, air conditioning system, seat,
relaxation seat, shades or lights.
Rear Multi Operation Panel
overview
A
B
C
D
E
F
G
H
I
Page 319 of 516

3195-3. Using the air conditioning system and defogger
5
Interior features
■Registering air conditioning settings to
electronic keys
●Unlocking the vehicle using an electronic
key and turning the engine switch to
IGNITION ON mode will recall that
key’s registered air conditioning settings.
●When the engine switch is turned off, the
current air conditioning settings will auto-
matically be registered to the electronic
key that was used to unlock the vehicle.
●The system may not operate correctly if
more than one electronic key is in the
vicinity or if the smart access system with
push-button start is used to unlock a pas-
senger door.
●The doors that can recall the air condi-
tioning setting* when unlocked using the
smart access system with push-button
start can be changed. For details, contact
your Lexus dealer.
*: The doors that can recall the driving
position memory are changed at the
same time.
■Operation of the air conditioning sys-
tem in Eco drive mode
In Eco drive mode, the air conditioning sys-
tem is controlled as follows to prioritize fuel
efficiency:
●Engine speed and compressor operation
controlled to restri ct heating/cooling
capacity
●Fan speed restricted when automatic
mode is selected
To improve air conditioning performance,
perform the following operations:
●Turn off eco air conditioning mode
( P.320)
●Adjust the fan speed
●Turn off Eco drive mode ( P.292)
■When the outside temperature falls to
nearly 32°F (0°C)
The dehumidification function may not
operate even when “A/C” is selected.
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning
system to the outside air mode.
●During use, various odors from inside and
outside the vehicle may enter into and
accumulate in the air conditioning sys-
tem. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occur-
ring:
• It is recommended that the air condition-
ing system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be
delayed for a short period of time imme-
diately after the air conditioning system is
started in automatic mode or with the
micro dust and pollen filter on.
●When parking, the system automatically
switches to outside air mode to encour-
age better air circulation throughout the
vehicle, helping to reduce odors that
occur when starting the vehicle.
■Using the voice command system
Air conditioning system can be operated
using voice commands. For details, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
■Air conditioning filter
P.402
■Customization
Some functions can be customized.
( P.470)
WARNING
■To prevent the windshield from fog-
ging up
Do not use the windshield defogger
switch during cool air operation in
extremely humid weather. The difference
between the temperature of the outside
air and that of the windshield can cause
the outer surface of the windshield to fog
up, blocking your vision.
■When the outside rear view mirror
defoggers are operating
Do not touch the outside rear view mir-
ror surfaces, as they can become very
hot and burn you.
Page 472 of 516

4708-2. Customization
8-2.Customization
■Changing by using the meter con-
trol switches
1
Press or to select .
2
Operate the meter control
switches to select the desired item
to be customized.
3
According to the display, select the
desired setting and then press .
To go back to the previous screen or exit
the customize mode, press .
■Changing by using the Remote
Touch
1
Press the “MENU” button on the
Remote Touch.
2
Select “Setup” on the menu screen
and select “Vehicle”.
3
Select “Vehicle Customization” or
“Drive Mode Customization”.
Various setting can be changed. Refer to
the list of settings that can be changed for
details.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN- UAL”.
■Changing by using the Rear Multi
Operation Panel (if equipped)
1
Display the home screen on the
Rear Multi Operation Panel and
then touch “Seat”.
2
Touch “Left” or “Right”.
3
Touch .
4
Touch a button to change the set-
ting.
■When customizing using the Remote
Touch
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift position to
P. Also, to prevent battery discharge, leave
the engine running while customizing the
features.
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch, Rear
Multi Operation Panel or at your
Lexus dealer.
Customizing vehicle features
WARNING
■During customization
As the engine needs to be running
during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that
the engine is running while customizing
features.
Page 505 of 516

503Alphabetical Index
Front side marker lightLight switch .................................................... 180
Replacing light bulbs............................... 408
Front turn signal lights Replacing light bulbs............................... 408
Turn signal lever ........................................... 175
Fuel Capacity ...........................................................451
Fuel gauge ............................................... 73, 76
Fuel pump shut off system ..................... 418
Information ....................................................459
Refueling ......................................................... 190
Type....................................................................451
Warning light ............................................... 422
Fuel consumption Average fuel economy .............................. 82
Current fuel consumption........................ 82
Fuel filler door If the fuel filler door cannot be opened......................................................................... 436
Refueling ......................................................... 190
Fuel gauge ..................................................73, 76
Fuel pump shut off system......................... 418
Fuses ................................................................. 405
G
Garage door opener ................................. 354
Gauges ........................................................73, 76
Gear Position................................................... 84
G-force............................................................... 84
Glove box ....................................................... 339
Glove box light ............................................. 340
H
Hands Free Power Trunk Lid ...................107
Head restraints ...............................................135
Headlights Adaptive Front-lighting System (AFS)...........................................................................182
Automatic High Beam system............. 183
Light switch .................................................... 180 Replacing light bulbs ............................... 408
Head-up display.............................................. 87 Driving information display area ........... 87
Driving support system display area ..90
Eco Driving Indicator....................................91
HUD (Head-up display) switch ............89
Navigation system-linked display ........ 87
Pop-up display ...............................................90
Settings...............................................................89
Heated steering wheel .............................. 330
Heaters Front automatic air conditioning system............................................................................317
Heated steering wheel ........................... 330
Outside rear view mirrors...................... 318
Rear automatic air conditioning system
.......................................................................... 327
Seat heaters ................................................. 330
Height control Electronically modulated air suspension..........................................................................295
Hill-start assist control ............................... 298
Hood Open................................................................375
Pop Up Hood................................................. 37
Hooks Coat hooks ................................................... 347
Retaining hooks (floor mat) ..................... 22
Horn ....................................................................139
HUD (Head-up display) switch ................ 89
I
I/M test ............................................................ 372
Identification Engine............................................................... 451
Vehicle ........................................................... 450
Ignition switch (engine switch).................165 Auto power off function........................... 168
Changing the engine switch modes . 168
If your vehicle has to be stopped in an emergency .................................................. 410
Indicators ........................................................... 70
Page 507 of 516

505Alphabetical Index
PCS (Pre-Collision System)................205
RSA (Road Sign Assist) ......................... 238
License plate lights Light switch .................................................... 180
Replacing light bulbs............................... 408
Light bulbs Replacing ...................................................... 408
Lights Automatic High Beam system............. 183
Front interior lights .................................... 335
Front personal lights................................. 336
Headlight switch ......................................... 180
Interior lights................................................. 334
Interior lights list.......................................... 334
Rear interior lights ..................................... 335
Rear personal lights.................................. 336
Replacing light bulbs............................... 408
Trunk lid light................................................. 108
Trunk light....................................................... 108
Turn signal lever ........................................... 175
Vanity lights ................................................. 350
Welcome light illumination control ..... 181
Lock steering column ..................................165
LTA (Lane Tracing Assist) Operation...................................................... 226
Warning messages .................................. 238
Luggage mats ............................................... 343
M
Maintenance Do-it-yourself maintenance ................. 373
General maintenance .............................369
Maintenance data......................................450
Maintenance requirements ..................368
Malfunction indicator lamp ..................... 420
Master warning light .................................. 426
Menu icons..........................................................81
Meter Changing the main meter location .....80
Clock .......................................................... 73, 76
Indicators .......................................................... 70
Instrument panel light control ........75, 79 Meter control switches ............................... 81
Meters.........................................................73, 76
Multi-information display ......................... 80
Settings...............................................................85
Units.....................................................................84
Warning lights .............................................. 419
Warning message ..................................... 429
Micro dust and pollen filter ..................... 323
Mirrors Inside rear view mirror ............................. 140
Outside rear view mirror defoggers 318
Outside rear view mirrors........................ 141
Vanity mirrors ............................................. 350
Moon roof Door lock linked moon roof operation................................................................ 146, 150
Jam protection function ........................... 146
Operation ....................................................... 146
Multi-information display ............................ 80 Audio system-linked display ...................85
Boost gauge ....................................................84
Drive information 1/Drive information 2............................................................................. 82
Driving information display ...................... 82
Driving support system information dis- play....................................................................85
Dynamic radar cruise control with full-speed range ........................................241
Eco Driving Indicator..................................83
Gear Position .................................................84
G-force ..............................................................84
LTA (Lane Tracing Assist) .................... 232
Menu icons ....................................................... 81
Meter control switches ............................... 81
Navigation system-linked display ........84
Pop-up display .............................................. 80
Settings...............................................................85
Suggestion function .....................................86
Tire pressure ............................................... 389
Units.....................................................................84
Warning message ..................................... 429
