912-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators driving. When changi ng settings, park
the vehicle in a safe place.●
If a warning message is displayed, opera-
tion of the settings display will be sus-
pended.
Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches. ■
Suggestion to turn off the head-
lights
If the headlights are left on for a certain
amount of time with the headlight
switch in after the power switch
has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”. If a front door is opened after the power
switch is turned off, this suggestion mes- sage will not be displayed. ■
Customization
Some functions can be customized.
( → P.481)
WARNING■
Cautions during setting up the dis-
play
As the hybrid system needs to be operat-
ing during setting up the display, ensure
that the vehicle is parked in a place with
adequate ventilation. In a closed area
such as a garage, exhaust gases includ-
ing harmful carbon monoxide (CO) may
collect and enter the vehicle. This may
lead to death or a serious health hazard.
NOTICE■
During setting up the display
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while setting up the display features.
Suggestion function

92 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) *
:If equipped
Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.
Navigation system-linked display area (if equipped)Displays the following items which ar e linked to the navigation system:
• Route guidance to destination
•Street name
• Compass (heading-up display)
Driving support system display area ( → P.95)
Speed limit/RSA (Road Sign Assist) display area (if equipped)Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display ( →
P.247 )
Outside temperature display area

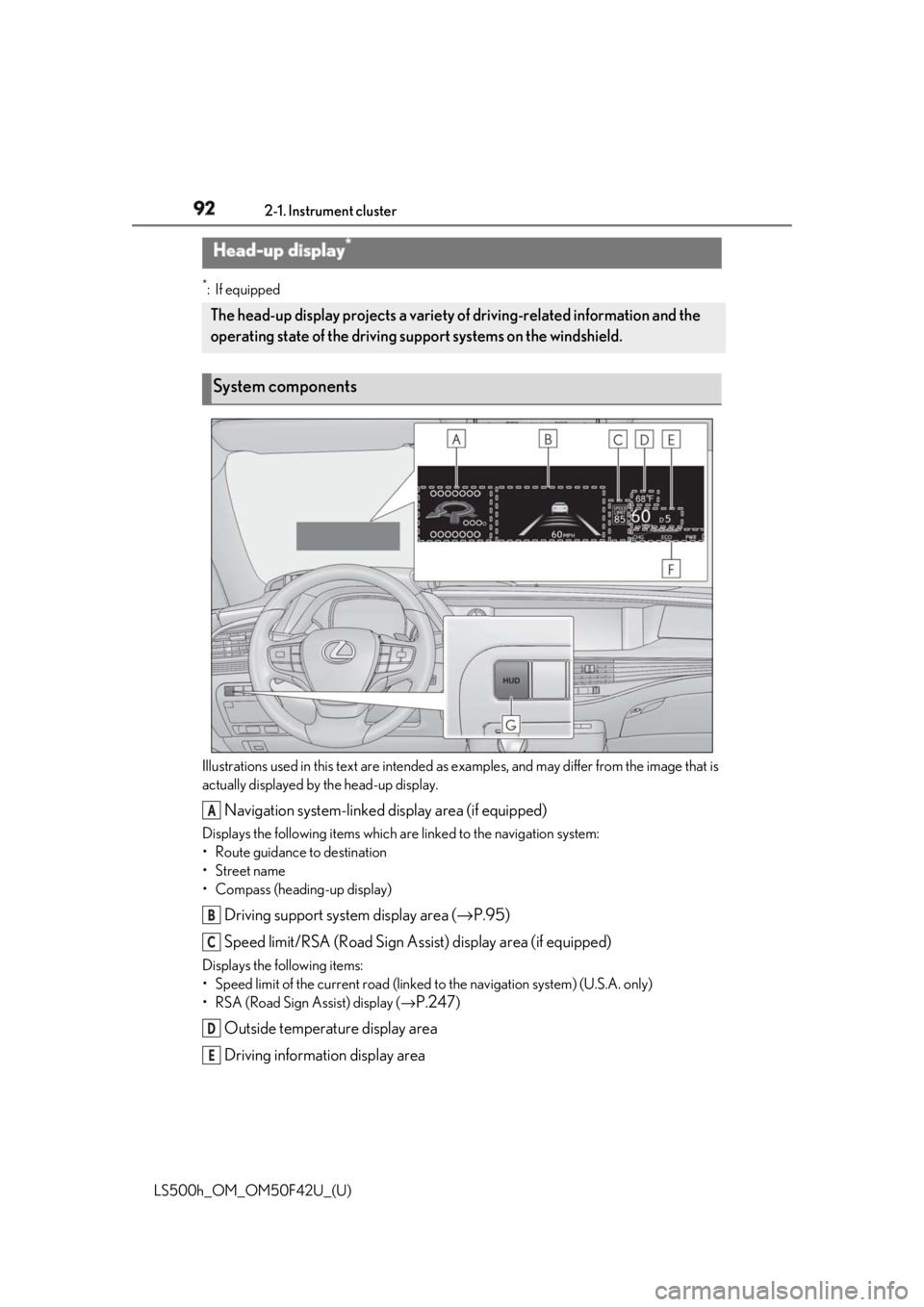

Driving information display areaHead-up display *
The head-up display projects a variety of driving-related information and the
operating state of the driving su pport systems on the windshield.
System components
A
B
C
D
E

932-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators Displays the following items:
• Speedometer
• Shift position/shift range/gear position ( →
P.174 )
Hybrid System Indicator/tachometer display area ( → P.96)
HUD (Head-up display) switch ■
Head-up display will operate when
The power switch is in ON mode. ■
When using the head-up display
The head-up display may seem dark or hard
to see when viewed through sunglasses,
especially polarized su nglasses. Adjust the
brightness of the head-up display or
remove your sunglasses. ■
Street name display
Only street names whic h are included in the
map data will be displayed. ■
Outside temperature display●
When the ambient temperature is
approximately 37°F (3°C) or lower, the
low outside temperature indicator will
flash for approximately 10 seconds and
the outside temperature display will turn
off. In this case, the display will be dis-
played again when the outside tempera-
ture becomes approximately 41°F (5°C)
or higher.●
In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●
When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer. F
G

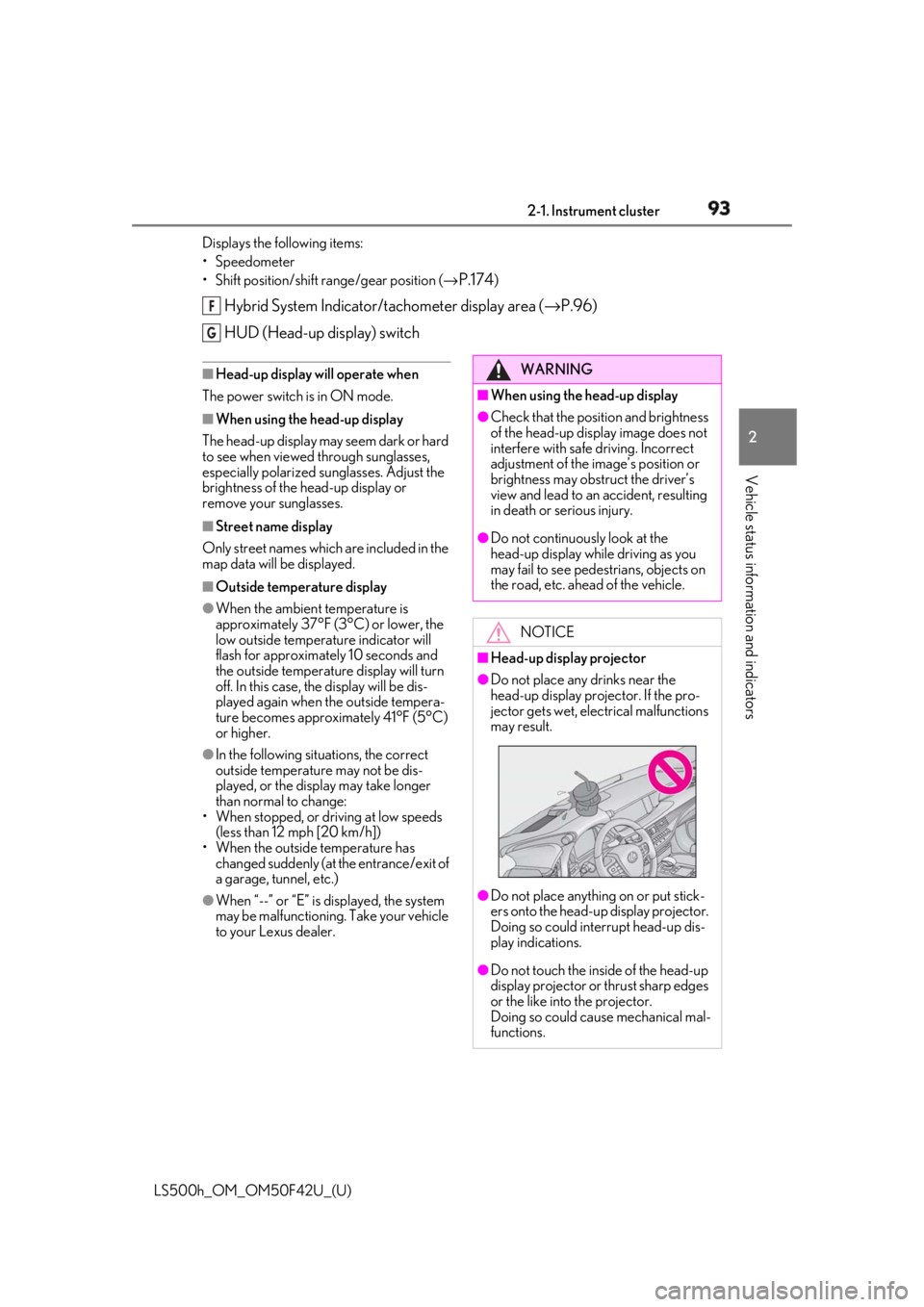

WARNING■
When using the head-up display ●
Check that the position and brightness
of the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s
view and lead to an accident, resulting
in death or serious injury. ●
Do not continuously look at the
head-up display while driving as you
may fail to see pedestrians, objects on
the road, etc. ahead of the vehicle.
NOTICE■
Head-up display projector ●
Do not place any drinks near the
head-up display projector. If the pro-
jector gets wet, electrical malfunctions
may result.
●
Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
●
Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

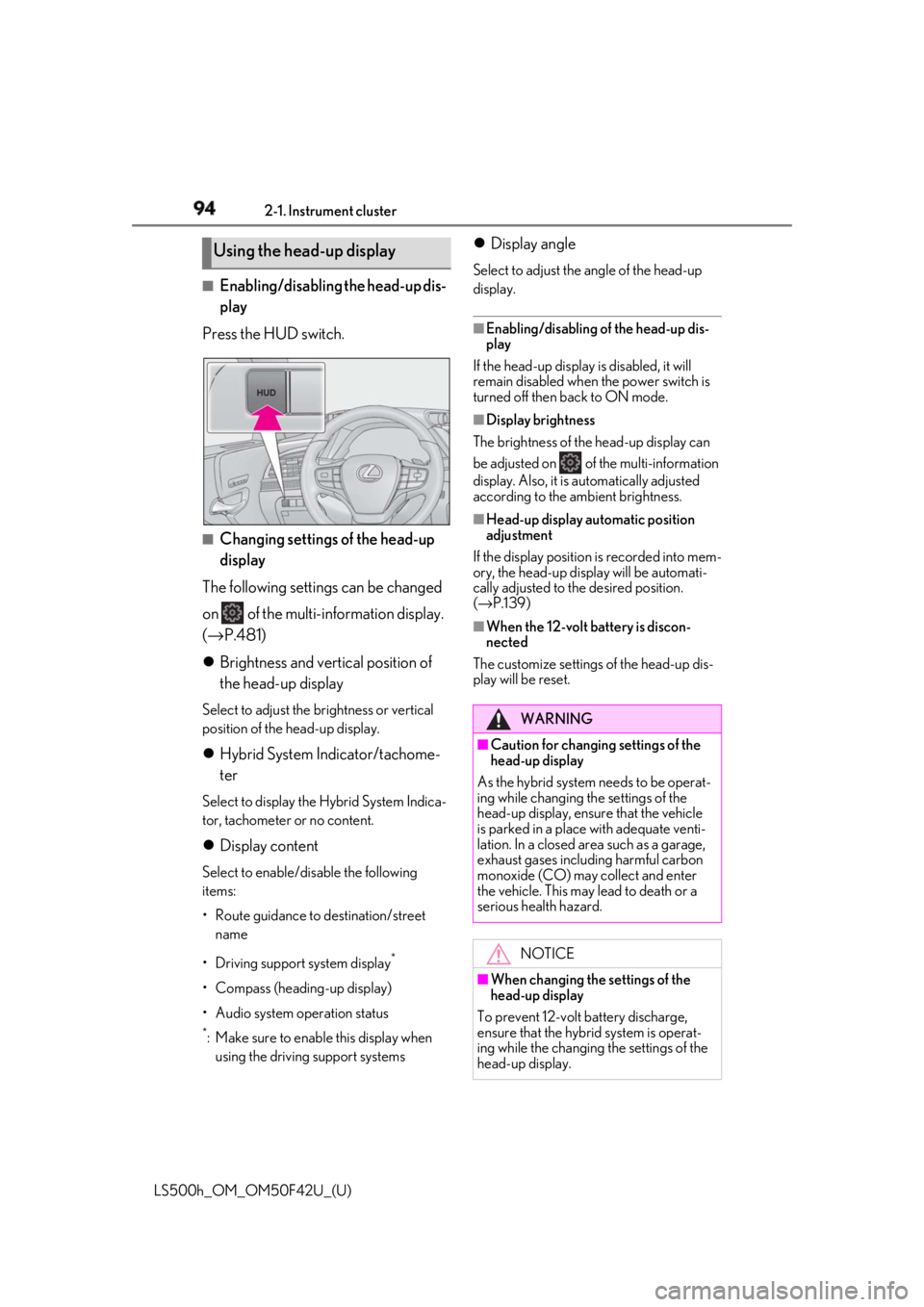

94 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) ■
Enabling/disabling the head-up dis-
play
Press the HUD switch.
■
Changing settings of the head-up
display
The following settings can be changed
on of the multi-information display.
( → P.481)
 Brightness and vertical position of
the head-up display Select to adjust the brightness or vertical
position of the head-up display.
 Hybrid System Indicator/tachome-
ter Select to display the Hybrid System Indica-
tor, tachometer or no content.
 Display content Select to enable/dis able the following
items:
• Route guidance to destination/street
name
• Driving support system display *
• Compass (heading-up display)
• Audio system operation status *
: Make sure to enable this display when
using the driving support systems  Display angle Select to adjust the angle of the head-up
display. ■
Enabling/disabling of the head-up dis-
play
If the head-up display is disabled, it will
remain disabled when the power switch is
turned off then back to ON mode. ■
Display brightness
The brightness of the head-up display can
be adjusted on of the multi-information
display. Also, it is automatically adjusted
according to the ambient brightness. ■
Head-up display automatic position
adjustment
If the display position is recorded into mem-
ory, the head-up display will be automati-
cally adjusted to th e desired position.
( → P.139) ■
When the 12-volt battery is discon-
nected
The customize settings of the head-up dis-
play will be reset.Using the head-up display
WARNING■
Caution for changing settings of the
head-up display
As the hybrid system needs to be operat-
ing while changing th e settings of the
head-up display, ensure that the vehicle
is parked in a place with adequate venti-
lation. In a closed area such as a garage,
exhaust gases including harmful carbon
monoxide (CO) may collect and enter
the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■
When changing the settings of the
head-up display
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while the changing the settings of the
head-up display.

952-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators Displays the operational status of the
following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( → P.230)
 LKA (Lane-Keeping Assist) (if
equipped) ( → P.240)
 Dynamic radar cruise control with
full-speed range ( → P.250)Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.
Pop-up displays for the following sys-
tems will be displayed when necessary. ■
Driving support systems
Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.
 PCS (Pre-Collision System)
( → P.209, 220)
 FCTA (Front Cross Traffic Alert) (if
equipped) ( → P.227)
 Intuitive parking assist ( → P.266)
 Parking Support Brake function (for
static objects) ( → P.286)
 Brake Override System ( → P.159)
 Drive-Start Control ( → P.159)Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For details, refer to the explanation of each sys-
tem. ■
/ icons
These icons are linked to the
multi-information display
: Master warning icon Displayed when a warn ing message is dis-
played on the multi-information display.
( → P.437)
: Information icon Displayed when a suggestion pop-up dis-
play ( → P.91) or advice pop-up display is
displayed on the multi-information display. ■
Warning message
Some warning messages are displayed
when necessary, according to certain
conditions. Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. ■
Audio system operation status
Displayed when an audio remote con-
trol switch on the steering wheel is
operated. ■
Hands-free system status
Displayed when the hands-free system
is operated. ■
When a pop-up display is displayed
When a pop-up display is displayed, a cur-
rent display may no long er be displayed. In
this case, the display will return after the
pop-up display disappears.Driving support system display
area
Pop-up display

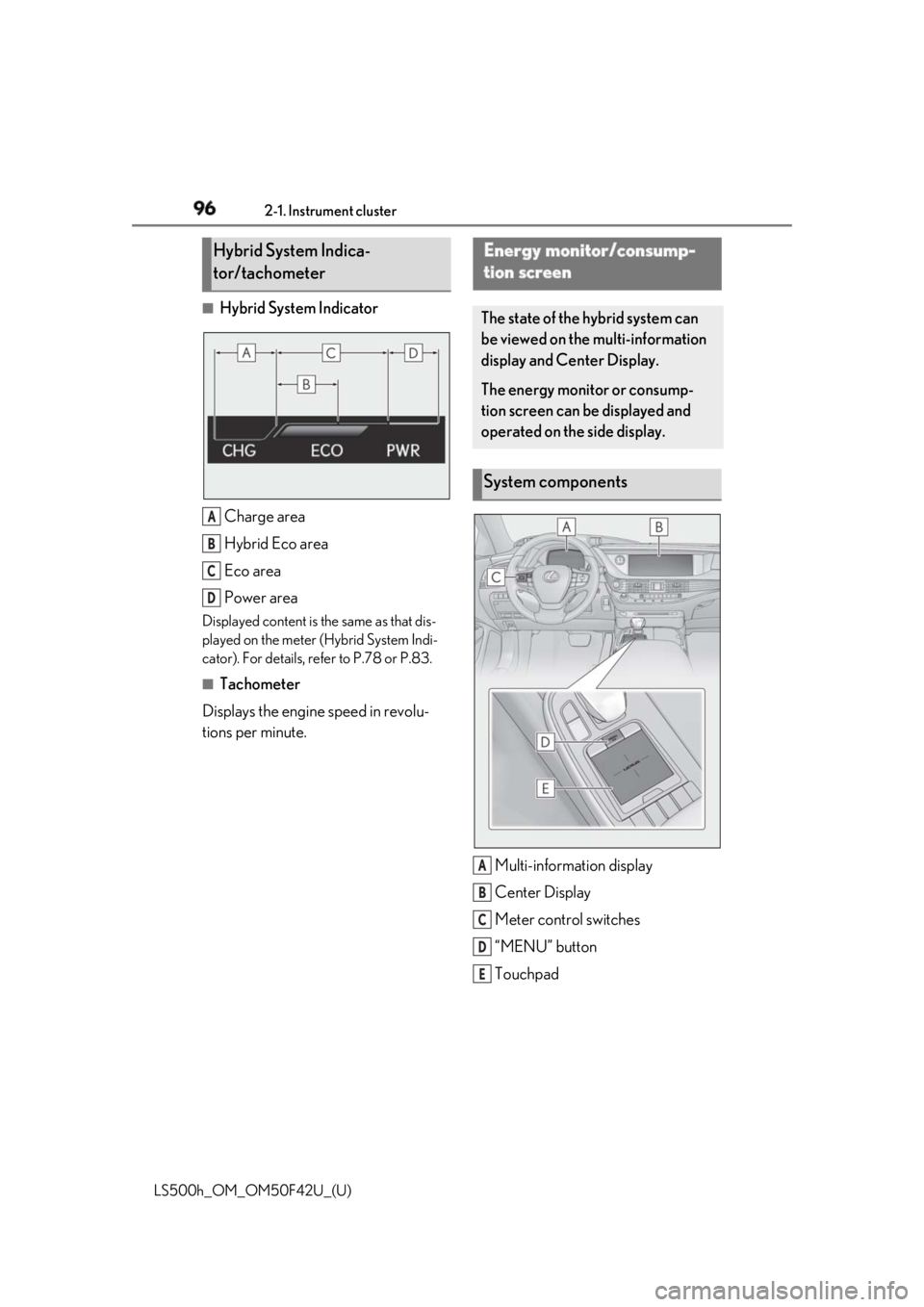

96 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) ■
Hybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Power areaDisplayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.78 or P.83. ■
Tachometer
Displays the engine speed in revolu-
tions per minute.
Multi-information display
Center Display
Meter control switches
“MENU” button
TouchpadHybrid System Indica-
tor/tachometer
A
B
C
D Energy monitor/consump-
tion screen The state of the hybrid system can
be viewed on the multi-information
display and Center Display.
The energy monitor or consump-
tion screen can be displayed and
operated on the side display.
System components
A
B
C
D
E

972-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators ■
Center Display
Press the “MENU” button on the
Remote Touch, then select on the
menu screen. If a screen other than “Energy Monitor” is displayed, select “Energy”. ■
Multi-information display
Press the or meter control
switch and select , and then press
or to select the energy monitor

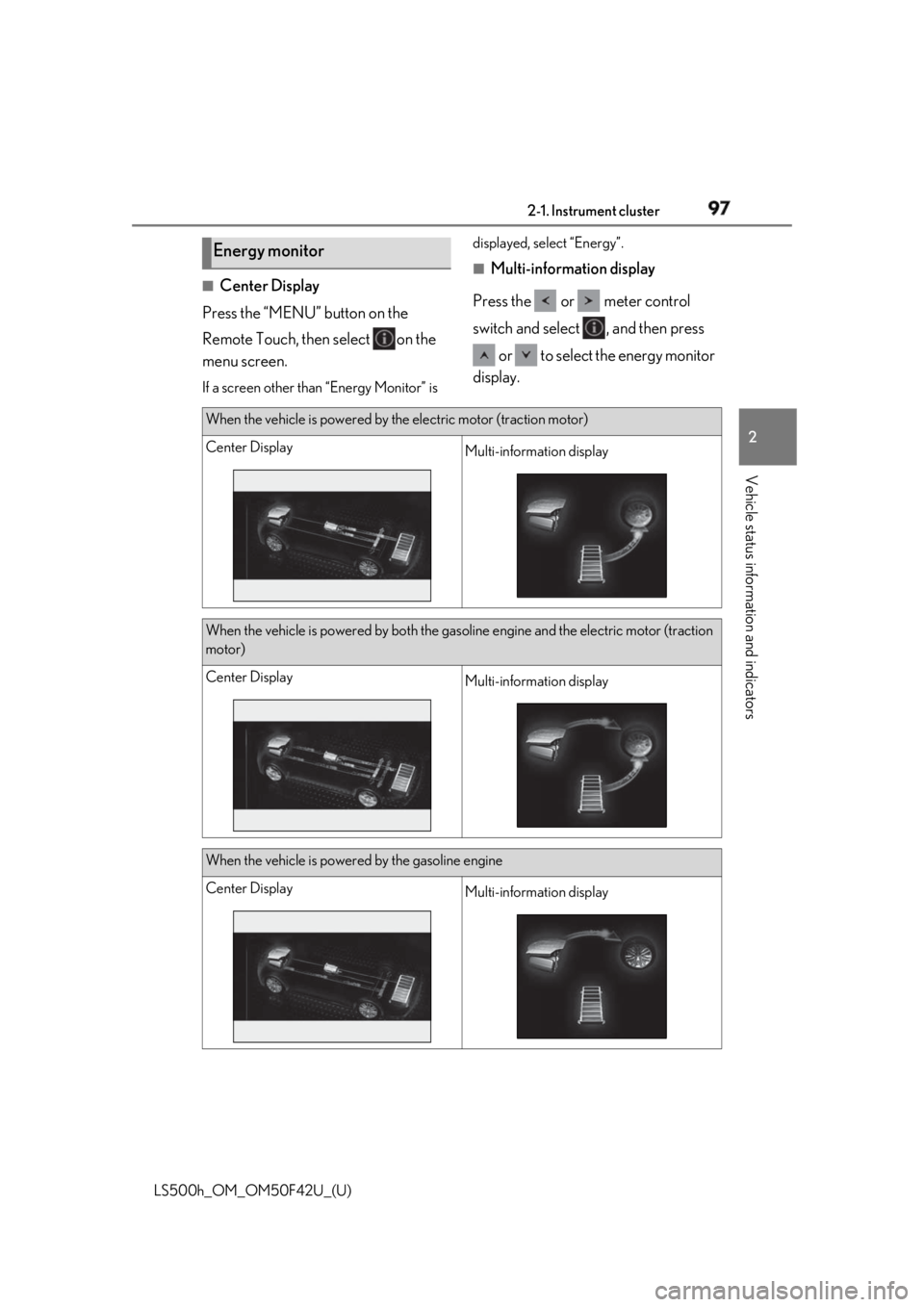

display.Energy monitor When the vehicle is powered by the electric motor (traction motor)
Center Display
Multi-information display
When the vehicle is powered by both the gaso line engine and the electric motor (traction
motor)
Center Display
Multi-information display
When the vehicle is powered by the gasoline engine
Center Display
Multi-information display

98 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) These images are examples only, and may vary slightly from actual conditions.
■
Hybrid battery (traction battery)
status 
Center Display Low

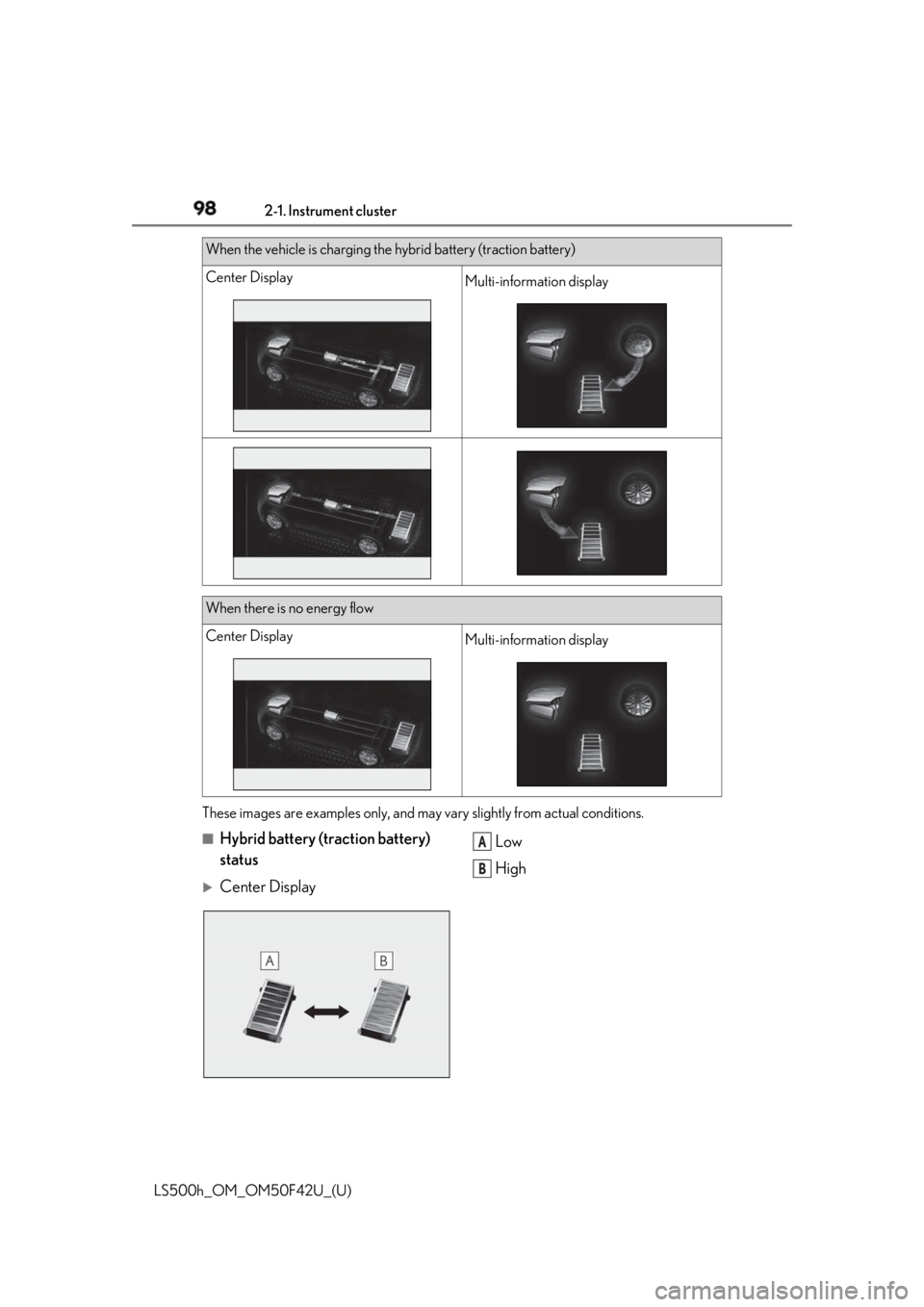

HighWhen the vehicle is charging the hybrid battery (traction battery)
Center Display
Multi-information display
When there is no energy flow
Center Display
Multi-information display
A
B

992-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators 

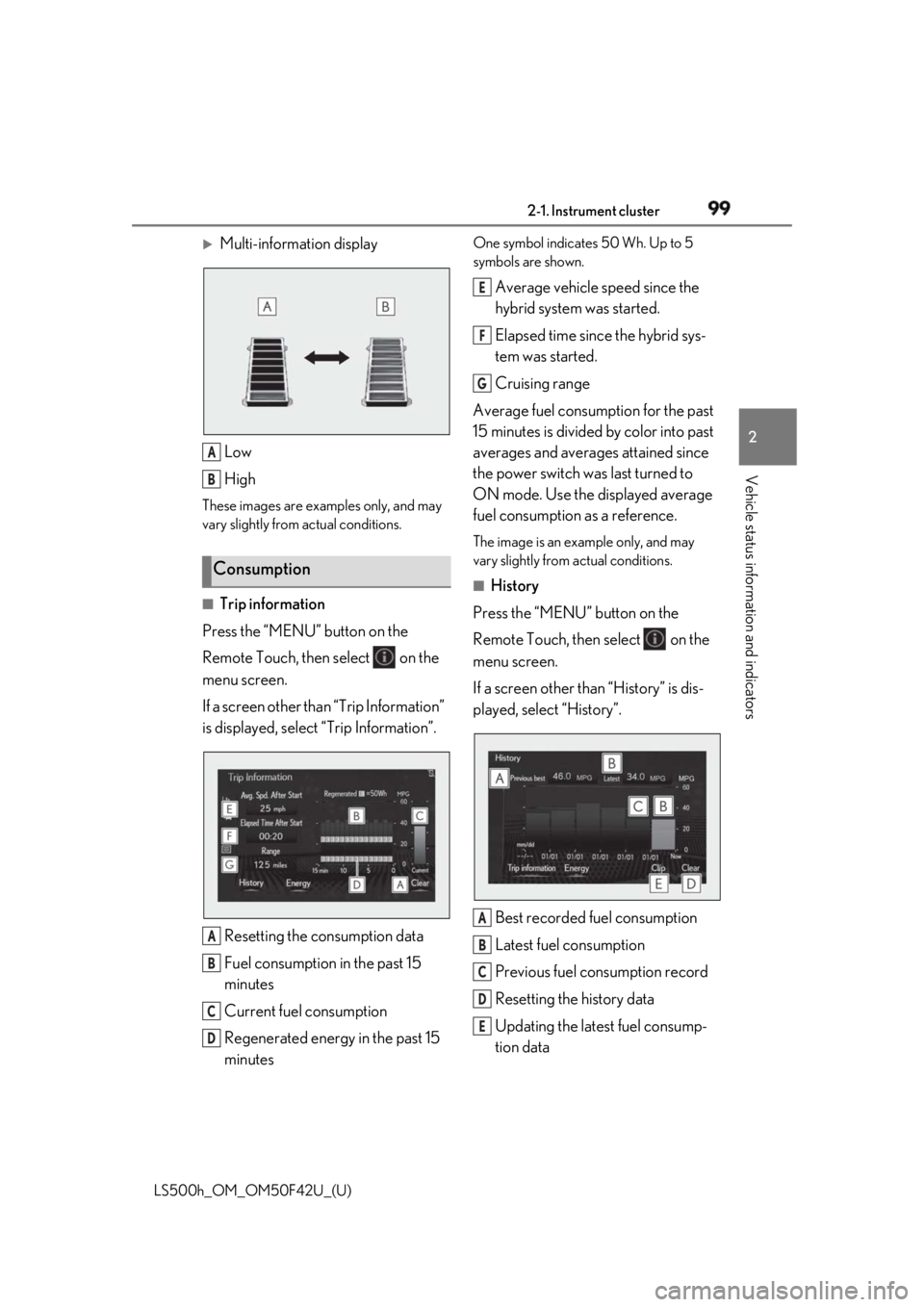

Multi-information display
Low
HighThese images are examples only, and may
vary slightly from actual conditions.
■

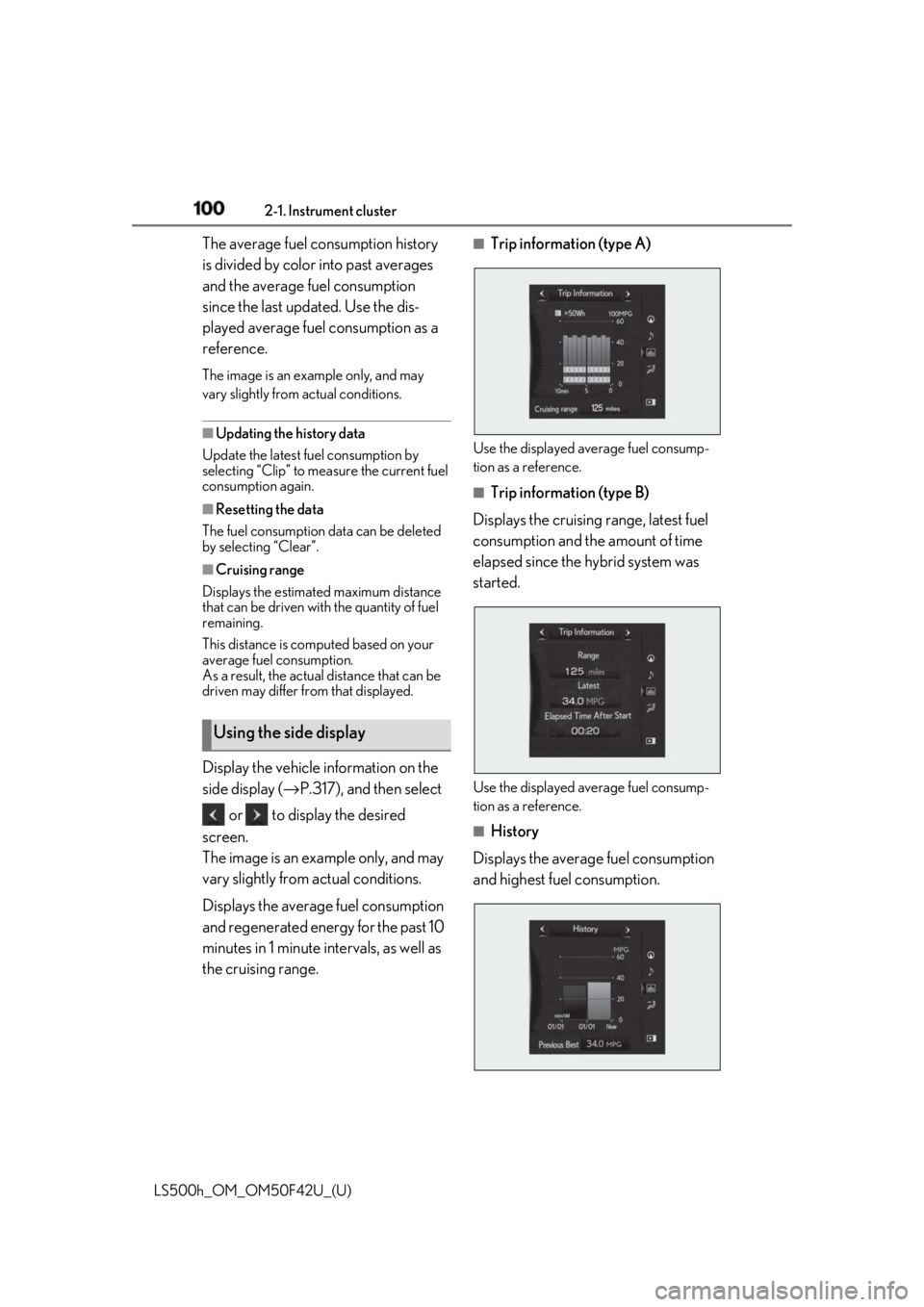

Trip information
Press the “MENU” button on the
Remote Touch, then select on the
menu screen.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past 15
minutes One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the
hybrid system was started.
Elapsed time since the hybrid sys-
tem was started.
Cruising range
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the power switch was last turned to
ON mode. Use the displayed average
fuel consumption as a reference. The image is an example only, and may
vary slightly from actual conditions. ■
History
Press the “MENU” button on the
Remote Touch, then select on the
menu screen.
If a screen other than “History” is dis-
played, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion dataConsumption A
B
A
B
C
D E
F
G
A
B
C
D
E

100 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference. The image is an example only, and may
vary slightly from actual conditions. ■
Updating the history data
Update the latest fuel consumption by
selecting “Clip” to measure the current fuel
consumption again. ■
Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”. ■
Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.
This distance is comp uted based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.
Display the vehicle information on the
side display ( → P.317), and then select
or to display the desired
screen.
The image is an example only, and may
vary slightly from actual conditions.
Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range. ■
Trip information (type A)
Use the displayed average fuel consump-
tion as a reference. ■
Trip information (type B)
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the hybrid system was
started.
Use the displayed average fuel consump-
tion as a reference.
■
History
Displays the average fuel consumption
and highest fuel consumption.Using the side display
