4818-2. Customization
LS500h_OM_OM50F42U_(U) 8
Vehicle specifications 8-2.Customization
■
Changing by using the meter con-
trol switches
1 Press or to select .
2 Operate the meter control
switches to select the desired item
to be customized.
3 According to the display, select the
desired setting and then press .To go back to the previous screen or exit
the customize mode, press .
■
Changing by using the Remote
Touch
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup” on the menu screen
and select “Vehicle”.
3 Select “Vehicle Customization” or
“Drive Mode Customization”.Various setting can be changed. Refer to the list of settings th at can be changed for
details.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN-
UAL”. ■
Changing by using the Rear Multi
Operation Panel (if equipped)
1 Display the home screen on the
Rear Multi Operation Panel and
then touch “Settings”.
2 Touch “Seat”.
3 Select the desired setting. ■
When customizing using the Remote
Touch
Stop the vehicle in a safe place, apply the
parking brake, and shift the shift position to
P. Also, to prevent 12-volt battery discharge,
leave the hybrid system operating while
customizing the features.
Some function settings are changed simultaneously with other functions being cus-Customizable features Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. The
settings of these features can be
changed by using the meter control
switches, the Remote Touch, Rear
Multi Operation Panel or at your
Lexus dealer.
Customizing vehicle features
WARNING■
During customization
As the hybrid system needs to be operat-
ing during customizatio n, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■
During customization
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while customizing features.
Customizable features

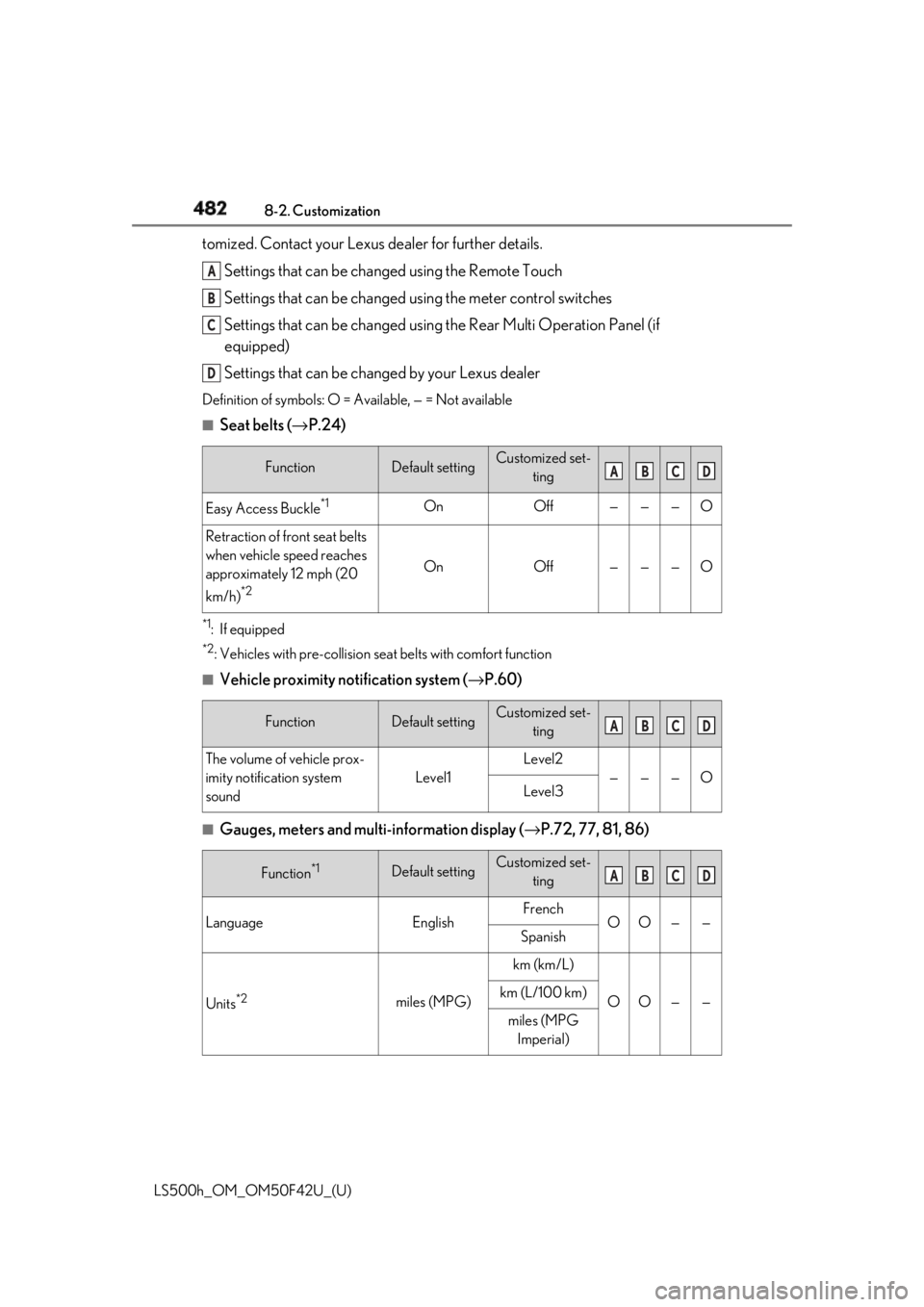

482 8-2. Customization
LS500h_OM_OM50F42U_(U) tomized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed using the Rear Multi Operation Panel (if
equipped)
Settings that can be changed by your Lexus dealerDefinition of symbols: O = Available, — = Not available ■
Seat belts ( → P.24)*1
: If equipped *2
: Vehicles with pre-collision se at belts with comfort function■
Vehicle proximity notification system ( → P.60)
■
Gauges, meters and multi-information display ( → P.72, 77, 81, 86)Function Default setting Customized set-
ting
Easy Access Buckle *1
On Off — — — O
Retraction of front seat belts
when vehicle speed reaches
approximately 12 mph (20
km/h) *2
On Off — — — O
Function Default setting Customized set-
ting
The volume of vehicle prox-
imity notification system
sound Level1 Level2
— — — O
Level3
Function *1
Default setting Customized set-
ting
Language English French
O O — —
Spanish
Units *2
miles (MPG) km (km/L)
O O — —km (L/100 km)
miles (MPG
Imperial)A
B
C
D
A B C D
A B C D
A B C D

4838-2. Customization
LS500h_OM_OM50F42U_(U) 8
Vehicle specifications
*1
: For details about each function: → P.90*2
: The default setting varies according to country. *3

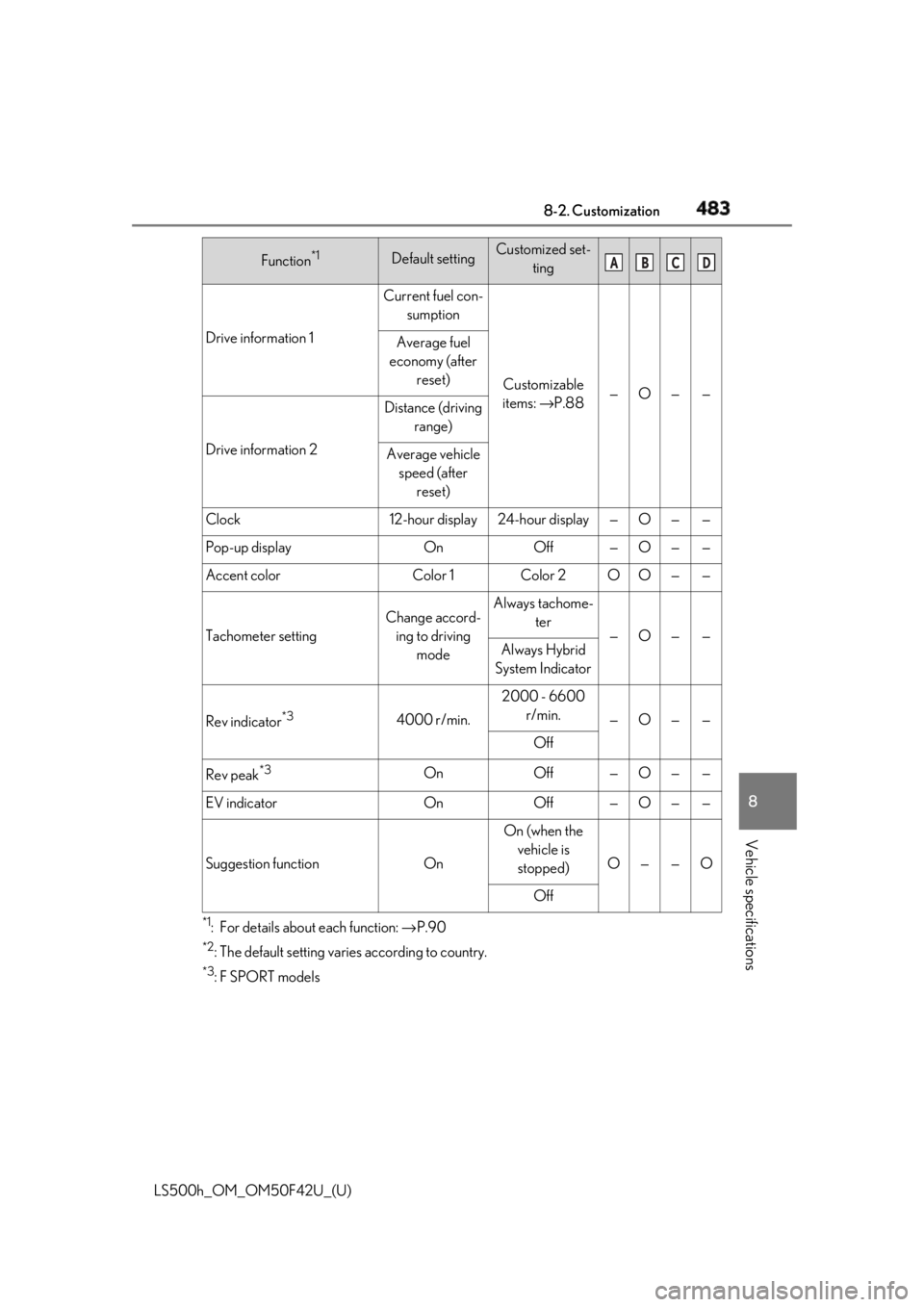

:F SPORT modelsDrive information 1 Current fuel con-
sumption
Customizable
items: → P.88 — O — —Average fuel
economy (after
reset)
Drive information 2 Distance (driving
range)
Average vehicle
speed (after
reset)
Clock 12-hour display 24-hour display — O — —
Pop-up display On Off — O — —
Accent color Color 1 Color 2 O O — —
Tachometer setting Change accord-
ing to driving
mode Always tachome-
ter
— O — —
Always Hybrid
System Indicator
Rev indicator *3
4000 r/min. 2000 - 6600
r/min.
— O — —
Off
Rev peak *3
On Off — O — —
EV indicator On Off — O — —
Suggestion function On On (when the
vehicle is
stopped) O — — O
OffFunction *1
Default setting Customized set-
ting A B C D

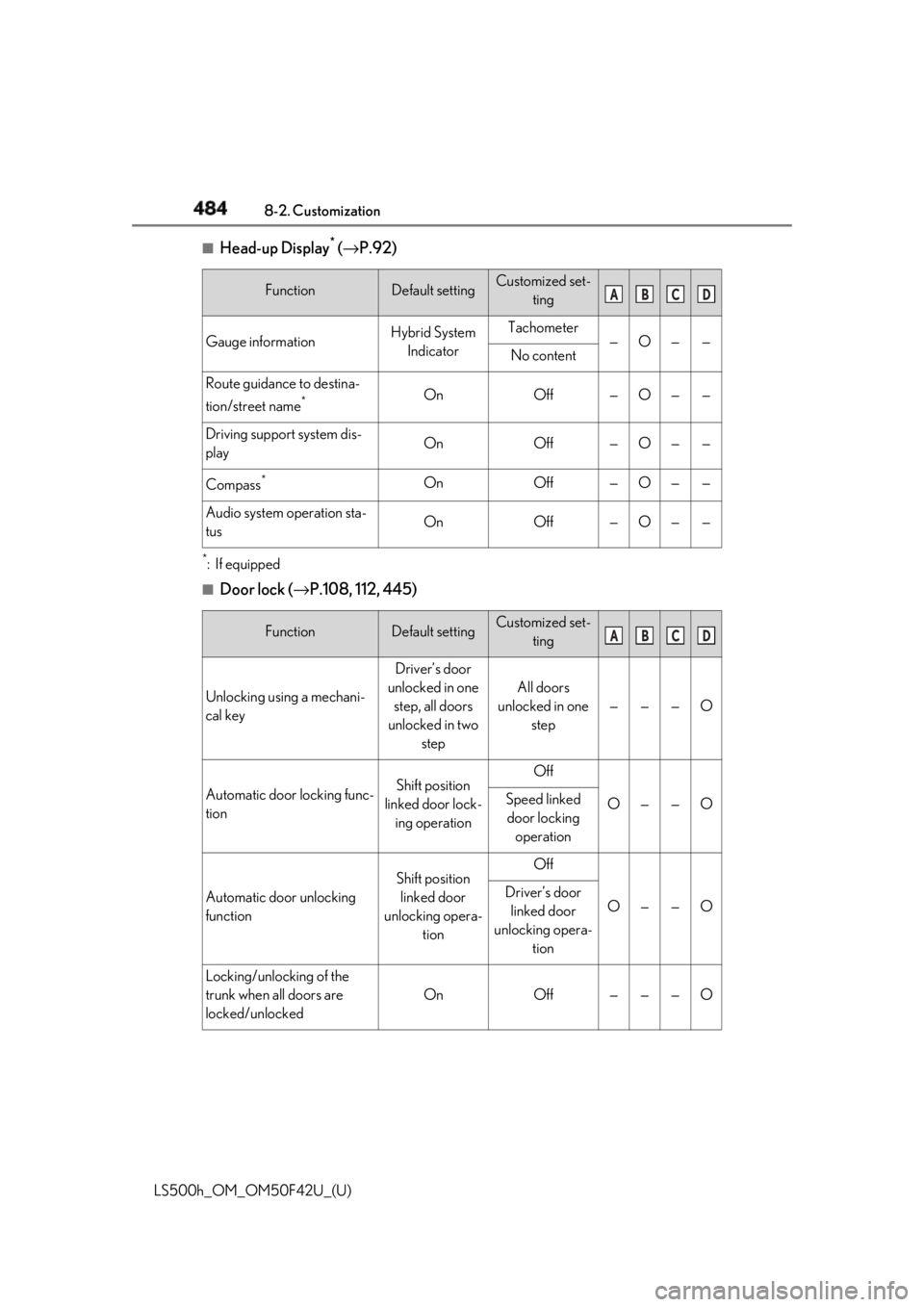

484 8-2. Customization
LS500h_OM_OM50F42U_(U) ■
Head-up Display *
( → P.92)
*
:If equipped ■
Door lock ( → P.108, 112, 445)Function Default setting Customized set-
ting
Gauge information Hybrid System
Indicator Tachometer
— O — —
No content
Route guidance to destina-
tion/street name *
On Off — O — —
Driving support system dis-
play On Off — O — —
Compass *
On Off — O — —
Audio system operation sta-
tus On Off — O — —
Function Default setting Customized set-
ting
Unlocking using a mechani-
cal key Driver’s door
unlocked in one
step, all doors
unlocked in two
step All doors
unlocked in one
step — — — O
Automatic door locking func-
tion Shift position
linked door lock-
ing operation Off
O — — OSpeed linked
door locking
operation
Automatic door unlocking
function Shift position
linked door
unlocking opera-
tion Off
O — — ODriver’s door
linked door
unlocking opera-
tion
Locking/unlocking of the
trunk when all doors are
locked/unlocked On Off — — — O A B C D
A B C D

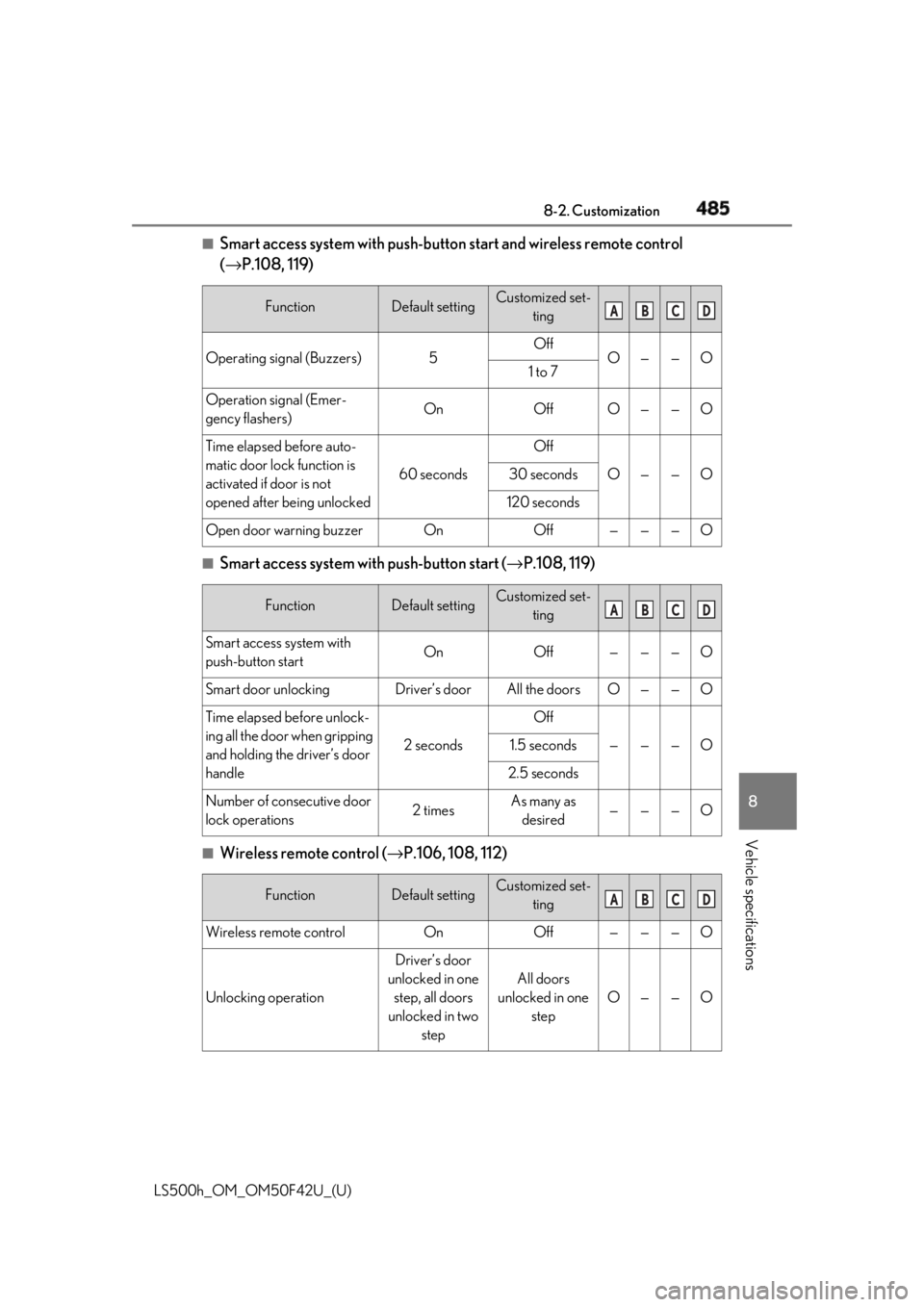

4858-2. Customization
LS500h_OM_OM50F42U_(U) 8
Vehicle specifications ■
Smart access system with push-butto n start and wireless remote control
( → P.108, 119)
■
Smart access system with push-button start ( → P.108, 119)
■
Wireless remote control ( → P.106, 108, 112)Function Default setting Customized set-
ting
Operating signal (Buzzers) 5 Off
O — — O
1 to 7
Operation signal (Emer-
gency flashers) On Off O — — O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being unlocked 60 seconds Off
O — — O30 seconds
120 seconds
Open door warning buzzer On Off — — — O
Function Default setting Customized set-
ting
Smart access system with
push-button start On Off — — — O
Smart door unlocking Driver’s door All the doors O — — O
Time elapsed before unlock-
ing all the door when gripping
and holding the driver’s door
handle 2 seconds Off
— — — O1.5 seconds
2.5 seconds
Number of consecutive door
lock operations 2 times As many as
desired — — — O
Function Default setting Customized set-
ting
Wireless remote control On Off — — — O
Unlocking operation Driver’s door
unlocked in one
step, all doors
unlocked in two
step All doors
unlocked in one
step O — — O A B C D
A B C D
A B C D

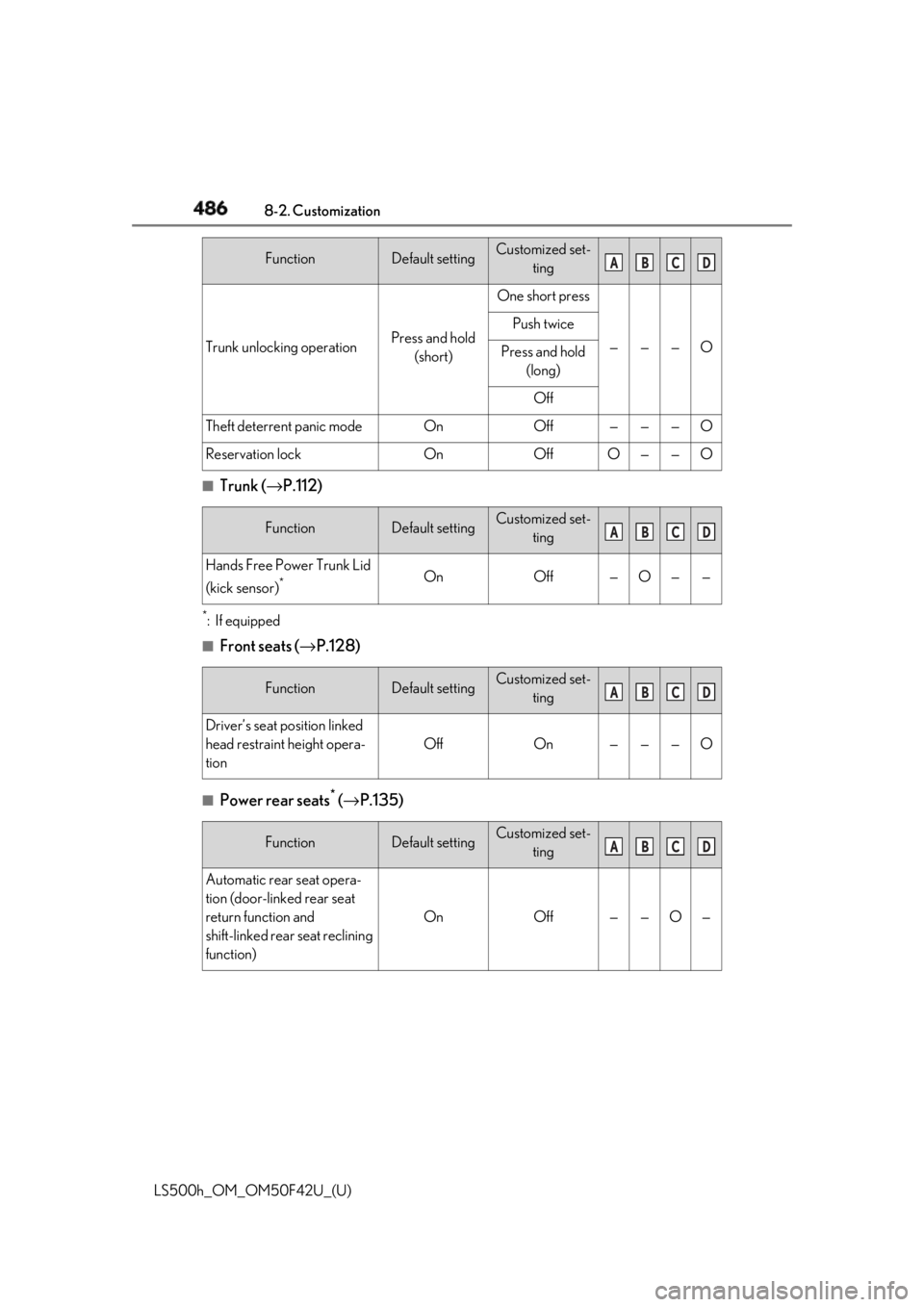

486 8-2. Customization
LS500h_OM_OM50F42U_(U) ■
Trunk ( → P.112)*
:If equipped ■
Front seats ( → P.128)
■
Power rear seats *
( → P.135)Trunk unlocking operation Press and hold
(short) One short press
— — — OPush twice
Press and hold
(long)
Off
Theft deterrent panic mode On Off — — — O
Reservation lock On Off O — — O
Function Default setting Customized set-
ting
Hands Free Power Trunk Lid
(kick sensor) *
On Off — O — —
Function Default setting Customized set-
ting
Driver’s seat position linked
head restraint height opera-
tion Off On — — — O
Function Default setting Customized set-
ting
Automatic rear seat opera-
tion (door-linked rear seat
return function and
shift-linked rear seat reclining
function) On Off — — O —Function Default setting Customized set-
ting A B C D
A B C D
A B C D
A B C D

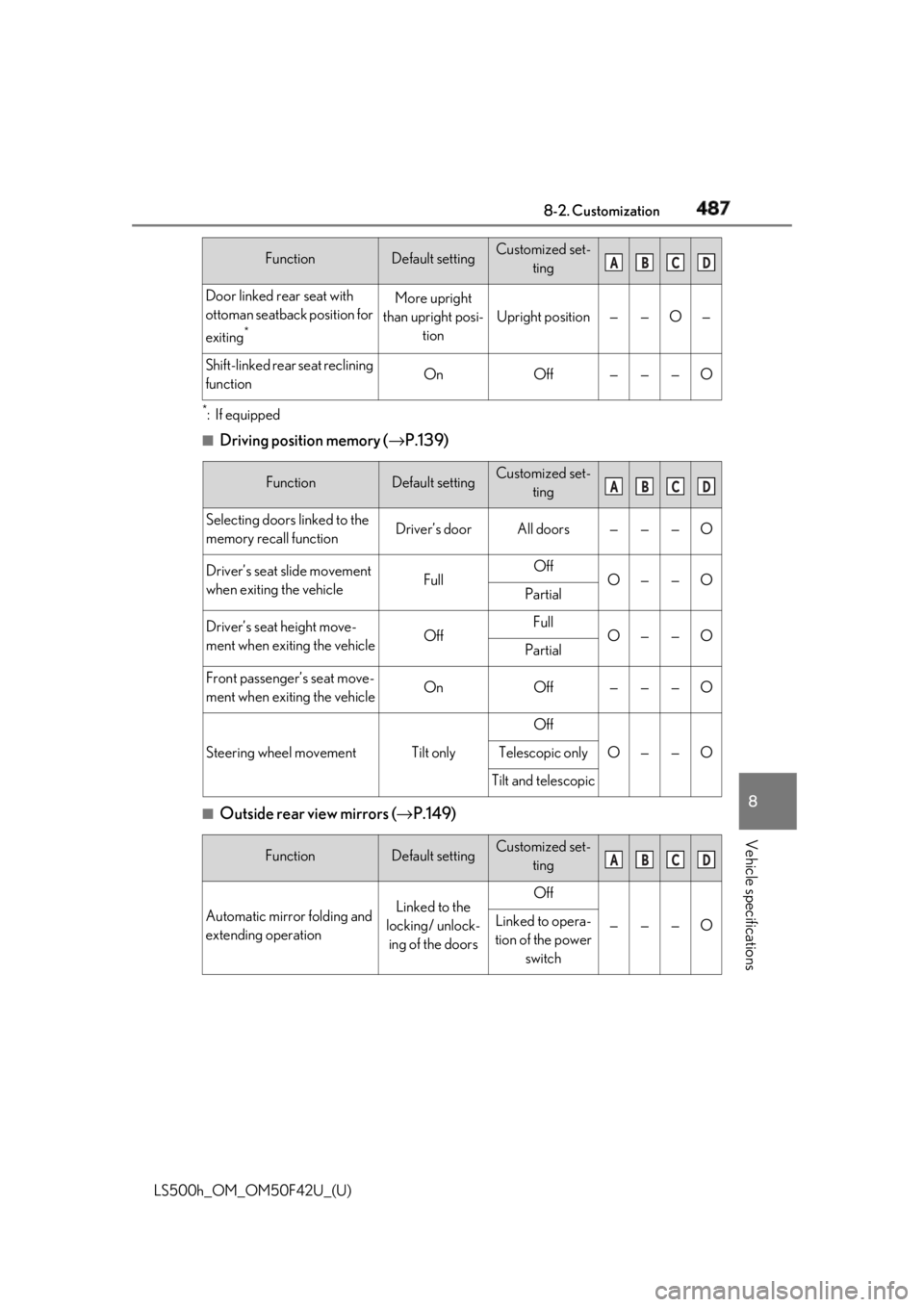

4878-2. Customization
LS500h_OM_OM50F42U_(U) 8
Vehicle specifications *
:If equipped ■
Driving position memory ( → P.139)
■
Outside rear view mirrors ( → P.149)Door linked rear seat with
ottoman seatback position for
exiting *
More upright
than upright posi-
tion Upright position — — O —
Shift-linked rear seat reclining
function On Off — — — O
Function Default setting Customized set-
ting
Selecting doors linked to the
memory recall function Driver’s door All doors — — — O
Driver’s seat slide movement
when exiting the vehicle Full Off
O — — O
Partial
Driver’s seat height move-
ment when exiting the vehicle Off Full
O — — O
Partial
Front passenger’s seat move-
ment when exiting the vehicle On Off — — — O
Steering wheel movement Tilt only Off
O — — OTelescopic only
Tilt and telescopic
Function Default setting Customized set-
ting
Automatic mirror folding and
extending operation Linked to the
locking/ unlock-
ing of the doors Off
— — — OLinked to opera-
tion of the power
switchFunction Default setting Customized set-
ting A B C D
A B C D
A B C D

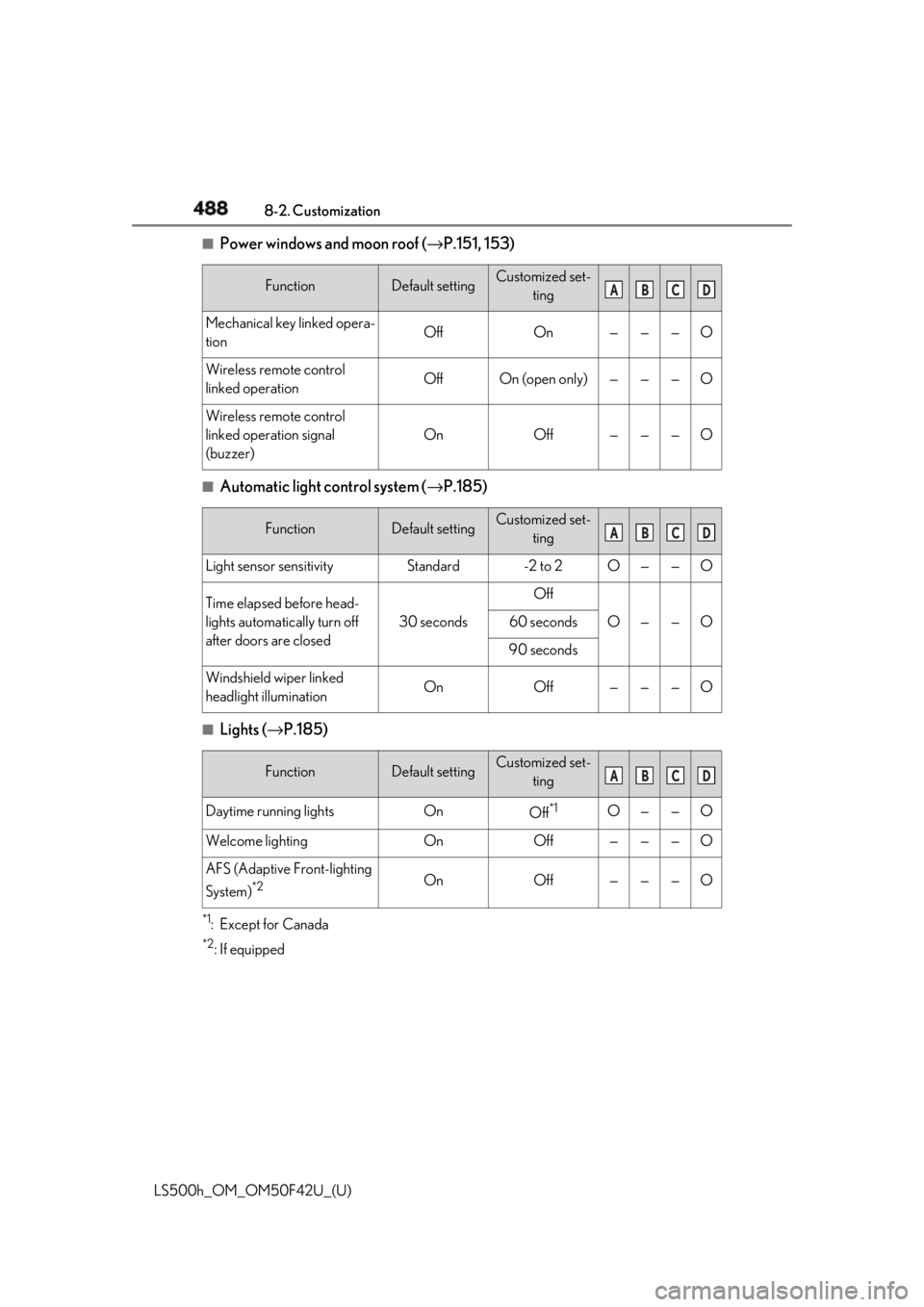

488 8-2. Customization
LS500h_OM_OM50F42U_(U) ■
Power windows and moon roof ( → P.151, 153)
■
Automatic light control system ( → P.185)
■
Lights ( → P.185)
*1
:Except for Canada *2
: If equipped Function Default setting Customized set-
ting
Mechanical key linked opera-
tion Off On — — — O
Wireless remote control
linked operation Off On (open only) — — — O
Wireless remote control
linked operation signal
(buzzer) On Off — — — O
Function Default setting Customized set-
ting
Light sensor sensitivity Standard -2 to 2 O — — O
Time elapsed before head-
lights automatically turn off
after doors are closed 30 seconds Off
O — — O60 seconds
90 seconds
Windshield wiper linked
headlight illumination On Off — — — O
Function Default setting Customized set-
ting
Daytime running lights On
Off *1
O — — O
Welcome lighting On Off — — — O
AFS (Adaptive Front-lighting
System) *2
On Off — — — O A B C D
A B C D
A B C D

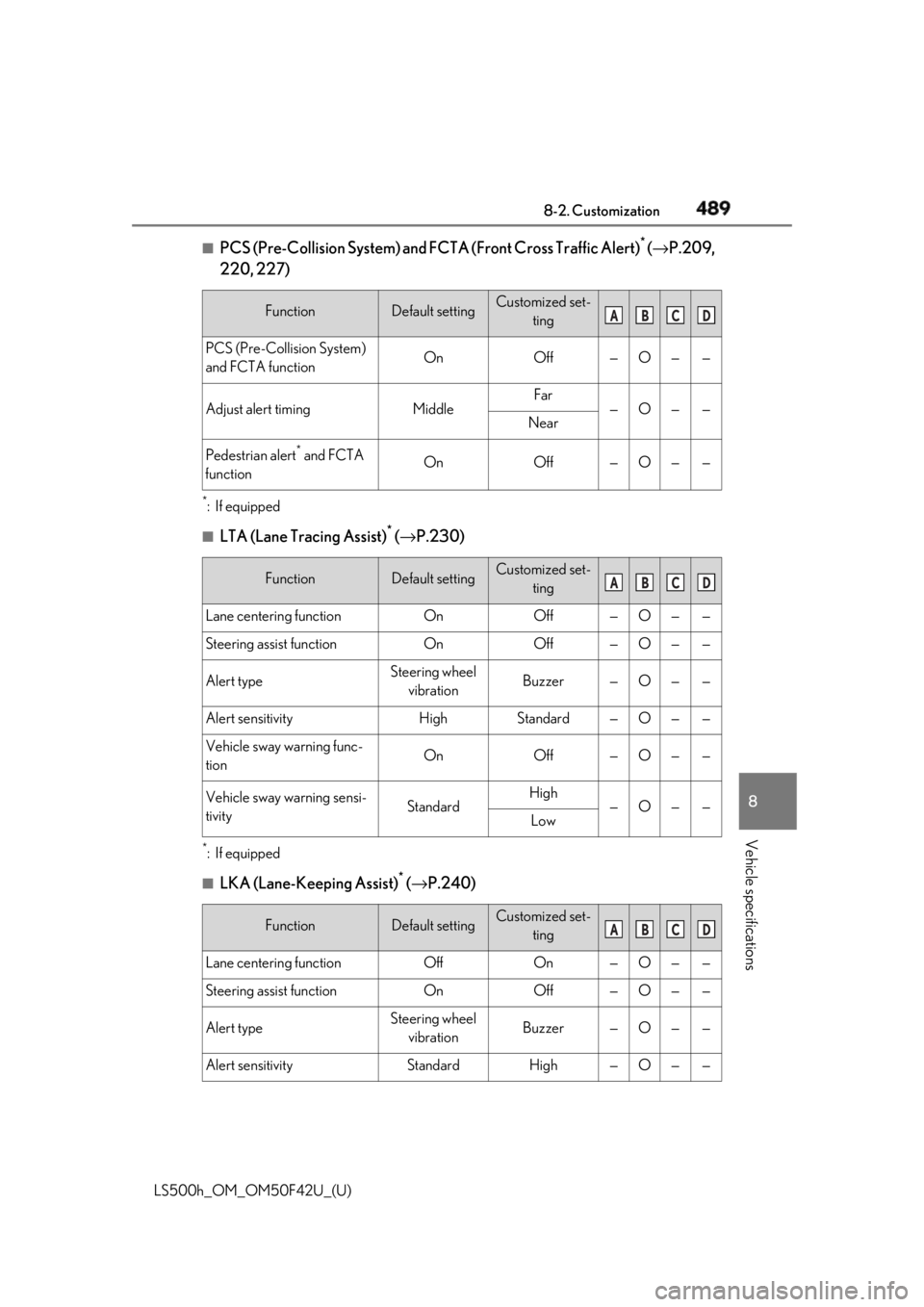

4898-2. Customization
LS500h_OM_OM50F42U_(U) 8
Vehicle specifications ■
PCS (Pre-Collision System) and FC TA (Front Cross Traffic Alert) *
( → P.209,
220, 227) *
:If equipped ■
LTA (Lane Tracing Assist) *
( → P.230)
*
:If equipped
■
LKA (Lane-Keeping Assist) *
( → P.240)Function Default setting Customized set-
ting
PCS (Pre-Collision System)
and FCTA function On Off — O — —
Adjust alert timing Middle Far
— O — —
Near
Pedestrian alert *
and FCTA
function On Off — O — —
Function Default setting Customized set-
ting
Lane centering function On Off — O — —
Steering assist function On Off — O — —
Alert type Steering wheel
vibration Buzzer — O — —
Alert sensitivity High Standard — O — —
Vehicle sway warning func-
tion On Off — O — —
Vehicle sway warning sensi-
tivity Standard High
— O — —
Low
Function Default setting Customized set-
ting
Lane centering function Off On — O — —
Steering assist function On Off — O — —
Alert type Steering wheel
vibration Buzzer — O — —
Alert sensitivity Standard High — O — — A B C D
A B C D
A B C D

490 8-2. Customization
LS500h_OM_OM50F42U_(U) *
:If equipped ■
RSA (Road Sign Assist) *
( → P.247)
*
:If equipped ■

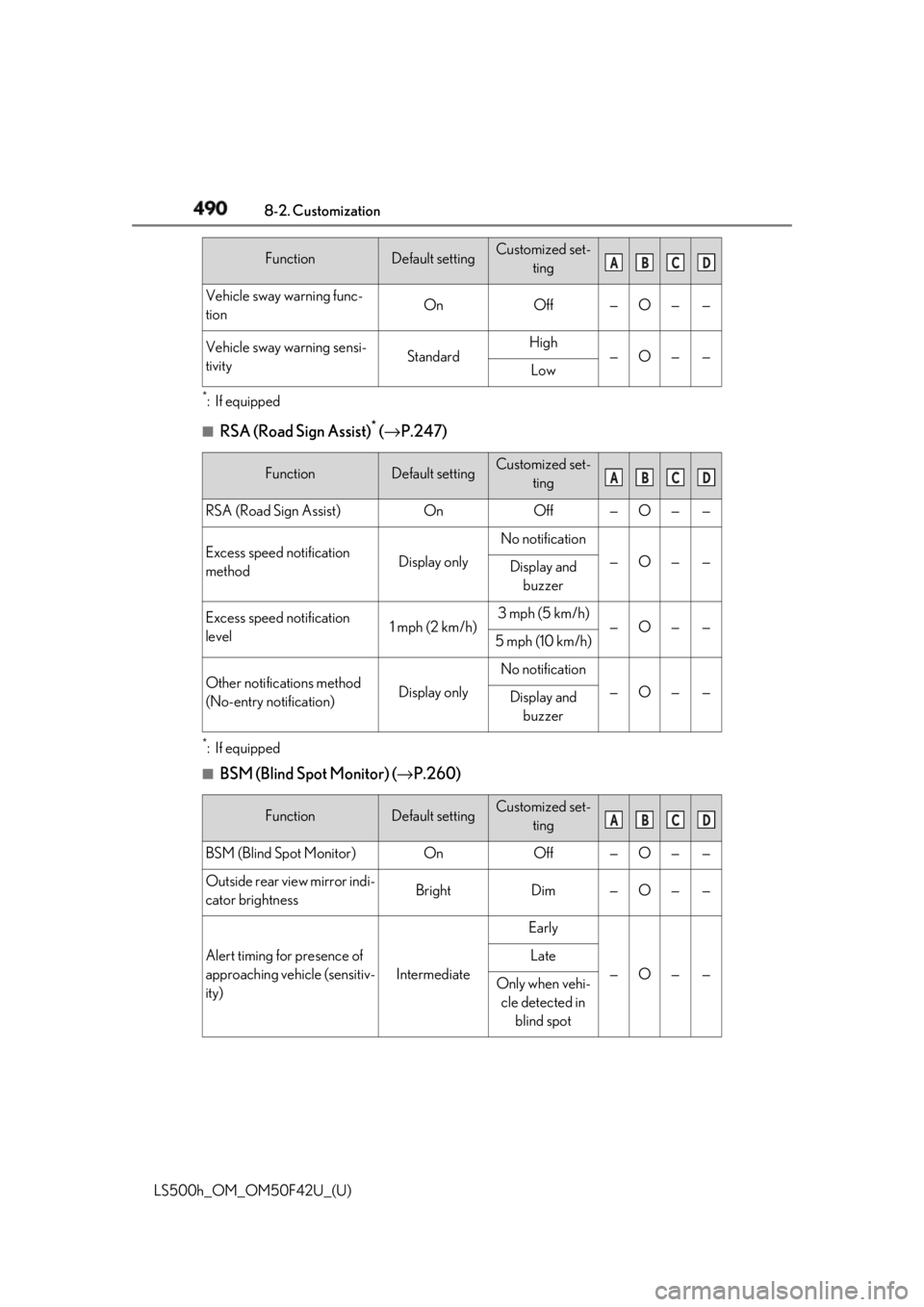

BSM (Blind Spot Monitor) ( → P.260)Vehicle sway warning func-
tion On Off — O — —
Vehicle sway warning sensi-
tivity Standard High
— O — —
Low
Function Default setting Customized set-
ting
RSA (Road Sign Assist) On Off — O — —
Excess speed notification
method Display only No notification
— O — —
Display and
buzzer
Excess speed notification
level 1 mph (2 km/h) 3 mph (5 km/h)
— O — —
5 mph (10 km/h)
Other notifications method
(No-entry notification) Display only No notification
— O — —
Display and
buzzer
Function Default setting Customized set-
ting
BSM (Blind Spot Monitor) On Off — O — —
Outside rear view mirror indi-
cator brightness Bright Dim — O — —
Alert timing for presence of
approaching vehicle (sensitiv-
ity) Intermediate Early
— O — —Late
Only when vehi-
cle detected in
blind spotFunction Default setting Customized set-
ting A B C D
A B C D
A B C D
