Light bulbs of the exterior lights for driving
(Replacing method: P.414)
E
F
G
H
I
J
K
L
M
N

832-1. Instrument cluster
LS500h_OM_(U)_1809

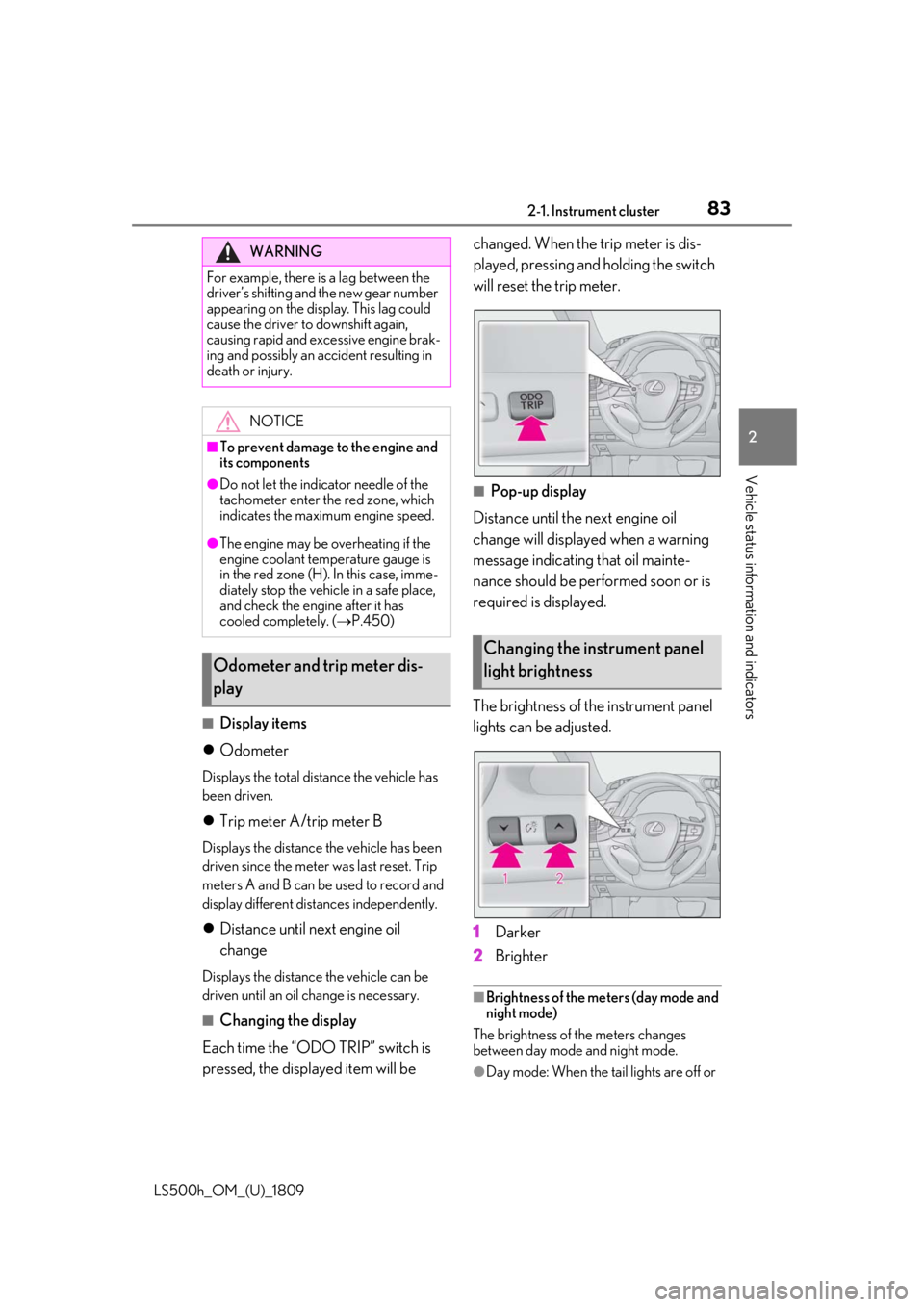

2
Vehicle status information and indicators
■Display items
 Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
 Distance until next engine oil
change
Displays the distance the vehicle can be
driven until an oil change is necessary.
■Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
■Pop-up display
Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.
The brightness of the instrument panel
lights can be adjusted.
1 Darker
2 Brighter
■Brightness of the meters (day mode and
night mode)
The brightness of the meters changes
between day mode and night mode.
●Day mode: When the tail lights are off or
WARNING
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( P.450)
Odometer and trip meter dis-
play
Changing the instrument panel
light brightness

1624-1. Before driving
LS500h_OM_(U)_1809
WARNING
• Make sure to keep a correct driving posture even when moving the vehicle
only slightly. This allows you to depress
the brake and accelerator pedals
properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal
using your left foot may delay
response in an emergency, resulting in
an accident.
●The driver should pay extra attention
to pedestrians when the vehicle is
powered only by the electric motor
(traction motor). As there is no engine
noise, the pedestrians may misjudge
the vehicle’s movement. Even with the
vehicle proximity notification system
activate, drive with care as pedestrians
in the vicinity may still not notice the
vehicle if the surrounding area is noisy.
●Do not drive the vehicle over or stop
the vehicle near flammable materials.
The exhaust system and exhaust gases
can be extremely hot. These hot parts
may cause a fire if there is any flamma-
ble material nearby.
●During normal driving, do not turn off
the hybrid system. Turning the hybrid
system off while driving will not cause
loss of steering or braking control,
however, power assist to the steering
will be lost. This will make it more diffi-
cult to steer smoothly, so you should
pull over and stop the vehicle as soon
as it is safe to do so.
In the event of an emergency, such as if
it becomes impossible to stop the vehi-
cle in the normal way: P.416
●Use engine braking (downshift) to
maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may
cause the brakes to overheat and lose
effectiveness. ( P.176)
●Do not adjust the positions of the
steering wheel, the seat, or the inside
or outside rear view mirrors while driv-
ing.
Doing so may result in a loss of vehicle
control.
●Always check that all passengers’
arms, heads or other parts of their
body are not outside the vehicle.
●Do not drive in excess of the speed
limit. Even if the legal speed limit per-
mits it, do not drive over 85 mph (140
km/h) unless your vehicle has
high-speed capability tires. Driving
over 85 mph (140 km /h) may result in
tire failure, loss of control and possible
injury. Be sure to consult a tire dealer
to determine whether the tires on your
vehicle are high-speed capability tires
or not before driving at such speeds.
■When driving on slippery road sur-
faces
●Sudden braking, acceleration and
steering may cause tire slippage and
reduce your ability to control the vehi-
cle.
●Sudden acceleration, engine braking
due to shifting, or changes in engine
speed could cause the vehicle to skid.
●After driving through a puddle, lightly
depress the brake pedal to make sure
that the brakes are functioning prop-
erly. Wet brake pads may prevent the
brakes from functioning properly. If the
brakes on only one side are wet and
not functioning properly, steering con-
trol may be affected.
■When shifting the shift position
●Do not let the vehicle roll backward
while a forward driving position is
selected, or roll forw ard while the shift
position is in R.
Doing so may result in an accident or
damage to the vehicle.

3074-6. Driving tips
LS500h_OM_(U)_1809
4
Driving
4-6.Driving tips
When using Eco drive mode, the
torque corresponding to the accelera-
tor pedal depression amount can be
generated more smoothly than it is in
normal conditions. In addition, the
operation of the air conditioning sys-
tem (heating/cooling) will be mini-
mized, improving the fuel economy.
(  P.297)
The Eco-friendly driving is possible by
keeping the indicate of Hybrid System
Indicator within Eco area. ( P.82, 87)
Shift the shift position to D when
stopped at a traffic light, or driving in
heavy traffic etc. Shift the shift position
to P when parking. When using the N
position, there is no positive effect on
fuel consumption. In the N position, the
gasoline engine operates but electric-
ity cannot be generated. Also, when
using the air conditio ning system, etc.,
the hybrid battery (traction battery)
power is consumed. 
Drive your vehicle smoothly. Avoid
abrupt acceleration and decelera-
tion. Gradual acceleration and
deceleration will make more effec-
tive use of the electric motor (trac-
tion motor) without having to use
gasoline engine power.
 Avoid repeated acceleration.
Repeated acceleration consumes
hybrid battery (traction battery)
power, resulting in poor fuel con-
sumption. Battery power can be
restored by driving with the acceler-
ator pedal slightly released.
Make sure to operate the brakes gently
and in a timely manner. A greater
amount of electrical energy can be
regenerated when slowing down.
Repeated acceleration and decelera-
tion, as well as long waits at traffic
lights, will lead to bad fuel economy.
Check traffic reports before leaving
and avoid delays as much as possible.
When driving in a traffic jam, gently
release the brake pedal to allow the
vehicle to move forward slightly while
avoiding overuse of the accelerator
pedal. Doing so can help control
excessive gasoline consumption.
Hybrid vehicle driving tips
For economical and ecological
driving, pay attention to the follow-
ing points:
Using Eco drive mode
Use of Hybrid System Indicator
Changing the shift position
Accelerator pedal/brake pedal
operation
When braking
Delays

367
LS500h_OM_(U)_1809
6
6
Maintenance and care
Maintenance and care
.6-1. Maintenance and careCleaning and protecting the vehi-cle exterior ................................ 368
Cleaning and protecting the vehi- cle interior .................................. 371
6-2. Maintenance Maintenance requirements........................................................ 375
General maintenance ............. 376
Emission inspection and mainte- nance (I/M) programs ......... 379
6-3. Do-it-yourself maintenance Do-it-yourself service precautions........................................................ 380
Hood............................................... 382
Positioning a floor jack............ 382
Engine compartment............... 384
12-volt battery............................. 390
Tires ................................................ 392
Replacing the tire ....................... 401
Tire inflation pressure .............. 405
Wheels........................................... 406
Air conditioning filter...............408
Electronic key battery ............. 409
Checking and replacing fuses .......................................................... 411
Light bulbs ..................................... 414

3896-3. Do-it-yourself maintenance
LS500h_OM_(U)_1809
6
Maintenance and care
between the “MAX” and “MIN” lines
on the tank.

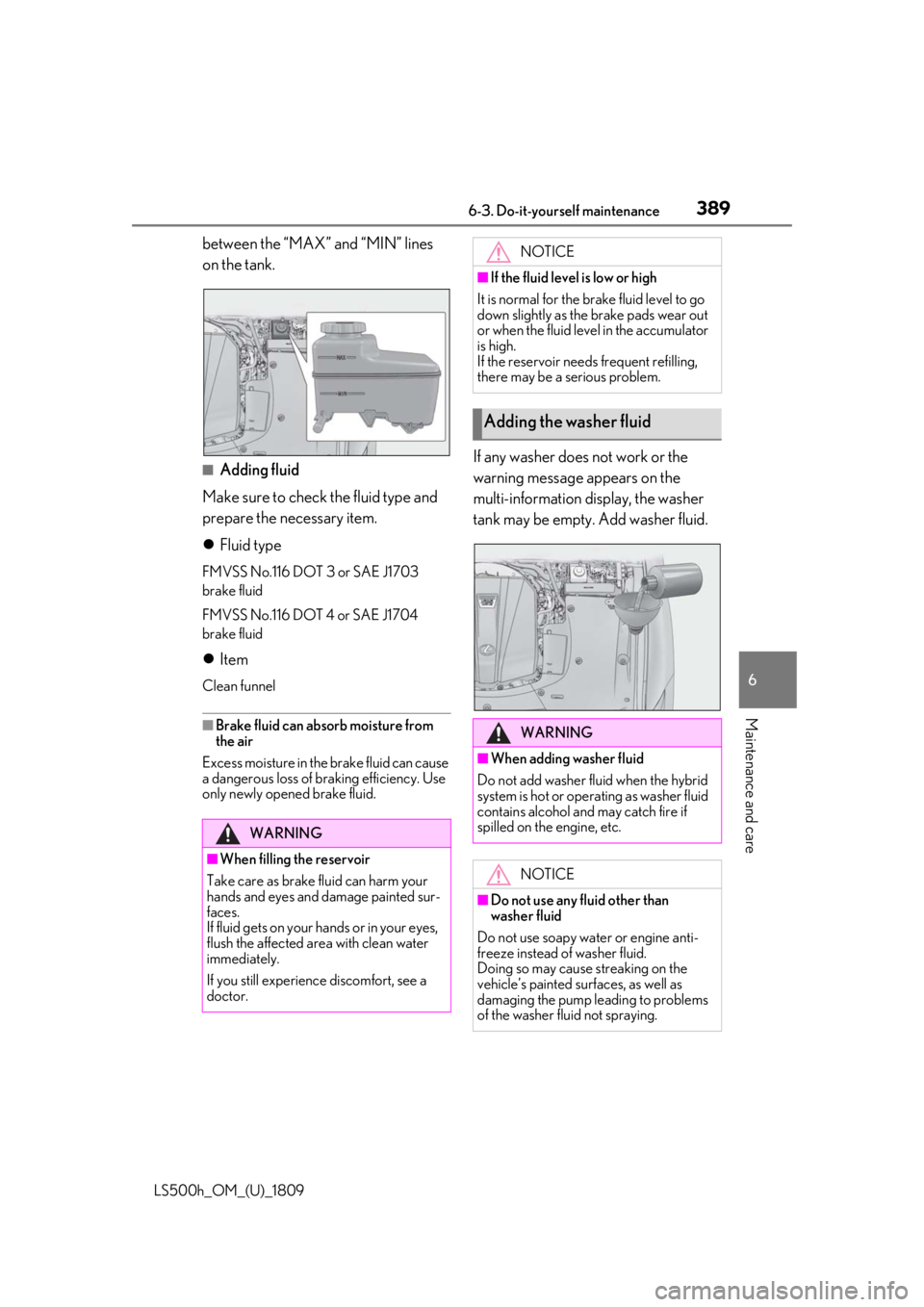

■Adding fluid
Make sure to check the fluid type and
prepare the necessary item.
 Fluid type
FMVSS No.116 DOT 3 or SAE J1703
brake fluid
FMVSS No.116 DOT 4 or SAE J1704
brake fluid
Item
Clean funnel
■Brake fluid can absorb moisture from
the air
Excess moisture in the brake fluid can cause
a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
If any washer does not work or the
warning message appears on the
multi-information display, the washer
tank may be empty. Add washer fluid.
WARNING
■When filling the reservoir
Take care as brake fluid can harm your
hands and eyes and damage painted sur-
faces.
If fluid gets on your hands or in your eyes,
flush the affected area with clean water
immediately.
If you still experience discomfort, see a
doctor.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go
down slightly as the brake pads wear out
or when the fluid leve l in the accumulator
is high.
If the reservoir needs frequent refilling,
there may be a serious problem.
Adding the washer fluid
WARNING
■When adding washer fluid
Do not add washer fluid when the hybrid
system is hot or operating as washer fluid
contains alcohol and may catch fire if
spilled on the engine, etc.
NOTICE
■Do not use any fluid other than
washer fluid
Do not use soapy water or engine anti-
freeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted surfaces, as well as
damaging the pump leading to problems
of the washer fluid not spraying.

4367-2. Steps to take in an emergency
LS500h_OM_(U)_1809
In some situations, the master warning light and warning buzzer may not oper-
ate as specified. In this case, follow the instructions displayed in the warning
message.
 If a warning light comes on or flashes at the same time that a warning message is
displayed, take corrective actio n according to the warning light. ( P.424)
*: A buzzer sounds the first time a message is shown on the multi-information display.

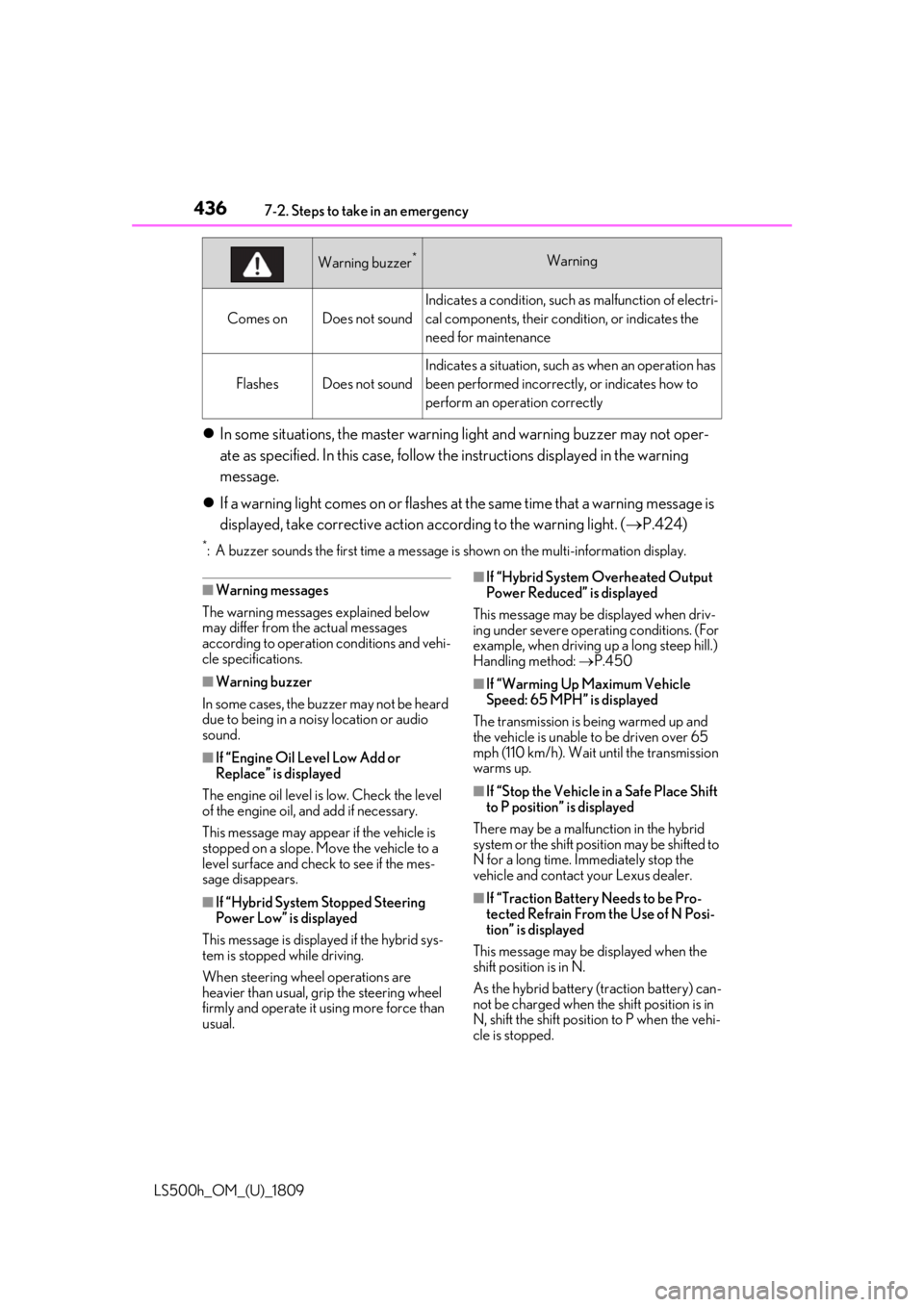

■Warning messages
The warning messages explained below
may differ from the actual messages
according to operation conditions and vehi-
cle specifications.
■Warning buzzer
In some cases, the bu zzer may not be heard
due to being in a noisy location or audio
sound.
■If “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level is low. Check the level
of the engine oil, and add if necessary.
This message may appear if the vehicle is
stopped on a slope. Move the vehicle to a
level surface and check to see if the mes-
sage disappears.
■If “Hybrid System Stopped Steering
Power Low” is displayed
This message is displayed if the hybrid sys-
tem is stopped while driving.
When steering wheel operations are
heavier than usual, grip the steering wheel
firmly and operate it using more force than
usual.
■If “Hybrid System Overheated Output
Power Reduced” is displayed
This message may be displayed when driv-
ing under severe operat ing conditions. (For
example, when driving up a long steep hill.)
Handling method:  P.450
■If “Warming Up Maximum Vehicle
Speed: 65 MPH” is displayed
The transmission is being warmed up and
the vehicle is unable to be driven over 65
mph (110 km/h). Wait until the transmission
warms up.
■If “Stop the Vehicle in a Safe Place Shift
to P position” is displayed
There may be a malfunction in the hybrid
system or the shift position may be shifted to
N for a long time. I mmediately stop the
vehicle and contact your Lexus dealer.
■If “Traction Battery Needs to be Pro-
tected Refrain From the Use of N Posi-
tion” is displayed
This message may be displayed when the
shift position is in N.
As the hybrid battery (traction battery) can-
not be charged when the shift position is in
N, shift the shift positi on to P when the vehi-
cle is stopped.
Comes onDoes not sound
Indicates a condition, such as malfunction of electri-
cal components, their cond ition, or indicates the
need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an operation has
been performed incorrectly, or indicates how to
perform an operation correctly
Warning buzzer*Warning

512Alphabetical Index
LS500h_OM_(U)_1809
If you have a flat tire .................................. 439
If you lose your keys................................. 442
If you think something is wrong ......... 423
If your vehicle becomes stuck............. 454
If your vehicle has to be stopped in an
emergency ..................................................416
If your vehicle needs to be towed .......419
If your vehicle overheats ........................450
Energy monitor .................................... 100, 101
Engine ACCESSORY mode ............................... 172
Compartment .............................................384
Engine compartment cover ................ 385
Engine switch.................................................170
Hood................................................................ 382
How to start the hybrid system ............170
Identification number ...............................459
If the hybrid system will not start ........440
If your vehicle has to be stopped in an
emergency ..................................................416
Ignition switch (power switch) ..............170
Overheating.................................................450
Power switch .................................................170
Tachometer ............................................. 81, 85
Engine compartment cover ....................385
Engine coolant Capacity ...........................................................461
Checking ....................................................... 387
Preparing and checking before winter.........................................................................309
Engine coolant temperature gauge 81, 85
Engine oil Capacity .........................................................460
Checking ...................................................... 385
Preparing and checking before winter.........................................................................309
Warning light ............................................... 425
Engine oil maintenance data .................. 387
Engine switch (power switch) ..................170 If your vehicle has to be stopped in an
emergency ..................................................416 EPS (Electric Power Steering) .............. 302
Warning light ............................................... 427
EV drive mode................................................ 174
EV indicator ...................................................... 64
Event data recorder (E DR) ........................... 8
F
FCTA (Front Cross Traffic Alert) ......... 230
First-aid kit storage belt ..............................351
Flat tire
Tire pressure warning system .............394
Floor mats ...........................................................22
Fluid Brake ................................................................463
Hybrid transmission.................................. 462
Washer .......................................................... 389
Footwell light ...................................................341
Front automatic air conditioning system .......................................................................... 323
Front Cross Traffic Alert (FCTA) ......... 230
Front passenger occupant classification system .............................................................. 40
Front seats Adjustment ....................................................... 131
Cleaning ...........................................................371
Correct driving posture ............................ 23
Driving position memory .........................142
Head restraints..............................................147
Memory recall function............................ 145
Power easy access system .....................142
Refresh system ............................................. 136
Seat heaters .................................................. 337
Seat position memory ...............................142
Seat ventilators ............................................ 337
Front side marker light Light switch .................................................... 187
Replacing light bulbs ..................................414
Front turn signal lights Replacing light bulbs ..................................414
Turn signal lever .......................................... 182
Fuel Capacity ........................................................ 459

5171-1. What to do if... (Troubleshooting)
LS500h_OM_(U)_1809517Alphabetical Index
Pop Up Hood................................................... 38
Power control unit.......................................... 66
Power control unit coolant Capacity ...........................................................461
Checking ....................................................... 387
Preparing and checking before winter.........................................................................309
Power easy access system ........................ 142
Power outlets ................................................ 355
Power rear seat ............................................. 138
Power steering (Elect ric power steering
system).......................................................... 302 Warning light ............................................... 427
Power switch ...................................................170 Auto power off function ........................... 173
Changing the power switch modes .. 172
Power switch (engine switch) If your vehicle has to be stopped in an
emergency ..................................................416
Power trunk opener and closer ............... 118
Power windows Door lock linked window operation. 155
Jam protection function............................154
Operation........................................................154
Window lock switch ................................. 156
Pre-Collision System (PCS) Function ................................................ 212, 223
PCS OFF switch .............................. 215, 225
Warning light ...............................................430
R
Radar cruise control (dynamic radar cruise control with full-speed range)..245, 255
Radiator ...........................................................388
RCD (Rear camera detection) .............. 263 Warning message..................................... 276
RCD (Rear Camera Detection) Function .......................................................... 275
RCTA Function ............................................................ 271
Warning message......................................272
RCTA (Rear Cross Traffic Alert) ......... 263 RCTA function ..............................................272
Rear automatic air conditioning system
.......................................................................... 334
Rear Cross Traffic Alert (RCTA) ........... 271
Rear door sunshades ................................. 357
Rear Multi Operation Panel .................... 318
Rear seat position memory .......................146
Rear seats ........................................................ 138 Adjustment ..................................................... 138
Head restraints..............................................147
Rear seat position memory.................... 146
Relaxation system ......................................... 141
Seat heaters .................................................. 337
Seat ventilators ............................................ 337
Rear side marker lights Light switch .................................................... 187
Replacing light bulbs ..................................414
Rear sunshades ............................................358
Rear turn signal lights Replacing light bulbs ..................................414
Turn signal lever .......................................... 182
Rear view mirror Inside rear view mirror ............................... 151
Outside rear view mirrors...................... 152
Rear window defogger ............................. 324
Refueling Capacity ........................................................ 459
Fuel types ...................................................... 459
If the fuel filler do or cannot be opened
.......................................................................... 442
Opening the fuel tank cap ......................197
Regenerative braking ................................... 64
Remote Touch ................................................314
Replacing Electronic key battery ............................. 409
Fuses.................................................................... 411
Light bulbs .......................................................414
Tires ................................................................... 401
Resetting the message indicating mainte- nance is required ...................................... 375
Rev indicator .................................................... 87
Rev peak............................................................. 87
