24
LS500h_QG_U
Camera indicator
Indicates that the camera is operating
normally.
Icon display area
Displays icons, adjusting gauge, etc.
Select button
Press to change the setting of the item
you want to adjust.
Menu button
Press to display the icon di splay area and select the item you want to adjust.
Lever
Operate to change between digital mirror mode and optical mirror mode.
Operate the lever to change between digital mirror mode and optical mirror mode.
1Digital mirror mode
Displays an image of the area behind
the vehicle. will illuminate in this mode.
2Optical mirror mode
Turns off the display of the Digital Rear-
view Mirror allows it to be used as an
optical mirror.
Digital Rearview Mirror (if equipped)
The Digital Rearview Mirror is a system that uses the camera on the rear of the vehicle
and displays its image on the disp lay of the Digital Rearview Mirror.
The Digital Rearview Mirror allows the driver to see the rear view despite obstructions,
such as the head restraints, lu ggage or rear sunshade ensuring rear visibility. Also, the rear
seats are not displayed and privacy of the passengers is enhanced.
System components
A
B
C
Changing modes
D
E

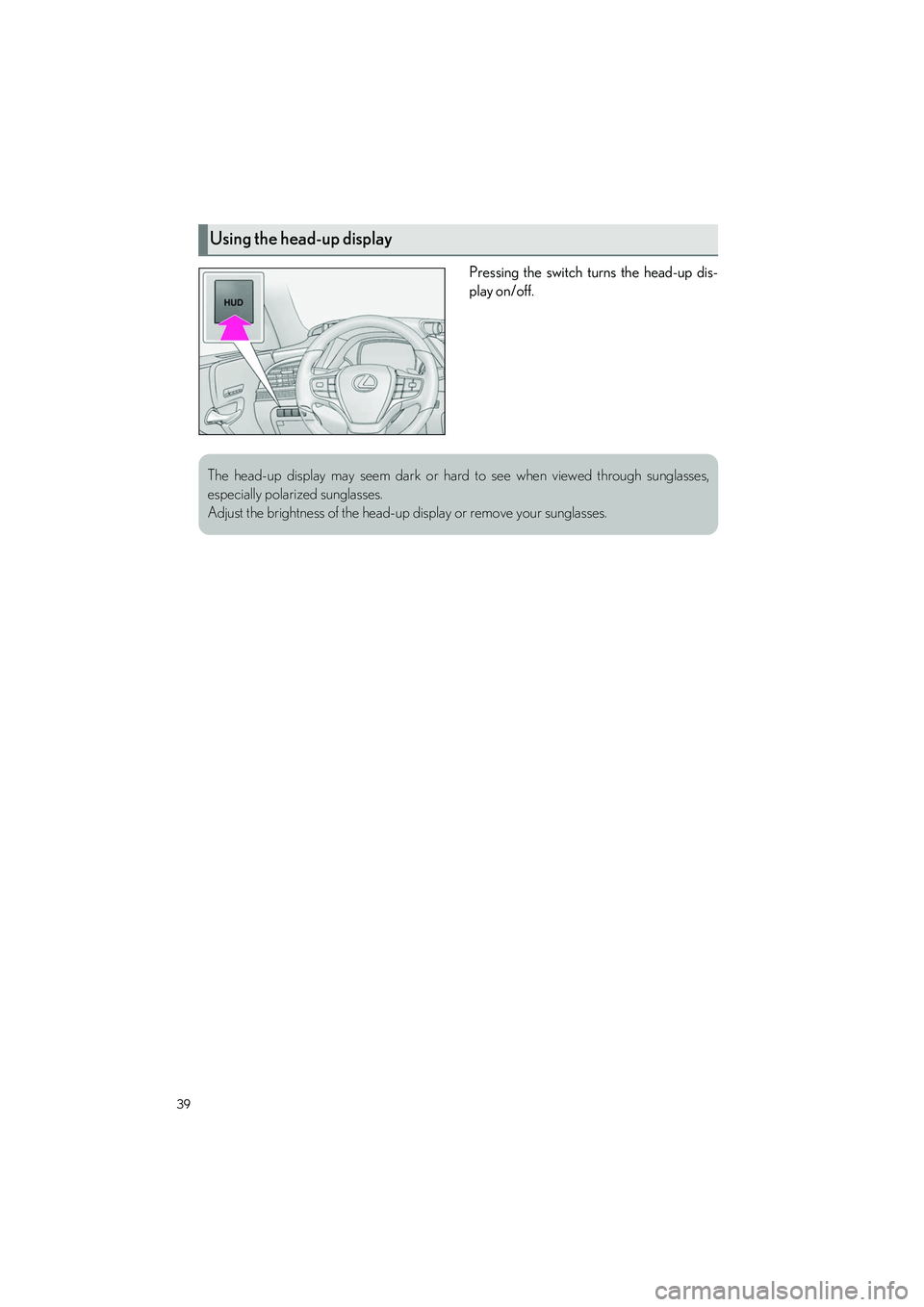

39
LS500h_QG_U
Pressing the switch turns the head-up dis-
play on/off.
Using the head-up display
The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

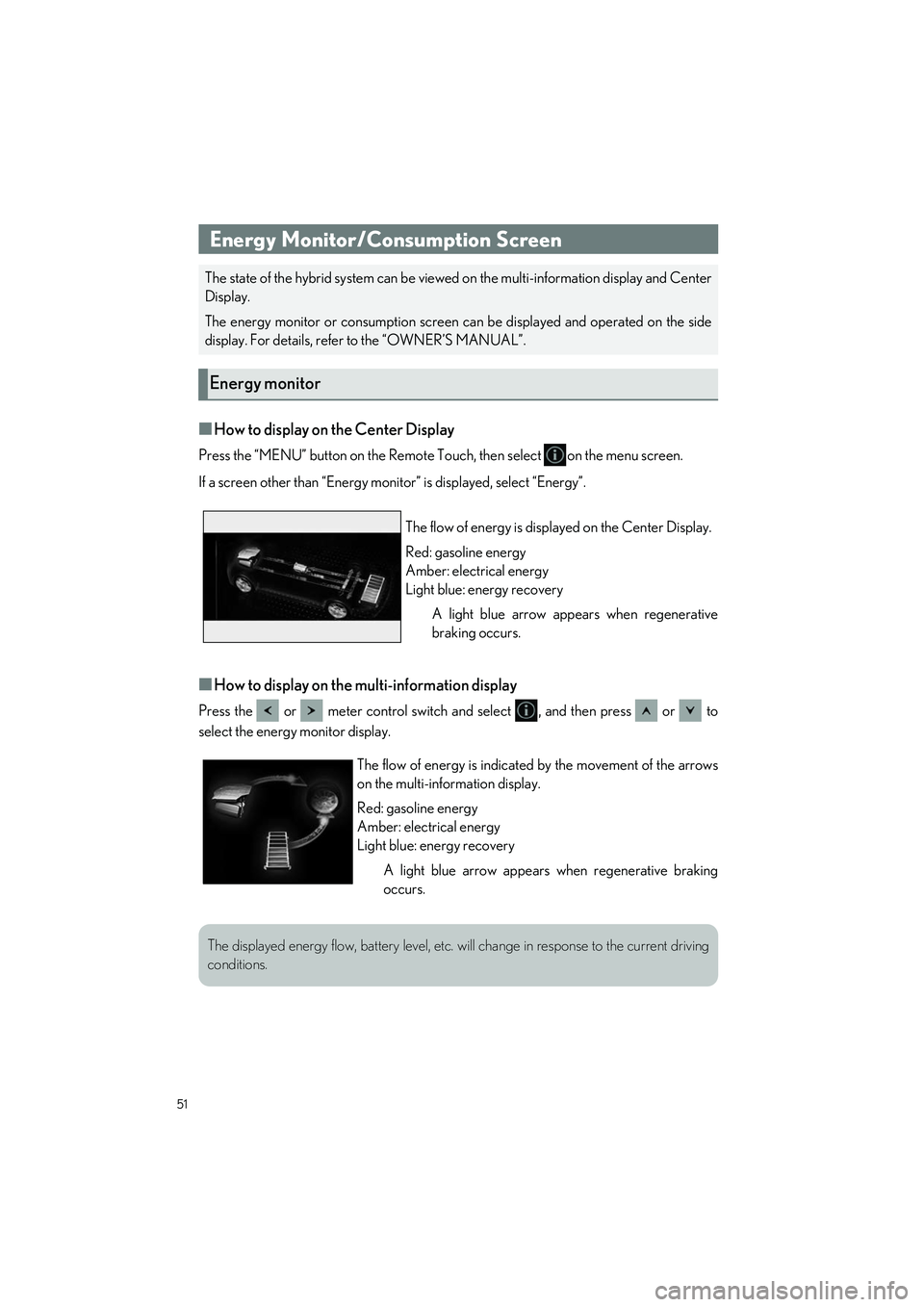

51
LS500h_QG_U
■How to display on the Center Display
Press the “MENU” button on the Remote Touch, then select on the menu screen.
If a screen other than “Energy monitor” is disp layed, select “Energy”.
■How to display on the multi-information display
Press the or meter control switch and select , and then press or to
select the energy monitor display.
Energy Monitor/Consumption Screen
The state of the hybrid system can be viewed on the multi-information display and Center
Display.
The energy monitor or consumption screen can be displayed and operated on the side
display. For details, refer to the “OWNER’S MANUAL”.
Energy monitor
The flow of energy is disp layed on the Center Display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery A light blue arrow appears when regenerative
braking occurs.
The flow of energy is indicate d by the movement of the arrows
on the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery
A light blue arrow appears when regenerative braking
occurs.
The displayed energy flow, battery level, etc. will change in response to the current driving
conditions.

77
LS500h_QG_U
■Navigation*1
*1: With navigation function
*2: English and French only
*3: Best recognition results occur when saying the full address without the zipcode
*4: When the language is set to French, the supported area is only Quebec Pronvince inCanada
*5: For example; “Gas stations”, “Restaurants”, etc.
*6: Major national brands are always supported. Local brands are also supported with asubscription to the Lexus Enform. Contact your Lexus dealer for details.
*7: Used when multiple destinations are set on a route
CommandAction
“Get directions to street, city, state>”
*2Enables setting a destinatio n by saying the address*3, 4
“Find a name>”Displays a list of near
the current position
“Find a near my destina-
tion”Displays a list of near the destination
“Find a in a
city”*2Displays a list of in a specified city and state*4
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”
Displays recent destinatio ns. Selecting a number from
the list will start navigation to the selected recent desti-
nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of destination to delete*7
“Show icons”Displays the specified po int of interest category*5
icons on the map
“Destination Assist”Connects the system to the Lexus response center

89
LS500h_QG_U
“SOS” button
LED light indicators
Microphone
Subscribers have the following Sa fety Connect services available:
● Automatic Collision Notification
In case of either airbag deployment or seve re rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emer-
gency. If the occupants are unable to comm unicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services provider to describe the
situation, and requests that assi stance be sent to the location.
Lexus Enform Safety Connect (if equipped)
Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular tech nology to provide safety and security fea-
tures to subscribers. Safety Connect is supp orted by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.
Safety Connect service is available by subs cription on select, telematics hardware-
equipped vehicles.
System components
A
B
C
Services

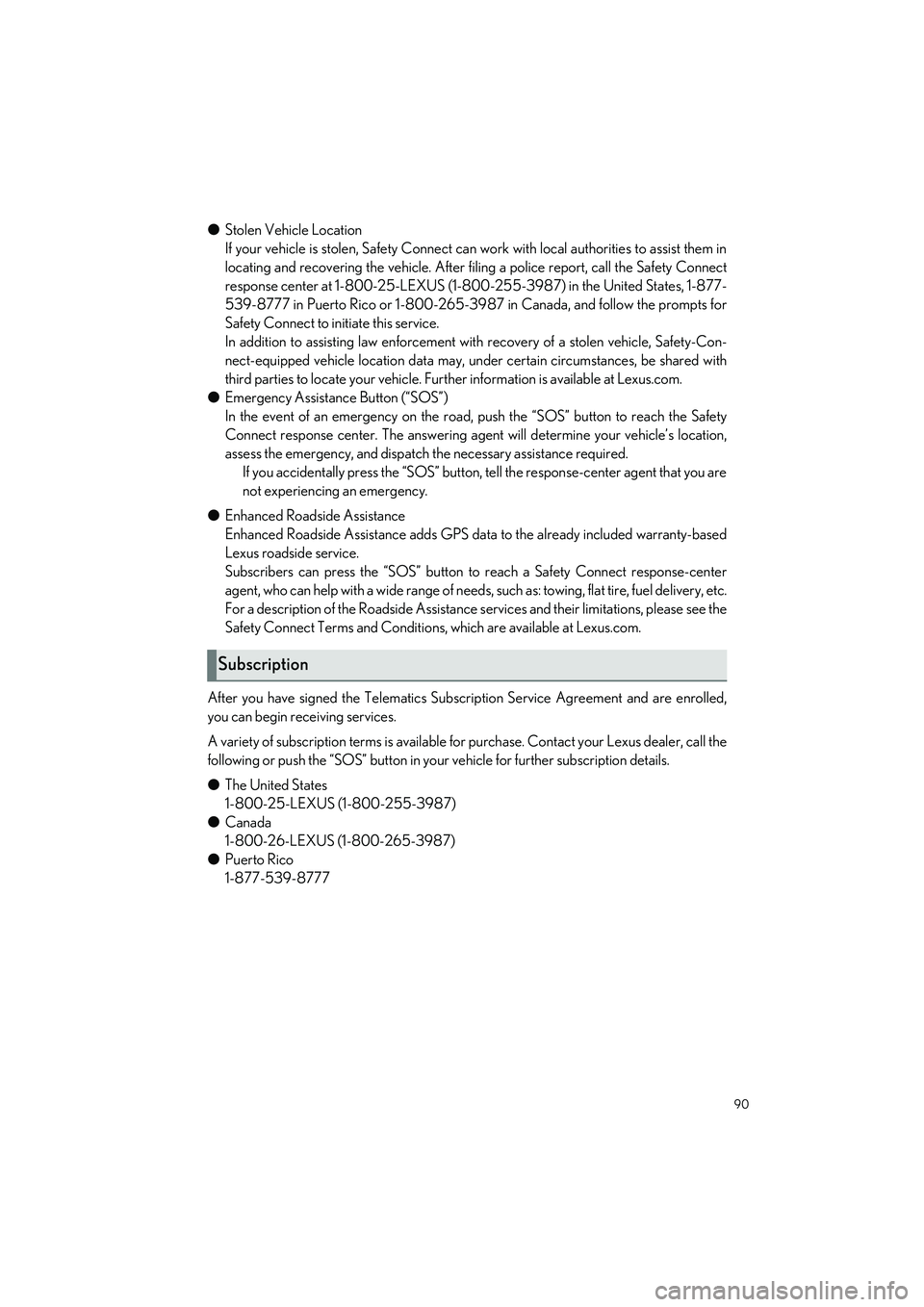

90
LS500h_QG_U
●Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After fi ling a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) in the United States, 1-877-
539-8777 in Puerto Rico or 1-800-265-3987 in Canada, and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Con-
nect-equipped vehicle location data may, un der certain circumstances, be shared with
third parties to locate your vehicle. Furth er information is available at Lexus.com.
● Emergency Assistance Button (“SOS”)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agent will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
● Enhanced Roadside Assistance
Enhanced Roadside Assistance adds GPS da ta to the already included warranty-based
Lexus roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Roadside Assistance se rvices and their limitations, please see the
Safety Connect Terms an d Conditions, which are available at Lexus.com.
After you have signed the Telematics Subscr iption Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus dealer, call the
following or push the “SOS” button in your vehicle for further subscription details.
● The United States
1-800-25-LEXUS (1-800-255-3987)
● Canada
1-800-26-LEXUS (1-800-265-3987)
● Puerto Rico
1-877-539-8777
Subscription
