Page 3 of 108
2
LS500h_QG_U
Headlight Switch............................................................................................................................... .40
Head-up Display ............................................................................................................................... .. 38
Hybrid System ............................................................................................................................... ......... 12
Hybrid Transmission ......................................................................................................................... 28
Keys ............................................................................................................................... .............................15
Lexus Climate Concierge .............................................................................................................. 68
Lexus Enform Remote ....................................................................................................................... 91
Lexus Enform Safety Connect ..................................................................................................... 89
Lexus Enform Service Connect .................................................................................................... 91
Moon Roof ............................................................................................................................................. 95
Multi-information Display .............................................................................................................. 36
Navigation System
*
Registering home ............................................................................................................... ........... 54
Destination search ............................................................................................................. ........... 54
Voice Command System ........................................................................................................... 74
Parking Brake ............................................................................................................................... ....... 33
Power (Ignit ion) Switch................................................................................................................... 25
Power Rear Seat ............................................................................................................................... .... 21
Power Windows ............................................................................................................................... ... 94
Rear Automatic Air Conditioning System Rear air conditioning control screen .....................................................................................73
Using automatic mode........................................................................................................... ......73
Remote Touch .......................................................................................................................................47
SiriusXM Satellite Radio ................................................................................................................ 92
Smart Access System with Push-button Start ........................................................................ 17
Trunk .........................................................................................................................................................97
Turn Signal Lever ............................................................................................................................... .32
USB/AUX Ports ............................................................................................................................... .. 82
Voice Command System
*
Basic operation ................................................................................................................ ...............74
Command list................................................................................................................... ................76
Windshield Wipers and Washer ................................................................................................. 43
*: This feature may be operated by Voice command (See P.74)
Page 6 of 108
5
LS500h_QG_U
■Switches
Vehicle height adjustment switch*1, 2
EV drive mode switch*3......................................................................................... P.27
HUD (Head-up display) switch
*1, 3.................................................................... P.38
Camera switch
*3, 4
Instrument panel light control switches*2
“ODO TRIP” switch*2
VSC OFF switch*2
Snow mode switch .................................................................................................... P.30
Driving mode select switch ................................................................................... P.45
Trunk opener switch ................................................................................................ P.97
Fuel filler door opener switch ...... ............................................. ............................ P.96
*1: If equipped
*2: Refer to the “OWNER’S MANUAL”.
*3: Location of the switches varies ac cording to the vehicle grade level.
*4: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
Page 10 of 108
9
LS500h_QG_U
■Interior
SRS airbags*1
Floor mats ..................................................................................................................... .P.11
Front seats ................................................................................................................... P .19
Head restraints
*1
Seat belts*1
Inside lock buttons ................................................................................................... P.93
Console box
*1
Cup holders*1
Assist grips*1
Coat hooks*1
Rear Multi Operation Panel*1, 2
Rear seat entertainment system*2, 3
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
*3: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
K
L
Page 37 of 108
36
LS500h_QG_U
■Display
By selecting menu icons on the multi-infor-
mation display, a variety of driving-related
information can be di splayed. The multi-
information display ca n also be used to
change display settings and other vehicle
settings.
Warning or suggestion/advice pop-up dis-
plays are also displayed in certain situations.
■Menu icons
Multi-information Display
Display and menu icons
Driving information display
Navigation system-linked display (if equipped)
Audio system-linked display
Driving support system information display
Warning message display
Settings display
If a problem is detected in any of the vehicl e’s systems, a warning message is shown on the
multi-information display.
Page 39 of 108
38
LS500h_QG_U
Navigation system-linked display area (if equipped)
Driving support system display area
Speed limit/RSA (Road Sign Assist) display area (if equipped)
Outside temperature display area
Driving information display area
Hybrid System Indicator/tachometer display area
HUD (Head-up display) switch
Head-up Display (if equipped)
The head-up display projects a variety of driving-related information and the operating
state of the driving support systems on the windshield.
System components
A
B
C
D
E
F
G
Page 48 of 108
47
LS500h_QG_U

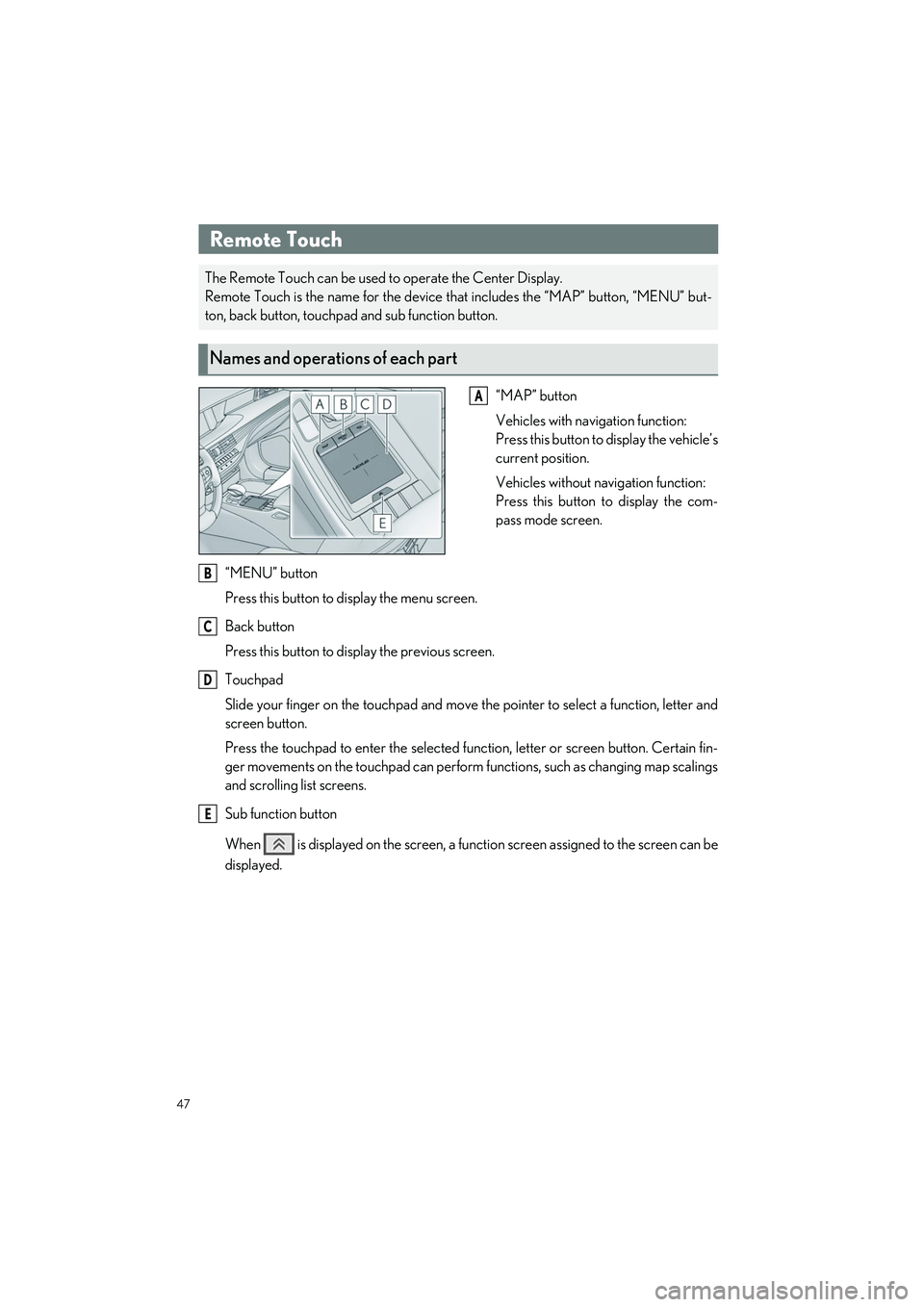

“MAP” button
Vehicles with navigation function:
Press this button to display the vehicle’s
current position.
Vehicles without navigation function:
Press this button to display the com-
pass mode screen.
“MENU” button
Press this button to display the menu screen.
Back button
Press this button to display the previous screen.
Touchpad
Slide your finger on the touchpad and move the pointer to select a function, letter and
screen button.
Press the touchpad to enter the selected function, letter or screen button. Certain fin-
ger movements on the touchpad can perform functions, such as changing map scalings
and scrolling list screens.
Sub function button
When is displayed on the screen, a functi on screen assigned to the screen can be
displayed.
Remote Touch
The Remote Touch can be used to operate the Center Display.
Remote Touch is the name for the device th at includes the “MAP” button, “MENU” but-
ton, back button, touchpad and sub function button.
Names and operations of each part
A
B
C
D
E
Page 49 of 108
48
LS500h_QG_U
Press the “MENU” button on the Remote Touch to display the menu screen.
The displays shown in the illu strations are used for example only and may differ from the
actual vehicle.
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: This function is not made available in some models or areas.
Center Display
Menu screen
SwitchFunction
Select to display the “Destination” screen.*2 ( P.54)
Select to display the audio control screen.*1 (P.63, 64, 65, 66, 67)
Select to display the hand s-free control screen. (P.59)
Select to display the “Apps” screen.*1, 2
//
When an Apple CarPlay/Android Auto connection is established and this
button displays “Apple CarPlay”/“An droid Auto”, select to display the
home screen of Apple CarPlay/Android Auto.
*1, 2
Select to display the information screen. ( P.51)
Select to display the setup screen.*1
Select to display the air conditioning control screen. ( P.70)
Page 50 of 108
49
LS500h_QG_U
Different information can be displayed on the left and right sides of the screen. For example,
audio control screen can be displayed and oper ated while the fuel consumption information
screen is being displayed. The la rge screen on the left of the display is called the main dis-
play, and the small screen to the right is called the side display.
The following functions can be displayed
and operated on the side display.Navigation system ( P.54)
Audio ( P.63, 64, 65, 66, 67)
Vehicle information ( P.53)
Air conditioning system ( P.72)
Show/hide the side display
Split-screen display
Side display
A
B
C
D
E
Page 51 of 108
50
LS500h_QG_U

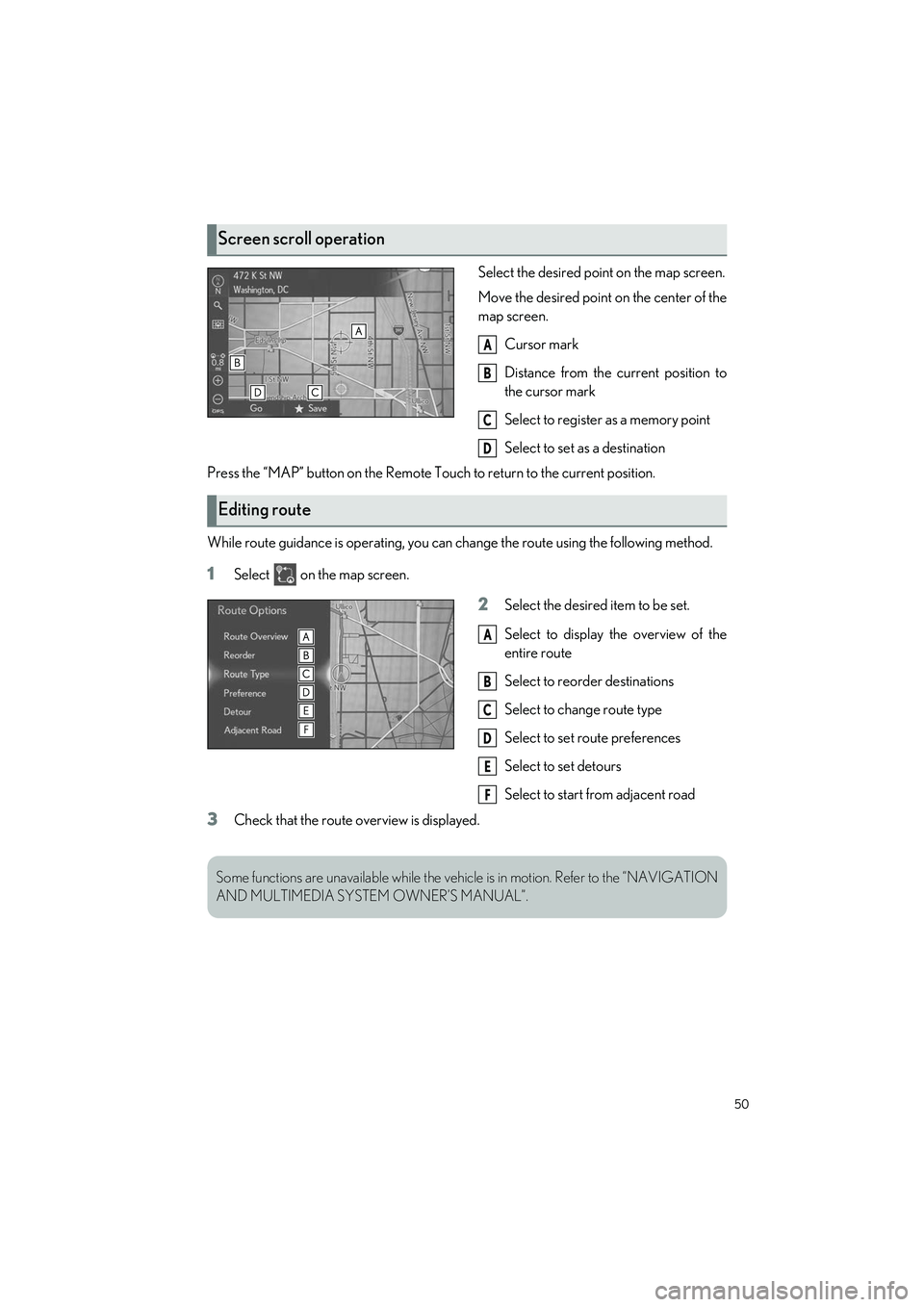

Select the desired point on the map screen.
Move the desired point on the center of the
map screen.
Cursor mark
Distance from the current position to
the cursor mark
Select to register as a memory point
Select to set as a destination
Press the “MAP” button on the Remote Touch to return to the current position.
While route guidance is operat ing, you can change the route using the following method.
1Select on the map screen.
2Select the desired item to be set.
Select to display the overview of the
entire route
Select to reorder destinations
Select to change route type
Select to set route preferences
Select to set detours
Select to start from adjacent road
3Check that the route overview is displayed.
Screen scroll operation
A
B
C
D
Editing route
A
B
C
D
E
F
Some functions are unavailable while the vehi cle is in motion. Refer to the “NAVIGATION
AND MULTIMEDIA SYST EM OWNER’S MANUAL”.
Page 55 of 108
54
LS500h_QG_U
1Press the “MAP” button on the Remote
Touch.
Please refer to P.47 for the
Remote Touch operation.
2Select .
3Select “Home”.
4Select “Yes”.
5Select “Address” (P.54) or “Current
Location” to search for your home.
6Select “OK”.
Registration of home is complete.
■Searching by address
1
Display the destination search screen by either operation:
● “MAP” button
● “MENU” button “Destination”
2Select “Address”.
If a state (province) has not been selected yet, “State/Province” screen is displayed.
3Enter a house number and select “Search”.
“Change State/Province”: Select to change the search area.
4Enter a street name and select “Search”.
5Select the desired street name.
6Enter a city name and select “Search”.
7Select the desired city name.
If multiple locations with the same address exist, the address list screen will be dis-
played. Select the desired address.
Navigation System (if equipped)
Registering home
Destination search
