Page 3 of 676
3
1
8
7
6
5
4
3
2
LS600h/LS600hL_EE(OM50G20E)

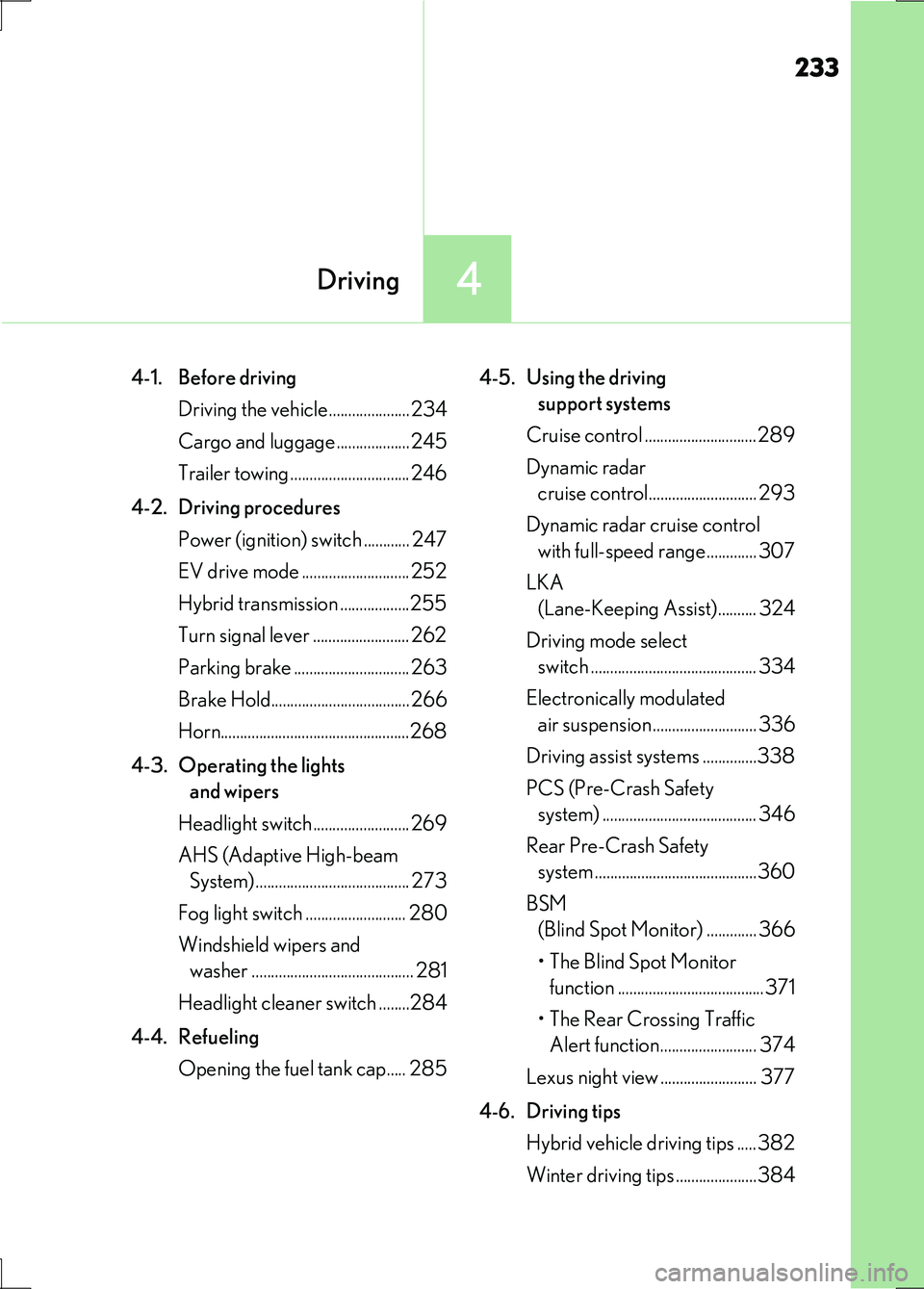

3-5. Opening, closing
the windows and moon roof
Power windows...........................225
Moon roof .....................................229
4-1. Before driving
Driving the vehicle .....................234
Cargo and luggage ...................245
Trailer towing ...............................246
4-2. Driving procedures
Power (ignition) switch ............ 247
EV drive mode ............................252
Hybrid transmission ..................255
Turn signal lever ......................... 262
Parking brake ..............................263
Brake Hold.................................... 266
Horn.................................................268
4-3. Operating the lights and
wipers
Headlight switch .........................269
AHS (Adaptive High-beam
System)........................................ 273
Fog light switch .......................... 280
Windshield wipers and
washer........................................... 281
Headlight cleaner switch ........284
4-4. Refueling
Opening the fuel tank cap..... 285
4-5. Using the driving
support systems
Cruise control .............................289
Dynamic radar cruise
control..........................................293
Dynamic radar cruise control
with full-speed range .............307
LKA
(Lane-Keeping Assist) .......... 324
Driving mode select
switch ...........................................334
Electronically modulated
air suspension .............................. 336
Driving assist systems.............. 338
PCS (Pre-Crash Safety
system)......................................... 346
Rear Pre-Crash Safety
system ......................................... 360
BSM
(Blind Spot Monitor)..............366
•The Blind Spot Monitor
function...................................... 371
• The Rear Crossing Traffic
Alert function ......................... 374
Lexus night view ......................... 377
4-6. Driving tips
Hybrid vehicle driving tips......382
Winter driving tips .................... 384
4Driving
Page 5 of 676
5
1
8
7
6
5
4
3
2
LS600h/LS600hL_EE(OM50G20E)
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior................. 476
Cleaning and protecting
the vehicle interior ................. 480
6-2. Maintenance
Maintenance
requirements............................ 483
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ................................486
Hood .............................................. 489
Positioning a floor jack............ 490
Engine compartment................492
12-volt battery............................. 502
Tires ................................................ 506
Tire inflation pressure...............525
Wheels............................................ 527
Air conditioning filter................529
Electronic key battery ..............532
Checking and replacing
fuses ............................................. 535
Light bulbs ...................................... 541
7-1. Essential information
Emergency flashers ..................546
If your vehicle has
to be stopped
in an emergency ...................... 547
7-2. Steps to take
in an emergency
If your vehicle needs
to be towed............................... 548
If you think something
is wrong .......................................554
If a warning light turns
on or a warning buzzer
sounds......................................... 555
If a warning message
is displayed.................................563
If you have a flat tire
(vehicles with
a spare tire)................................ 567
If you have a flat tire
(vehicles without
a spare tire)................................578
If the hybrid system
will not start................................ 597
If the parking brake cannot
be released ................................599
If the electronic key does
not operate properly ............ 603
If the 12-volt battery
is discharged .............................607
6Maintenance and care7When trouble arises
Page 17 of 676
17Pictorial index
LS600h/LS600hL_EE(OM50G20E)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . .P. 563
Parking brake switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 263
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 563
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 62
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Headlights/front position lights/tail lights/daytime running lights . . .P. 269
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 563
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Trunk opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 287
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 489
Tilt and telescopic steering control switch. . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 207
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 399
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 425
Audio system*
Audio system*
Hands-free system*
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14
15
Page 25 of 676
25Pictorial index
LS600h/LS600hL_EE(OM50G20E)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . .P. 563
Parking brake switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 263
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 385
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 563
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 62
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 269
Headlights/front position lights/tail lights/daytime running lights . . .P. 269
Front fog lights/rear fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 281
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 563
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Trunk opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 180
Fuel filler door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 287
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 489
Tilt and telescopic steering control switch. . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
Driving position memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 207
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 399
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 425
Audio system*
Audio system*
Hands-free system*
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14
15

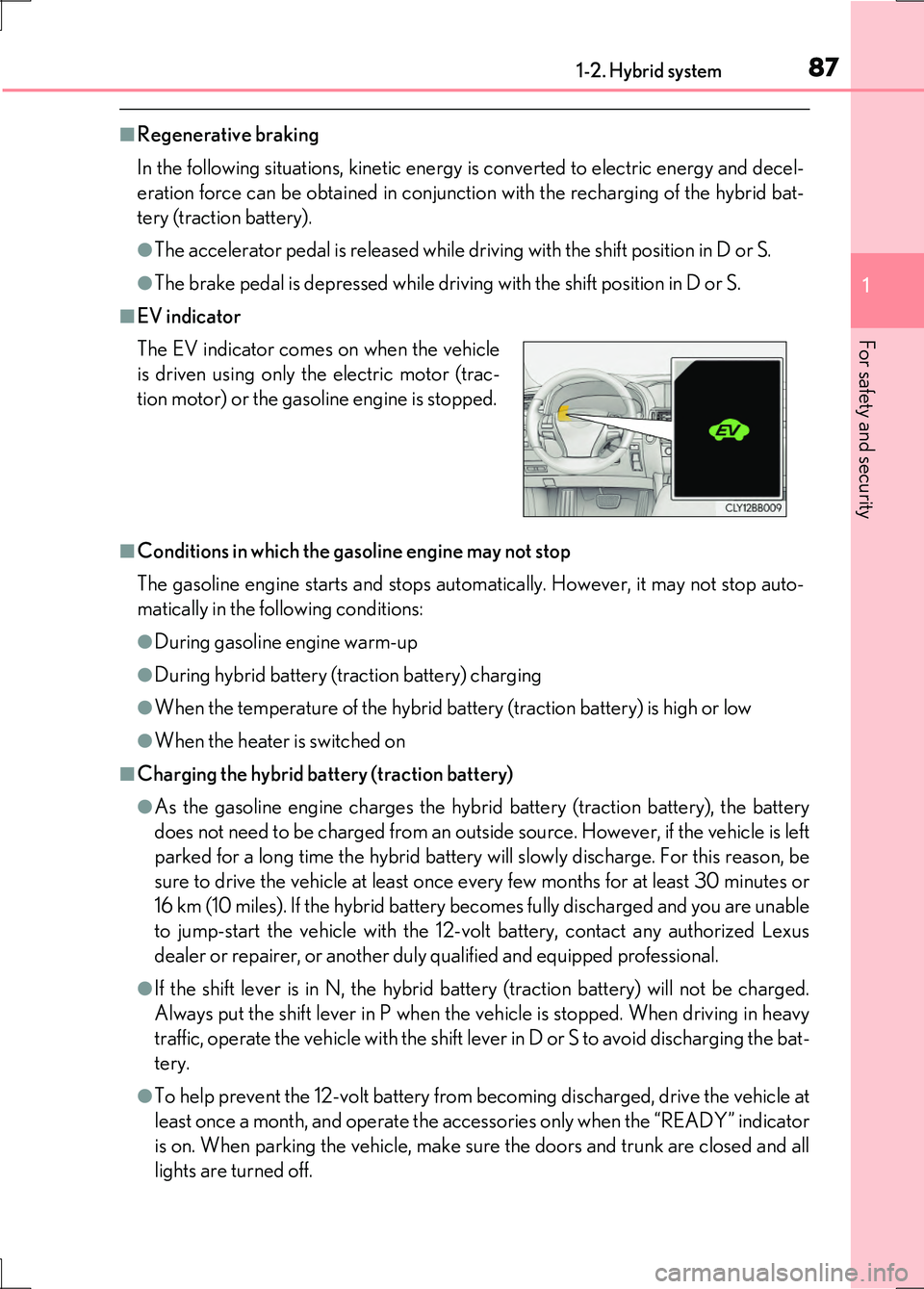

Page 87 of 676
871-2. Hybrid system
1
For safety and security
LS600h/LS600hL_EE(OM50G20E)
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and decel-
eration force can be obtained in conjunction with the recharging of the hybrid bat-
tery (traction battery).
●The accelerator pedal is released while driving with the shift position in D or S.
●The brake pedal is depressed while driving with the shift position in D or S.
■EV indicator
■Conditions in which the ga soline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop auto-
matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the heater is switched on
■Charging the hybrid battery (traction battery)
●As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is left
parked for a long time the hybrid battery will slowly discharge. For this reason, be
sure to drive the vehicle at least once every few months for at least 30 minutes or
16 km (10 miles). If the hybrid battery becomes fully discharged and you are unable
to jump-start the vehicle with the 12-volt battery, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●If the shift lever is in N, the hybrid ba ttery (traction battery) will not be charged.
Always put the shift lever in P when the vehicle is stopped. When driving in heavy
traffic, operate the vehicle with the shift lever in D or S to avoid discharging the bat-
tery.
●To help prevent the 12-volt battery from becoming discharged, drive the vehicle at
least once a month, and operate the accessories only when the “READY” indicator
is on. When parking the vehicle, make sure the doors and trunk are closed and all
lights are turned off.
The EV indicator comes on when the vehicle
is driven using only the electric motor (trac-
tion motor) or the gasoline engine is stopped.

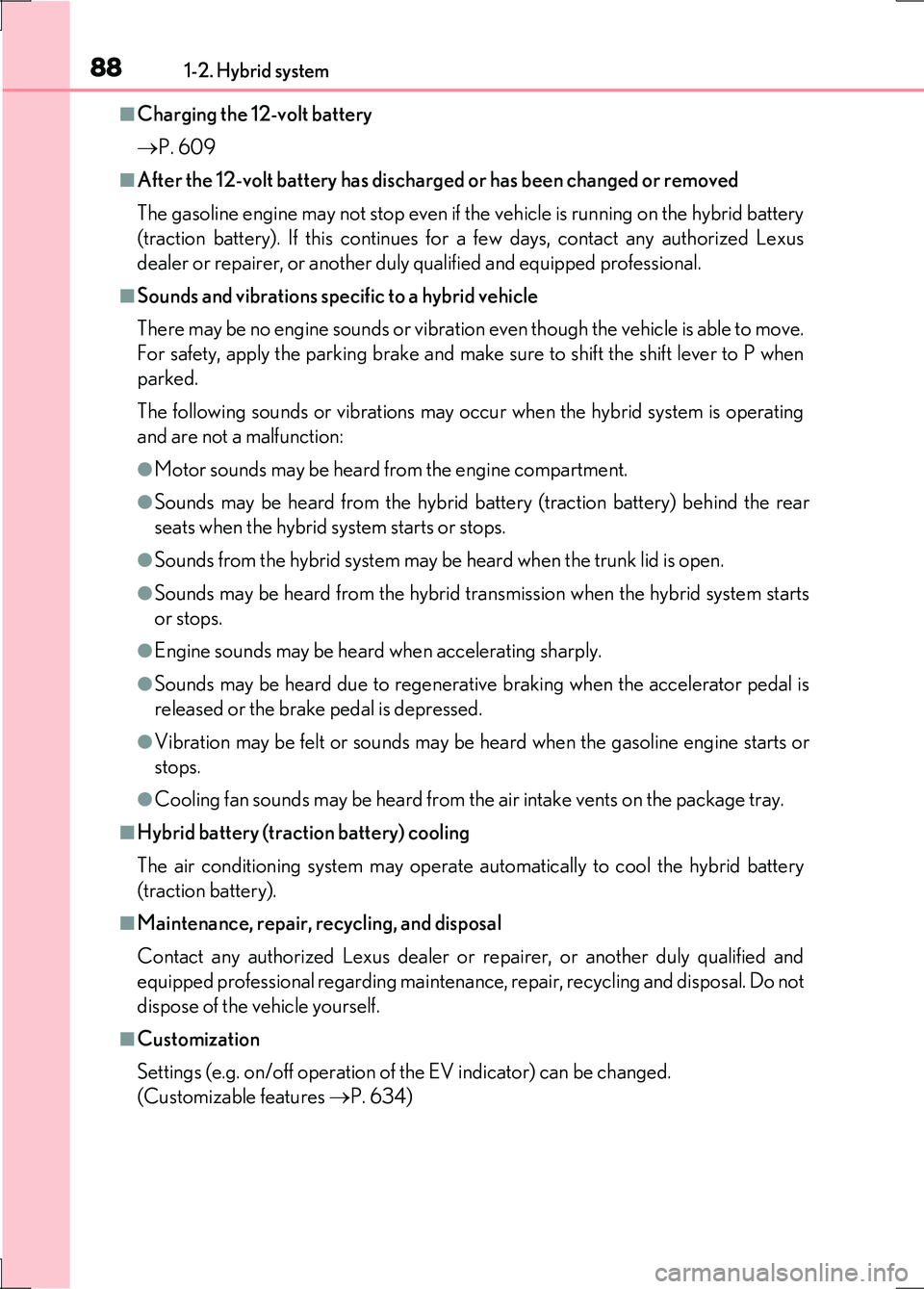

Page 88 of 676
881-2. Hybrid system
LS600h/LS600hL_EE(OM50G20E)
■Charging the 12-volt battery
P. 609
■After the 12-volt battery has discharged or has been changed or removed
The gasoline engine may not stop even if the vehicle is running on the hybrid battery
(traction battery). If this continues for a few days, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibration even though the vehicle is able to move.
For safety, apply the parking brake and make sure to shift the shift lever to P when
parked.
The following sounds or vibrations may occur when the hybrid system is operating
and are not a malfunction:
●Motor sounds may be heard from the engine compartment.
●Sounds may be heard from the hybrid battery (traction battery) behind the rear
seats when the hybrid system starts or stops.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the hybrid transmission when the hybrid system starts
or stops.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerative braking when the accelerator pedal is
released or the brake pedal is depressed.
●Vibration may be felt or sounds may be heard when the gasoline engine starts or
stops.
●Cooling fan sounds may be heard from the air intake vents on the package tray.
■Hybrid battery (traction battery) cooling
The air conditioning system may operate automatically to cool the hybrid battery
(traction battery).
■Maintenance, repair, re cycling, and disposal
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional regarding maintenance, repair, recycling and disposal. Do not
dispose of the vehicle yourself.
■Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features P. 634)
