STARTING AND DRIVING
299
BRAKE PAD WEAR LIMITINDICATORS
31X020d
The brake pad wear limit indicators on your disc brakes
give a warning noise when the brake pads are worn to the
extent that replacement is required.
If you hear a squealing or scraping noise while driving, have
the brake pads checked and replaced by your Lexus dealer as
soon as possible. Expensive rotor damage can result if the
pads are not replaced when needed.
TIRE PRESSURE WARNING SYSTEM
The tire pressure warning system warns you that the tire
inflation pressure is low.
The tire pressure warning syst em is not a substitute for
checking normal t ire inflation pressure. Check the tire inflation
pressure with a tire pressure gauge regularly.
CAUTION
The warning system may not activate immediately if
bursts or sudden air leakage should occur.

STARTING AND DRIVING
300
31x608
Tire pressure warning light
The tire pressure warning light comes on when the ignition
switch is turned to the “ON” position and goes off after a few
seconds. This means the tire pressure warning light is
operating properly. If the tire inflation pressure becomes low,
the light comes on again. In this case, adjusting the tire
inflation pressure will turn off the light after a few minutes. If the
light blinks, the tire pressure warning system is not working
properly.
Indicator status
MeaningsDo this
ONTire inflation
pressure is lowAdjust the tire
inflation pressure
BlinkingTire pressure
warning system
malfunctionHave the system
checked at your
Lexus dealer
CAUTION
If the tire pressure warning light comes on, be sure to
observe the following precautions. Failure to do so
could cause loss of vehicle control and result in death
or serious injury.
 Stop your vehicle in a safe place as soon as possible.
Adjust the tire inflation pressure immediately.
 If the tire pressure warning light comes on even after
tire inflation pressure adjustment, it is probable that
you have a flat tire. Check the tires. If the tire is flat,
change to the spare tire and have the flat tire repaired
by the nearest Lexus dealer.
 Avoid abrupt maneuvering and braking. If the vehicle
tires deteriorate, you could lose control of the
steering wheel or the brakes.

STARTING AND DRIVING
301
The tire pressure warning light may turn on due to natural
causes such as natural air l
eaks or tire inflation pressure
changes caused by temperature. In this case, adjusting the
tire inflation pressure will turn off the light.
Pushing the tire pressure warning reset switch should not turn
off the tire pressure warning light. Adjusting the tire inflation
pressure will turn off the light.
The spare tire is also equipped with the tire pressure warning
valve and transmitter. The tire pressure warning light will turn
on if the tire inflation pressure of the spare tire is low. If a tire
goes flat, even though the flat tire is replaced with the spare
tire, the warning light does not turn off. Replace the spare tire
with the repaired tire and adjust the proper tire inflation
pressure. The tire pressure warning light will turn off after a few
minutes.
CAUTION
Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire
and load information label). (If your vehicle has tires of
a different size than the size indicated on the vehicle
placard or tire inflation pressure label (tire and load
information label), you should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS–tire pressure warning system) that illuminates a
low tire pressure telltale (tire pressure warning light)
when one or more of your tires is significantly
underinflated. Accordingly, when the low tire pressure
telltale (tire pressure warning light) illuminates, you
should stop and check your tires as soon as possible,
and inflate them to the proper pressure. Driving on a
significantly underinflated tire causes the tire to
overheat and can lead to tire failure. Underinflation
also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning
system) is not a substitute for proper tire maintenance,
and it is the driver’s responsibility to maintain correct
tire pressure, even if underinflation has not reached
the level to trigger illumination of the TPMS low tire
pressure telltale (tire pressure warning light).

STARTING AND DRIVING
302
Your vehicle has also been equipped with a TPMS
(tire pressure warning system) malfunction
indicator to indicate when the system is not
operating properly. The TPMS (tire pressure
warning system) malfunction indicator is combined
with the low tire pressure telltale (tire pressure
warning light). When the system detects a
malfunction, the telltale w ill flash for approximately
one minute and then remain continuously
illuminated. This sequenc e will continue upon
subsequent vehicle startups as long as the
malfunction exists. When the malfunction indicator
is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunction
may occur for a variety of reasons, including the
installation of replacemen t or alternate tires or
wheels on the vehicle th at prevent the TPMS (tire
pressure warning system) from functioning
properly. Always check the TPMS (tire pressure
warning system) malfunction telltale after replacing
one or more tires or wheels on your vehicle to
ensure that the replacemen t and alternate tires and
wheels allow the TPMS (t ire pressure warning
system) to continue to function properly.NOTICE
 Do not use liquid sealants for a flat tire as tire
pressure warning valve and transmitter will be
damaged.
 When the tires must be repaired or replaced, have
them repaired or replaced by your Lexus dealer or an
authorized tire dealer. The tire pressure warning
valves and transmitters will be affected by the
installation or removal of tires.

STARTING AND DRIVING
303
If the tire pressure warning light blinks...
31x609
If the tire pressure warning light blinks when the ignition
switch is turned to the “ON” position, the tire pressure
warning system is not working properly.
The system will be disabled in the following conditions:
(When the condition becomes normal, the system will work
properly.)

If tires not equipped with tire pressure warning valves and
transmitters are used.
 If the ID code on the tire pressure warning valves and
transmitters is not registered.
 If electronic devices or facilities using similar radio wave
frequencies are nearby.
 If a radio set at similar frequencies is in use in the vehicle.
If a window tint that affects the radio wave signals is
installed.
 If the tire pressure warning select switch is set to a dif ferent
tire setting.
 If there is a lot of snow or ice on the vehicle, in particular
around the wheels or wheel housings.
 If non− genuine Lexus wheels are used.
 If tire chains are used.
 If the spare tire is in a location subject to poor radio wave
signal reception.
 If the tire inflation pressure is 500 kPa (5.1 kgf/cm2
or bar,
73 psi) or higher.
If the tire pressure warning light blinks frequently when the
ignition switch is turned to the “ON” position, have it checked
by your Lexus dealer.
Even if you use genuine wheels, the tire pressure warning
system may not work properly with some types of tires.
Pushing the tire pressure warning reset switch should not turn
off the tire pressure warning light.

STARTING AND DRIVING
304For vehicles sold in U.S.A.
This device complies with
Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
 Consult the dealer or an experienced radio / TV
technician for help.
FCC WARNING:
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.

STARTING AND DRIVING
305
Replacing tires and wheels
When replacing the tires and wheels, be sure to install tire
pressure warning valves and transmitters. ID codes on the tire
pressure warning valves and transmitters are registered on the
tire pressure warning ECU. When replacing a tire pressure
warning valve and transmitter, it is necessar y to register the ID
code of tire pressure warning valve and transmitter. Have the
ID code registered by your Lexus dealer.
If the ID code is not registered, the system will not work
properly. After about 1 hour, the tire pressure warning light
blinks to indicate a system malfunction.
NOTICE
When the tires or tire pressure warning valves and
transmitters must be replaced, have them replaced by
your Lexus dealer. The tire pressure warning valves
and transmitters will be affected by the installation or
removal of tires.
Tire pressure warning reset switch
31x612
When initializing the system, the present tire inflation pressure
is stored as standard. The tire pressure warning system
determines decreased air pressure by comparing the present
and the standard tire inflation pressures. When you change
the set tire inflation pressure, it is necessary to initialize the tire
pressure warning system.
 When rotating the tires on vehicles differing with front and
rear tire inflation pressures.
 When changing the tire inflation pressure by changing
traveling speed or load weight, etc.
 When changing the tire size.

STARTING AND DRIVING
306To initialize the system, perform the following:
1. Park the vehicle in a safe place and turn the ignition switch
to the “OFF” position.
2. Adjust the pressure of all the installed tires to the specified
cold tire inflation pressure level. (See “Tire and wheels” on
page 420.)
3. Turn the ignition switch to the “ON” position.
4. Push and hold the tire pressure warning reset switch until
the tire pressure warning light blinks slowly three times.
5. Wait for a few minutes with the ignition switch “ON”, and
then turn the ignition switch to the “OFF” position.
If you push the tire pressure reset switch while the vehicle is
moving, initialization is not performed.
If you push the tire pressure reset switch accidentally and
initialization is performed, adjust the tire inflation pressure to
the specified level and initialize the system again.
31x609
If the tire pressure warning light does not blink slowly three
times when you push and hold the reset switch, initialization
has failed and the tire pressure warning system may not work
properly. In this case, initialize the system again. If
initialization
cannot be performed, have the system checked at
your Lexus dealer.
CAUTION
Do not push the reset switch without first adjusting the
tire inflation pressure to the specified level. Otherwise,
the tire pressure warning light may not come on even if
the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.

STARTING AND DRIVING
307

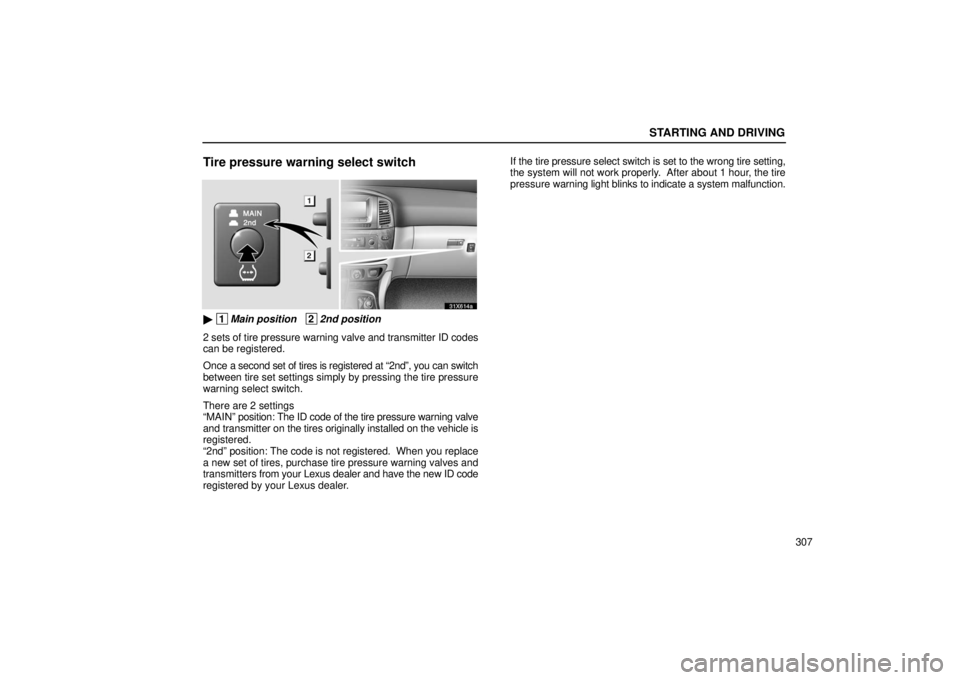

Tire pressure warning select switch
31x614a
 1Main position 22nd position
2 sets of tire pressure warning valve and transmitter ID codes
can be registered.
Once a second set of tires is registered at “2nd”, you can switch
between tire set settings simply by pressing the tire pressure
warning select switch.
There are 2 settings
“MAIN” position: The ID code of the tire pressure warning valve
and transmitter on the tires originally installed on the vehicle is
registered.
“2nd” position: The code is not registered. When you replace
a new set of tires, purchase tire pressure warning valves and
transmitters from your Lexus dealer and have the new ID code
registered by your Lexus dealer. If the tire pressure select switch is set to the wrong tire setting,
the system will not work properly. After about 1 hour, the tire
pressure
warning light blinks to indicate a system malfunction.

STARTING AND DRIVING
308
